Model Whirlpool WOS52EM4AS0 24`` BUILT-IN ELECTRIC SINGLE OVEN WITH CONVECTION – Common Parts & Diagrams
02 - CONTROL PANEL PARTS

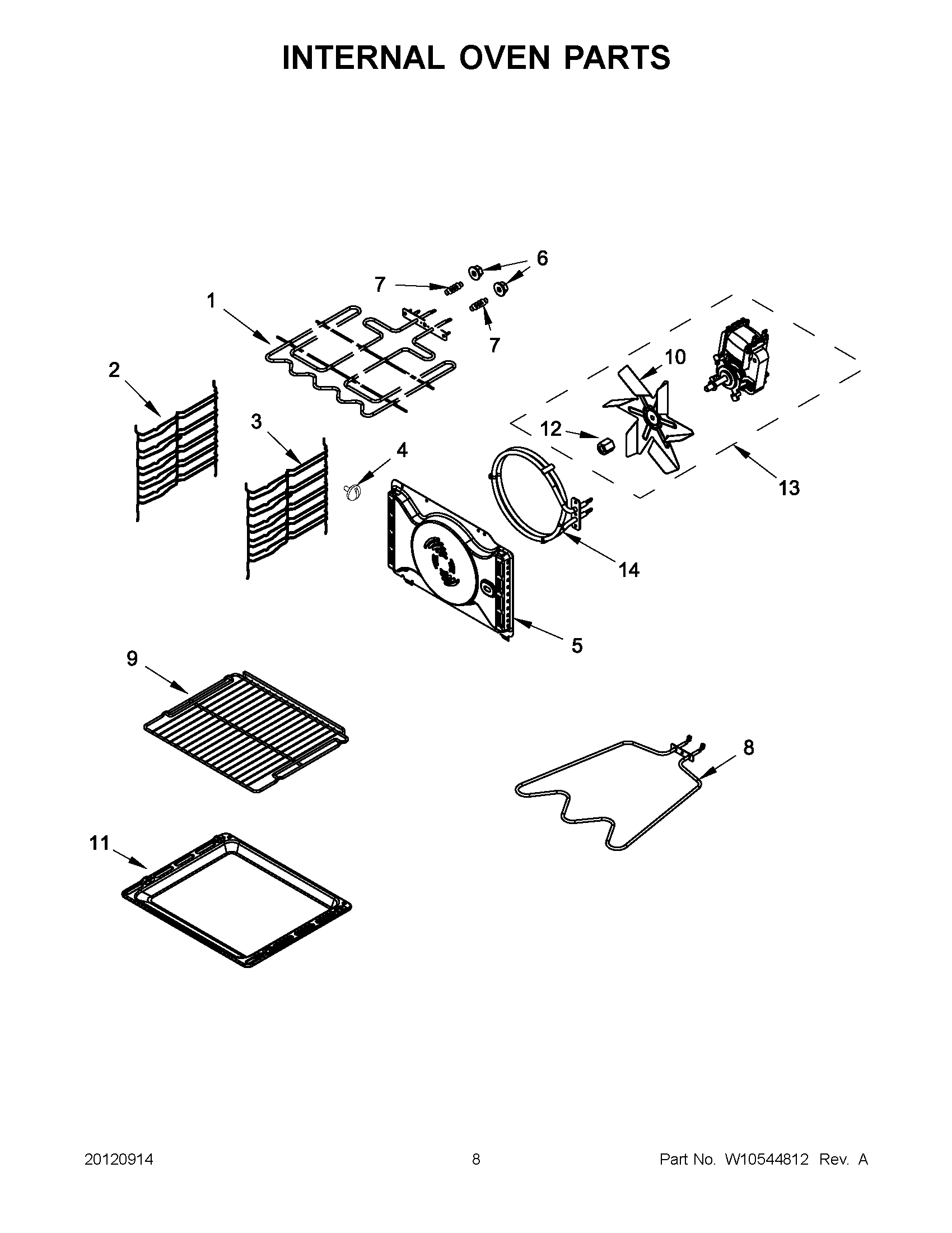

04 - INTERNAL OVEN PARTS

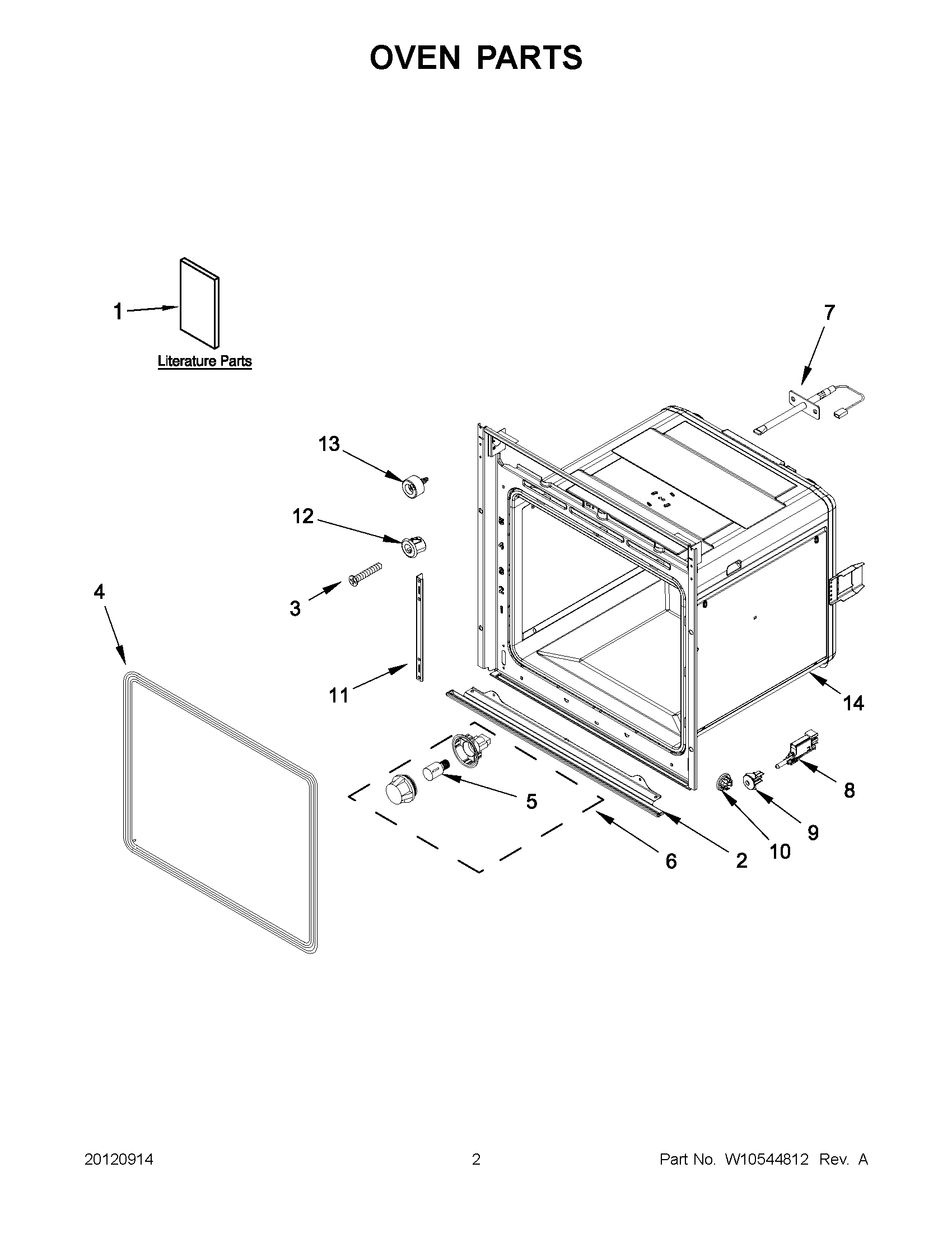

01 - OVEN PARTS

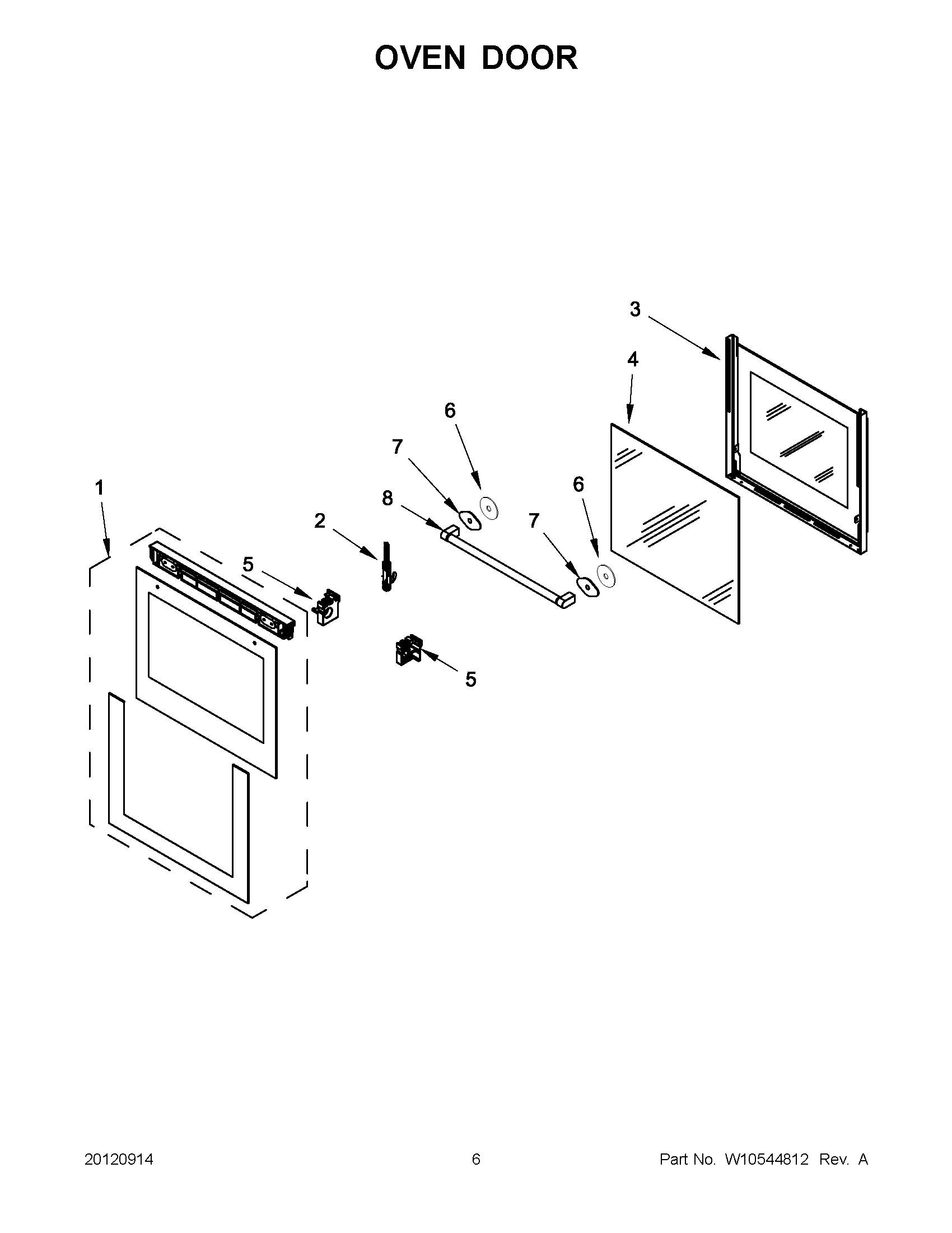

03 - OVEN DOOR
Common parts from model Whirlpool WOS52EM4AS0 24`` BUILT-IN ELECTRIC SINGLE OVEN WITH CONVECTION
1
PANEL, CONTROL GLASS AND FRAME WPL W10519058 Contact Us For Availability
1
ELEMENT, UPPER GRILL 2450 WATTS WPL W10519050 Contact Us For Availability
1
TECH SHEET WPL W10544826 Contact Us For Availability
1
INSTALLATION INSTRUCTIONS WPL W10544829 Contact Us For Availability
1
USE AND CARE GUIDE WPL W10544830 Contact Us For Availability
1
DOOR, OVEN OUTER ASSEMBLY WPL W10519056 Contact Us For Availability
2
BOARD, DISPLAY G2 EVO ANALOGUE WPL W10517934 Contact Us For Availability
2
GRID, RACK LEFT SIDE WPL W10519019 Contact Us For Availability
2
HINGE, DOOR WPL W10517973 Contact Us For Availability
3
HARNESS, DISPLAY SELECTOR SWITCH WPL W10519030 Contact Us For Availability
3
GRID, RACK RIGHT SIDE WPL W10519021 Contact Us For Availability
3
GLASS, DOOR INNER WPL W10519055 Contact Us For Availability
4
SUPPORT, PUSH BUTTON WPL W10519812 Contact Us For Availability
4
SCREW, GRID WPL W10519022 Contact Us For Availability
4
GASKET, DOOR WPL W10519051 Contact Us For Availability
4
GLASS, DOOR WPL W10519053 Contact Us For Availability
5
RING, PUSH TURN KNOB WPL W10519068 Contact Us For Availability
5
BAFFLE, CONVECTION FAN WPL W10519061 Contact Us For Availability
5
BULB, HALOGEN 40 WATT WPL W10518971 Contact Us For Availability
5
SUPPORT, DOOR GLASS WPL W10519054 Contact Us For Availability
6
BOARD, POWER ESTER WPL W10517957 Contact Us For Availability
6
NUT, UPPER ELEMENT M4 WPL 8186881 Contact Us For Availability
6
ASSEMBLY, BULB INCLUDES SOCKET AND LENS COVER WPL W10518973 Contact Us For Availability
6
WASHER, DOOR HANDLE WPL W10519057 Contact Us For Availability
7
BLOCK, TERMINAL WPL W10518946 Contact Us For Availability
7
SPRING, UPPER ELEMENT WPL W10519809 Contact Us For Availability
7
PROBE, OVEN TEMPERATURE WPL W10519097 Contact Us For Availability
8
ELEMENT, LOWER 1150 WATTS WPL W10517988 Contact Us For Availability
8
ASSEMBLY, DOOR SWITCH WPL W10519088 Contact Us For Availability
8
HANDLE, DOOR WPL W10519027 Contact Us For Availability
9
GASKET, TOP PANEL WPL 8186903 Contact Us For Availability
9
RACK, OVEN WPL W10519013 Contact Us For Availability
9
JOINT, DOOR SWITCH WPL W10519094 Contact Us For Availability
10
BLOWER, COOLING FAN WPL W10517958 Contact Us For Availability
10
PLUG, OVEN WPL W10519101 Contact Us For Availability
11
GROMMET, CABLE WPL W10518942 Contact Us For Availability
11
PAN, DEEP WPL W10519060 Contact Us For Availability
11
HINGE, RUNNING MECHANISM WPL W10517968 Contact Us For Availability
12
GASKET, CONTROL PANEL WPL W10518397 Contact Us For Availability
12
NUT WPL 8186882 Contact Us For Availability
12
BUMPER, OVEN WPL W10519817 Contact Us For Availability
13
CLAMP, CABLE WPL W10516534 Contact Us For Availability
13
MOTOR, FAN CONVECTION WPL W10517945 Contact Us For Availability
13
BUMPER, OVEN DOOR WPL W10519808 Contact Us For Availability
14
BUTTON, PUSH WPL W10519071 Contact Us For Availability
14
ELEMENT, CONVECTION 2000 WATTS WPL W10519049 Contact Us For Availability
14
LINER, OVEN (NOT SERVICEABLE) WPL NP Contact Us For Availability
15
GASKET, BLOWER MOTOR WPL W10519009 Contact Us For Availability
16
KNOB, PUSH BUTTON WPL W10519072 Contact Us For Availability
17
THERMOSTAT 285 CELCIUS WPL W10519031 Contact Us For Availability
18
FUSE, 315MA WPL W10518970 Contact Us For Availability
19
KNOB, OVEN WPL W10519074 Contact Us For Availability
20
SWITCH, OVEN 11 POSITION WPL W10519034 Contact Us For Availability
21
SWITCH, SELECTOR +/- INCREMENTAL WPL W10519035 Contact Us For Availability
× ![]()
