Model Electrolux WGF325BADA RANGE – Common Parts & Diagrams
02 - BACKGUARD

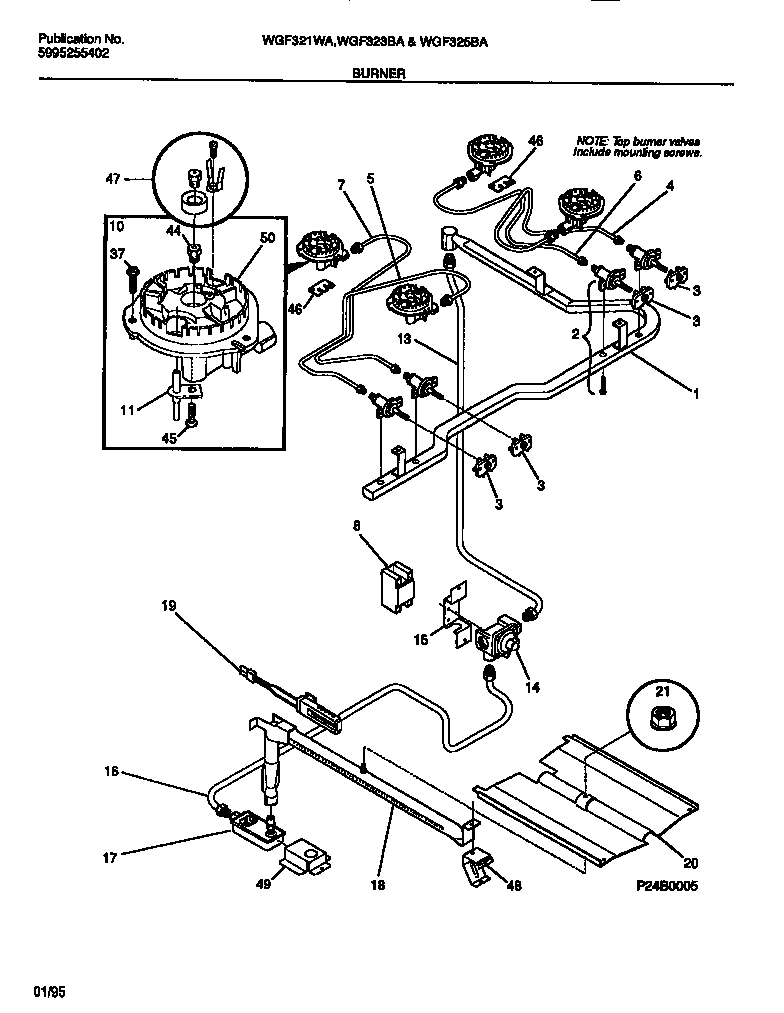

04 - BURNER

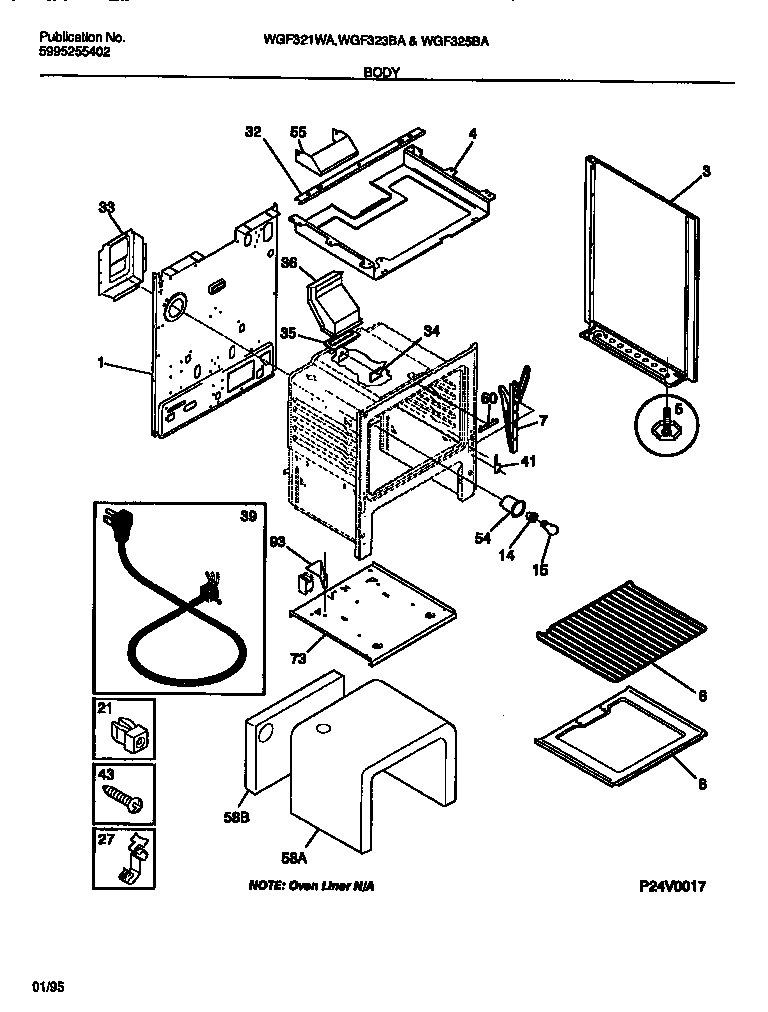

05 - BODY

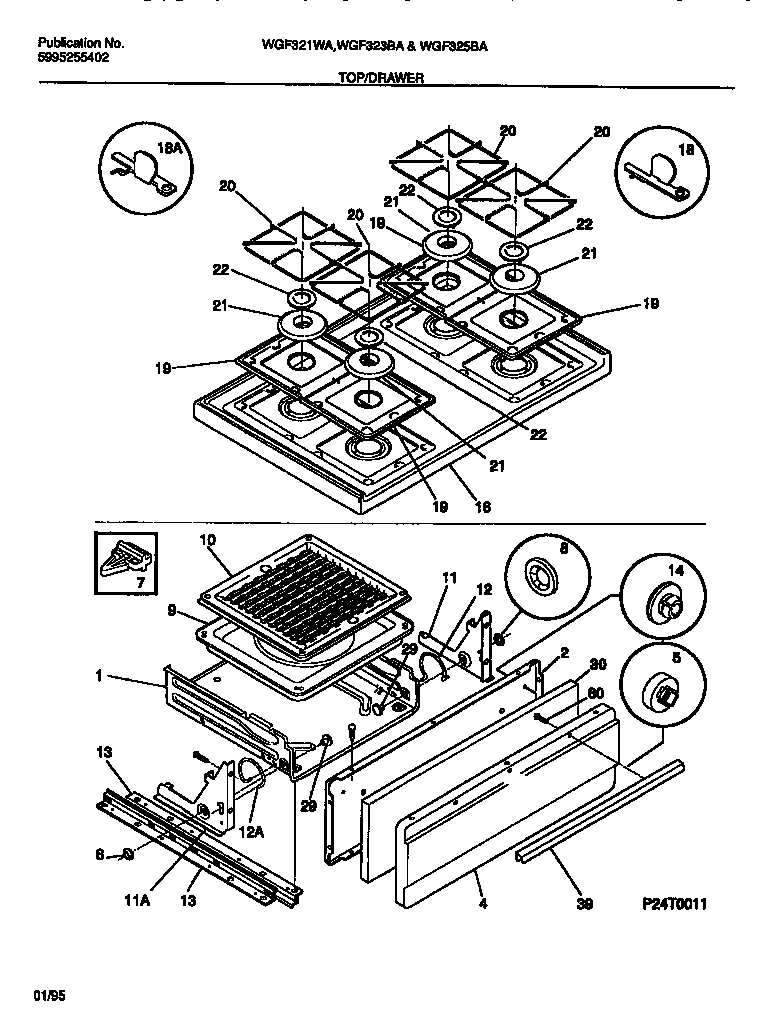

07 - TOP/DRAWER

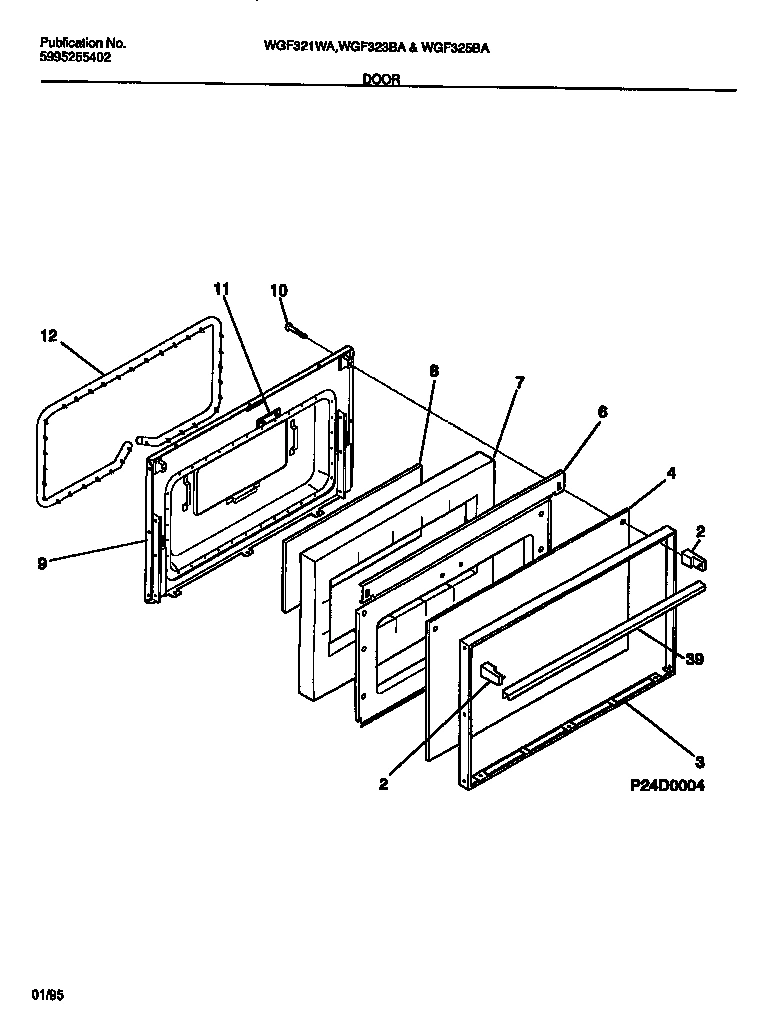

09 - DOOR

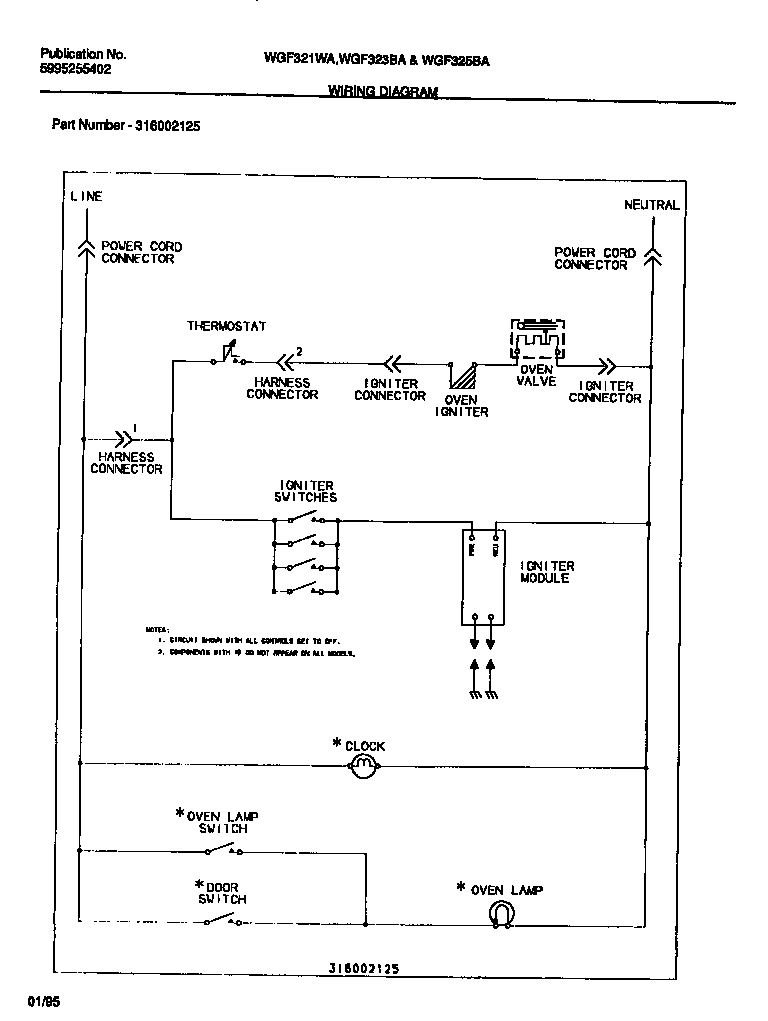

10 - WIRING DIAGRAM
Common parts from model Electrolux WGF325BADA RANGE
*87282
SHIELD - FLUE PROFILE WCI 5303280614 Contact Us For Availability
*87285
WCI 5303305325 WCI 5303305325 Contact Us For Availability
*87291
WCI 316071600 WCI 316071600 Contact Us For Availability
*87292
WCI 5303212671 WCI 5303212671 Contact Us For Availability
*87293
WCI 5303269859 WCI 5303269859 Contact Us For Availability
1
WCI 316029405 WCI 316029405 Contact Us For Availability
1
DRAWER-BROILER WCI 3018608 Contact Us For Availability
2
LINER, BROILER DOOR WCI 3202803 Contact Us For Availability
3
SWITCH-IGNITER, (4) WCI 316032000 Contact Us For Availability
3
WCI 5303269543 WCI 5303269543 Contact Us For Availability
3
WCI 5303269545 WCI 5303269545 Contact Us For Availability
3
Trim,oven door ,black WCI 316067802 Contact Us For Availability
4
SCREW, HEX WASHER HEAD, 8, 18(AB) X 1/2 (NON WCI 08067785 Contact Us For Availability
4
WCI 316011905 WCI 316011905 Contact Us For Availability
4
WCI 316056206 WCI 316056206 Contact Us For Availability
4
GLASS-OVEN DOOR, BLACK, OUTER WCI 3051152 Contact Us For Availability
5
ANTI-TIP KIT (NON-ILLUSTRATED) WCI 3934058 Contact Us For Availability
5
SCREW-LEVELING WCI 5303203397 Contact Us For Availability
5
WCI 5303288460 WCI 5303288460 Contact Us For Availability
5
FASTENER-SPACER, PUSH-IN NUT, NYLON WCI 3131387 Contact Us For Availability
6
SHIELD-INSULATION, BLACK WCI 5303210608 Contact Us For Availability
7
GLIDE-BROILER WCI 3018610 No Longer Available
7
Hinge,oven door ,(2) WCI 316007001 Contact Us For Availability
7
INSULATION, OVEN DOOR WCI 5303210607 Contact Us For Availability
8
PANEL-OVEN BOTTOM WCI 5303212540 Contact Us For Availability
8
NUT, PUSH-ON, (2) WCI 3131386 Contact Us For Availability
8
WCI 316050303 WCI 316050303 Contact Us For Availability
9
PAN-BROILER WCI 5303013568 Contact Us For Availability
9
WCI 316066603 WCI 316066603 Contact Us For Availability
10
SCREW-HANDLE MTG, WAFER HEAD, 10-24(F) X 3 WCI 5303281378 Contact Us For Availability
10
WCI 5303131356 WCI 5303131356 Contact Us For Availability
11
WCI 316066301 WCI 316066301 Contact Us For Availability
11
WCI 5303015373 WCI 5303015373 Contact Us For Availability
11A
WCI 316066300 WCI 316066300 Contact Us For Availability
12
SPRING-BROILER, RH WCI 3018619 Contact Us For Availability
12A
SPRING-BROILER, LH WCI 3018618 Contact Us For Availability
13
WCI 316065005 WCI 316065005 Contact Us For Availability
13
CHANNEL-BROILER WCI 3131153 Contact Us For Availability
14
PLUG-BUTTON, GLIDE WCI 3206216 Contact Us For Availability
16
WCI 316010409 WCI 316010409 Contact Us For Availability
16
WCI 5303271891 WCI 5303271891 Contact Us For Availability
16
WCI 5303271892 WCI 5303271892 Contact Us For Availability
18
WCI 3131439 WCI 3131439 Contact Us For Availability
18
BRACKET-HINGE,MAIN TOP RH WCI 08067747 Contact Us For Availability
18A
BRACKET-HINGE,MAIN TOP LH WCI 08067746 Contact Us For Availability
19
WCI 316011400 WCI 316011400 Contact Us For Availability
20
WCI 3203265 WCI 3203265 Contact Us For Availability
20
WCI 5303269632 WCI 5303269632 Contact Us For Availability
21
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
21
WCI 316035101 WCI 316035101 Contact Us For Availability
29
BUTTON-SELECTOR, CLOCK/TIMER, BLACK WCI 5303272305 Contact Us For Availability
29
WCI 3018614 WCI 3018614 Contact Us For Availability
30
INSULATION, BROILER DRAWER WCI 5303131258 Contact Us For Availability
33
WCI 316055601 WCI 316055601 Contact Us For Availability
34
WCI 3018607 WCI 3018607 Contact Us For Availability
36
WCI 316009010 WCI 316009010 Contact Us For Availability
36
WCI 3131904 WCI 3131904 Contact Us For Availability
39
HANDLE-DRAWER, ALMOND WCI 316019502 Contact Us For Availability
39
HANDLE-DOOR, BLACK, OVEN WCI 5303273127 Contact Us For Availability
41
WCI 3131570 WCI 3131570 Contact Us For Availability
44
ORIFICE-TOP BURNER, (4) WCI 5303210090 No Longer Available
45
WCI 316011100 WCI 316011100 Contact Us For Availability
46
WCI 5303269491 WCI 5303269491 Contact Us For Availability
47
WCI 5303286386 WCI 5303286386 Contact Us For Availability
48
Bracket,support ,oven burner WCI 3018603 Contact Us For Availability
49
BRACKET, SAFETY VALVE WCI 3131438 Contact Us For Availability
50
BURNER-TOP, (4), INCLUDES 37 WCI 5303935026 Contact Us For Availability
54
WCI 5303271606 WCI 5303271606 Contact Us For Availability
58A
INSULATION, OVEN WRAPPER WCI 3017142 Contact Us For Availability
58B
INSULATION, OVEN BACK WCI 3203541 Contact Us For Availability
60
SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/ WCI 5303281651 Contact Us For Availability
60
COVER-OVEN FRONT WCI 5303015372 Contact Us For Availability
73
WCI 5303281627 WCI 5303281627 Contact Us For Availability
93
WCI 316055501 WCI 316055501 Contact Us For Availability
× ![]()
