Model Whirlpool WG206 GAS WALL OVEN – Common Parts & Diagrams
03 - DOOR-LOWER

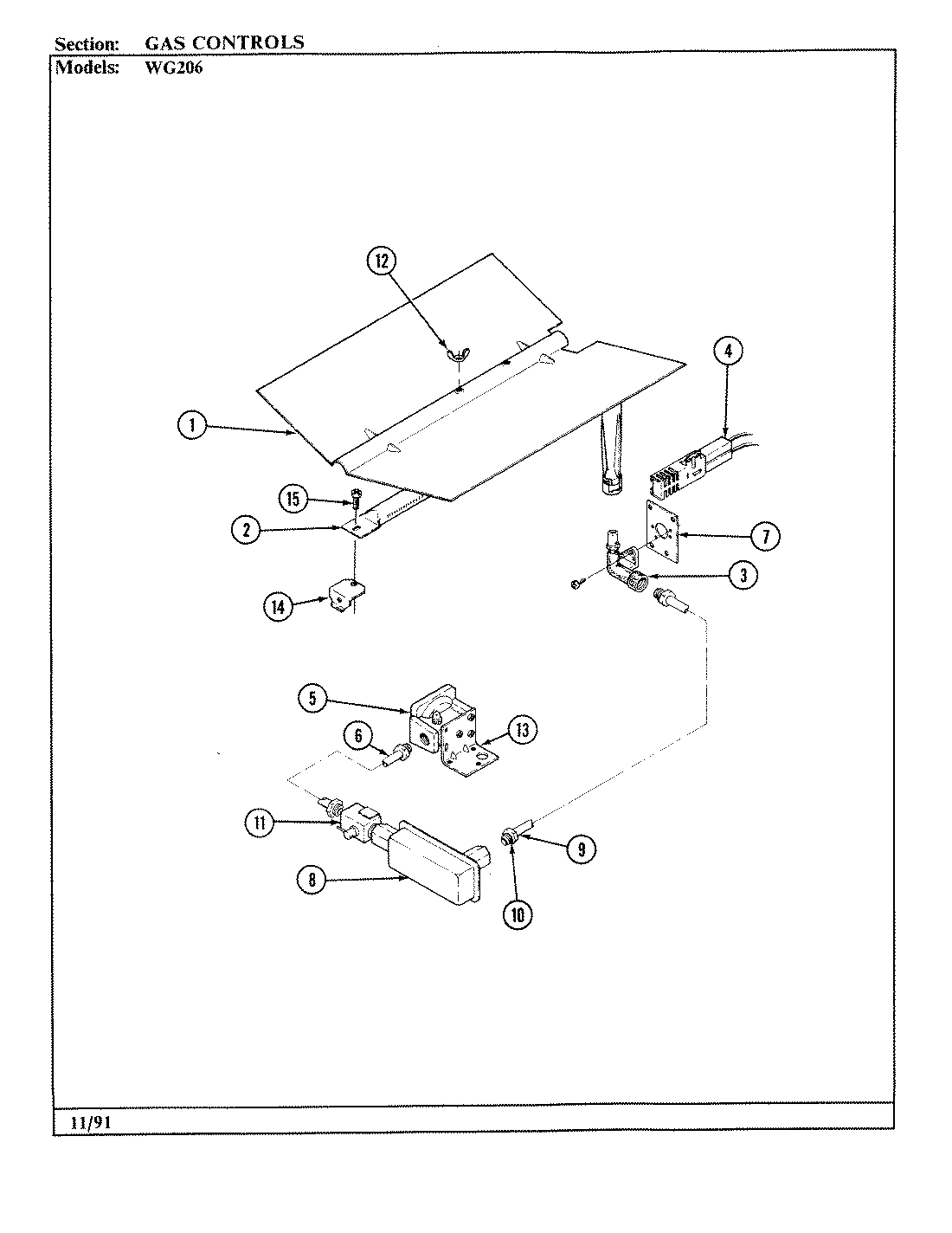

05 - GAS CONTROLS

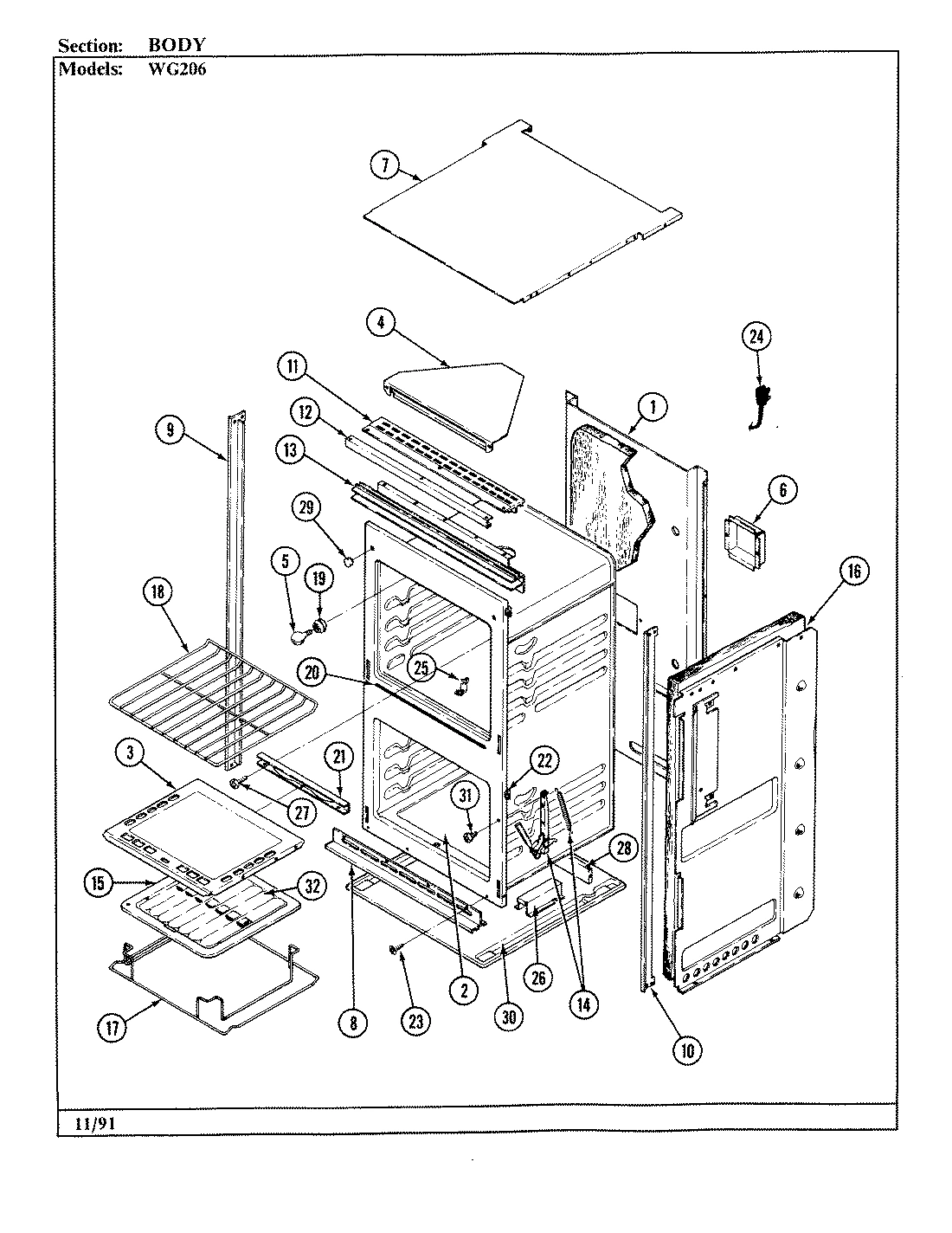

01 - BODY

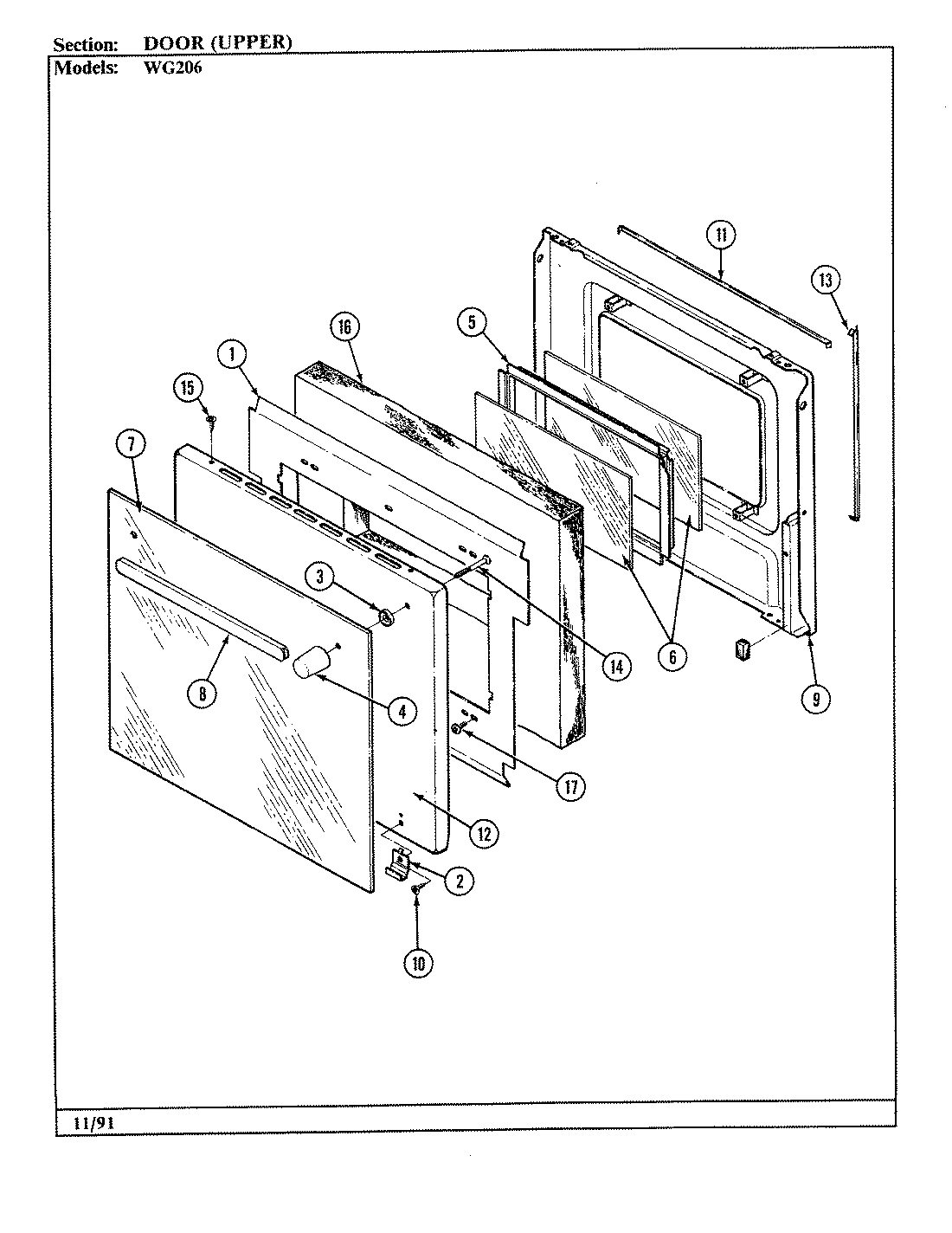

04 - DOOR-UPPER

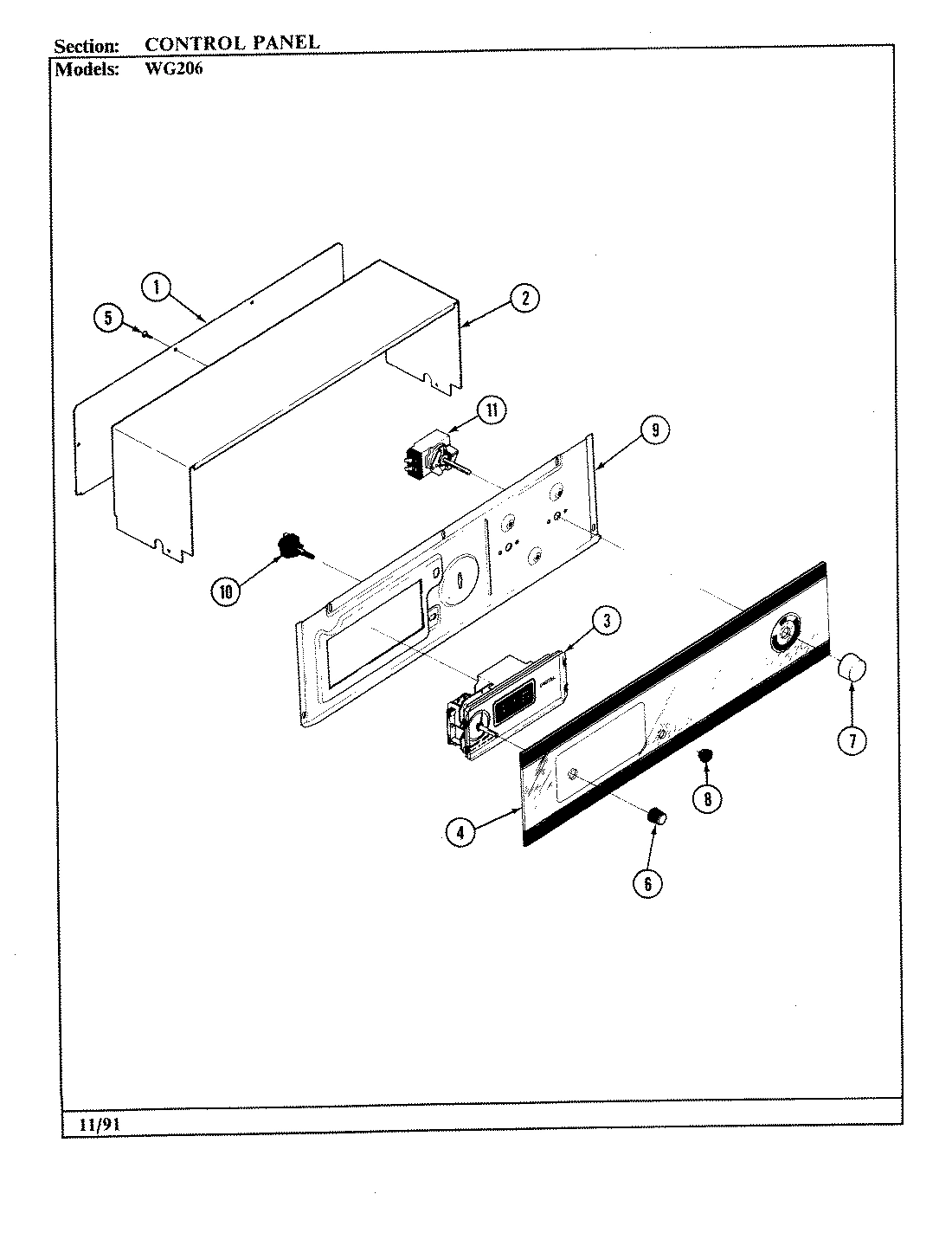

02 - CONTROL PANEL
Common parts from model Whirlpool WG206 GAS WALL OVEN
1
BAFFLE, DOOR WPL 3601F10351 Contact Us For Availability
1
BAFFLE, OVEN BURNER WPL 3601F10145 Contact Us For Availability
1
BACK, MAIN WPL 4002F04151 Contact Us For Availability
1
BAFFLE, UPPER DOOR WPL 3601F10251 Contact Us For Availability
1
COVER, REAR WIRE WPL 4005F15151 Contact Us For Availability
2
CLIP, GLASS RETAINER (BLK) WPL 3819F01070 Contact Us For Availability
2
BURNER, OVEN WPL 7505P06560 Contact Us For Availability
2
BOTTOM, OVEN LOWER WPL 2205F00515 Contact Us For Availability
2
BAFFLE WPL 3601F10945 Contact Us For Availability
2
COVER, WIRE WPL 4005F15351 Contact Us For Availability
3
SPACER, GLASS WPL 8010P01660 Contact Us For Availability
3
FITTING, BAKE BNR. WPL 7507P00860 Contact Us For Availability
3
BOTTOM, OVEN UPPER WPL 2205F00815 Contact Us For Availability
3
CLOCK WPL 7602P05560 Contact Us For Availability
4
END CAP, HANDLE (BLK) WPL 7744P00760 Contact Us For Availability
4
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
4
BLOCK WPL 7401P01860 Contact Us For Availability
4
IGNITER, BAKE WPL 7432P05160 Contact Us For Availability
4
BOX ASSY, FLUE WPL 4006W07723 Contact Us For Availability
4
GLASS, CONTROL PANEL WPL 7912P03460 Contact Us For Availability
5
FRAME, WINDOW----NA WPL 3603F01380 Contact Us For Availability
5
SCREW WPL 7101P06160 Contact Us For Availability
5
REGULATOR, PRESSURE WPL 7510P01460 Contact Us For Availability
5
REGULATOR PRESSURE WPL 7510P03660 Contact Us For Availability
5
REGULATOR, PRESSURE (NAT) WPL 7510P03760 Contact Us For Availability
5
THERMOSTAT WPL 7404P02660 Contact Us For Availability
6
GLASS, DOOR INNER WPL 7902P03560 Contact Us For Availability
6
3/8`` NUT & FERRULE WPL 1555258K Contact Us For Availability
6
TUBING WPL 3414F06744 Contact Us For Availability
6
TUBING, REGULATOR (3/8``) WPL 3414F09744 Contact Us For Availability
6
COVER WPL 4005F08880 Contact Us For Availability
6
KNOB, LT SW & CLOCK WPL 7711P25560 Contact Us For Availability
7
GLASS, DOOR SCREENED WPL 7902P25760 Contact Us For Availability
7
GLASS, DOOR LOWER WPL 7902P33860 Contact Us For Availability
7
SUPPORT WPL 3807F12234 Contact Us For Availability
7
COVER BOX WALL OVEN WPL 4005F15251 Contact Us For Availability
7
GLASS, DOOR SCREENED WPL 7902P28260 Contact Us For Availability
7
GLASS, DOOR UPPER FIRST ARTIC WPL 7902P33760 Contact Us For Availability
7
KNOB, THERMOSTAT WPL 7711P25660 Contact Us For Availability
8
HANDLE, DOOR----NA WPL 7701P07160 Contact Us For Availability
8
SCREW WPL 7101P07160 Contact Us For Availability
8
NUT 10-24 WPL 7103P07160 Contact Us For Availability
8
VALVE, BAKE WPL 7501P01860 Contact Us For Availability
8
EXTRUSION, BOTTOM (BLK) WPL 7706P15360 Contact Us For Availability
8
SLEEVE, SWITCH (BLK) WPL 7214P00760 Contact Us For Availability
9
LINING, DOOR WPL 2402W13219 Contact Us For Availability
9
TUBING, 3/8 X 31 WPL 3414F03944 Contact Us For Availability
9
EXTRUSION, SIDE-L WPL 7706P11260 Contact Us For Availability
9
EXTRUSION, SIDE-L WPL 7750P01460 Contact Us For Availability
9
EXTENSION, SIDE (LEFT) WPL 7750P02960 Contact Us For Availability
9
LINING, DOOR WPL 2402W13319 Contact Us For Availability
9
PLATE, SWITCH WPL 3605F17080 Contact Us For Availability
10
SCREW, HINGE WPL 7101P01760 Contact Us For Availability
10
NUT, LOXIT (3/8``) WPL 1555251 Contact Us For Availability
10
EXTRUSION, SIDE-R WPL 7706P11360 Contact Us For Availability
10
EXTRUSION, SIDE-R WPL 7750P01560 Contact Us For Availability
10
EXTENSION, SIDE (RIGHT) WPL 7750P03060 Contact Us For Availability
10
SWITCH, PUSH (BLK) WPL 7403P10960 Contact Us For Availability
11
SEAL, DOOR (HORIZONTAL) WPL 7212P00660 Contact Us For Availability
11
SEAL, DOOR (VERTICAL) WPL 7212P00760 Contact Us For Availability
11
VALVE, SHUT OFF WPL 7502P00260 Contact Us For Availability
11
EXTRUSION, TOP WPL 7706P11460 Contact Us For Availability
11
SCREW WPL 7101P23960 Contact Us For Availability
11
CONTROL WPL 7404P02360 Contact Us For Availability
11
THERMOSTAT WPL 7404P05960 Contact Us For Availability
12
PANEL, OVEN DOOR WPL 2401F05470 Contact Us For Availability
12
PANEL, DOOR (BLK) WPL 2401F10470 Contact Us For Availability
12
NUT, WING WPL 7103P03060 Contact Us For Availability
12
EXTRUSION, TOP FRONT WPL 7706P18560 Contact Us For Availability
12
PANEL, OVEN DOOR WPL 2401F08470 Contact Us For Availability
12
PANEL, DOOR (BLK) WPL 2401F11170 Contact Us For Availability
13
BRACKET, REGULATOR WPL 3801F11234 Contact Us For Availability
13
EXTRUSION, VENT WPL 7756P00860 Contact Us For Availability
13
EXTRUSION VENT WPL 7756P02760 Contact Us For Availability
13
SEAL, OVEN DOOR WPL 7212P00360 Contact Us For Availability
14
SCREW WPL 7101P23260 Contact Us For Availability
14
HANGER, BURNER WPL 3806F00145 Contact Us For Availability
14
HINGE, LOWER DOOR WPL 7106A01360 Contact Us For Availability
14
HINGE, UPPER DOOR WPL 7106A01560 Contact Us For Availability
14
HINGE, OVEN DOOR WPL 7106A01860 Contact Us For Availability
14
HINGE, OVEN DOOR WPL 7106A02060 Contact Us For Availability
15
SCREW WPL 7101P24260 Contact Us For Availability
15
PAN, BROIL WPL 3401F00423 Contact Us For Availability
16
INSULATION, DOOR LOWER WPL 7002P01960 Contact Us For Availability
16
PANEL, SIDE RIGHT WPL 2618F05551 Contact Us For Availability
16
PANEL, SIDE-LT WPL 2618F05651 Contact Us For Availability
16
INSULATION, DOOR WPL 7002P01560 Contact Us For Availability
17
RACK, BROIL BRIGHT CHROME WPL 7801P01660 Contact Us For Availability
17
OVEN RACK WPL 7801P03460 Contact Us For Availability
18
RACK WPL 7801P00560 Contact Us For Availability
19
RECEPT, OVEN LIGHT WPL 7408P00160 Contact Us For Availability
20
SEAL, DOOR (TOP) WPL 7212P01460 Contact Us For Availability
21
SCREW WPL 7101P05860 Contact Us For Availability
21
SUPPORT WPL 3807F02980 Contact Us For Availability
21
SUPPORT ASSY, OVEN BOTTOM WPL 5720A00215 Contact Us For Availability
22
CLIP, OVEN FRONT WPL 7112P02060 Contact Us For Availability
23
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
23
NUT, SNAP (ROUND-WHT) WPL 7103P03960 Contact Us For Availability
23
NUT, SNAP (WHT) WPL 7103P04060 Contact Us For Availability
23
NUT, SNAP WPL 7103P05160 Contact Us For Availability
24
CORD, POWER WPL 7402P01460 Contact Us For Availability
25
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
26
COVER, FUSE BOX WPL 4005F02751 Contact Us For Availability
28
SUPPORT WPL 3807F13980 Contact Us For Availability
29
BUMPER DOOR (ROUND) WPL 8003P00260 Contact Us For Availability
29
BUMPER, DOOR (SQUARE) WPL 8003P00960 Contact Us For Availability
30
BASE, WALL OVEN WPL 4003F01380 Contact Us For Availability
32
INSERT, BROIL PAN WPL 3413F00223 Contact Us For Availability
NI
INSULATION, WRAPPER WPL 7002P10760 Contact Us For Availability
NI
INSULATION, TOP & REAR WPL 7002P10960 Contact Us For Availability
× ![]()
