Model LG WFCA060R30B Fan Coil Unit_Ducted – Common Parts & Diagrams

Common parts from model LG WFCA060R30B Fan Coil Unit_Ducted

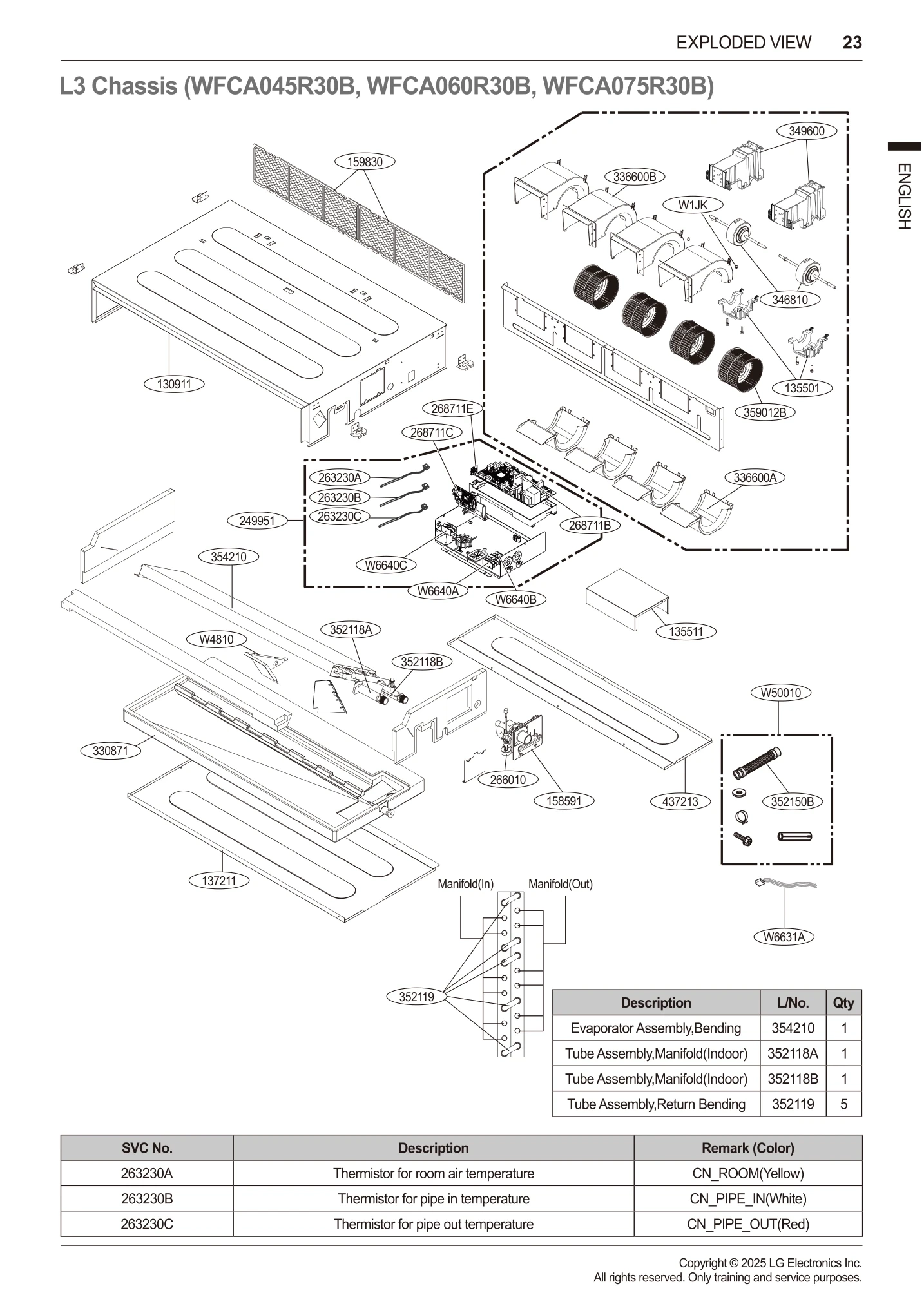

Diagram 0

Print

• This Diagram
• All Diagrams

135501

MCK69029801 LG Cover Backorder LGE MCK69029801 View Details $14.45

View on Model

135511

Cover Assembly,Control(Indoor) LGE ACQ90410707 Contact Us For Availability

View on Model

137211

Panel Assembly,Front(Indoor) LGE AGL73859101 Contact Us For Availability

View on Model

158591

Pump Assembly,Water LGE AHA76461802 Contact Us For Availability

View on Model

159830

ADQ73493501 LG Air Cleaner Filter Assembly Backorder LGE ADQ73493501 View Details $33.00

View on Model

249951

Case Assembly,Control(Indoor) LGE ABQ76600510 Contact Us For Availability

View on Model

263230A

Thermistor Assembly,NTC Backorder LGE EBG61106819 View Details $19.86

View on Model

263230B

EBG61287708 LG Thermistor Temperature Sensor In Stock LGE EBG61287708 View Details $25.61

View on Model

263230C

EBG61325803 LG Temperature Sensor Thermistor Backorder LGE EBG61325803 View Details $25.61

View on Model

266010

6601A20013P LG Switch Assembly Backorder LGE 6601A20013P View Details $63.09

View on Model

268711B

PCB Assembly,Main LGE EBR41968911 Contact Us For Availability

View on Model

268711C

PCB Assembly,Sub LGE EBR41435501 Contact Us For Availability

View on Model

268711E

PCB Assembly,Sub LGE EBR85860002 Contact Us For Availability

View on Model

330871

Pan Assembly,Drain LGE AGK73330509 Contact Us For Availability

View on Model

336600A

Housing,Wrapper LGE 3660A20059A Contact Us For Availability

View on Model

336600B

Housing,Wrapper LGE 3660A20060A Contact Us For Availability

View on Model

346810

Motor Assembly,DC,Indoor LGE 4681A20198H Contact Us For Availability

View on Model

349600

MAZ65110001 LG Bracket,Motor Backorder LGE MAZ65110001 View Details $25.61

View on Model

352118A

Tube Assembly,Manifold(Indoor) LGE AJR74844314 Contact Us For Availability

View on Model

352118B

Tube Assembly,Manifold(Indoor) LGE AJR74844315 Contact Us For Availability

View on Model

352119

3H02787A LG Air Conditioner Return Tube Bendi Backorder LGE 3H02787A View Details $3.64

View on Model

352150B

5251AP2984C LG Drain Hose Assembly Backorder LGE 5251AP2984C View Details $20.74

View on Model

354210

Evaporator Assembly,First LGE ADL74561201 Contact Us For Availability

View on Model

359012B

Fan Assembly,Blower LGE 5901A20049A Contact Us For Availability

View on Model

437213

Panel Assembly,Rear(Indoor) LGE AGL73957001 Contact Us For Availability

View on Model

W1JK

Screw,Set LGE 4H00516B Contact Us For Availability

View on Model

W4810

Bracket LGE MAZ63470401 Contact Us For Availability

View on Model

W6631A

Harness,Multi LGE EAD43354424 Contact Us For Availability

View on Model

W6640A

Connector,Terminal Block LGE 6640A90001V Contact Us For Availability

View on Model

W6640B

Connector,Terminal Block LGE 6640A90001T Contact Us For Availability

View on Model

W6640C

Connector,Terminal Block Backorder LGE EAG38884444 View Details $19.86

View on Model

W50010

Accessory Assembly LGE AAA30041501 Contact Us For Availability

View on Model

×
