Model Maytag WEG515S0FW2 RANGE/OVEN, GAS, SLIDE-IN, 30 INCH – Common Parts & Diagrams

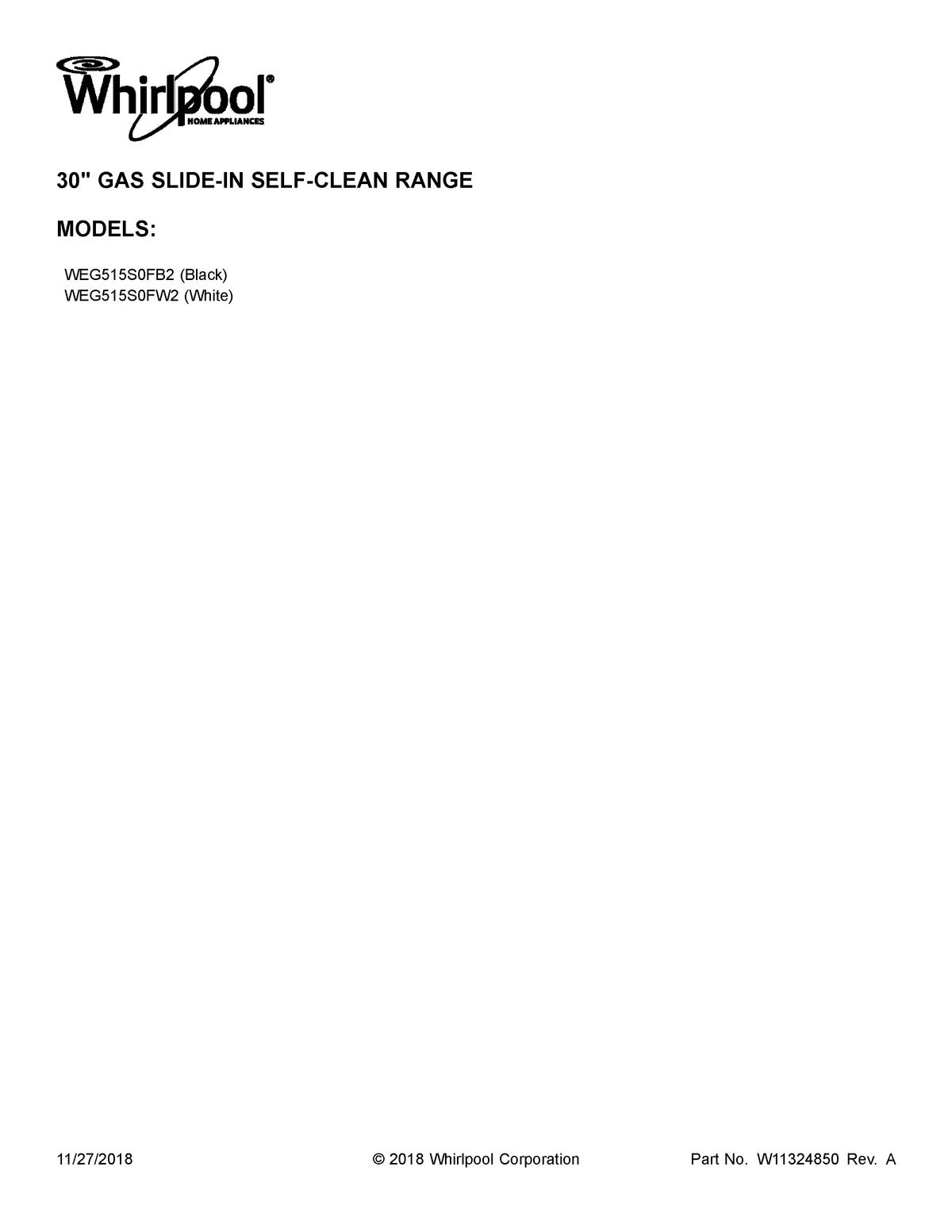

01 - COVER SHEET

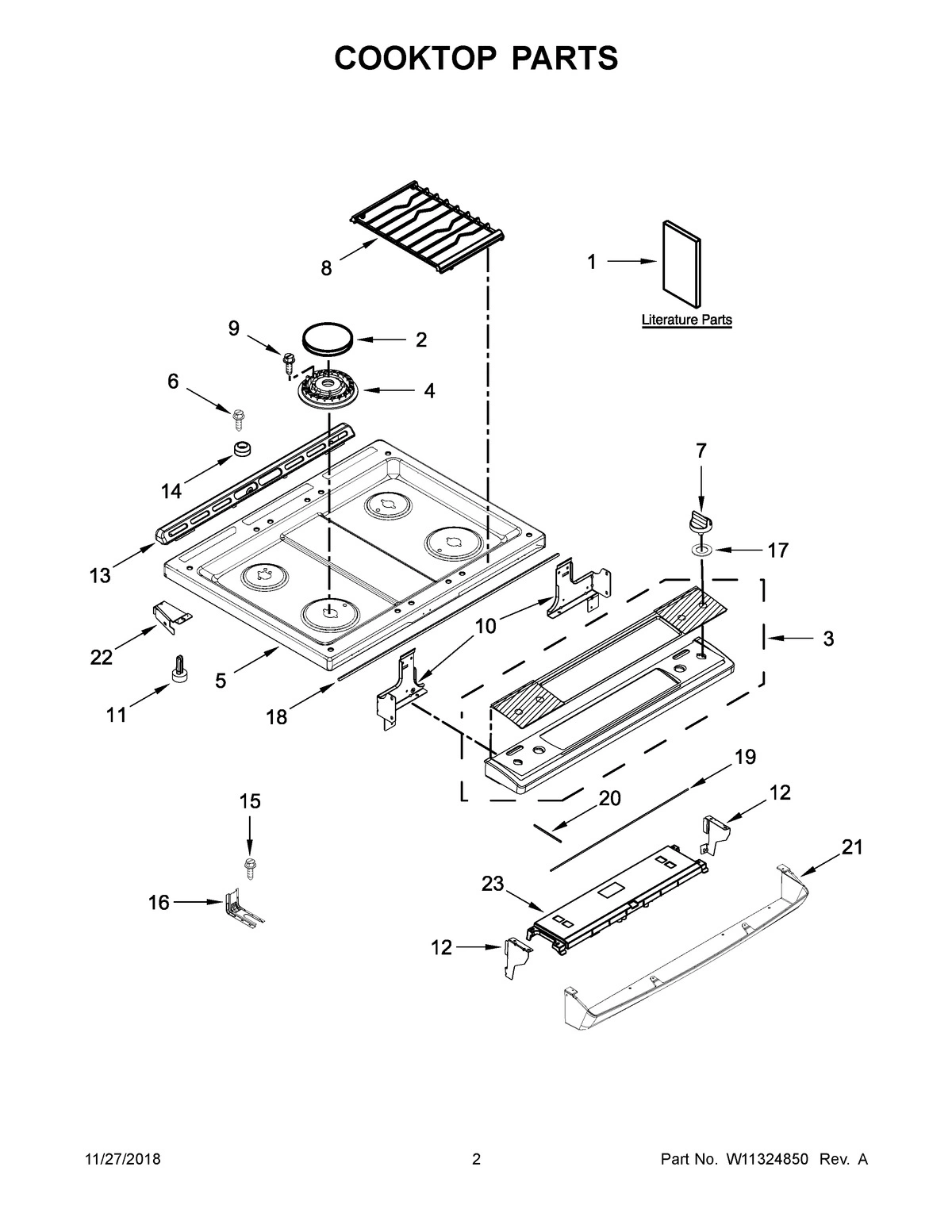

02 - COOKTOP PARTS

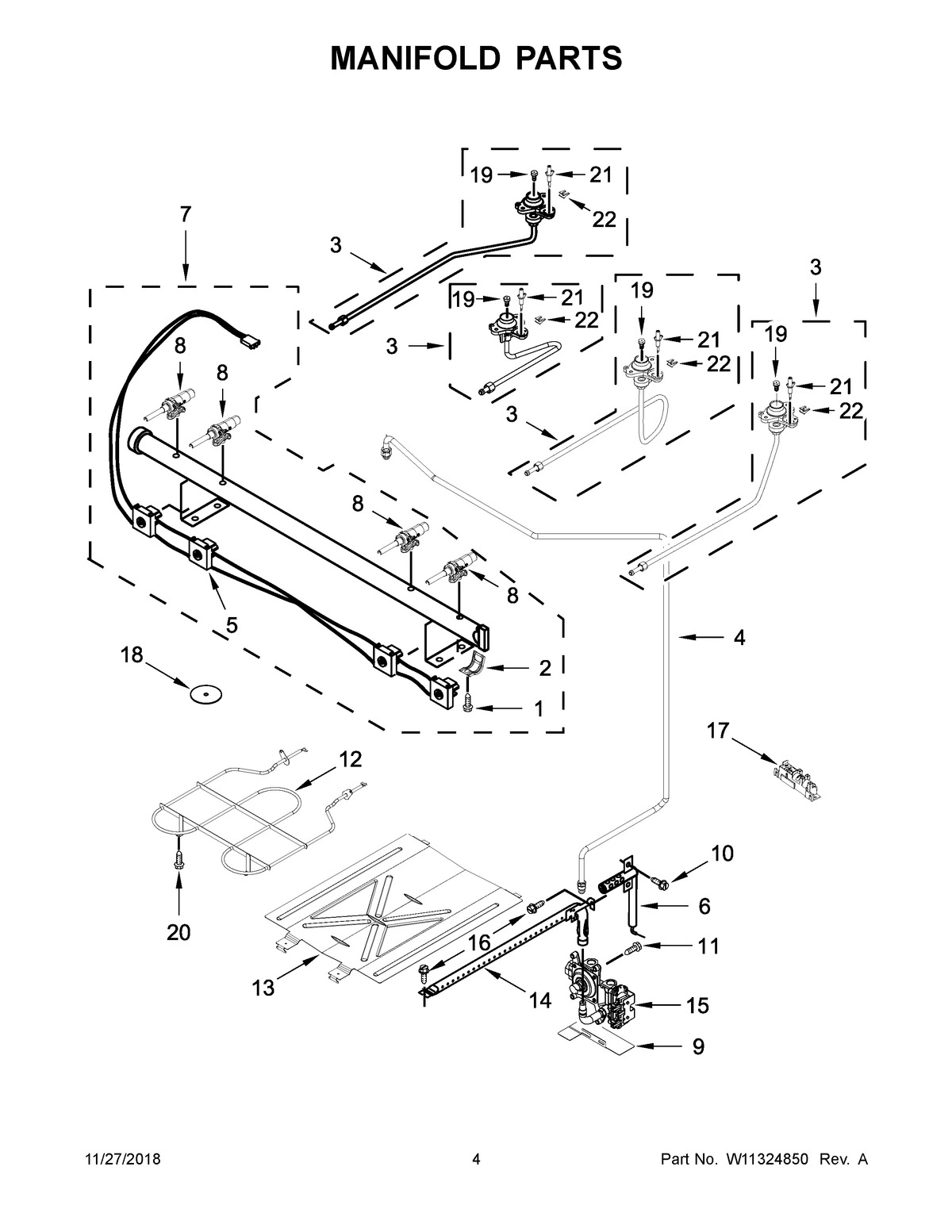

03 - MANIFOLD PARTS

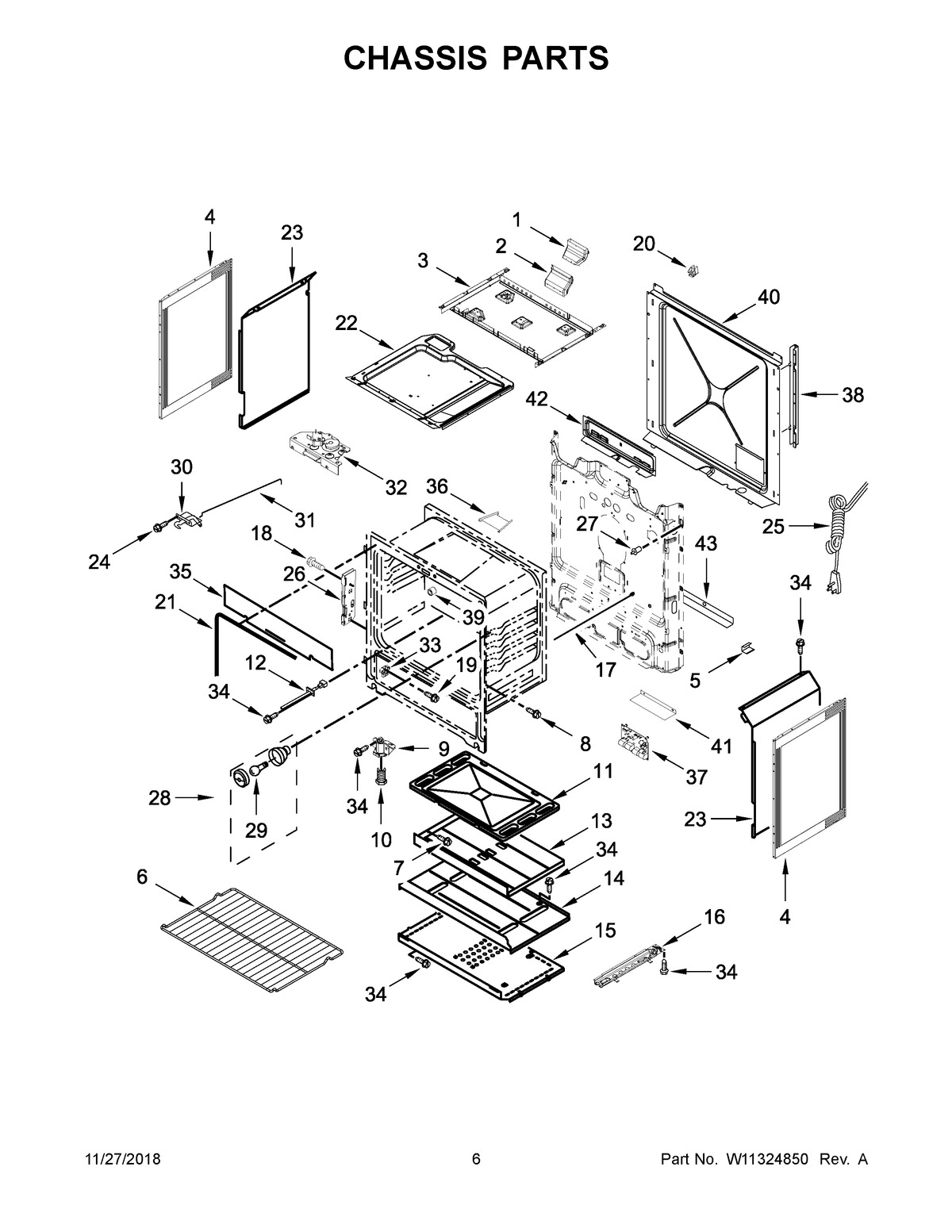

04 - CHASSIS PARTS

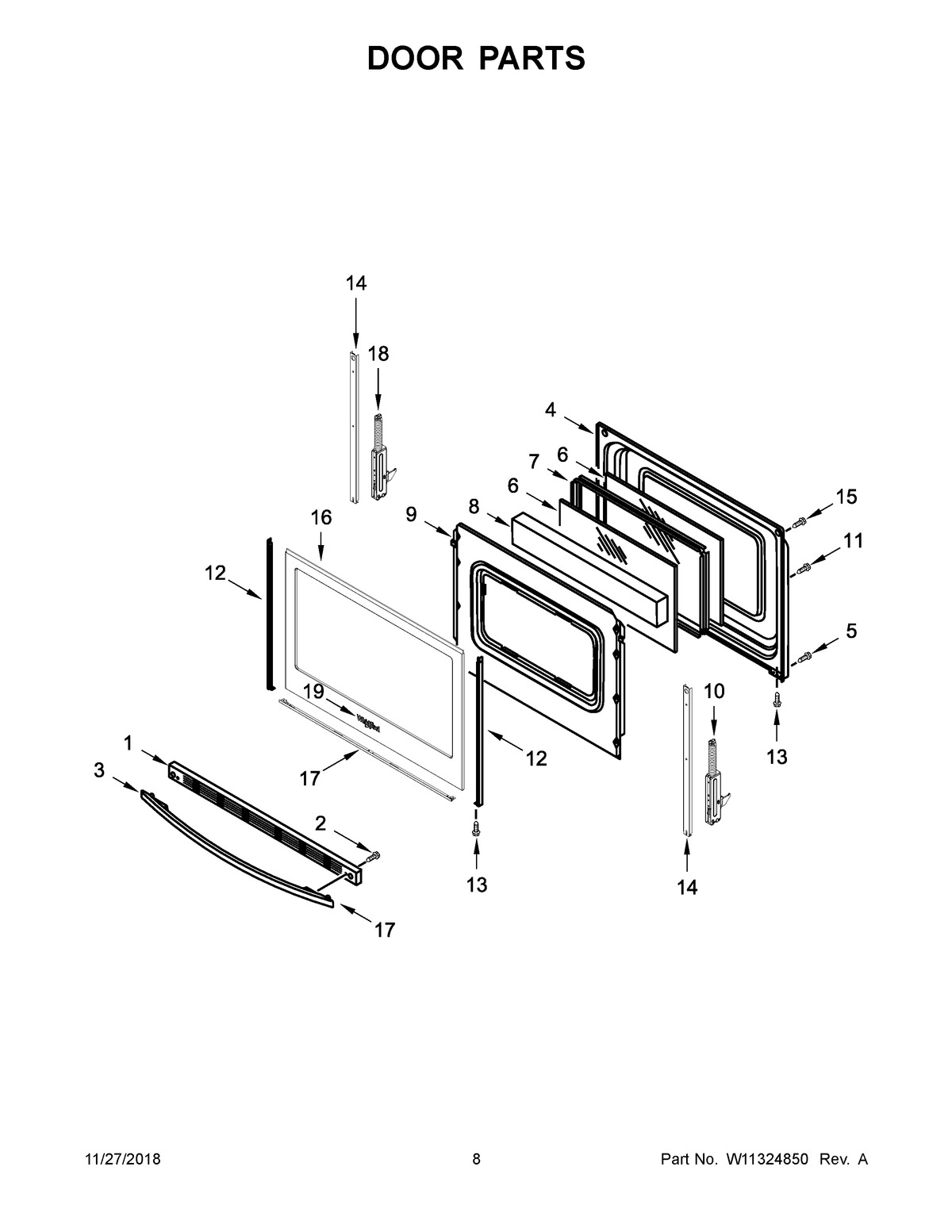

05 - DOOR PARTS

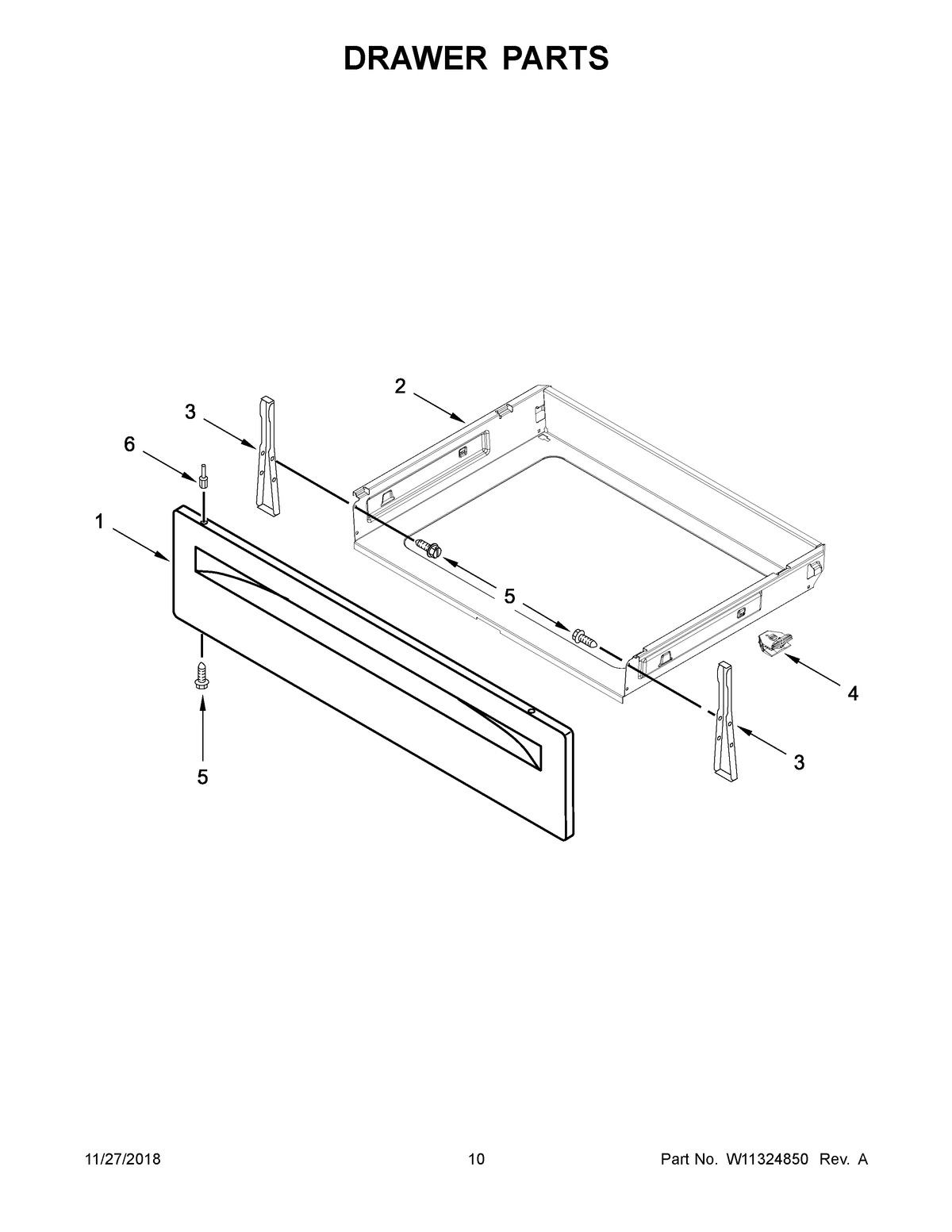

06 - DRAWER PARTS
07 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag WEG515S0FW2 RANGE/OVEN, GAS, SLIDE-IN, 30 INCH
1
INSTRUCTIONS, INSTALLATION MAY W11124015 Contact Us For Availability
1
SCREW MAY W10246216 Contact Us For Availability
1
ADAPTER, FLUE ASSEMBLY MAY W10814257 Contact Us For Availability
1
TRIM, TOP (BLACK) MAY W10310922 Contact Us For Availability
1
PANEL, DRAWER FRONT (BLACK) MAY W11123976 Contact Us For Availability
1A
GUIDE, USE AND CARE MAY W11124019 Contact Us For Availability
1A
TRIM, TOP (WHITE) MAY W10310920 Contact Us For Availability
1A
PANEL, DRAWER FRONT (WHITE) MAY W11123977 Contact Us For Availability
1B
SHEET, TECH MAY W10842031 Contact Us For Availability
1C
DIAGRAM, WIRING MAY W10850074 Contact Us For Availability
2
KIT, BURNER CAP (SET OF 4) (BLACK) MAY W10825883 Contact Us For Availability
2
BRACKET, SADDLE VALVE MAY W10295996 Contact Us For Availability
2
ASSEMBLY, FLUE MAY W10614920 Contact Us For Availability
2
SCREW MAY W10465148 Contact Us For Availability
2
DRAWER, STORAGE MAY W10688022 Contact Us For Availability
3
CONSOLE (BLACK) MAY W10547076 Contact Us For Availability
3
ASSEMBLY, ORIFICE HOLDER (9.5K) (LEFT REAR) MAY W10827780 Contact Us For Availability
3
BURNER, BOX GAS MAY W10558276 Contact Us For Availability
3
HANDLE, DOOR (BLACK) MAY W10300490 Contact Us For Availability
3
BRACKET, MOUNTING MAY W10462911 Contact Us For Availability
3A
CONSOLE (WHITE) MAY W10851003 Contact Us For Availability
3A
ASSEMBLY, ORIFICE HOLDER (15K) (LEFT FRONT) MAY W10827775 Contact Us For Availability
3A
HANDLE, DOOR (WHITE) MAY W10300489 Contact Us For Availability
3B
ASSEMBLY, ORIFICE HOLDER (15K) (RIGHT FRONT) MAY W10827777 Contact Us For Availability
3C
ASSEMBLY, ORIFICE HOLDER (5K) (RIGHT REAR) MAY W10827779 Contact Us For Availability
4
SPREADER, FLAME (LEFT FRONT & RIGHT FRONT) MAY W10732322 Contact Us For Availability
4
TUBING (MANIFOLD TO REGULATOR) MAY W10804030 Contact Us For Availability
4
PANEL, SIDE (BLACK) MAY W10162245 Contact Us For Availability
4
LINER, DOOR MAY 9761344 Contact Us For Availability
4
GLIDE, DRAWER REAR MAY W10674708 Contact Us For Availability
4A
SPREADER, FLAME (LEFT REAR) MAY W10732319 Contact Us For Availability
4A
PANEL, SIDE (WHITE) MAY W10575396 Contact Us For Availability
4B
SPREADER, FLAME (RIGHT REAR) MAY W10732320 Contact Us For Availability
5
COOKTOP (BLACK) MAY W10797930 Contact Us For Availability
5
HARNESS, SWITCH MAY W10834787 Contact Us For Availability
5
CLIP, PANEL MAY W10137382 Contact Us For Availability
5
SCREW MAY W10031780 Contact Us For Availability
5
SCREW MAY 3196178 Contact Us For Availability
5A
COOKTOP (WHITE) MAY W10797931 Contact Us For Availability
6
ELECTRODE, BAKE MAY 9758079 Contact Us For Availability
6
GLASS, INNER MAY 9758162 Contact Us For Availability
6
RIVET, PUSH (BLACK) MAY 3196813 Contact Us For Availability
6A
RIVET, PUSH (WHITE) MAY 3196814 Contact Us For Availability
7
SCREW MAY 3196169 Contact Us For Availability
7
KNOB (BLACK) MAY W10850031 Contact Us For Availability
7
ASSEMBLY, MANIFOLD MAY W10902173 Contact Us For Availability
7
FRAME, GLASS MAY W10316950 Contact Us For Availability
7A
KNOB (WHITE) MAY W10850032 Contact Us For Availability
8
KIT, GRATE (SET OF 2) (BLACK) MAY W10823483 Contact Us For Availability
8
VALVE, GAS (LEFT REAR) MAY W10901556 Contact Us For Availability
8
SCREW MAY W10067840 Contact Us For Availability
8
INSULATION, DOOR STRIP MAY W10278991 Contact Us For Availability
8A
VALVE, GAS (LEFT FRONT & RIGHT FRONT) MAY W10901555 Contact Us For Availability
8B
VALVE, GAS (RIGHT REAR) MAY W10901554 Contact Us For Availability
9
SCREW MAY 3196173 Contact Us For Availability
9
BRACKET, AEGIS MAY W10224921 Contact Us For Availability
9
ASSEMBLY, FRONT FOOT MAY W10341186 Contact Us For Availability
9
RETAINER, INSULATION MAY 9761357 Contact Us For Availability
10
SUPPORT, COOKTOP (LEFT) MAY W10814303 Contact Us For Availability
10
SCREW MAY 3196385 Contact Us For Availability
10
FOOT, LEVELING MAY W10058460 Contact Us For Availability
10
HINGE, DOOR (ACTIVE) MAY W10388635 Contact Us For Availability
10A
SUPPORT, COOKTOP (RIGHT) MAY W10814304 Contact Us For Availability
10B
BRACKET, CONSOLE (CENTER) MAY W10814305 Contact Us For Availability
11
GLIDE, MAIN TOP MAY 8016P022-60 Contact Us For Availability
11
SCREW MAY 3400080 Contact Us For Availability
11
BOTTOM, OVEN MAY 3195097 Contact Us For Availability
11
SCREW MAY W10031790 Contact Us For Availability
12
BRACKET, CONSOLE (LEFT) MAY W10547960 Contact Us For Availability
12
ELEMENT, BROILER MAY W10714060 Contact Us For Availability
12
SENSOR MAY W10586204 Contact Us For Availability
12
TRIM, DOOR (BLACK (LEFT)) MAY W10746436 Contact Us For Availability
12A
BRACKET, CONSOLE (RIGHT) MAY W10547961 Contact Us For Availability
12A
TRIM, DOOR (BLACK (RIGHT)) MAY W10746435 Contact Us For Availability
12B
TRIM, DOOR (WHITE (LEFT)) MAY 8523172 Contact Us For Availability
12C
TRIM, DOOR (WHITE (RIGHT)) MAY 8523166 Contact Us For Availability
13
TRIM, VENT (BLACK) MAY W10577781 Contact Us For Availability
13
SPREADER, FLAME (OVEN) MAY W10184491 Contact Us For Availability
13
BAFFLE, BURNER OVEN MAY 8053967 Contact Us For Availability
13
SCREW MAY W10327235 Contact Us For Availability
13A
TRIM, VENT (WHITE) MAY W10577780 Contact Us For Availability
14
BUMPER MAY W10854253 Contact Us For Availability
14
BURNER, BAKE MAY 9758078 Contact Us For Availability
14
SHIELD, HEAT MAY 8053969 Contact Us For Availability
14
STRAP, DOOR MAY W10544179 Contact Us For Availability
15
SCREW, ANTI-TIP KIT MAY 7101P485-60 Contact Us For Availability
15
REGULATOR MAY W10818355 Contact Us For Availability
15
SHIELD, LOWER MAY 8053968 Contact Us For Availability
15
SCREW MAY W10200660 Contact Us For Availability
16
BRACKET, ANTI-TIP MAY W10606241 Contact Us For Availability
16
ASSEMBLY, BASE RAIL (LEFT) MAY W10390008 Contact Us For Availability
16
GLASS, OUTER DOOR (BLACK) MAY W10884159 Contact Us For Availability
16A
ASSEMBLY, BASE RAIL (RIGHT) MAY W10390007 Contact Us For Availability
16A
GLASS, OUTER DOOR (WHITE) MAY W10409945 Contact Us For Availability
17
BUSHING (BLACK) MAY W10739036 Contact Us For Availability
17
MODULE, SPARK MAY W10110488 Contact Us For Availability
17
ROD, DOOR SWITCH MAY 9757239 Contact Us For Availability
17
TRIM, LOWER DOOR (BLACK) MAY 8523177 Contact Us For Availability
17A
TRIM, LOWER DOOR (WHITE) MAY 8523175 Contact Us For Availability
18
GASKET, CONSOLE/COOKTOP MAY W10612719 Contact Us For Availability
18
SEAL, SWITCH SHAFT MAY W10140571 Contact Us For Availability
18
HINGE, DOOR (ACTIVE) MAY W10440013 Contact Us For Availability
19
GASKET, CONSOLE MAY W10689101 Contact Us For Availability
19
ORIFICE (LEFT FRONT, RIGHT FRONT) MAY W10849717 Contact Us For Availability
19
SCREW MAY W10379120 Contact Us For Availability
19
BADGE (GREY) MAY W10481433 Contact Us For Availability
19A
ORIFICE (RIGHT REAR) MAY W10849714 Contact Us For Availability
19A
BADGE (WHITE) MAY W10481434 Contact Us For Availability
19B
ORIFICE (LEFT REAR) MAY W10849719 Contact Us For Availability
20
GASKET, CONSOLE SHORT MAY W10689102 Contact Us For Availability
20
SCREW MAY W10362924 Contact Us For Availability
20
CLIP-PANEL, RATCHETING MAY W10866583 Contact Us For Availability
21
CONSOLE, LOWER PANEL (BLACK) MAY W10816943 Contact Us For Availability
21
ELECTRODE, BURNER (LEFT FRONT) MAY W10669526 Contact Us For Availability
21
SEAL, DOOR MAY W10658354 Contact Us For Availability
21A
CONSOLE, LOWER PANEL (WHITE) MAY W10816942 Contact Us For Availability
21A
ELECTRODE, BURNER (LEFT REAR) MAY W10669525 Contact Us For Availability
21B
ELECTRODE, BURNER (RIGHT FRONT) MAY W10669524 Contact Us For Availability
21C
ELECTRODE, BURNER (RIGHT REAR) MAY W10669523 Contact Us For Availability
22
BRACE, CORNER (LEFT) MAY W10162253 Contact Us For Availability
22
SPRING, ELECTRODE MAY W10827923 Contact Us For Availability
22
CHASSIS, SUPPORT UPPER MAY W10814301 Contact Us For Availability
22A
BRACE, CORNER (RIGHT) MAY W10162252 Contact Us For Availability
23
ELECTRONIC, CONTROL (LCX) MAY W11204499 Contact Us For Availability
23
RETAINER, INSULATION (LEFT) MAY 9761449 Contact Us For Availability
23A
RETAINER, INSULATION (RIGHT) MAY 9761448 Contact Us For Availability
24
SCREW MAY 3196560 Contact Us For Availability
25
CORD, POWER MAY W10624590 Contact Us For Availability
26
RECEIVER, HINGE MAY W10289077 Contact Us For Availability
27
SWITCH, DOOR MAY W10627802 Contact Us For Availability
28
ASSEMBLY, LIGHT MAY W10454648 Contact Us For Availability
30
ASSEMBLY, DOOR LATCH (FRONT) MAY 9761013 Contact Us For Availability
31
ROD, PUSH LATCH MAY W10078370 Contact Us For Availability
32
ASSEMBLY, DOOR LATCH (REAR) MAY W10107820 Contact Us For Availability
33
GLIDE, DRAWER FRONT MAY W10674705 Contact Us For Availability
35
CHASSIS, UPPER INSULATION MAY W10848443 Contact Us For Availability
36
BAFFLE, UPPER CHASSIS MAY W10853400 Contact Us For Availability
37
MODULE, SPARK MAY W10818365 Contact Us For Availability
38
CHANNEL, REAR MAY W10162241 Contact Us For Availability
39
SPACER, DOOR MAY 9758701 Contact Us For Availability
40
COVER, BACK MAY W10289172 Contact Us For Availability
41
GUARD, SPLASH MAY W11206138 Contact Us For Availability
42
WIRE, COVER MAY W10818356 Contact Us For Availability
43
BRACE, MAIN BACK MAY W10435470 Contact Us For Availability
NI
CLIP, HARNESS MAY 313438 Contact Us For Availability
NI
CLIP, WIRE MAY 3196520 Contact Us For Availability
NI
CLAMP, WIRE MAY 7111P017-60 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
WIRE, GROUND MAY W10580229 Contact Us For Availability
NI
HARNESS, MAIN MAY W10800475 Contact Us For Availability
NI
HARNESS, BAKE/BROIL MAY W10800478 Contact Us For Availability
NI
HARNESS, CONSOLE MAY W10817974 Contact Us For Availability
NI
TIE, MANIFOLD WIRE MAY W10182767 Contact Us For Availability
NI
SPUDS, LP GAS MAY W10838118 Contact Us For Availability
NI
ORIFICE, LP BAKE MAY W10838304 Contact Us For Availability
NI
ACCESSORY PARTS, RACK, OVEN MAY W10268578 Contact Us For Availability
NI
CLIP, WIRE MAY 3196896 Contact Us For Availability
NI
INSULATION, BACK MAY W10815344 Contact Us For Availability
NI
INSULATION, WRAP MAY W10818362 Contact Us For Availability
NI
INSULATION (2-1/2" X 22" X 120") MAY 240132 Contact Us For Availability
NI
REFINISHING MATERIAL, OVEN LINER TOUCH UP PAI MAY 242756 Contact Us For Availability
NI
INSULATION (1-1/2" X 24" X 120") MAY 261514 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BLACK) MAY 285006 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, BULK (1 QT. BISCUIT/BISQUE) MAY 4392900 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BISCUIT/BISQU MAY 4392901 Contact Us For Availability
NI
ACCESSORY PARTS, GRIDDLE MAY 4396096RB Contact Us For Availability
NI
ACCESSORY PARTS, GRID, BROILER PAN AND MAY 4396923 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ MAY 511873 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
ACCESSORY PARTS, RACK, BROILER PAN & ROASTING MAY W10123240 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANER, STAINLESS STEEL MAY W10355016 Contact Us For Availability
× ![]()
