Model Whirlpool WDT550SAPZ0 DISHWASHER – Common Parts & Diagrams

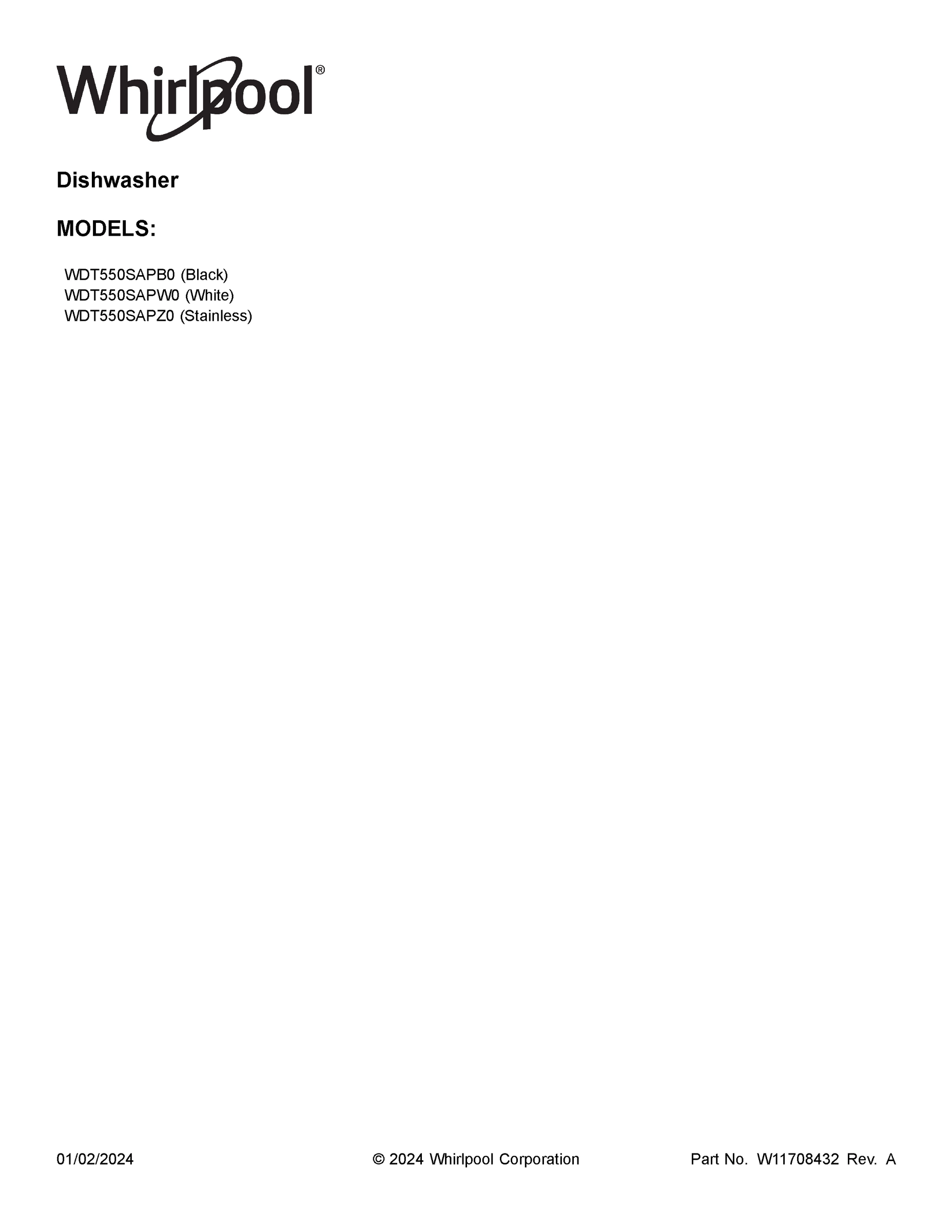

01 - COVER SHEET
02 - DOOR AND PANEL PARTS
03 - CONTROL PANEL AND INNER DOOR PARTS
04 - TUB AND FRAME PARTS
05 - PUMP, WASHARM AND MOTOR PARTS
06 - UPPER WASH AND RINSE PARTS
07 - UPPER RACK AND TRACK PARTS
08 - LOWER RACK PARTS
09 - THIRD LEVEL RACK AND TRACK PARTS
Common parts from model Whirlpool WDT550SAPZ0 DISHWASHER
1
TUB (NOT SERVICED) WPL ARIA17CA5C5D5FD35750732AA32B1D13FC1 Contact Us For Availability
1
FEED TUBE ASSEMBLY WPL W11668593 Contact Us For Availability
1
DISHRACK, UPPER WPL W11521613 Contact Us For Availability
1
DISHRACK, LOWER WPL W11543671 Contact Us For Availability
1
RACK, THIRD LEVEL WPL W11603517 Contact Us For Availability
2
ARM, HINGE (LEFT HAND) WPL W11507818 Contact Us For Availability
2
WIRING HARNESS, INNER DOOR WPL W11545948 Contact Us For Availability
2
PAD, TUB SUPPORT WPL W11671752 Contact Us For Availability
2
MOTOR, PUMP WPL W11630725 Contact Us For Availability
2
RETAINER, DOCKING (2ND LEVEL) WPL W11522213 Contact Us For Availability
2
TRACK, DISHRACK WPL W10884045 Contact Us For Availability
2
WHEEL & TRANSPORT ASSEMBLY WPL W11543733 Contact Us For Availability
2A
ARM, HINGE (RIGHT HAND) WPL W11507890 Contact Us For Availability
3
CROSS BRACE, DOOR WPL W11126789 Contact Us For Availability
3
SCREW WPL W10941960 Contact Us For Availability
3
SUMP (INCLUDES SEAL) WPL W11560668 Contact Us For Availability
3
SPRAYARM, THIRD LEVEL WPL W11522201 Contact Us For Availability
3
SILVERWARE BASKET ASSEMBLY WPL W11629678 Contact Us For Availability
4
NUT, AIR BREAK WPL W11236521 Contact Us For Availability
4
DRAIN VENT ASSEMBLY WPL W11559823 Contact Us For Availability
4
UPPER SPRAYARM ASSEMBLY WPL W11392059 Contact Us For Availability
4
TRACK STOP, REAR WPL W11315116 Contact Us For Availability
4
UTENSIL BASKET (REAR) WPL W11634637 Contact Us For Availability
5
PANEL, MAIN ACCESS (BLACK) WPL W11625157 Contact Us For Availability
5
STRIKE, LATCH WPL W11314779 Contact Us For Availability
5
DIFFUSER, INLET WPL W11560657 Contact Us For Availability
5
COVER, DIVERTER WPL W11602500 Contact Us For Availability
5
UTENSIL BASKET (FRONT) WPL W11634635 Contact Us For Availability
5A
ADJUSTMENT ASSEMBLY (RIGHT) WPL W11562045 Contact Us For Availability
6
INNER DOOR ASSEMBLY (INCLUDES SOAP DISPENSER) WPL W11690648 Contact Us For Availability
6
CHECK VALVE, DRAIN WPL W11560834 Contact Us For Availability
6
SUPPORT, TINE ROW WPL W11356045 Contact Us For Availability
7
CLIP, CUP SHELF WPL W11592682 Contact Us For Availability
8
SUPPORT, DOOR (LEFT) WPL W11545693 Contact Us For Availability
8
HOSE, PUMP INLET WPL W11008962 Contact Us For Availability
8
CUP SHELF WPL W11592896 Contact Us For Availability
8A
SUPPORT, DOOR (RIGHT) WPL W11545696 Contact Us For Availability
9
INSULATION, INNER DOOR WPL W11564603 Contact Us For Availability
9
HOLDER, DAMPER WPL W11668893 Contact Us For Availability
9
TINE ROW, FOLD DOWN WPL W11538488 Contact Us For Availability
10
INSULATION, FRONT PANEL WPL W11641124 Contact Us For Availability
10
COVER, DOOR OPENING WPL W11317043 Contact Us For Availability
11
NUT, BARREL WPL W11634283 Contact Us For Availability
12
COVER, TUB CORNER (LEFT) WPL W11316692 Contact Us For Availability
12
DISC, DIVERTER WPL W11175586 Contact Us For Availability
12A
COVER, TUB CORNER (RIGHT) WPL W11316688 Contact Us For Availability
13
PANEL, 2" ADJUSTABLE (BLACK) WPL W11625159 Contact Us For Availability
13
FLOAT SWITCH WPL W11602936 Contact Us For Availability
13
FILL VALVE ASSEMBLY WPL W11545826 Contact Us For Availability
14
SCREW WPL W10942031 Contact Us For Availability
14
PLUG, TUB WPL W11321022 Contact Us For Availability
15
SCREW WPL W10941985 Contact Us For Availability
15
AIR BREAK WPL W11568183 Contact Us For Availability
15
HOSE, INLET WPL W11457583 Contact Us For Availability
16
LEG, LEVELING (FRONT) WPL W11325130 Contact Us For Availability
17
COVER, TOP WPL W11317036 Contact Us For Availability
17
CLIP, HOSE WPL W11626817 Contact Us For Availability
18
HOSE, INLET WPL W11008964 Contact Us For Availability
19
SIDE PANEL (LEFT) WPL W11355600 Contact Us For Availability
19
GRATE WPL W11445183 Contact Us For Availability
19A
SIDE PANEL (RIGHT) WPL W11355598 Contact Us For Availability
20
PANEL, 4" ADJUSTABLE (BLACK) WPL W11625156 Contact Us For Availability
20
SCREW WPL W10986499 Contact Us For Availability
21
SCREW WPL W10942053 Contact Us For Availability
21
ASSEMBLY, BASE WPL W11690567 Contact Us For Availability
21
FILTER WPL W11559846 Contact Us For Availability
22
SCREW WPL W11381263 Contact Us For Availability
22
SHIELD, TUB SOUND WPL W11564606 Contact Us For Availability
23
ASSEMBLY, JUNCTION BOX WPL W11643567 Contact Us For Availability
25
SPACER, SIDE PANEL WPL W11525808 Contact Us For Availability
26
SCREW WPL W11350847 Contact Us For Availability
27
SCREW WPL W10941972 Contact Us For Availability
28
TUB MOUNT, UPPER RACK WPL W11345595 Contact Us For Availability
29
TUB MOUNT, THIRD LEVEL RACK (LEFT) WPL W11386114 Contact Us For Availability
29A
TUB MOUNT, THIRD LEVEL RACK (RIGHT) WPL W11386113 Contact Us For Availability
30
NUT, SOFTNER WPL W11227921 Contact Us For Availability
31
CAP, SALT WPL W11227934 Contact Us For Availability
32
SOFTENER, WATER WPL W11546882 Contact Us For Availability
33
SEAL, SOFTENER WPL W11224085 Contact Us For Availability
34
FUNNEL, SALT WPL W11509486 Contact Us For Availability
35
PLATE, IN/OUT HOSES WPL W11686061 Contact Us For Availability
36
JUMPER, RFI TO CONTROL WPL W11545951 Contact Us For Availability
37
SPRING, GROUNDING WPL W10943118 Contact Us For Availability
38
POWER CORD ASSEMBLY WPL W11578108 Contact Us For Availability
39
FILTER, RFI WPL W11418782 Contact Us For Availability
40
JUMPER HARNESS, SERVICE PORT WPL W11646878 Contact Us For Availability
42
WIRING HARNESS, MAIN WPL W11609315 Contact Us For Availability
43
CHANNEL, OVERFLOW (LEFT) WPL W11684708 Contact Us For Availability
43A
CHANNEL, OVERFLOW (RIGHT) WPL W11684709 Contact Us For Availability
44
NUT, TUB WPL W11630670 Contact Us For Availability
45
KIT, SIDE COVER INSTALLATION WPL W11673775 Contact Us For Availability
46
BUTTON, TUB WPL W11656505 Contact Us For Availability
× ![]()
