LG WD-3243RHD WM-Drum Parts List

*001

MANUAL ASSEMBLY,OWNERS LGE 3829ER3008E Contact Us For Availability

View on Model

*002

Box,Carton LGE 3890EZ3631A Contact Us For Availability

View on Model

*003

3W20018B LG Washer Leg Bolt Wrench In Stock LGE 3W20018B $10.54

View on Model

*004

SERVICE MANUAL LGE 3828ER3008S Contact Us For Availability

View on Model

A101

3550ER1028A LG Back Cover Backorder LGE 3550ER1028A $35.99

View on Model

A103

4930FR3151A LG Holder Assembly Backorder LGE 4930FR3151A $6.61

View on Model

A303

5006EN3015A LG Washer Drain Hose Cap In Stock LGE 5006EN3015A $5.81

View on Model

A410

6601ER1006E LG Washer Water Level Pressure Se In Stock LGE 6601ER1006E $52.74

View on Model

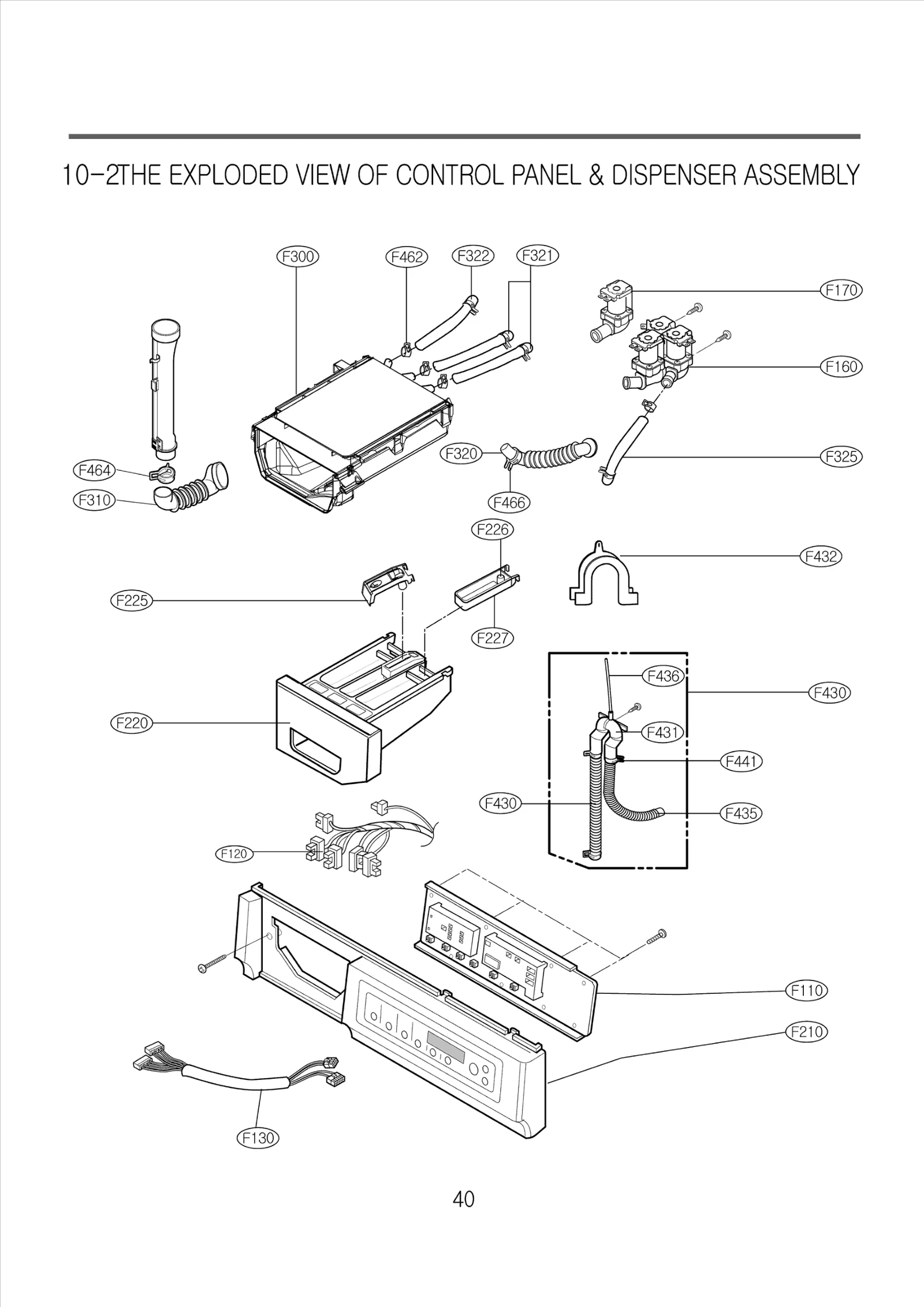

F110

PWB(PCB) ASSEMBLY,DISPLAY LGE 6871FC2272F Contact Us For Availability

View on Model

F120

HARNESS,PWB LGE 6877ER1004G Contact Us For Availability

View on Model

F130

LEAD WIRE ASSY LGE 6877FC2261B Contact Us For Availability

View on Model

F140

HARNESS,PWB LGE 6877ER1005D Contact Us For Availability

View on Model

F160

5220FR2075C LG Washer Water Inlet Fill Valve Backorder LGE 5220FR2075C $64.95

View on Model

F170

5220FR2006H LG Washer Hot Water Inlet Valve In Stock LGE 5220FR2006H $20.88

View on Model

F210

PANEL ASSY,CONTROL LGE 3721ER1011B Contact Us For Availability

View on Model

F220

PANEL ASY,DRAWER-SENSE CLEAN LGE 3721ER1006Y Contact Us For Availability

View on Model

F225

5006ER3002B LG Softener Cap Backorder LGE 5006ER3002B $5.77

View on Model

F226

5006FR4100A LG Cover Cap Backorder LGE 5006FR4100A $5.77

View on Model

F227

BOX,DETERGENT LGE 3890ER3001A Contact Us For Availability

View on Model

F300

DISPENSER ASSY LGE 4925ER1005A Contact Us For Availability

View on Model

F310

HOSE LGE 5214FR1069A Contact Us For Availability

View on Model

F320

5214FR3046A LG Inlet Hose Backorder LGE 5214FR3046A $7.43

View on Model

F321

HOSE,INLET LGE 5214FR4125D Contact Us For Availability

View on Model

F324

5214FR4125L LG Inlet Hose Backorder LGE 5214FR4125L $10.54

View on Model

F325

HOSE LGE 5214FR4058H Contact Us For Availability

View on Model

F430

5215ER2002D LG Drain Hose Assembly Backorder LGE 5215ER2002D $20.78

View on Model

F432

3W50712A LG Washer Pivot Hanger Assembly Backorder LGE 3W50712A $6.61

View on Model

F441

4861FR3068C LG Clamp Backorder LGE 4861FR3068C $6.61

View on Model

F462

4861FR3068A LG Washer Hose Clamp In Stock LGE 4861FR3068A $6.61

View on Model

F466

4861FR3068B LG Clamp Backorder LGE 4861FR3068B $6.61

View on Model

F467

4860FR3092B LG Clamp Backorder LGE 4860FR3092B $10.54

View on Model

F468

4861FR3068E LG Clamp Assembly Backorder LGE 4861FR3068E $10.54

View on Model

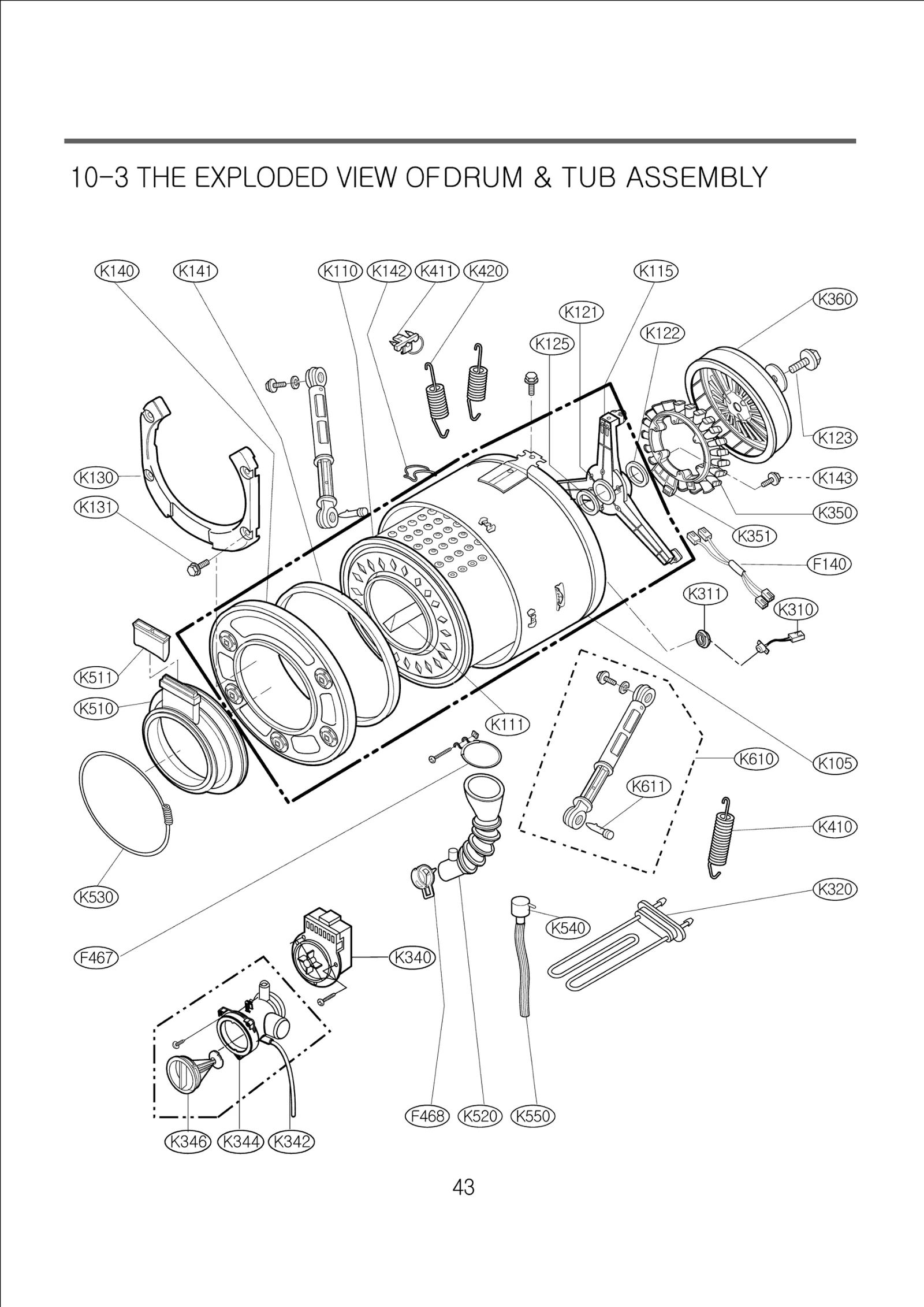

K105

TUB ASSY,OUTER[SUB1] LGE 3045FR1250B Contact Us For Availability

View on Model

K110

TUB ASSY,INNER[DRUM] LGE 3044FR1220F Contact Us For Availability

View on Model

K111

LIFTER LGE 4432ER1003A Contact Us For Availability

View on Model

K115

SPIDER LGE 4434ER1002F Contact Us For Availability

View on Model

K121

4280EN4001A LG Ball Bearing Backorder LGE 4280EN4001A $57.28

View on Model

K122

4280EN4001B LG Bearing Ball Backorder LGE 4280EN4001B $44.05

View on Model

K123

4040FR4051C LG Washer Bolt Assembly In Stock LGE 4040FR4051C $11.59

View on Model

K125

SEAL LGE 4036ER2001A Contact Us For Availability

View on Model

K130

BALANCE WEIGHT LGE 4866ER1010A Contact Us For Availability

View on Model

K131

Bolt,Common LGE 4W20006D Contact Us For Availability

View on Model

K140

Cover Assembly,Tub LGE 3551ER1002A Contact Us For Availability

View on Model

K141

GASKET LGE 3044FR4012A Contact Us For Availability

View on Model

K143

4011FA4353C LG Bolt Common Backorder LGE 4011FA4353C $6.61

View on Model

K310

6322FR2046C LG Washer Dryer Thermistor In Stock LGE 6322FR2046C $13.53

View on Model

K311

4036FR4050A LG Washer Gasket Seal Backorder LGE 4036FR4050A $6.61

View on Model

K320

HEATER ASSEMBLY LGE 5301FR2082G Contact Us For Availability

View on Model

K340

4681EA2001T LG Washer Drain Pump and Motor In Stock LGE 4681EA2001T $52.26

View on Model

K342

5214FR4006H LG Hose Connector Backorder LGE 5214FR4006H $6.61

View on Model

K344

CASING ASSEMBLY,PUMP LGE 3661FR2093E Contact Us For Availability

View on Model

K346

383EER2001B LG Parts Assembly Backorder LGE 383EER2001B $15.80

View on Model

K350

STATOR ASSY LGE 4417FA1994E Contact Us For Availability

View on Model

K351

6501KW2001B LG Sensor Assembly In Stock LGE 6501KW2001B $28.17

View on Model

K360

ROTOR ASSY LGE 4413EA1002A Contact Us For Availability

View on Model

K410

SPRING,HINGE LGE 4970FR2084D Contact Us For Availability

View on Model

K411

4930FR3040A LG Washer Hinge Spring Holder In Stock LGE 4930FR3040A $7.27

View on Model

K420

SPRING,HINGE LGE 4970FR2084C Contact Us For Availability

View on Model

K510

GASKET,DOOR LGE 4986FR1242A Contact Us For Availability

View on Model

K511

GUIDE,COVER LGE 4974FR3190A Contact Us For Availability

View on Model

K520

HOSE LGE 5214FR1093A Contact Us For Availability

View on Model

K530

CLAMP ASSY LGE 4861FR1072A Contact Us For Availability

View on Model

K540

CHAMBER ASSY,AIR LGE 3505ER3001B Contact Us For Availability

View on Model

K550

HOSE,CONNECTOR LGE 5214FR4058A Contact Us For Availability

View on Model

K610

DAMPER ASSEMBLY,FRICTION LGE 383EER3001D Contact Us For Availability

View on Model

K611

4774FR3118B LG Washer Shock Absorber Locking Backorder LGE 4774FR3118B $10.54

View on Model

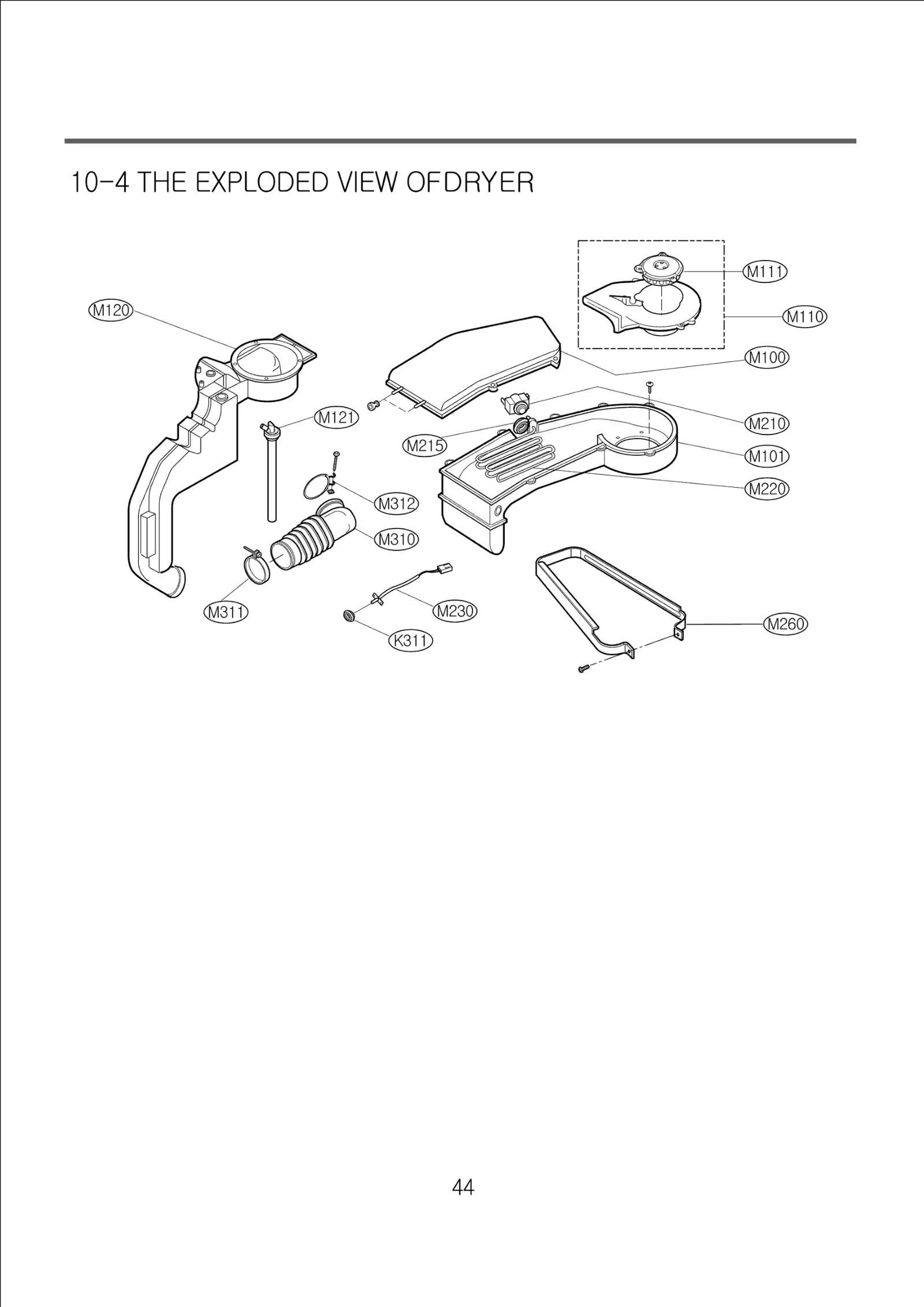

M100

DUCT LGE 5208FR1064B Contact Us For Availability

View on Model

M101

DUCT LGE 5208FR1065A Contact Us For Availability

View on Model

M110

MOTOR ASSY,FAN LGE 4681ER1001A Contact Us For Availability

View on Model

M111

Motor,Unclassified LGE 4680ER1001C Contact Us For Availability

View on Model

M120

DUCT ASSEMBLY LGE 5209FR1059D Contact Us For Availability

View on Model

M121

DUCT LGE 5208FR3042A Contact Us For Availability

View on Model

M210

6931FR3108A LG Washer Thermostat Backorder LGE 6931FR3108A $44.05

View on Model

M215

4036FR4045A LG Gasket Backorder LGE 4036FR4045A $7.03

View on Model

M220

5301FR2076G LG Washer Heater Assembly In Stock LGE 5301FR2076G $134.42

View on Model

M230

6322FR2046B LG Thermistor NTC Backorder LGE 6322FR2046B $98.57

View on Model

M260

CLAMP ASSEMBLY LGE 4861FR3048A Contact Us For Availability

View on Model

M310

PIPE LGE 5214FR1071A Contact Us For Availability

View on Model

M312

4860FR3092A LG Clamp Backorder LGE 4860FR3092A $10.54

View on Model
