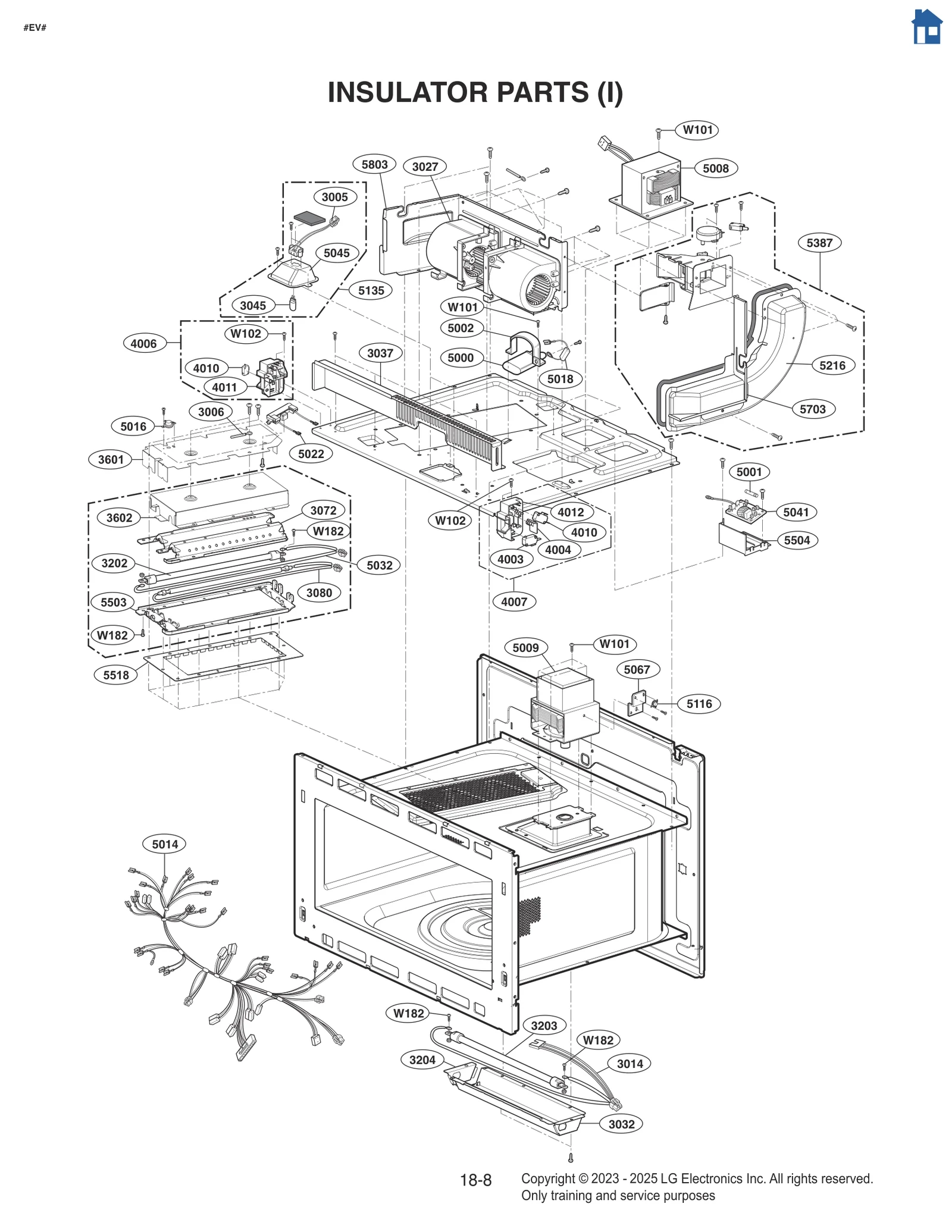

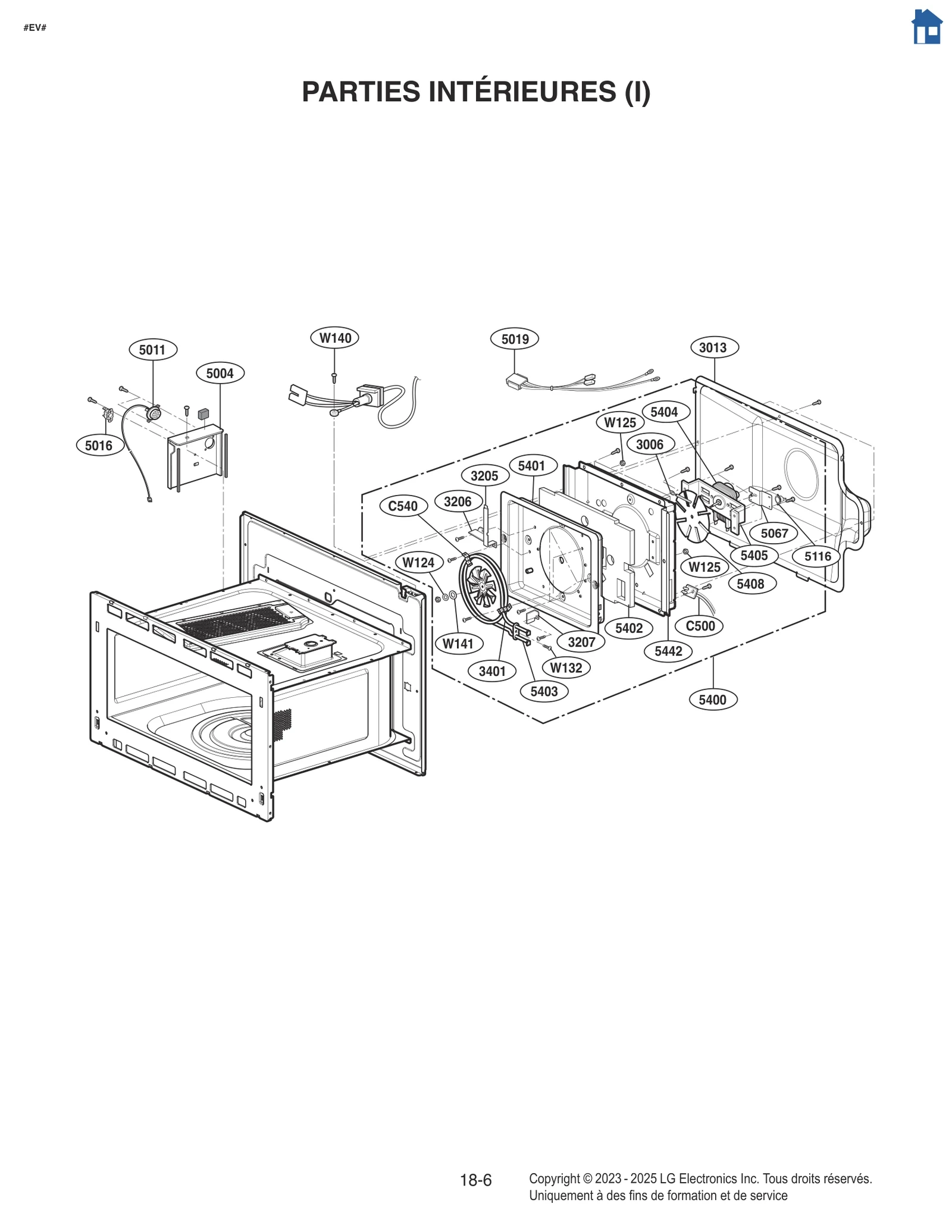

Model LG WCEP6427F – Common Parts & Diagrams
Common parts from model LG WCEP6427F

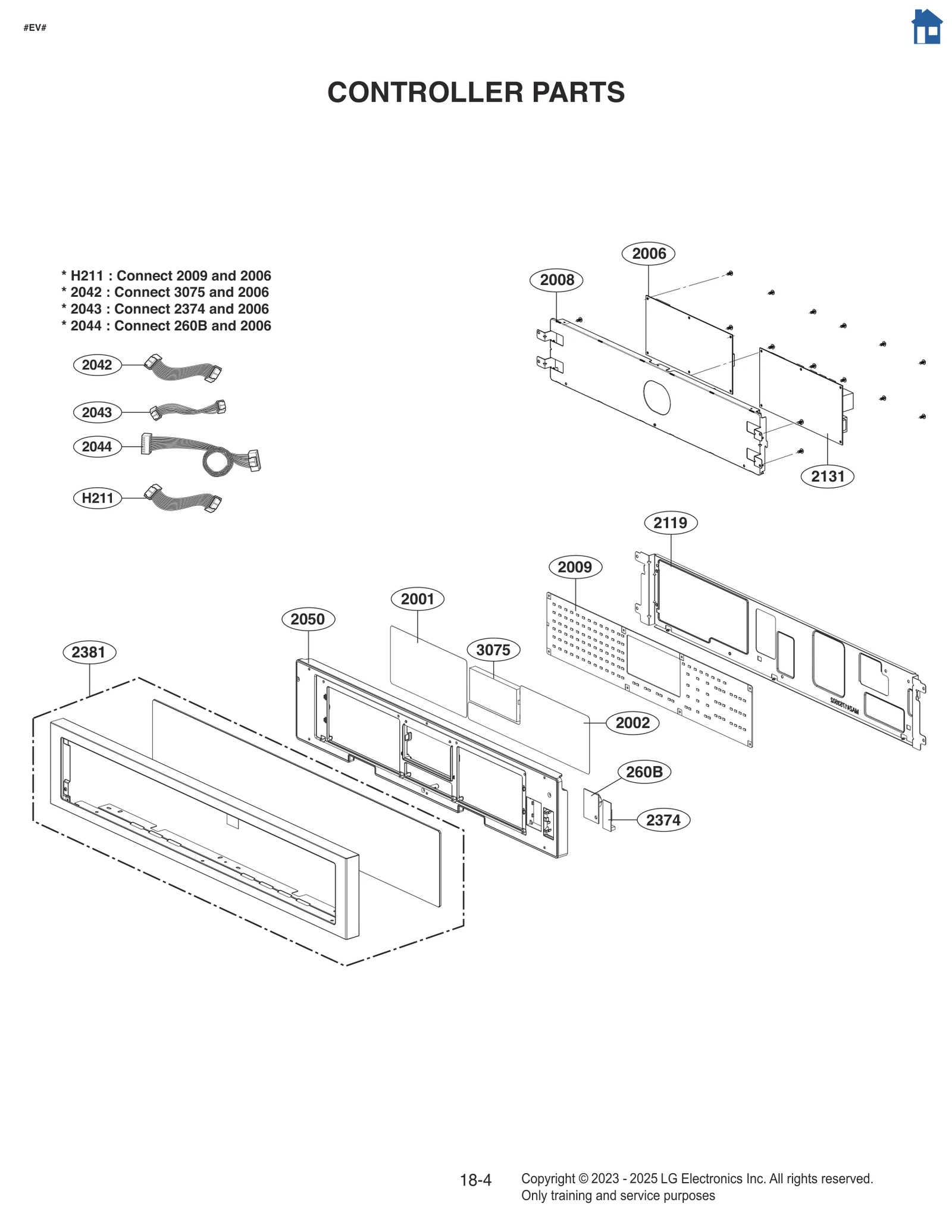

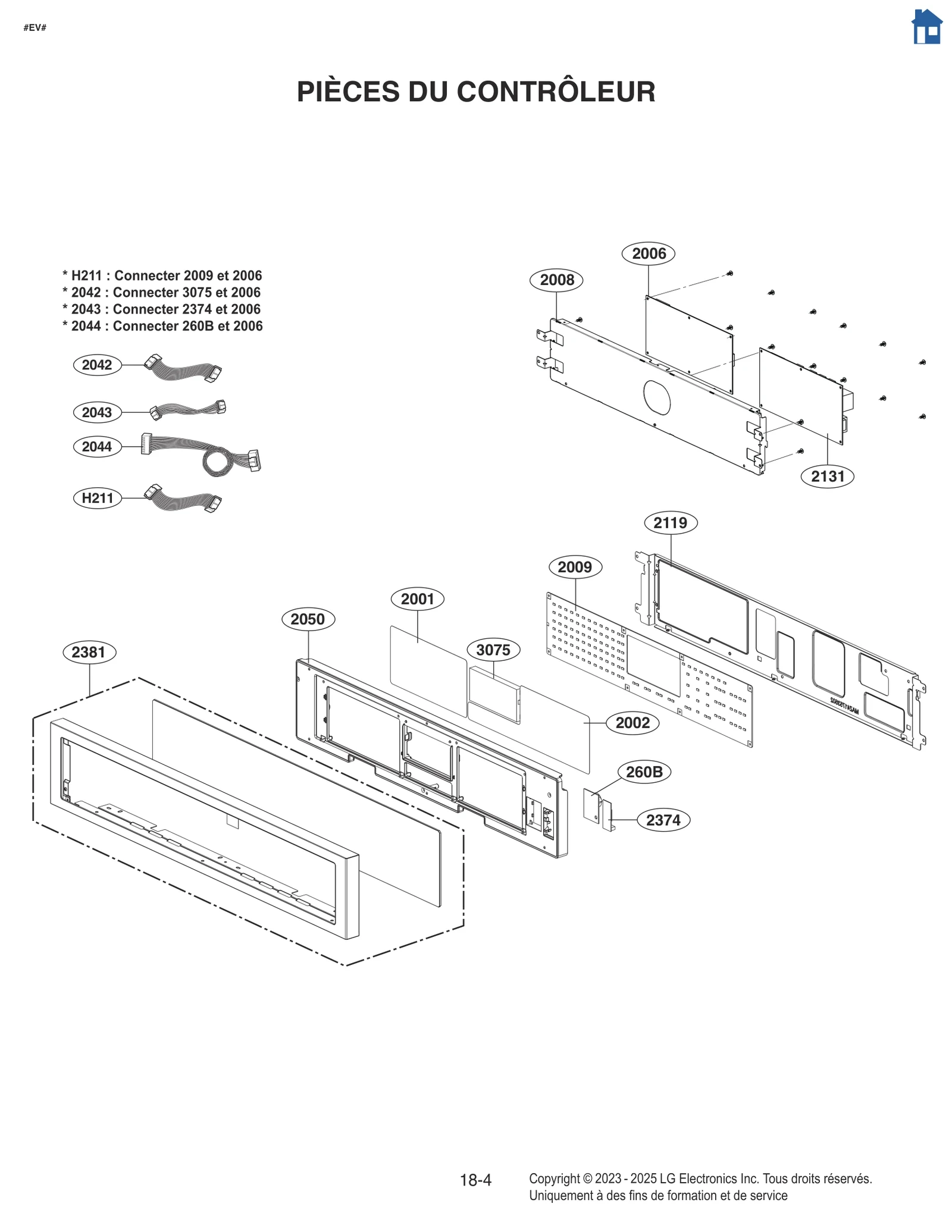

2050

Supporter,PCB LGE MJH66363302 Contact Us For Availability
3005

Holder Assembly LGE 4931W1A009N Contact Us For Availability
3023

Cover,Bracket LGE MCK71588102 Contact Us For Availability
3032

Reflector Assembly LGE AHE73469102 Contact Us For Availability

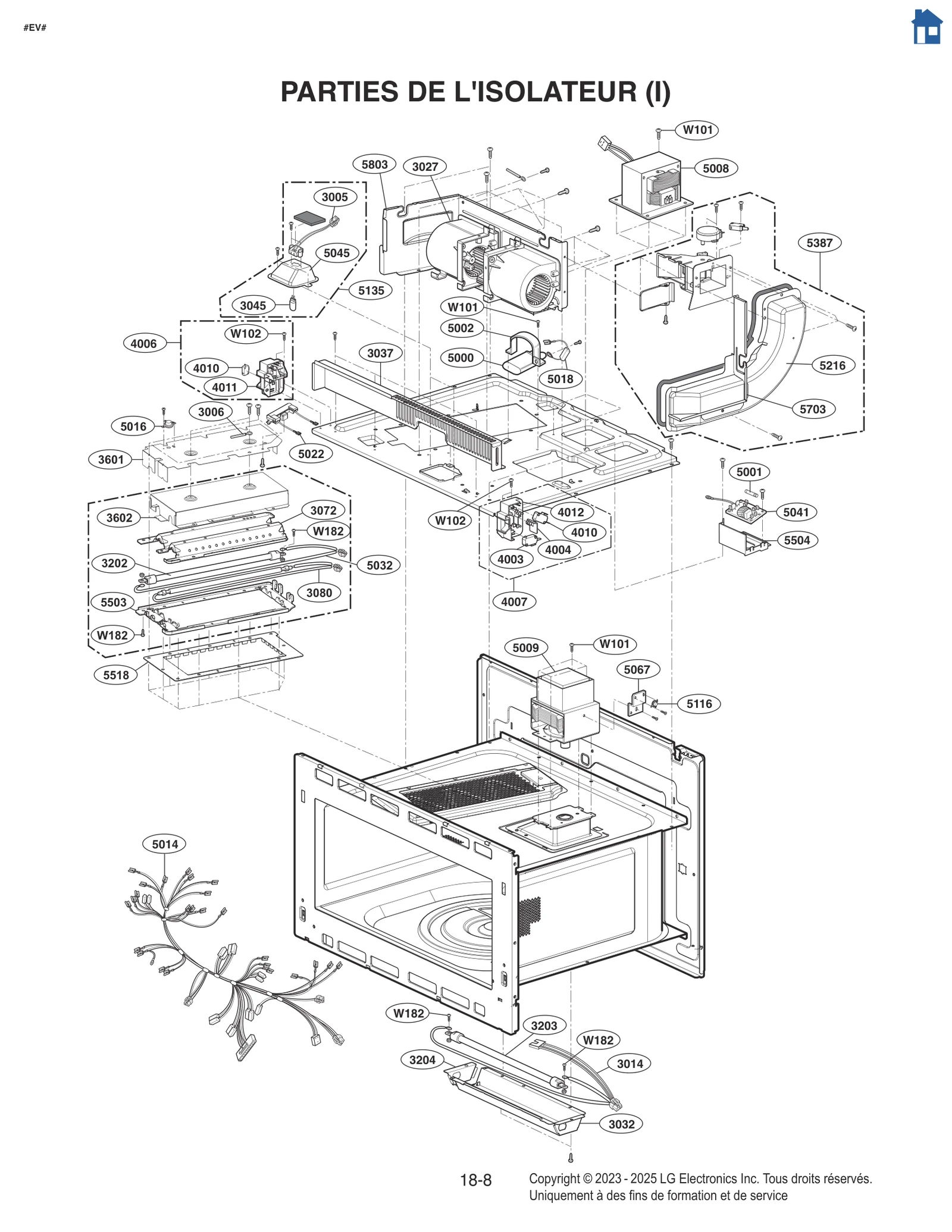

3072

Reflector,Mech OS SVC Others LGE EBZ63660875 Contact Us For Availability
3122

Heater Assembly LGE AEG74796309 Contact Us For Availability

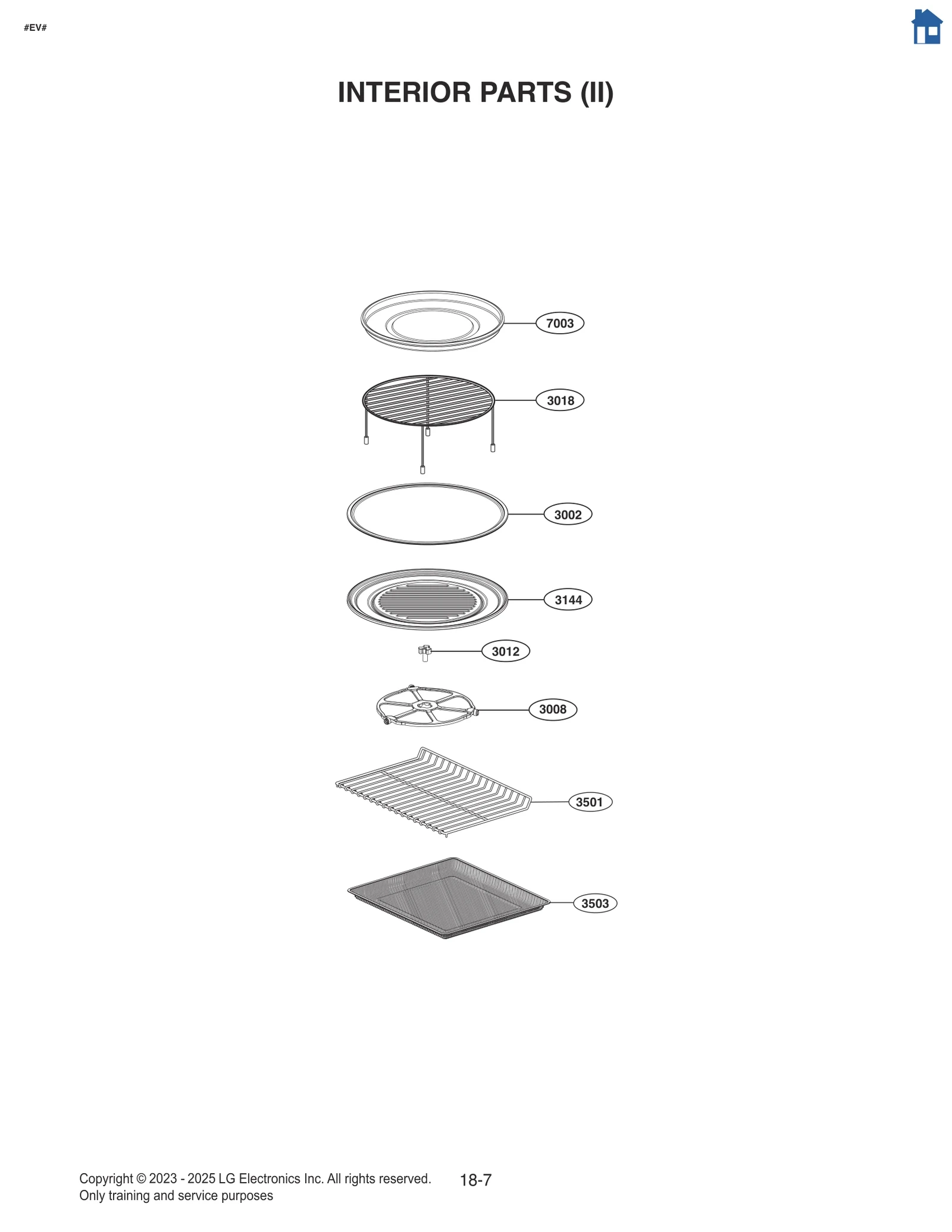

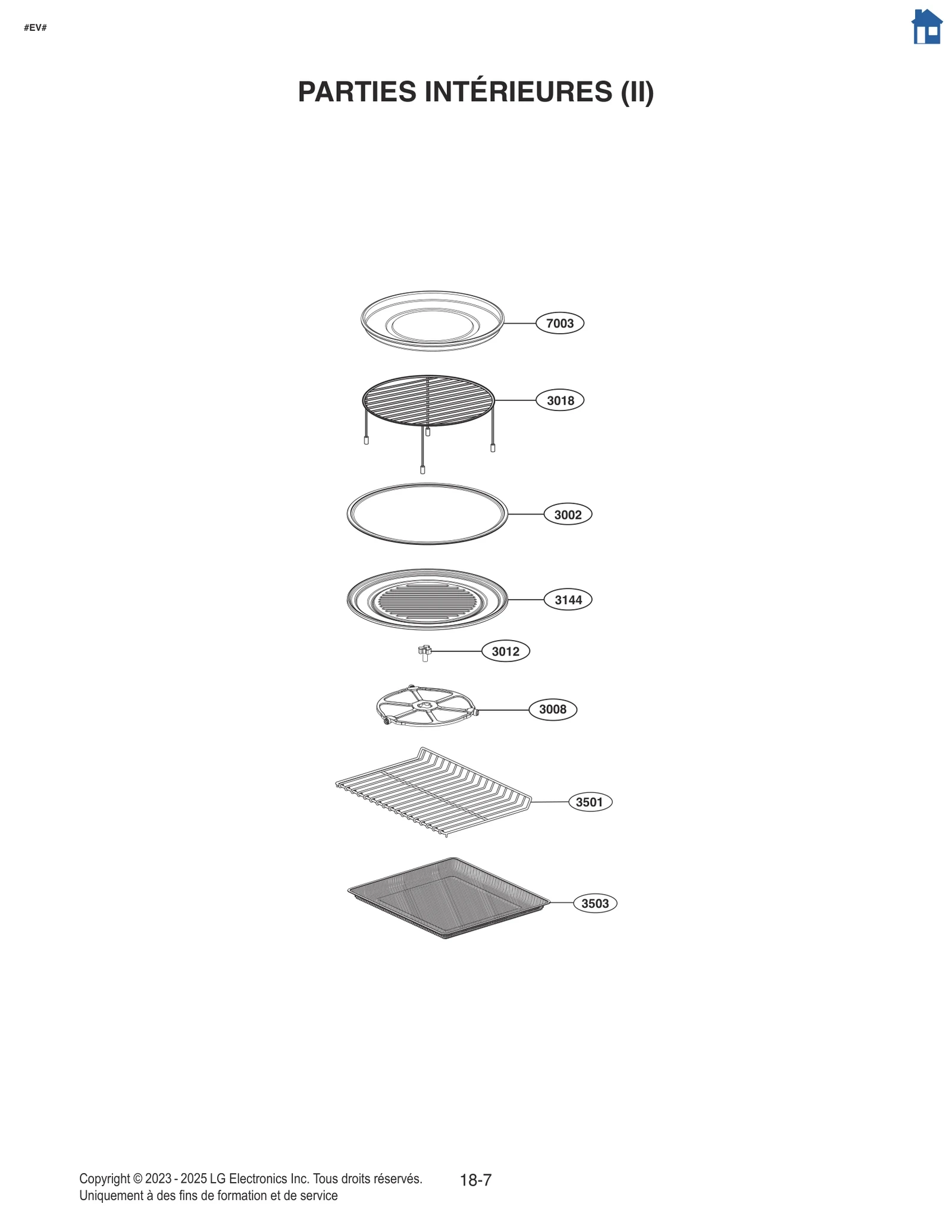

3144

Tray,Metal LGE 3390W1A043D Contact Us For Availability
3202

HEATER,MIRACLON LGE 5300W2A006W Contact Us For Availability
3203

Heater,Miraclon LGE 5300W1A005J Contact Us For Availability
3311

Grille LGE MDX40418809 Contact Us For Availability
3403

Gasket Assembly LGE ADX75734901 Contact Us For Availability
5081

Cover,Bracket LGE MCK71751301 Contact Us For Availability
5081

Cover,Bracket LGE MCK71410701 Contact Us For Availability
5400

Chamber Assembly LGE 3505W1A007J Contact Us For Availability
5410

Cover,Heater LGE MCK68473119 Contact Us For Availability
5440

Insulator LGE MEV40416112 Contact Us For Availability
5506

Bracket,Outsourcing SVC LGE EBZ63660857 Contact Us For Availability
5557

Bracket,Mech OS SVC Others LGE EBZ63660854 Contact Us For Availability
5558

Bracket,Outsourcing SVC LGE EBZ63660855 Contact Us For Availability
5703

Barrier,Outsourcing SVC LGE EBZ63660849 Contact Us For Availability
5901

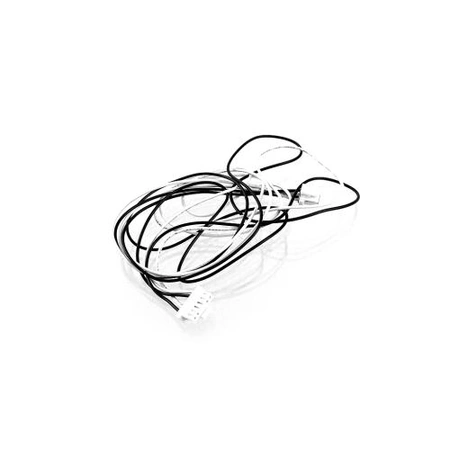

Harness,Single LGE EAD64865405 Contact Us For Availability

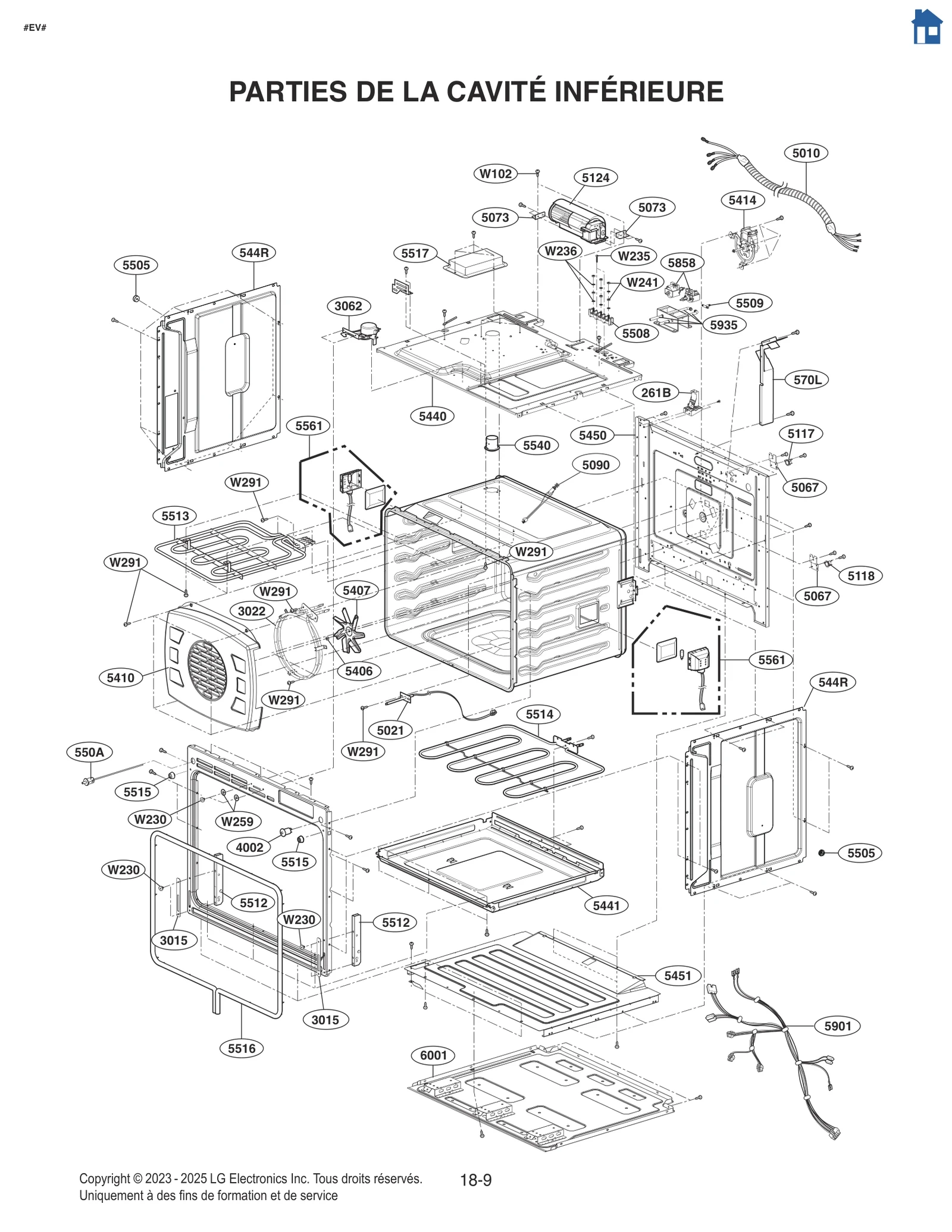

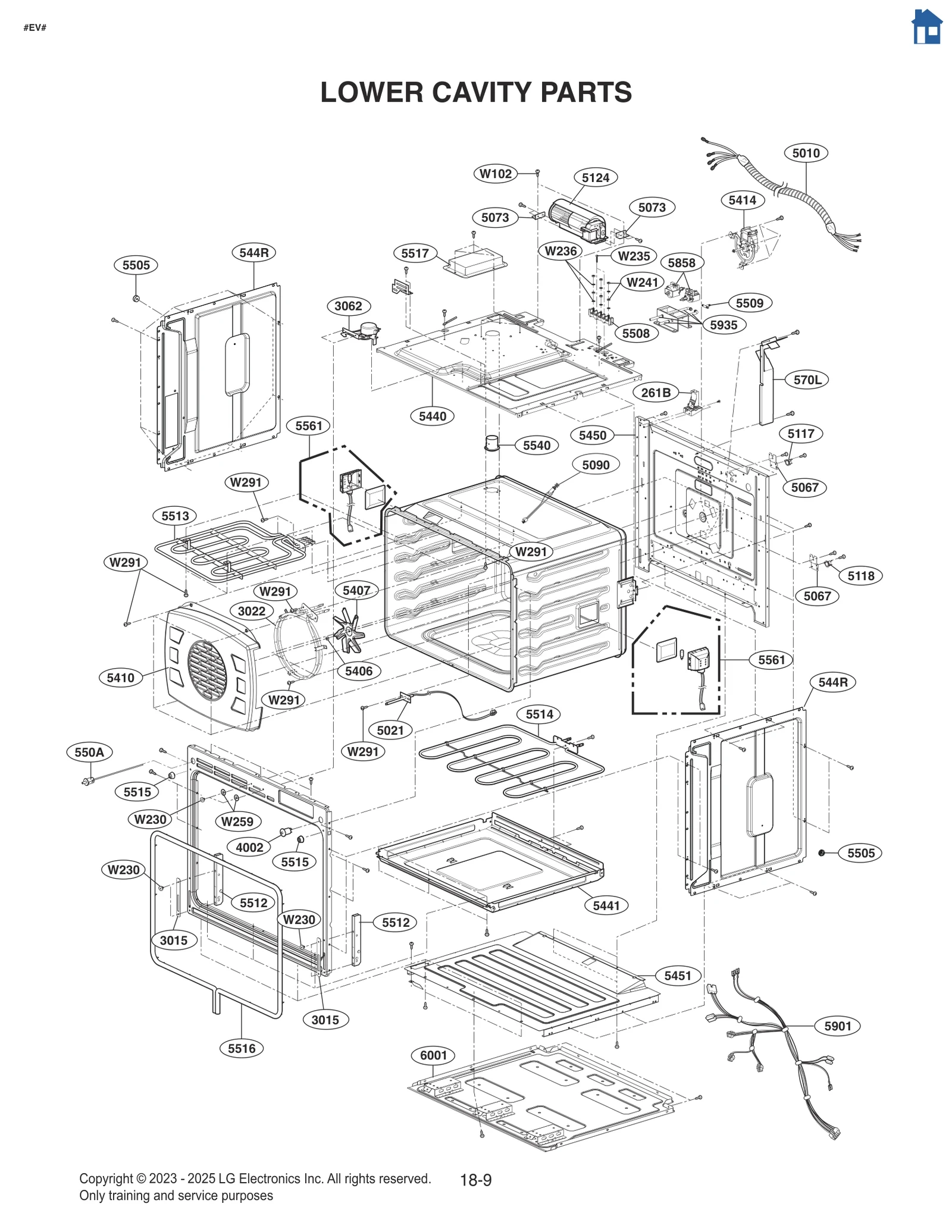

6001

Plate Assembly,Base LGE AGU56000302 Contact Us For Availability
× ![]()
