Model Electrolux WAH096P2T1 ROOM AIR CONDITIONER – Common Parts & Diagrams

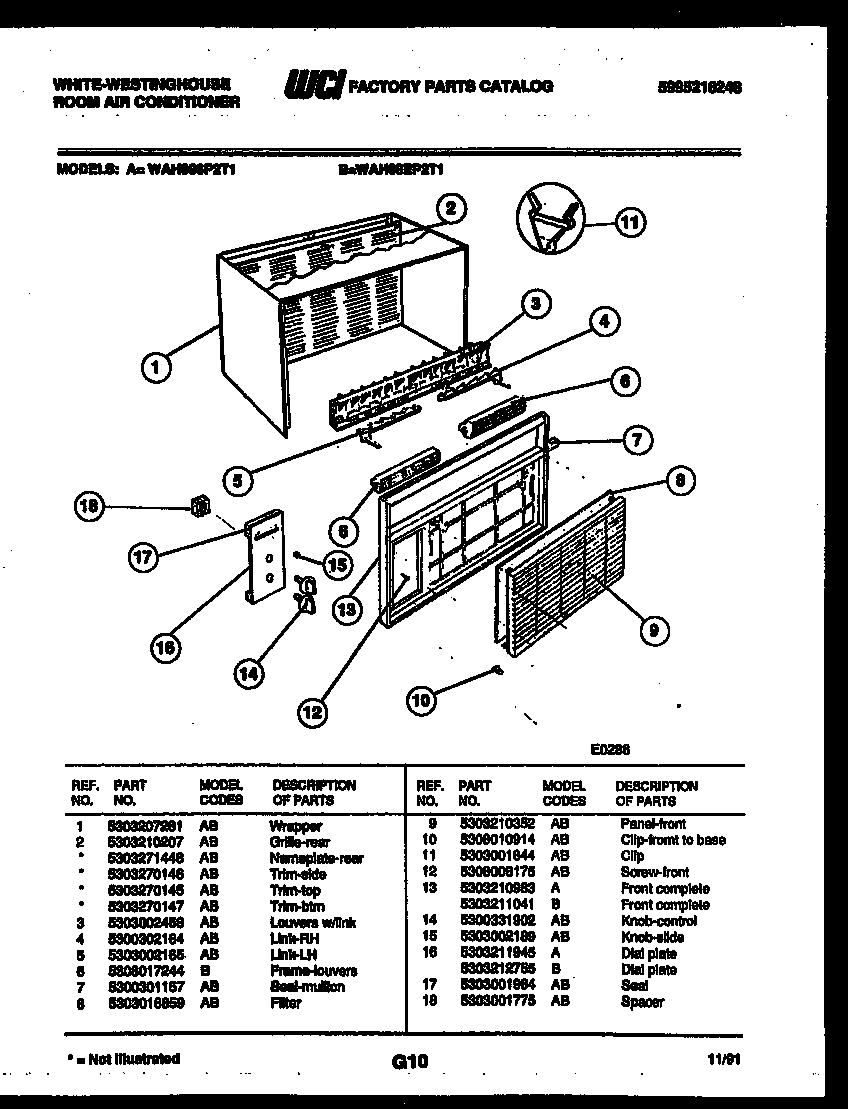

02 - CABINET PARTS

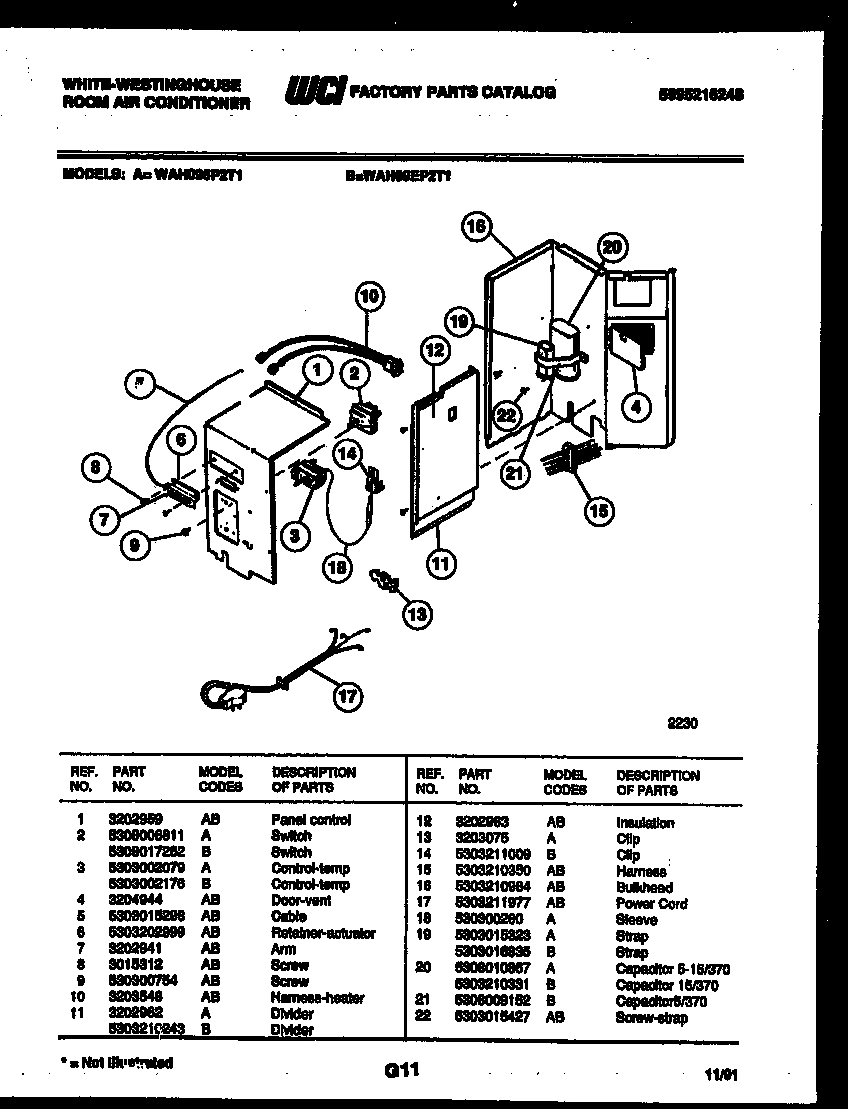

03 - ELECTRICAL PARTS

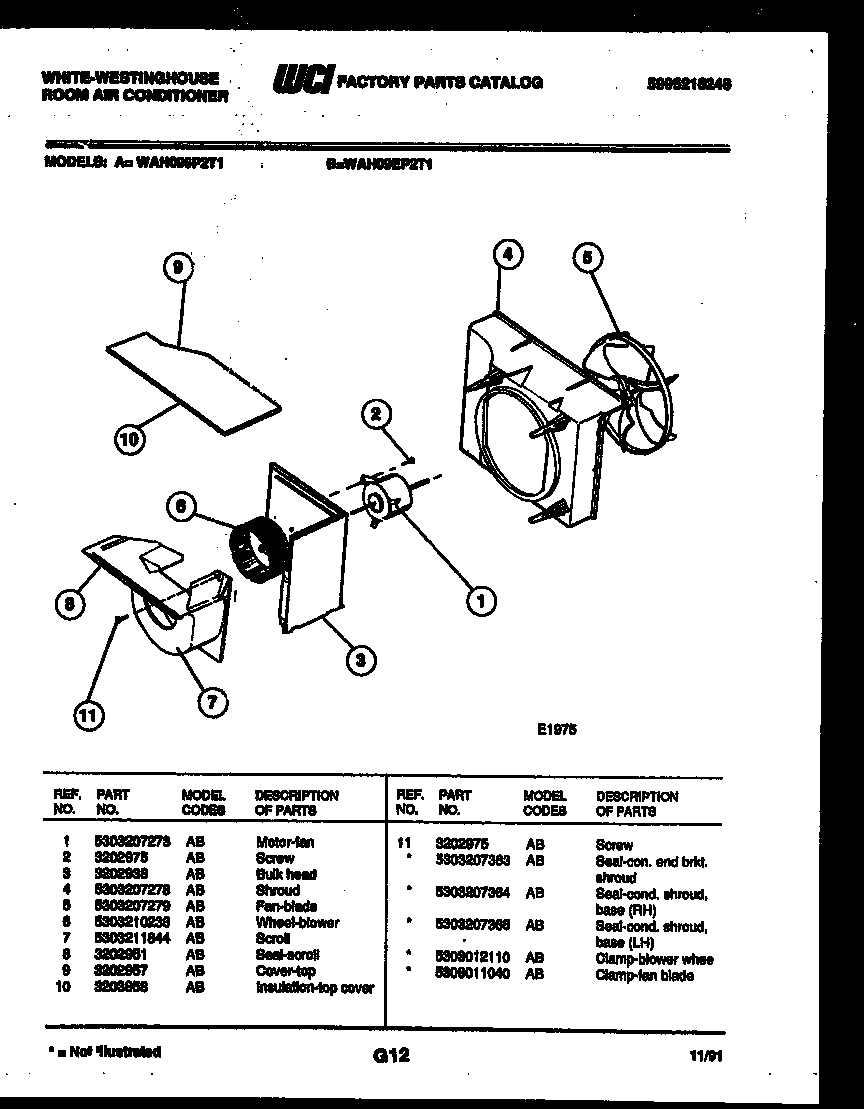

04 - AIR HANDLING PARTS

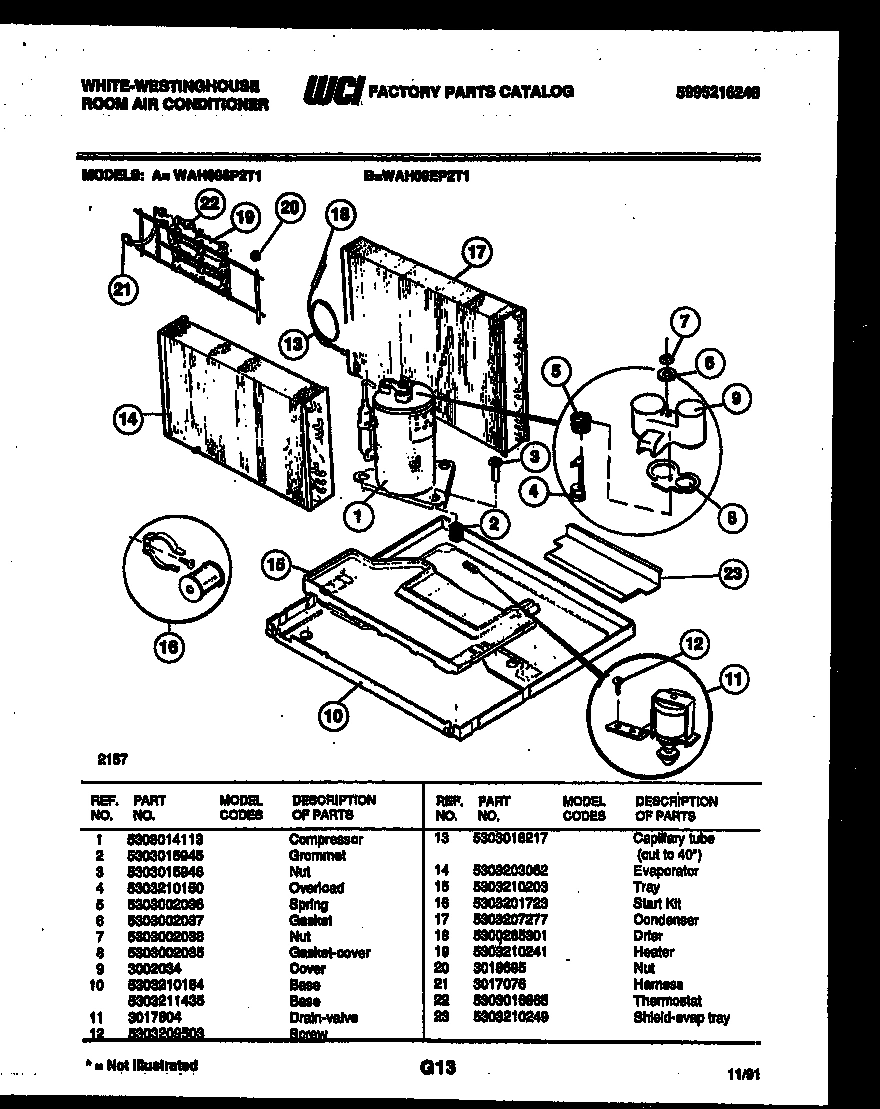

05 - SYSTEM PARTS
Common parts from model Electrolux WAH096P2T1 ROOM AIR CONDITIONER
*55348
SEAL-CON. END BRKT. SHROUD WCI 5303207363 Contact Us For Availability
*55349
WCI 5303012110 WCI 5303012110 Contact Us For Availability
*55349
SEAL-COND SHROUD BASE (RH) WCI 5303207364 Contact Us For Availability
*55349
SEAL-COND SHROUD BASE (LH) WCI 5303207365 Contact Us For Availability
*55349
CLAMP - FAN BLADE WCI 5308011040 Contact Us For Availability
1
WCI 3202959 WCI 3202959 Contact Us For Availability
1
WCI 5303207273 WCI 5303207273 Contact Us For Availability
1
WCI 5308014113 WCI 5308014113 Contact Us For Availability
2
SWITCH WCI 5308006811 Contact Us For Availability
2
GROMMET WCI 5303015945 Contact Us For Availability
2A
NAMEPLATE-REAR (NON-ILLUSTRATED) WCI 5303271448 Contact Us For Availability
2B
TRIM-SIDE (NON-ILLUSTRATED) WCI 5303270146 Contact Us For Availability
2C
TRIM-TOP (NON-ILLUSTRATED) WCI 5303270145 Contact Us For Availability
2D
TRIM-BTM (NON-ILLUSTRATED) WCI 5303270147 Contact Us For Availability
3
WCI 5303002079 WCI 5303002079 Contact Us For Availability
3
LOUVERS W/ LINK WCI 5303002458 Contact Us For Availability
3
BULKHEAD WCI 3202938 Contact Us For Availability
3
NUT WCI 5303015946 Contact Us For Availability
4
WCI 5300302164 WCI 5300302164 Contact Us For Availability
4
WCI 3204944 WCI 3204944 Contact Us For Availability
4
SHROUD WCI 5303207278 Contact Us For Availability
4
WCI 5303210150 WCI 5303210150 Contact Us For Availability
5
WCI 5303002165 WCI 5303002165 Contact Us For Availability
5
WCI 5303015298 WCI 5303015298 Contact Us For Availability
5
FAN - BLADE WCI 5303207279 Contact Us For Availability
5
WCI 5303002036 WCI 5303002036 Contact Us For Availability
6
FRAME-LOUVERS WCI 5308017244 Contact Us For Availability
6
RETAINER - ACTUATOR WCI 5303202999 Contact Us For Availability
6
WCI 5303210236 WCI 5303210236 Contact Us For Availability
6
GASKET WCI 5303002037 Contact Us For Availability
7
WCI 5300301157 WCI 5300301157 Contact Us For Availability
7
WCI 3202941 WCI 3202941 Contact Us For Availability
7
SCROLL WCI 5303211844 Contact Us For Availability
7
NUT WCI 5303002038 Contact Us For Availability
8
FILTER WCI 5303016859 Contact Us For Availability
8
WCI 3202951 WCI 3202951 Contact Us For Availability
8
WCI 5303002035 WCI 5303002035 Contact Us For Availability
9
WCI 5303210352 WCI 5303210352 Contact Us For Availability
9
WCI 530300754 WCI 530300754 Contact Us For Availability
9
WCI 3202957 WCI 3202957 Contact Us For Availability
9
WCI 3002034 WCI 3002034 Contact Us For Availability
10
CLIP-FROMT TO BASE WCI 5308010914 Contact Us For Availability
10
HARNESS & HEATER WCI 3203548 Contact Us For Availability
10
WCI 3203958 WCI 3203958 Contact Us For Availability
10
WCI 5303210184 WCI 5303210184 Contact Us For Availability
10
WCI 5303211435 WCI 5303211435 Contact Us For Availability
11
CLIP WCI 5303001844 Contact Us For Availability
11
DIVIDER WCI 3202962 Contact Us For Availability
11
DRAIN-VALVE WCI 3017804 Contact Us For Availability
12
SCREW-FRONT WCI 5308008175 Contact Us For Availability
12
INSULATION WCI 3202963 Contact Us For Availability
12
SCREW WCI 5303209503 Contact Us For Availability
13
WCI 5303210983 WCI 5303210983 Contact Us For Availability
13
CLIP WCI 3203075 Contact Us For Availability
13
CAPILLARY TUBE (CUT TO 40``) WCI 5303018217 Contact Us For Availability
14
WCI 5300331902 WCI 5300331902 Contact Us For Availability
14
WCI 5303203062 WCI 5303203062 Contact Us For Availability
15
WCI 5303002189 WCI 5303002189 Contact Us For Availability
15
HARNESS WCI 5303210350 Contact Us For Availability
15
TRAY WCI 5303210203 Contact Us For Availability
16
DIAL PLATE WCI 5303211945 Contact Us For Availability
16
BULKHEAD WCI 5303210984 Contact Us For Availability
16
WCI 5303201723 WCI 5303201723 Contact Us For Availability
17
WCI 5303001984 WCI 5303001984 Contact Us For Availability
17
POWER CORD WCI 5303211977 Contact Us For Availability
17
WCI 5303207277 WCI 5303207277 Contact Us For Availability
18
WCI 5303001775 WCI 5303001775 Contact Us For Availability
18
WCI 530300260 WCI 530300260 Contact Us For Availability
19
STRAP WCI 5303015323 Contact Us For Availability
19
WCI 5303210241 WCI 5303210241 Contact Us For Availability
20
CAPACITOR 5-15/370 WCI 5308010867 Contact Us For Availability
20
WCI 3018695 WCI 3018695 Contact Us For Availability
21
HARNESS WCI 3017076 Contact Us For Availability
22
WCI 5303016865 WCI 5303016865 Contact Us For Availability
23
SHIELD-EVAP TRAY WCI 5303210249 Contact Us For Availability
× ![]()
