Model Electrolux WA28M6WTFC WASHER – Common Parts & Diagrams
02 - CONSOLE AND CONTROL PARTS

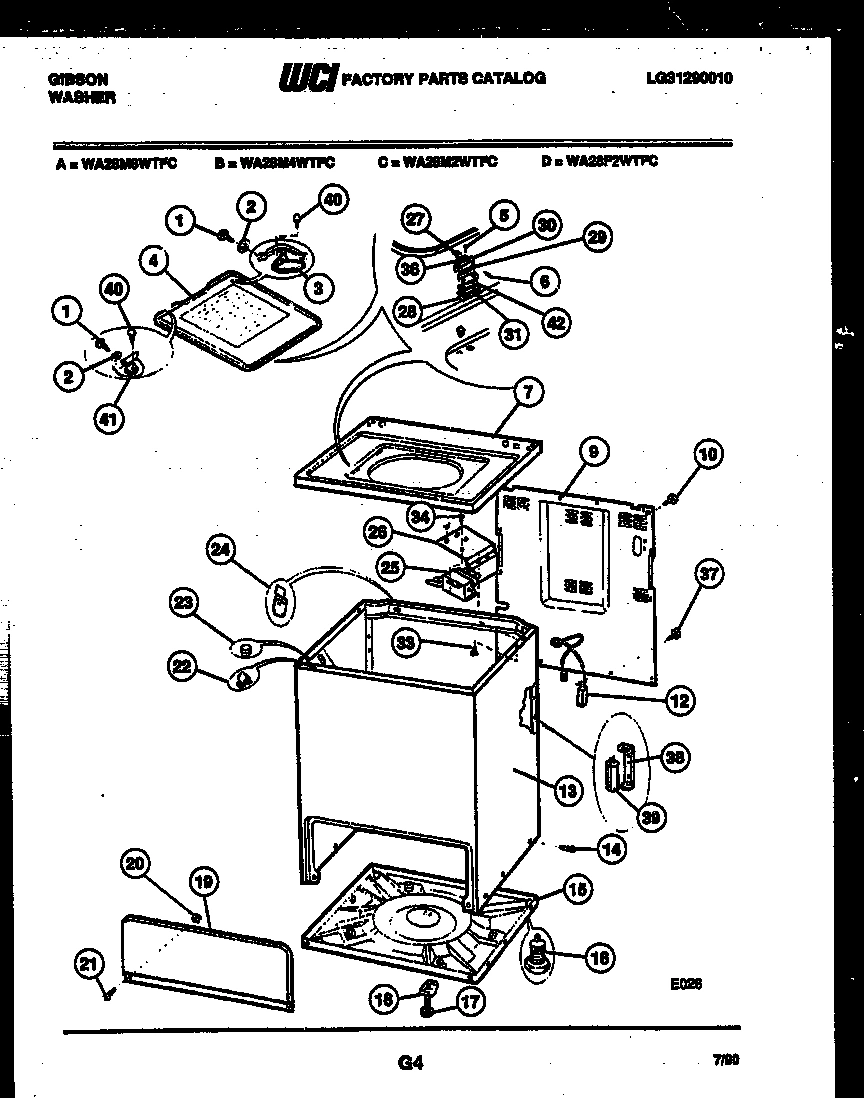

03 - CABINET PARTS

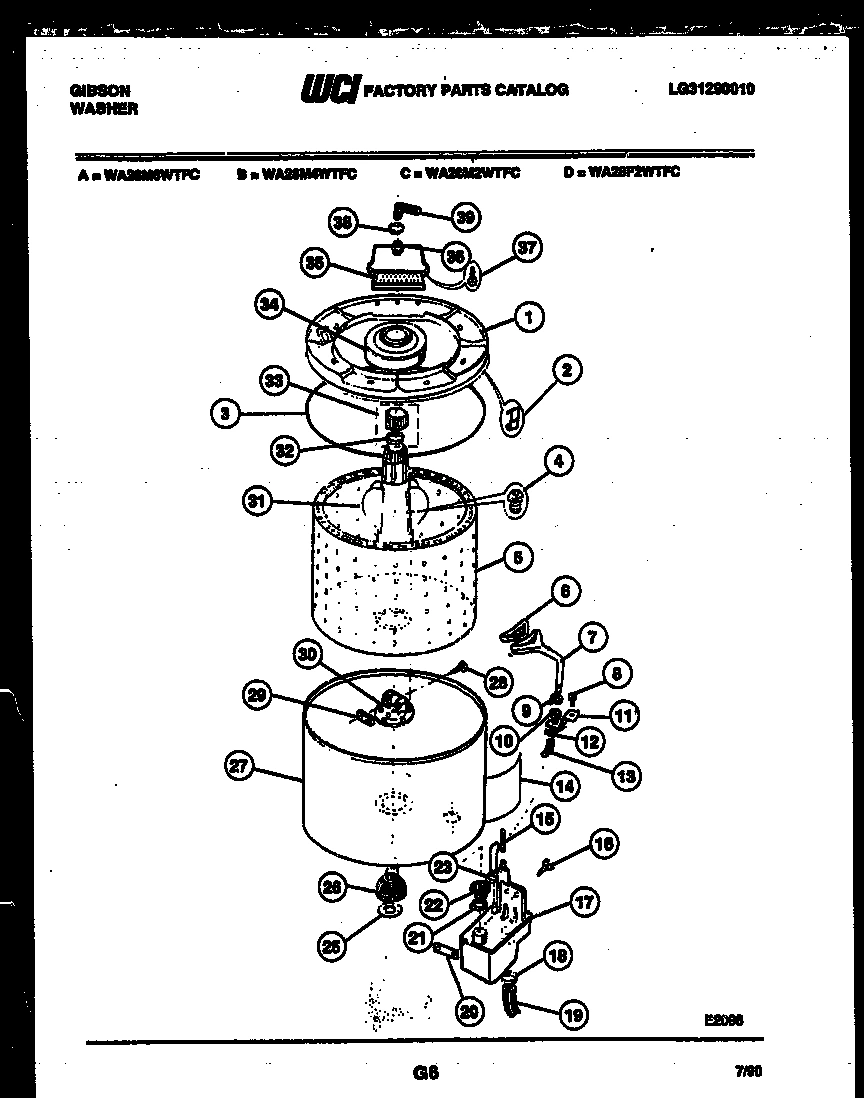

04 - TUB DETAIL

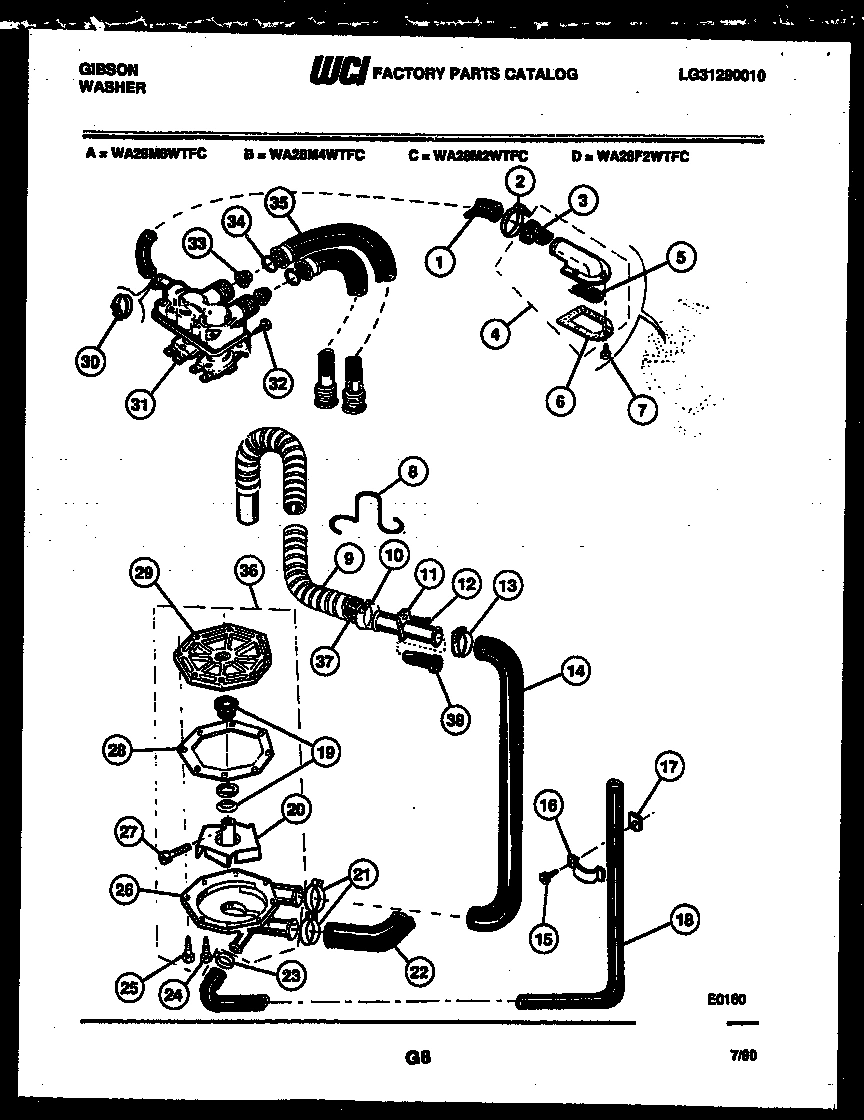

05 - PUMP, WATER VALVE AND WATER INLET

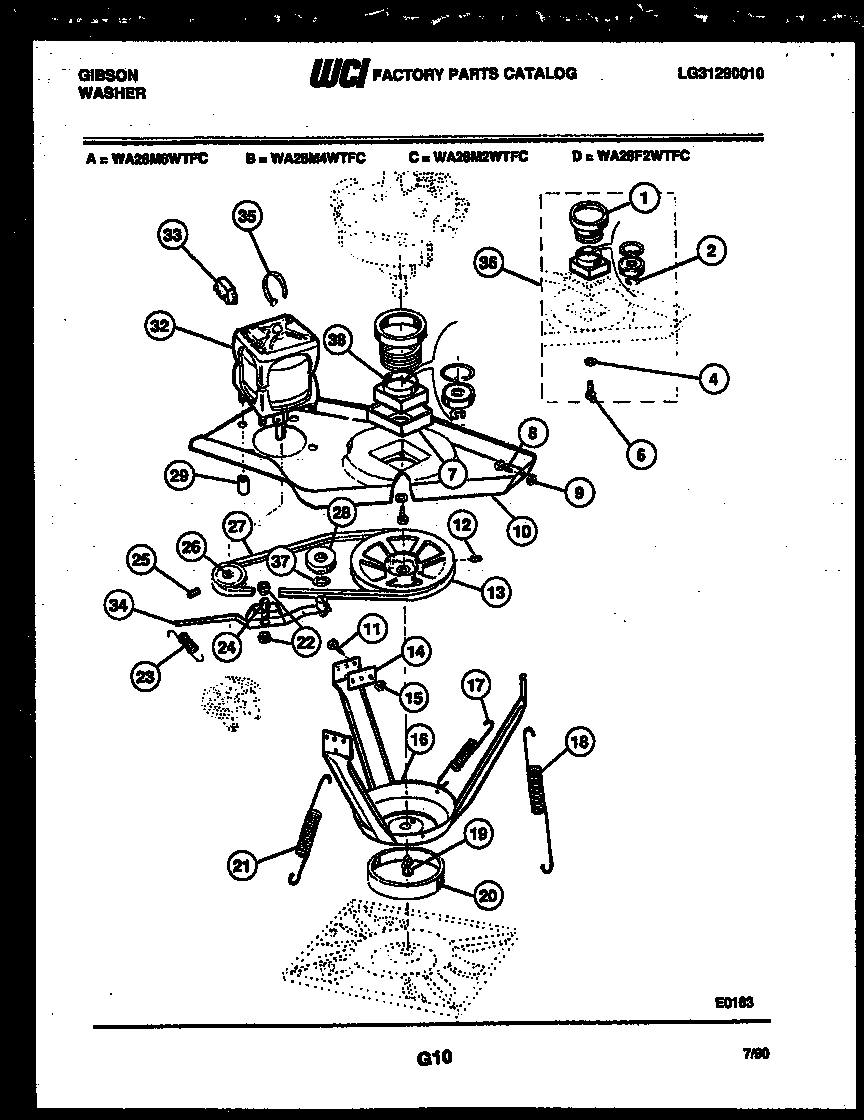

06 - MOTOR AND IDLER ARM CLUTCH

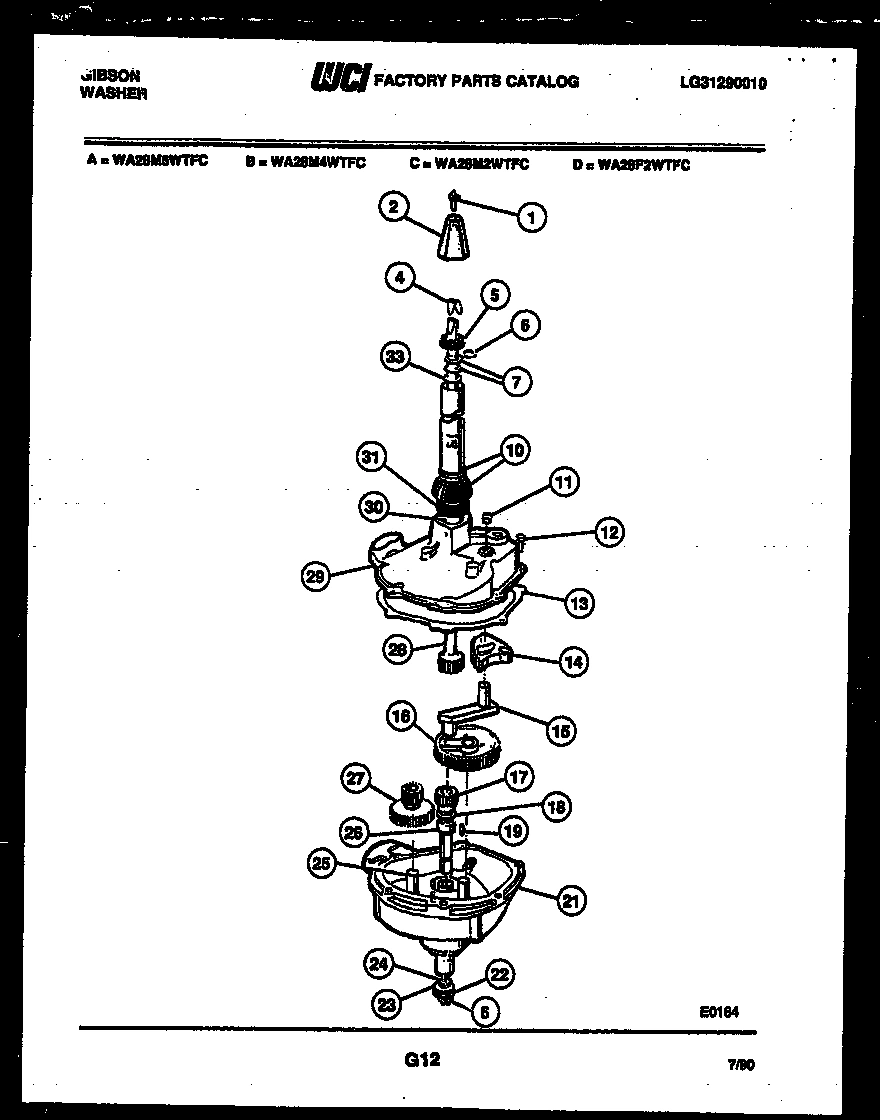

07 - TRANSMISSION PARTS
Common parts from model Electrolux WA28M6WTFC WASHER
*24545
PAINT - 6 OZ - ALMOND WCI F94566-50 Contact Us For Availability
*24558
SYPHON BREAK KIT - ALL DRAIN FACILITIES LESS WCI F077678-100 Contact Us For Availability
*24558
DRAIN HOSE STNDPPE ADAPTER - REDUCES OD OF HO WCI F133063-000 Contact Us For Availability
*24563
WCI F133002-000 WCI F133002-000 Contact Us For Availability
1
WCI 5308011314 WCI 5308011314 Contact Us For Availability
1
WCI 5308008471 WCI 5308008471 Contact Us For Availability
1
WCI F130417-000 WCI F130417-000 Contact Us For Availability
1
WCI F063882-000 WCI F063882-000 Contact Us For Availability
2
WCI F139635-000 WCI F139635-000 Contact Us For Availability
2
WCI F078259-000 WCI F078259-000 Contact Us For Availability
2
WCI F079975-000 WCI F079975-000 Contact Us For Availability
2
WCI F064154-010 WCI F064154-010 Contact Us For Availability
2
WCI F141261-000 WCI F141261-000 Contact Us For Availability
2
DRIVE LUG WCI F140465-000 Contact Us For Availability
3
WCI 3015645 WCI 3015645 Contact Us For Availability
3
WCI 3018962 WCI 3018962 Contact Us For Availability
3
WCI F078611-100 WCI F078611-100 Contact Us For Availability
3
WCI F137506-000 WCI F137506-000 Contact Us For Availability
4
WCI F141775-032 WCI F141775-032 Contact Us For Availability
4
WCI F141775-039 WCI F141775-039 Contact Us For Availability
4
WCI F140624-000 WCI F140624-000 Contact Us For Availability
4
WCI 5303161139 WCI 5303161139 Contact Us For Availability
4
RUBBER SPACER (2) WCI 5303207426 Contact Us For Availability
4
SHIM WCI F063881-400 Contact Us For Availability
5
WCI F079147-400 WCI F079147-400 Contact Us For Availability
5
WCI F138570-000 WCI F138570-000 Contact Us For Availability
6
END CAP WITH TRIM RH WCI F139720-000 Contact Us For Availability
6
SCREW ( 4 ) WCI F060557-000 Contact Us For Availability
6
WCI F138571-000 WCI F138571-000 Contact Us For Availability
6
WCI F138539-000 WCI F138539-000 Contact Us For Availability
6
WCI F068158-000 WCI F068158-000 Contact Us For Availability
7
BRACKET - CONTROL MTG. WCI F140427-026 Contact Us For Availability
7
WCI 3019080 WCI 3019080 Contact Us For Availability
7
WCI 3019082 WCI 3019082 Contact Us For Availability
7
WCI F077009-100 WCI F077009-100 Contact Us For Availability
7
SPACER WASHER WCI F077060-000 Contact Us For Availability
8
WCI F060796-000 WCI F060796-000 Contact Us For Availability
8
WCI F131968-000 WCI F131968-000 Contact Us For Availability
8
WCI F077090-000 WCI F077090-000 Contact Us For Availability
9
WCI F141636-100 WCI F141636-100 Contact Us For Availability
9
WCI F139218-026 WCI F139218-026 Contact Us For Availability
9
DRAIN HOSE AND BUSHING WCI 3205936 Contact Us For Availability
9
WCI F073804-000 WCI F073804-000 Contact Us For Availability
10
WCI F078212-200 WCI F078212-200 Contact Us For Availability
10
HOSE-CLAMP WCI 5364154013 Contact Us For Availability
10
WCI F132770-028 WCI F132770-028 Contact Us For Availability
10
WCI F079420-000 WCI F079420-000 Contact Us For Availability
11
WCI F141024-000 WCI F141024-000 Contact Us For Availability
11
WCI F141124-000 WCI F141124-000 Contact Us For Availability
11
WCI F063532-000 WCI F063532-000 Contact Us For Availability
11
WCI F077061-000 WCI F077061-000 Contact Us For Availability
12
KNOB, TIMER WCI F141025-000 Contact Us For Availability
12
WCI F140867-000 WCI F140867-000 Contact Us For Availability
12
WCI F131276-000 WCI F131276-000 Contact Us For Availability
12
WCI F079688-000 WCI F079688-000 Contact Us For Availability
13
WCI F140749-032 WCI F140749-032 Contact Us For Availability
13
WCI F140749-039 WCI F140749-039 Contact Us For Availability
13
WCI F064154-013 WCI F064154-013 Contact Us For Availability
13
WCI 5303937008 WCI 5303937008 Contact Us For Availability
13
WCI F130895-000 WCI F130895-000 Contact Us For Availability
14
SHIELD - MOTOR WCI F132044-000 Contact Us For Availability
14
WCI 5308015531 WCI 5308015531 Contact Us For Availability
14
WCI F132729-000 WCI F132729-000 Contact Us For Availability
14
WCI 5308011268 WCI 5308011268 Contact Us For Availability
15
WCI F139372-026 WCI F139372-026 Contact Us For Availability
15
WCI F139821-300 WCI F139821-300 Contact Us For Availability
15
WCI F140073-000 WCI F140073-000 Contact Us For Availability
15
WCI F054287-000 WCI F054287-000 Contact Us For Availability
15
WCI F066078-100 WCI F066078-100 Contact Us For Availability
15A
CLIP-HOSE-RR SHORT WCI F139821-200 Contact Us For Availability
15B
KNOB - ROTARY (1) WCI F078949-000 Contact Us For Availability
16
WCI F137033-000 WCI F137033-000 Contact Us For Availability
16
WCI F136029-000 WCI F136029-000 Contact Us For Availability
16
CLAMP WCI F130491-000 Contact Us For Availability
16
LEG AND DOME ASSY WCI F140087-000 Contact Us For Availability
16
WCI 5308015496 WCI 5308015496 Contact Us For Availability
17
SCREW-SHIPPING WCI F137203-000 Contact Us For Availability
17
WCI 5303206795 WCI 5303206795 Contact Us For Availability
17
WCI F078029-000 WCI F078029-000 Contact Us For Availability
17
WCI F140088-000 WCI F140088-000 Contact Us For Availability
17
SHAFT ASSY - LOWER WCI F141770-000 Contact Us For Availability
18
WCI F139577-000 WCI F139577-000 Contact Us For Availability
18
BLOCK-SHIPPING WCI F077075-000 Contact Us For Availability
18
WCI F140887-027 WCI F140887-027 Contact Us For Availability
18
WCI 5308002353 WCI 5308002353 Contact Us For Availability
18
WCI F140141-000 WCI F140141-000 Contact Us For Availability
19
PANEL ACCESS (WHITE) WCI F078316-032 Contact Us For Availability
19
WCI F0783316-039 WCI F0783316-039 Contact Us For Availability
19
WCI F076143-000 WCI F076143-000 Contact Us For Availability
19
WCI F077074-000 WCI F077074-000 Contact Us For Availability
19
WCI F077058-000 WCI F077058-000 Contact Us For Availability
20
WCI F079109-000 WCI F079109-000 Contact Us For Availability
20
WCI F139592-000 WCI F139592-000 Contact Us For Availability
20
IMPELLER KIT-INCLUDES SEAL,GASKET,SCREW WCI F079428-000 Contact Us For Availability
20
WCI F130789-000 WCI F130789-000 Contact Us For Availability
21
SWITCH - PRESSURE WCI 5303209659 Contact Us For Availability
21
WCI F136470-000 WCI F136470-000 Contact Us For Availability
21
CLAMP WCI F064154-020 Contact Us For Availability
21
HOSE CLAMP (2) WCI F140887-028 Contact Us For Availability
21
WCI F140141-100 WCI F140141-100 Contact Us For Availability
21
WCI F140589-000 WCI F140589-000 Contact Us For Availability
22
GROUND HARNESS WCI F140869-000 Contact Us For Availability
22
WCI F130448-000 WCI F130448-000 Contact Us For Availability
22
WCI F077278-000 WCI F077278-000 Contact Us For Availability
22
WCI F137466-000 WCI F137466-000 Contact Us For Availability
22
WCI F078792-000 WCI F078792-000 Contact Us For Availability
22
WCI F077098-000 WCI F077098-000 Contact Us For Availability
23
BUMPER WCI F001345-000 Contact Us For Availability
23
WCI F140887-020 WCI F140887-020 Contact Us For Availability
23
WCI F078465-000 WCI F078465-000 Contact Us For Availability
23
WCI F077051-000 WCI F077051-000 Contact Us For Availability
24
WCI 3018970 WCI 3018970 Contact Us For Availability
24
WCI F131174-000 WCI F131174-000 Contact Us For Availability
24A
CLIP - HARNESS/CAB (2) (NON-ILLUSTRATED) WCI F136345-000 Contact Us For Availability
24A
SCREW-HINGE TO CABINET (2) WCI F132080-000 Contact Us For Availability
24B
TIE - HARNESS/TOP PANEL (NON-ILLUSTRATED) WCI F133780-000 Contact Us For Availability
25
SCREW (2) WCI F140203-000 Contact Us For Availability
25
LID LOCK ASSY. WCI 3017110 Contact Us For Availability
25
WCI F077669-000 WCI F077669-000 Contact Us For Availability
25
WCI F132861-000 WCI F132861-000 Contact Us For Availability
25
OIL-TRANSMISSION (1 QT.) WCI 5303208460 Contact Us For Availability
26
WCI 3018963 WCI 3018963 Contact Us For Availability
26
WCI F138510-000 WCI F138510-000 Contact Us For Availability
26
WCI F077351-000 WCI F077351-000 Contact Us For Availability
26
WCI F134881-000 WCI F134881-000 Contact Us For Availability
26
WCI F077052-000 WCI F077052-000 Contact Us For Availability
27
WCI F130230-026 WCI F130230-026 Contact Us For Availability
27
WCI F060582-000 WCI F060582-000 Contact Us For Availability
27
WCI F078451-000 WCI F078451-000 Contact Us For Availability
27
WCI F077203-000 WCI F077203-000 Contact Us For Availability
27
WCI 5303161175 WCI 5303161175 Contact Us For Availability
28
WCI F060508-000 WCI F060508-000 Contact Us For Availability
28
WCI F077354-000 WCI F077354-000 Contact Us For Availability
28
AGITATOR SHAFT ASSY WCI F141132-000 Contact Us For Availability
29
WCI F079171-000 WCI F079171-000 Contact Us For Availability
29
WCI F066964-000 WCI F066964-000 Contact Us For Availability
29
PUMP COVER WCI F077352-000 Contact Us For Availability
29
HEX SPACER (3) WCI F141131-000 Contact Us For Availability
29
WCI F140587-000 WCI F140587-000 Contact Us For Availability
30
END CAP WITH TRIM LH WCI F139720-100 Contact Us For Availability
30
WCI F060509-000 WCI F060509-000 Contact Us For Availability
30
WCI F140604-100 WCI F140604-100 Contact Us For Availability
30
WCI F064154-003 WCI F064154-003 Contact Us For Availability
30
WCI F077154-000 WCI F077154-000 Contact Us For Availability
31
WCI F079149-000 WCI F079149-000 Contact Us For Availability
31
WCI 5308002424 WCI 5308002424 Contact Us For Availability
31
WCI F077156-000 WCI F077156-000 Contact Us For Availability
32
WCI F073565-000 WCI F073565-000 Contact Us For Availability
32
WCI F141175-000 WCI F141175-000 Contact Us For Availability
32
MOTOR AND SWITCH (GE) WCI F140322-000 Contact Us For Availability
33
WCI F066434-000 WCI F066434-000 Contact Us For Availability
33
CAP AND WASHER ASSY WCI F131203-100 Contact Us For Availability
33
WCI F076138-011 WCI F076138-011 Contact Us For Availability
33
MOTOR SWITCH (GE) WCI F067630-015 Contact Us For Availability
33
WCI F062568-000 WCI F062568-000 Contact Us For Availability
34
SEMS SCREW (2) WCI 3018964 Contact Us For Availability
34
WCI F141410-000 WCI F141410-000 Contact Us For Availability
34
IDLER ARM AND SHAFT WCI 5303937001 Contact Us For Availability
35
WCI 5308002435 WCI 5308002435 Contact Us For Availability
36
WCI 5303912510 No Longer Available
36
WCI F061076-000 WCI F061076-000 Contact Us For Availability
36
WCI 5303207083 WCI 5303207083 Contact Us For Availability
36
WCI F137014-000 WCI F137014-000 Contact Us For Availability
37
WCI F134167-000 WCI F134167-000 Contact Us For Availability
37
WCI F132251-000 WCI F132251-000 Contact Us For Availability
38
BRACKET, CAPACITOR WCI F140401-000 Contact Us For Availability
38
WCI F140887-000 WCI F140887-000 Contact Us For Availability
38
WCI F141123-000 WCI F141123-000 Contact Us For Availability
38
WCI F141714-000 WCI F141714-000 Contact Us For Availability
39
WCI F140443-000 WCI F140443-000 Contact Us For Availability
39
HOSE WCI F078921-000 Contact Us For Availability
40
BUMPER WCI F141003-000 Contact Us For Availability
41
BRACKET-LID WCI F141002-000 Contact Us For Availability
42
WCI F141007-000 WCI F141007-000 Contact Us For Availability
× ![]()
