Model LG W3000H-BN – Common Parts & Diagrams

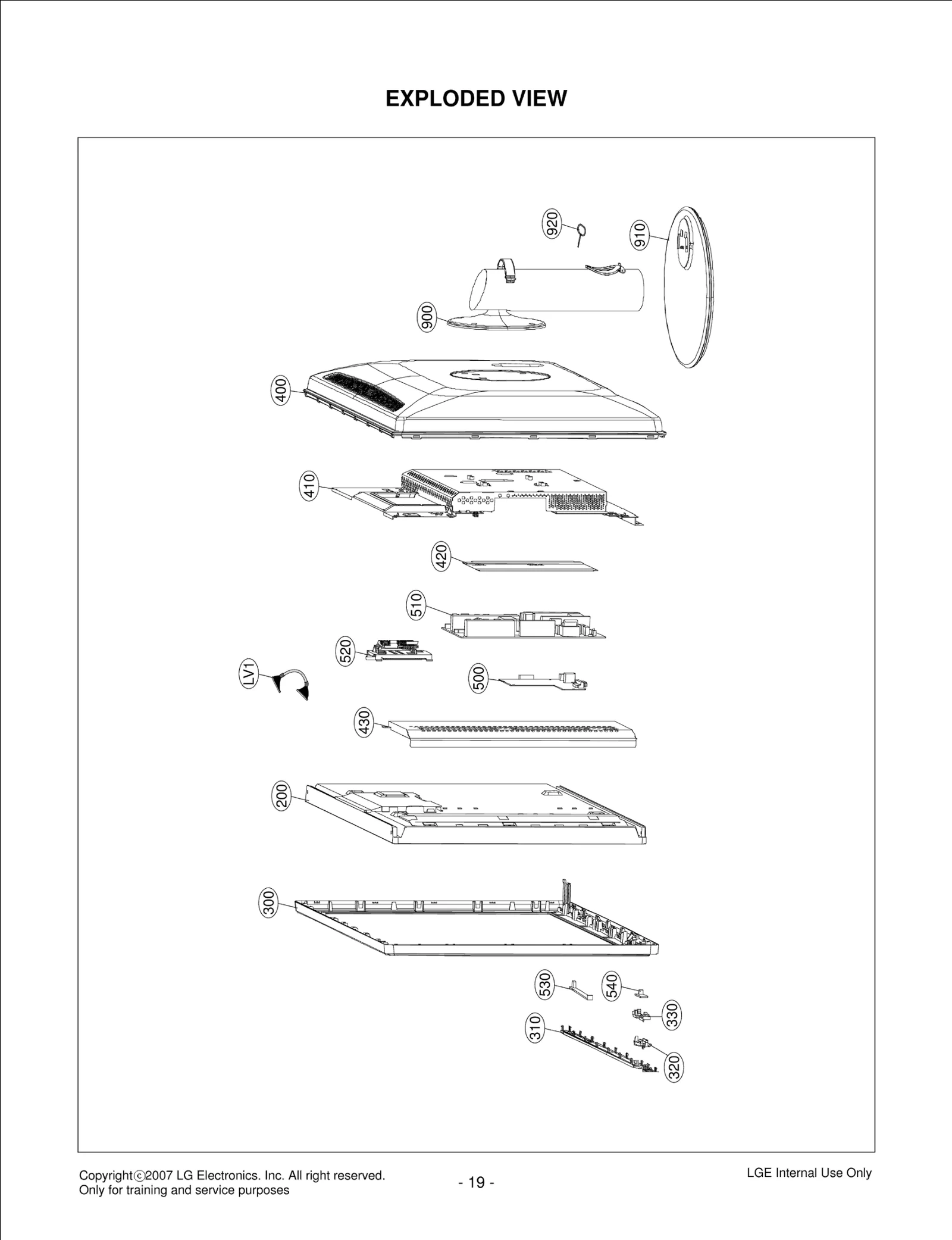

Diagram 0
Diagram 1
Common parts from model LG W3000H-BN
300
Cabinet Assembly LGE ABJ34880801 Contact Us For Availability
310
Cover LGE MCK39997201 Contact Us For Availability
320
Bracket LGE MAZ39997401 Contact Us For Availability
330
Lens LGE MFB39997501 Contact Us For Availability
400
Cover Assembly LGE ACQ34881101 Contact Us For Availability
410
Plate Assembly LGE AGU34881301 Contact Us For Availability
420
Plate LGE MGJ39998201 Contact Us For Availability
430
Plate LGE MGJ39998101 Contact Us For Availability
500
Main Total Assembly LGE EBU41358701 Contact Us For Availability
520
PCB Assembly LGE EBR41359301 Contact Us For Availability
530
PCB Assembly,Keypad LGE EBR42779901 Contact Us For Availability
540
PCB Assembly,Sub LGE EBR42780201 Contact Us For Availability
900
Base Assembly LGE AAN34881801 Contact Us For Availability
910
Base Assembly LGE AAN34881901 Contact Us For Availability
A3
POWER CORD LGE 174-206M Contact Us For Availability
A3
POWER CORD LGE 64109UP002A Contact Us For Availability
A4
Cable,Assembly LGE 68509J0003A Contact Us For Availability
BU1
Buzzer,Piezo LGE 6908VB0001A Contact Us For Availability
C1
Harness,Single LGE EAD42465001 Contact Us For Availability
C2
Harness,Single LGE EAD42464801 Contact Us For Availability
C3
CONNECTOR ASSEMBLY LGE 6631T25020L Contact Us For Availability
C4
CONNECTOR ASSEMBLY LGE 6631900012D Contact Us For Availability
C5
Harness,Single LGE EAD42464601 Contact Us For Availability
C6
Harness,Single LGE EAD42464201 Contact Us For Availability
C200
CAPACITOR,FIXED CERA LGE 0CC390CK41A Contact Us For Availability
C209
CAPACITOR,FIXED CERA LGE 0CK475DD57A Contact Us For Availability
C213
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C318
CAPACITOR,FIXED CERA LGE 0CK103CK56A Contact Us For Availability
C323
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C326
Capacitor,AL,Radial LGE 0CE336CF638 Contact Us For Availability
C359
CAPACITOR,FIXED CERA LGE 0CK103CK51A Contact Us For Availability
C360
CAPACITOR,FIXED ELEC LGE 0CE107EF610 Contact Us For Availability
C800
CAPACITOR,FIXED CERA LGE 0CK102CK56A Contact Us For Availability
D202
DIODE,SWITCHING LGE 0DS226009AA Contact Us For Availability
D302
DIODE,SWITCHING LGE 0DSON00138A Contact Us For Availability
D316
Diode,Schottky LGE EAH39250401 Contact Us For Availability
D800
LED LGE 0DLBE0048AA Contact Us For Availability
IC100
IC,KEC LGE 0IKE704200H Contact Us For Availability
IC101
IC Assembly LGE EAN41359201 Contact Us For Availability
IC200
IC,Bus Controller LGE EAN32038601 Contact Us For Availability
IC300
IC,MEMORIES LGE 0IMMR00014A Contact Us For Availability
IC303
TRANSISTOR,FETS LGE 0TFVI80067A Contact Us For Availability
IC801
IC,PERIPHERALS LGE 0IPRPCR001A Contact Us For Availability
IC900
IC,Glass touch Driver LGE EAN38537901 Contact Us For Availability
L104
Filter,Bead LGE EAM38769502 Contact Us For Availability
L106
Filter,Bead LGE EAM38769505 Contact Us For Availability
L201
FILTER(CIRC),EMC LGE 6210TCE001Z Contact Us For Availability
LV1
Harness,Single LGE EAD36833901 Contact Us For Availability
P102
Connector,Wafer LGE 6602T12005E Contact Us For Availability
P200
Connector,USB LGE 6630SK00804 Contact Us For Availability
P201
Connector,Wafer LGE 6602T12005P Contact Us For Availability
P202
Connector,USB LGE 6630SK00704 Contact Us For Availability
P300
CONNECTOR (CIRC),D-S LGE 6630TGA005B Contact Us For Availability
P301
Connector,Wafer LGE 6630V90116A Contact Us For Availability
P302
WAFER LGE 6602T25008J Contact Us For Availability
P303
WAFER LGE 6602T25008M Contact Us For Availability
P304
6630VK26020 LGE 6630VK26020 Contact Us For Availability
P900
Connector,Wafer LGE 6602T12004E Contact Us For Availability
P901
Connector,Wafer LGE 6630V100105 Contact Us For Availability
Q102
TRANSISTOR,BIPOLARS LGE 0TRDI80002A Contact Us For Availability
Q304
TRANSISTOR LGE 0TR390409AE Contact Us For Availability
Q800
TRANSISTOR LGE 0TR390609FA Contact Us For Availability
R106
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R201
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R202
RESISTOR,METAL GLAZE LGE 0RJ1502D677 Contact Us For Availability
R214
Resistor,Chip LGE 0RH2401D422 Contact Us For Availability
R225
RESISTOR,METAL GLAZE LGE 0RJ5603D677 Contact Us For Availability
R367
Resistor,Chip LGE 0RJ2702D677 Contact Us For Availability
R368
RESISTOR,METAL GLAZE LGE 0RJ2202D677 Contact Us For Availability
R379
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R803
RESISTOR,METAL GLAZE LGE 0RJ2200D677 Contact Us For Availability
R900
RESISTOR,METAL GLAZE LGE 0RJ4703D677 Contact Us For Availability
R902
Resistor,Chip LGE 0RJ8201D677 Contact Us For Availability
R907
Resistor,Chip LGE 0RJ4301D477 Contact Us For Availability
R908
RESISTOR,METAL GLAZE LGE 0RJ2001D677 Contact Us For Availability
R909
RESISTOR,METAL GLAZE LGE 0RJ3900D677 Contact Us For Availability
R910
RESISTOR,METAL GLAZE LGE 0RJ2203D677 Contact Us For Availability
SW1
S/W Package LGE SAB32910501 Contact Us For Availability
VR1
Varistor LGE 6102TTA001A Contact Us For Availability
X100
RESONATOR,CRYSTAL LGE 6212AA2004A Contact Us For Availability
X200
Crystal LGE EAW30536501 Contact Us For Availability
ZD200
DIODE,ZENERS LGE 0DZ560009GB Contact Us For Availability
× ![]()
