Model Whirlpool W26D6HW WASHER – Common Parts & Diagrams

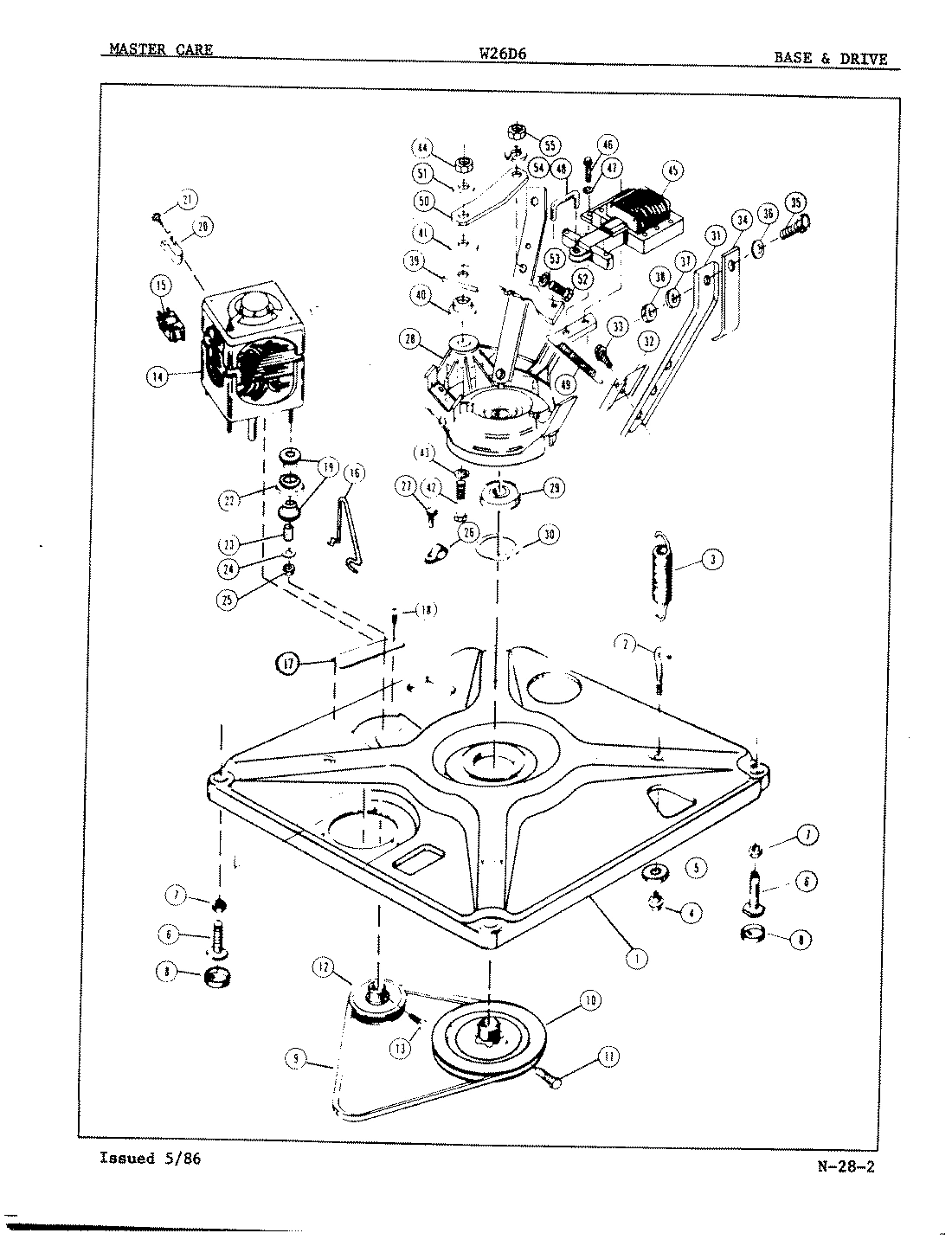

01 - BASE & DRIVE (REV. A)

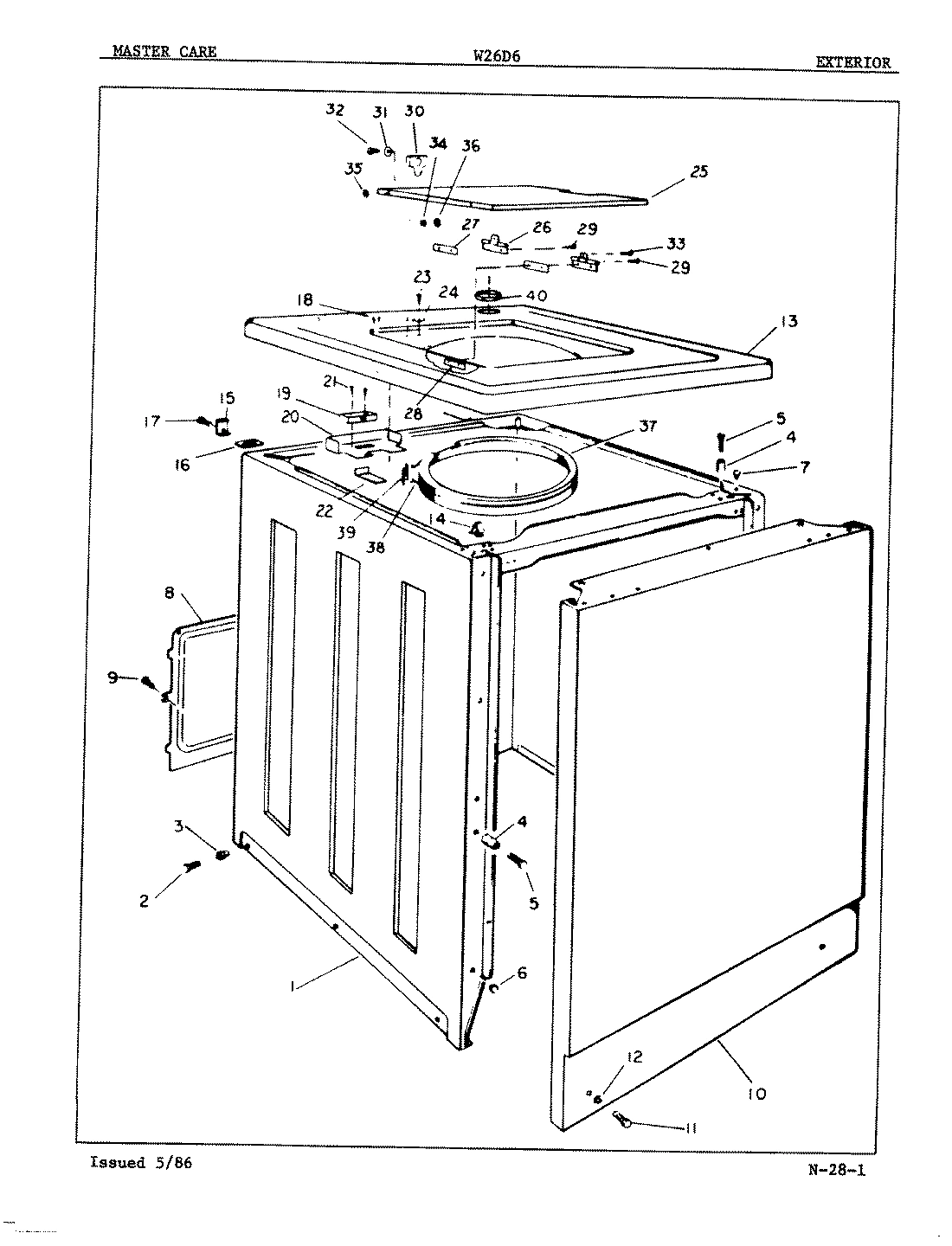

03 - EXTERIOR (REV. A)

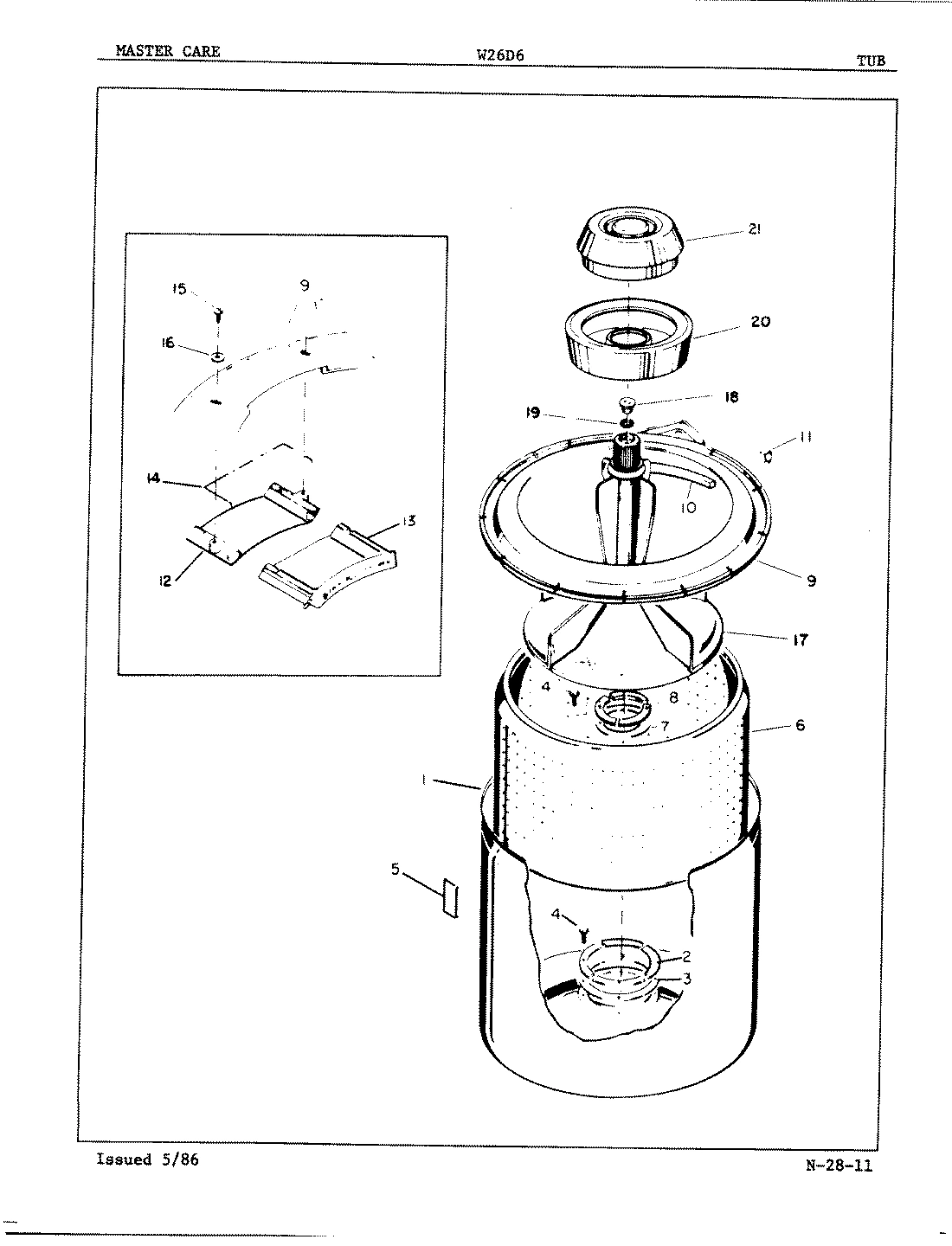

05 - TUB (REV. A)

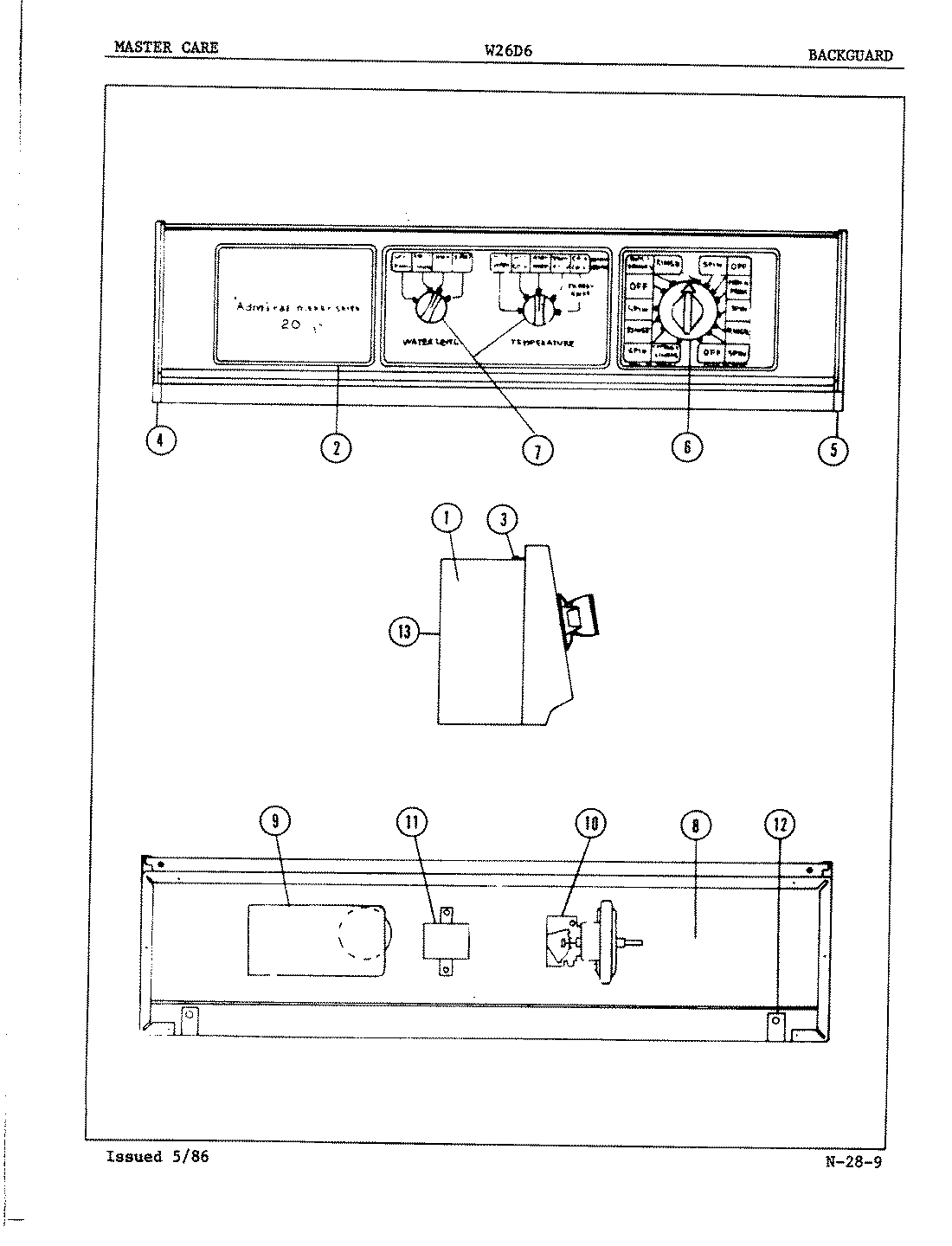

02 - CONTROL PANEL (REV. A)

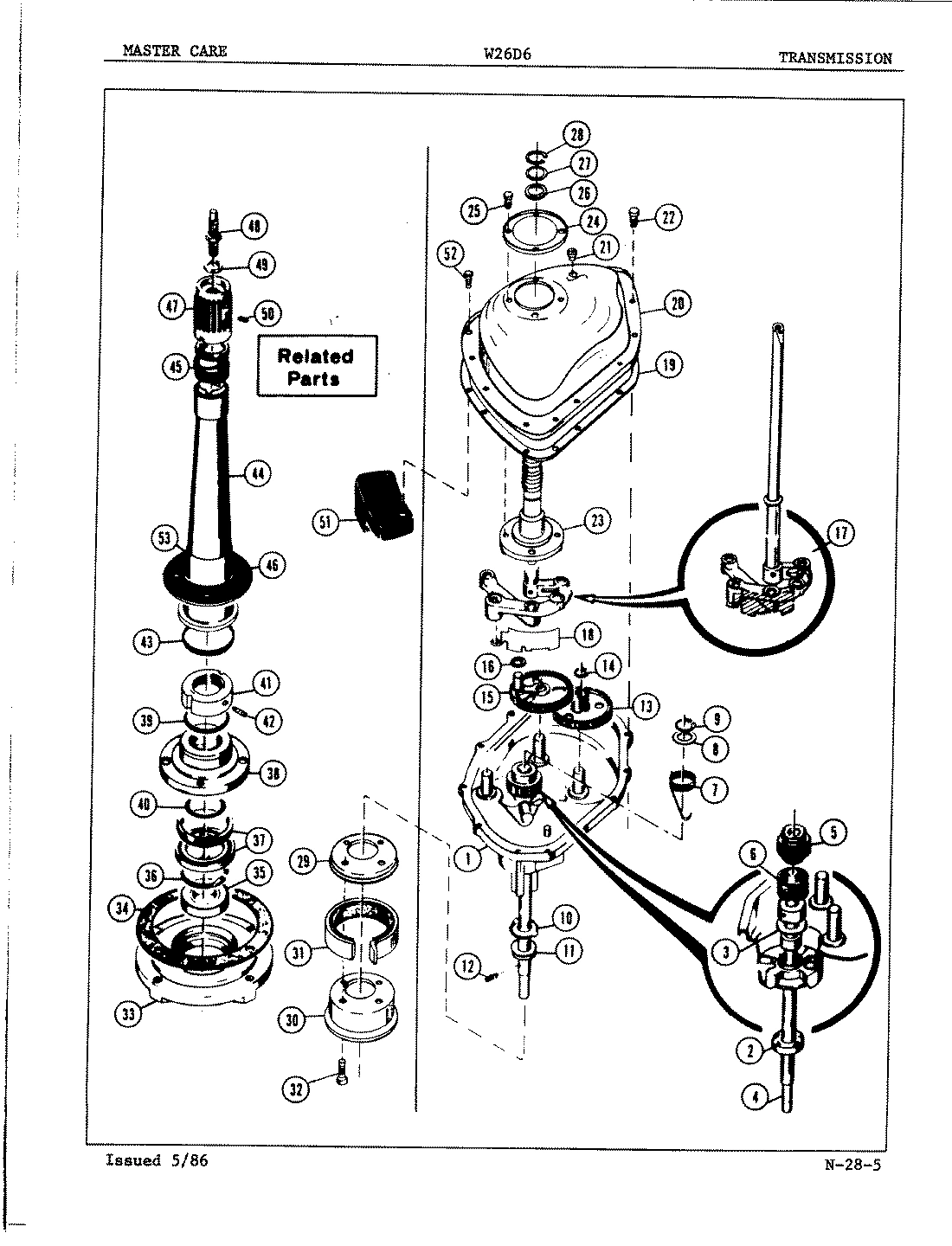

04 - TRANSMISSION (REV. A)

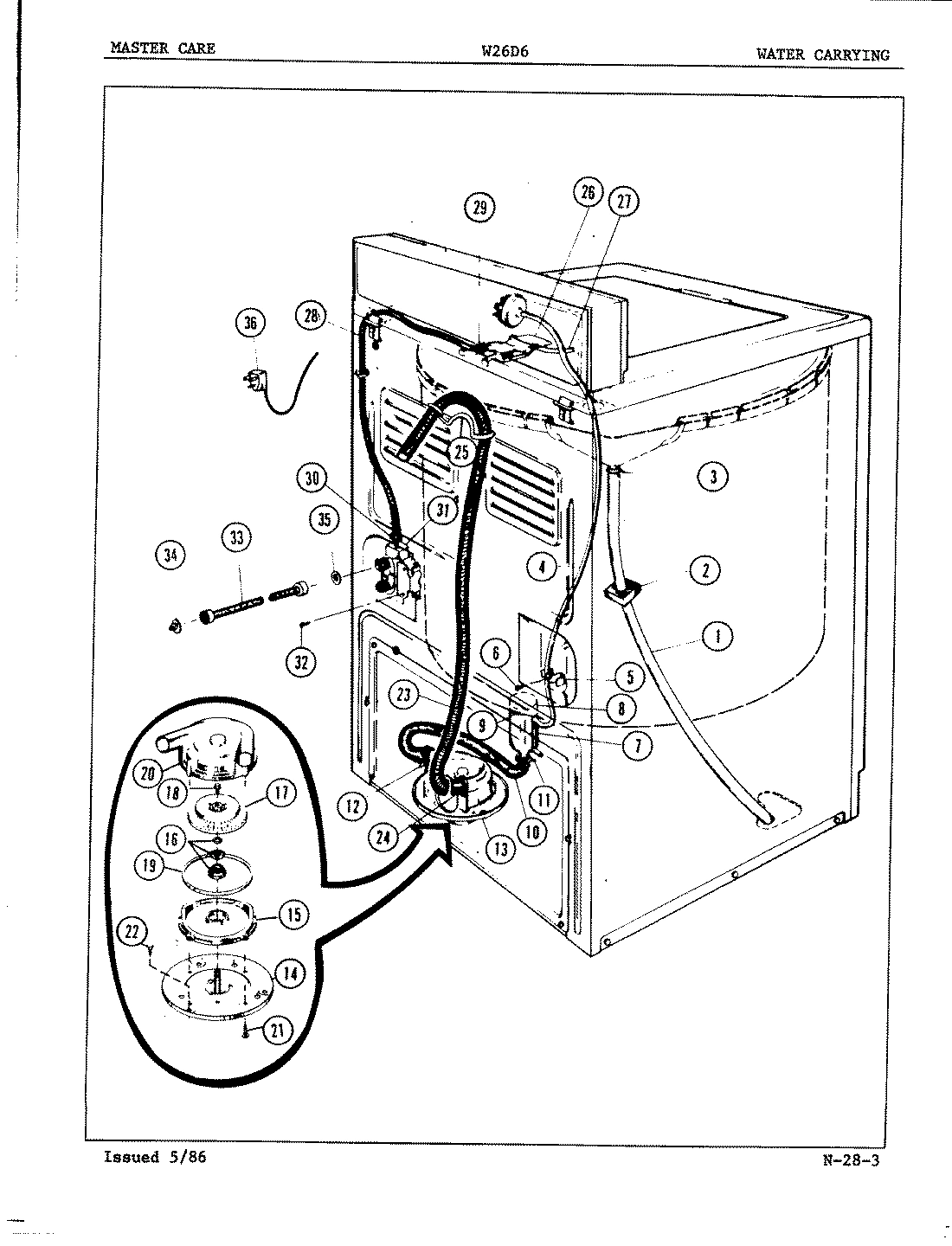

06 - WATER CARRYING (REV. A)
Common parts from model Whirlpool W26D6HW WASHER
1
SCREEN WPL 339392 Contact Us For Availability
1
CABINET BODY WPL 33606825 Contact Us For Availability
1
WRAPPER WPL 339668 Contact Us For Availability
1
TRANSM HOUSING WPL 339035 Contact Us For Availability
1
TRANSMISSION WPL 339144 Contact Us For Availability
1
TRANSM HOUSING WPL 339986 Contact Us For Availability
1
OVERFLOW HOSE WPL 339494 Contact Us For Availability
2
PLATE WPL 338800 Contact Us For Availability
2
CONTROL PANEL WPL 338912 Contact Us For Availability
2
SEAL WPL 339208 Contact Us For Availability
3
SPRING WPL 339553 Contact Us For Availability
3
SCREW WPL 257458 Contact Us For Availability
3
SLEEVE WPL 332088 Contact Us For Availability
3
GASKET WPL 336905 Contact Us For Availability
3
CODE H WPL 250129 Contact Us For Availability
3
SCREW WPL 257649 Contact Us For Availability
3
WASHER, STEEL WPL 257274 Contact Us For Availability
3
CLUTCH ASM WPL 339023N Contact Us For Availability
3
INSULATION WPL 331389 Contact Us For Availability
4
ANCHOR NUT WPL 257362 Contact Us For Availability
4
GUIDE, CABINET WPL 349701 Contact Us For Availability
4
SCREW WPL 257783 Contact Us For Availability
4
LH END CAP WPL 336765 Contact Us For Availability
4
DRIVE SHAFT WPL 339022 Contact Us For Availability
4
CLAMP WPL 256049 Contact Us For Availability
4
PRES SW HOSE WPL 336714 Contact Us For Availability
5
SCREW WPL 256109 Contact Us For Availability
5
PAD WPL 333232 Contact Us For Availability
5
SCREW WPL 257496 Contact Us For Availability
5
RH END CAP WPL 336766 Contact Us For Availability
5
DRIVE PINION WPL 336115 Contact Us For Availability
5
CLAMP WPL 336099 Contact Us For Availability
6
LEVELING LEG WPL 331249 Contact Us For Availability
6
BASKET ASM WPL 339566 Contact Us For Availability
6
SET SCREW WPL 256044 Contact Us For Availability
6
KNOB ASM WPL 337343 Contact Us For Availability
6
SPRING WPL 333195 Contact Us For Availability
7
LOCK NUT WPL 257032 Contact Us For Availability
7
GASKET WPL 336902 Contact Us For Availability
7
KNOB WPL 335804 Contact Us For Availability
7
SPRING WPL 336463 Contact Us For Availability
7
SUMP ASM WPL 337314 Contact Us For Availability
8
PAD WPL 340062 Contact Us For Availability
8
REAR SHIELD WPL 338687 Contact Us For Availability
8
REINF PLATE WPL 338799 Contact Us For Availability
8
SHIELD WPL 339367 Contact Us For Availability
8
WASHER, FLAT WPL 257415 Contact Us For Availability
8
HOSE WPL 333633 Contact Us For Availability
9
DRIVE BELT WPL 339787 Contact Us For Availability
9
TUB TOP WPL 336524 Contact Us For Availability
9
SCREW WPL 250205 Contact Us For Availability
9
TIMER MOTOR WPL 337996 Contact Us For Availability
9
TIMER {EXPORT} WPL 339694 Contact Us For Availability
9
25-7708 WPL 257173 Contact Us For Availability
9
CLAMP WPL 257003 Contact Us For Availability
10
DRIVE PULLEY WPL 335976 Contact Us For Availability
10
FRONT PANEL WPL 33925525 Contact Us For Availability
10
GASKET WPL 333055 Contact Us For Availability
10
PRESSURE SWITCH WPL 339732 Contact Us For Availability
10
THRUST WASHER WPL 339217 Contact Us For Availability
10
HOSE WPL 336091 Contact Us For Availability
11
SET SCREW WPL 257361 Contact Us For Availability
11
SCREW WPL 257001 Contact Us For Availability
11
CLIP WPL 257748 Contact Us For Availability
11
SELECTOR SWITCH WPL 336937 Contact Us For Availability
11
BEARING WPL 334944 Contact Us For Availability
12
MOTOR PULLEY WPL 339303 Contact Us For Availability
12
NOT REQUIRED PART OR SEE NOTE CLAMP (PURCHASE WPL W10124350 Contact Us For Availability
12
DISPENSER BASE WPL 338265 Contact Us For Availability
12
CLIP WPL 257461 Contact Us For Availability
12
PIN WPL 256120 Contact Us For Availability
13
SET SCREW WPL 257117 Contact Us For Availability
13
CABINET TOP WPL 33936225 Contact Us For Availability
13
DISPENSER ASSEMB WPL 338264 Contact Us For Availability
13
SCREW WPL 253092 Contact Us For Availability
13
SHIELD WPL 338909 Contact Us For Availability
13
CLUSTER GEAR WPL 333228 Contact Us For Availability
13
WATER PUMP WPL 336027 Contact Us For Availability
14
230V MOTOR WPL 339681 Contact Us For Availability
14
CLIP WPL 257285 Contact Us For Availability
14
CLIP WPL 336521 Contact Us For Availability
14
PLATE & PULLEY ASSY. WPL 336035 Contact Us For Availability
15
MOTOR SWITCH WPL 339175 Contact Us For Availability
15
SCREW WPL 257082 Contact Us For Availability
15
GEAR CRANK WPL 335910 Contact Us For Availability
15
PUMP BASE WPL 336029 Contact Us For Availability
16
PIVOT SPRING WPL 339140 Contact Us For Availability
16
PAD, TOP HINGE WPL 330930 Contact Us For Availability
16
FLAT WASHER WPL 257224 Contact Us For Availability
16
THRUST WASHER WPL 257091 Contact Us For Availability
16
SEAL ASM WPL 336360 Contact Us For Availability
17
PIVOT SLIDE WPL 338573 Contact Us For Availability
17
SCREW WPL 257732 Contact Us For Availability
17
AGITATOR WPL 335983 Contact Us For Availability
17
LINKAGE WPL 339329 Contact Us For Availability
17
LINKAGE ASM FAB WPL 339796 Contact Us For Availability
17
IMPELLER WPL 336033 Contact Us For Availability
18
SCREW WPL 257769 Contact Us For Availability
18
BUMPER, CABINET WPL 332653 Contact Us For Availability
18
CAP WPL 336241 Contact Us For Availability
18
RETAINING RING WPL 257175 Contact Us For Availability
18
OIL SPLSH PLATE WPL 339103 Contact Us For Availability
18
SCREW PURCHASE WPL 257418 Contact Us For Availability
19
BUSHING WPL 339136 Contact Us For Availability
19
DOOR SWITCH WPL 337745 Contact Us For Availability
19
RUBBER WASHER WPL 257330 Contact Us For Availability
19
TRANSM CVR KIT WPL 334286N Contact Us For Availability
19
COVER GASKET WPL 339366 Contact Us For Availability
19
GASKET WPL 336032 Contact Us For Availability
20
GUIDE WPL 337182 Contact Us For Availability
20
FOOT SLIDE WPL 339137 Contact Us For Availability
20
BRACKET WPL 338289 Contact Us For Availability
20
LINT FILTER WPL 336107 Contact Us For Availability
20
PUMP HOUSING WPL 336030 Contact Us For Availability
21
SCREW WPL 257779 Contact Us For Availability
21
DISPENSER WPL 337507 Contact Us For Availability
21
OIL FILL PLUG WPL 339373 Contact Us For Availability
21
SCREW WPL 257405 Contact Us For Availability
22
GROMMET WPL 339139 Contact Us For Availability
22
LEVER WPL 338828 Contact Us For Availability
22
SCREW WPL 257419 Contact Us For Availability
23
SPACER WPL 257768 Contact Us For Availability
23
SCREW WPL 257463 Contact Us For Availability
23
DRIVE HUB & BRG WPL 338763 Contact Us For Availability
24
WASHER, FLAT WPL 257047 Contact Us For Availability
24
HOSE ADAPTER WPL 339536 Contact Us For Availability
25
NUT, LOCATOR PIN WPL 250224 Contact Us For Availability
25
SCREW WPL 257498 Contact Us For Availability
25
CLOTHES DOOR WPL 33792925 Contact Us For Availability
25
CLAMP WPL 257797 Contact Us For Availability
25
RETAINER WPL 339537 Contact Us For Availability
26
WIRING CLAMP WPL 257265 Contact Us For Availability
26
HINGE WPL 336956 Contact Us For Availability
26
FLUME WPL 336686 Contact Us For Availability
27
SCREW WPL 257218 Contact Us For Availability
27
HINGE PAD WPL 336957 Contact Us For Availability
27
WASHER, FLAT WPL 257051 Contact Us For Availability
27
FLUME EXT WPL 336038 Contact Us For Availability
28
SUSP HOUSING WPL 339579 Contact Us For Availability
28
SPEEDNUT WPL 338058 Contact Us For Availability
28
RETAINING RING WPL 257848 Contact Us For Availability
28
BRAKE ASM KIT WPL 334285N Contact Us For Availability
28
BRAKE KIT WPL LA1000 Contact Us For Availability
28
INLET HOSE WPL 336689 Contact Us For Availability
29
BEARING WPL 635225 Contact Us For Availability
29
RETAINER PLATE WPL 339984 Contact Us For Availability
29
CLAMP WPL 257867 Contact Us For Availability
30
RETAINING RING WPL 257360 Contact Us For Availability
30
ACTUATOR, DOOR SWITCH WPL 430057 Contact Us For Availability
30
BRAKE HUB WPL 339037 Contact Us For Availability
30
BRAKE HUB WPL 339983 Contact Us For Availability
30
HOSE CLAMP WPL 257866 Contact Us For Availability
31
TUB BRACE WPL 339569 Contact Us For Availability
31
BAND&LINING ASM WPL 339686 Contact Us For Availability
31
SUB 36-1456 WPL 337058 Contact Us For Availability
31
MIXING VALVE WPL 391482 Contact Us For Availability
32
SCREW WPL 257438 Contact Us For Availability
32
SCREW WPL 257399 Contact Us For Availability
32
SCREW WPL 257754 Contact Us For Availability
32
HOUSING KIT WPL 334282N Contact Us For Availability
32
SCREW WPL 257101 Contact Us For Availability
33
SCREW WPL 257455 Contact Us For Availability
33
BRG & HSG ASM WPL 339522 Contact Us For Availability
33
HOSE, 4` INLET WPL 337891 Contact Us For Availability
34
BRACKET WPL 336880 Contact Us For Availability
34
WASHER WPL 257086 Contact Us For Availability
34
GASKET WPL 339046 Contact Us For Availability
34
STRAINER, HOSE WPL 337313 Contact Us For Availability
35
NYLITE WASHER WPL 257436 Contact Us For Availability
35
SPIN BEARING WPL 330260 Contact Us For Availability
35
WASHER WPL 257048 Contact Us For Availability
36
PLASTIC NUT WPL 258057 Contact Us For Availability
36
RETAINING RING WPL 257178 Contact Us For Availability
36
SERVICE CORD WPL 333939 Contact Us For Availability
37
SPLASH GUARD WPL 336092 Contact Us For Availability
37
TUB SEAL ASM WPL 337224 Contact Us For Availability
38
BRAKE LATCH KIT WPL 334287N Contact Us For Availability
38
RETAINING RING WPL 336093 Contact Us For Availability
39
BRAKE LATCH WPL 339520 Contact Us For Availability
39
SPRING WPL 330767 Contact Us For Availability
39
O RING WPL 257749 Contact Us For Availability
40
BEARING WPL 338335 Contact Us For Availability
40
``O`` RING, DRIVE TUBE WPL 257722 Contact Us For Availability
41
WASHER WPL 330279 Contact Us For Availability
41
LOCKNUT WPL 339504 Contact Us For Availability
42
HEX HD BOLT WPL 257790 Contact Us For Availability
42
SET SCREW WPL 257120 Contact Us For Availability
42
CENTERPOST KIT WPL 334283N Contact Us For Availability
43
GASKET WPL 338718 Contact Us For Availability
44
LOCKNUT WPL 257304 Contact Us For Availability
44
CENTERPOST ASM WPL 339498 Contact Us For Availability
45
SOLENOID WPL 336461 Contact Us For Availability
45
SEAL WPL 337806 Contact Us For Availability
46
SCREW WPL 257432 Contact Us For Availability
46
GASKET WPL 339047 Contact Us For Availability
46
GASKET WPL 339461 Contact Us For Availability
47
DRIVE BLOCK ASM WPL 339729 Contact Us For Availability
48
LINK WPL 337518 Contact Us For Availability
48
STUD WPL 341248 Contact Us For Availability
49
BRAKE SPRING WPL 337519 Contact Us For Availability
49
FLAT WASHER WPL 257316 Contact Us For Availability
50
SET SCREW WPL 257378 Contact Us For Availability
51
FLAT WASHER WPL 257549 Contact Us For Availability
51
COUNTERWEIGHT WPL 338767 Contact Us For Availability
52
SCREW WPL 257275 Contact Us For Availability
52
SCREW WPL 257758 Contact Us For Availability
53
FLAT WASHER WPL 257413 Contact Us For Availability
53
GALLON OF OIL WPL 334266 Contact Us For Availability
53
BEARING, AGITATOR WPL 336790 Contact Us For Availability
54
LOCKWASHER WPL 257089 Contact Us For Availability
55
HEX NUT WPL 257798 Contact Us For Availability
× ![]()
Login and Registration Form
