Model LG W2600V-PF – Common Parts & Diagrams

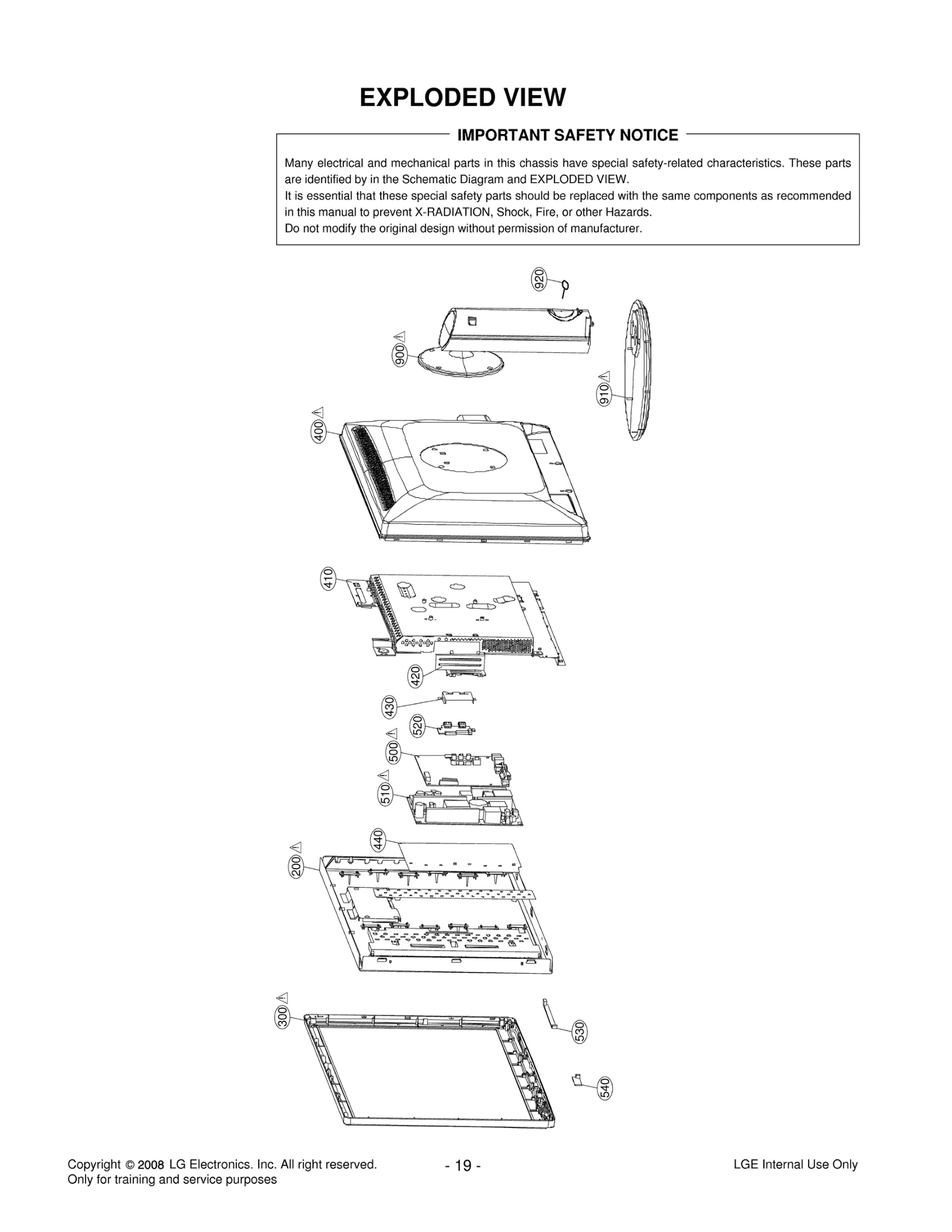

Diagram 0
Diagram 1
Common parts from model LG W2600V-PF
200
LCD,Module-TFT LGE EAJ43076902 Contact Us For Availability
300
Cabinet Assembly LGE ABJ35135308 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ35147312 Contact Us For Availability
410
Frame Assembly LGE ADV37120002 Contact Us For Availability
420
Plate,Shield LGE MGJ42718201 Contact Us For Availability
430
Plate LGE MGJ39998202 Contact Us For Availability
440
Cover LGE MCK40156004 Contact Us For Availability
500
Main Total Assembly LGE EBU53149001 Contact Us For Availability
510
Power Supply Assembly LGE EAY38520202 Contact Us For Availability
520
PCB Assembly,Sub LGE EBR41389101 Contact Us For Availability
530
PCB Assembly LGE EBR54848301 Contact Us For Availability
540
PCB Assembly,Sub LGE EBR40413301 Contact Us For Availability
900
Base Assembly LGE AAN34881805 Contact Us For Availability
910
Base Assembly LGE AAN30364404 Contact Us For Availability
A1
S/W Package LGE SAB33354801 Contact Us For Availability
A3
POWER CORD LGE 174-206M Contact Us For Availability
A5
Harness,Single LGE EAD42464902 Contact Us For Availability
A6
Harness,Single LGE EAD42541601 Contact Us For Availability
A7
CONNECTOR ASSEMBLY LGE 6631T20023A Contact Us For Availability
A8
CONNECTOR ASSEMBLY LGE 6631T11020P Contact Us For Availability
AA1
Title LGE SAC33300901 Contact Us For Availability
BU300
Buzzer,Piezo LGE 6908VB0001A Contact Us For Availability
C108
CAPACITOR,FIXED CERA LGE 0CK104CF56A Contact Us For Availability
C127
CAPACITOR,FIXED CERA LGE 0CC680CK41A Contact Us For Availability
C247
CAPACITOR,FIXED CERA LGE 0CC221CK41A Contact Us For Availability
C301
Capacitor,AL,Radial LGE 0CE107BH618 Contact Us For Availability
C307
Capacitor,Ceramic,Chip LGE 0CK105DH56A Contact Us For Availability
C308
CAPACITOR,FIXED ELEC LGE 0CE475WJ6DC Contact Us For Availability
C312
Capacitor,Ceramic,Chip LGE 0CC821CK41A Contact Us For Availability
C325
CAPACITOR,FIXED ELEC LGE 0CE107EF610 Contact Us For Availability
C329
CAPACITOR,FIXED CERA LGE 0CK103CK51A Contact Us For Availability
C404
CAPACITOR,FIXED CERA LGE 0CK475DD57A Contact Us For Availability
C500
CAPACITOR,FIXED ELEC LGE 0CE106WFKDC Contact Us For Availability
C513
Capacitor,AL,Chip LGE 0CE106WH6DC Contact Us For Availability
C516
CAPACITOR,FIXED CERA LGE 0CK222CK51A Contact Us For Availability
C523
CAPACITOR,FIXED CERA LGE 0CK224CF56A Contact Us For Availability
C525
CAPACITOR,FIXED CERA LGE 0CK103CK56A Contact Us For Availability
C800
CAPACITOR,FIXED CERA LGE 0CK102CK56A Contact Us For Availability
C803
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C901
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
CA1
Card LGE 3840TWL001S Contact Us For Availability
D100
DIODE,SWITCHING LGE 0DS226009AA Contact Us For Availability
D117
Diode,TVS LGE EAH33945901 Contact Us For Availability
D125
Diode,TVS LGE 0DRCE00028A Contact Us For Availability
D127
DIODE,SWITCHING LGE 0DSON00138A Contact Us For Availability
D300
DIODE,RECTIFIER LGE 0DR340009AA Contact Us For Availability
D403
DIODE,SWITCHING LGE 0DSIH00018A Contact Us For Availability
D800
LED LGE 0DLBE0048AA Contact Us For Availability
IC100
IC,Analog Switch LGE EAN41347201 Contact Us For Availability
IC103
IC,MEMORIES LGE 0IMMR00014A Contact Us For Availability
IC201
IC,KEC LGE 0IKE704200H Contact Us For Availability
IC202
IC,Video Processors LGE EAN38226703 Contact Us For Availability
IC203
IC,SDRAM LGE EAN32236001 Contact Us For Availability
IC205
IC,MEMORIES LGE 0IMMRSG036B Contact Us For Availability
IC300
IC,DC,DC Converter LGE EAN50480501 Contact Us For Availability
IC301
IC,LDO Voltage Regulator LGE EAN39841601 Contact Us For Availability
IC303
IC,LDO Voltage Regul LGE EAN34140401 Contact Us For Availability
IC400
IC,Bus Controller LGE EAN32038601 Contact Us For Availability
IC403
IC,POWER MANAGEMENT LGE 0IPMGFA003G Contact Us For Availability
IC500
IC,D/A Converter LGE EAN33594801 Contact Us For Availability
IC501
IC,Audio Amplifier LGE EAN48899201 Contact Us For Availability
IC801
IC,PERIPHERALS LGE 0IPRPCR001A Contact Us For Availability
IC900
IC,Glass touch Driver LGE EAN38537901 Contact Us For Availability
JK100
Jack,DIN LGE EAG39323101 Contact Us For Availability
JK101
CONNECTOR (CIRC),D-S LGE 6630TGA005B Contact Us For Availability
JK102
CONNECTOR (CIRC),D-S LGE 6630TGA004F Contact Us For Availability
JK400
Connector,USB LGE 6630SK00704 Contact Us For Availability
JK401
Connector,USB LGE 6630SK00804 Contact Us For Availability
JK500
JACK,PHONE LGE 6612F00001D Contact Us For Availability
L106
Filter,Bead LGE EAM38769505 Contact Us For Availability
L200
Filter,Bead LGE EAM38769502 Contact Us For Availability
L300
COIL,CHOKE LGE 61409B0002A Contact Us For Availability
L408
Filter,Bead LGE EAM38769508 Contact Us For Availability
P100
Connector,Wafer LGE EAG40457401 Contact Us For Availability
P102
Connector,Wafer LGE 6602T12005E Contact Us For Availability
P301
CONNECTOR (CIRC),WAF LGE 6630VF00530 Contact Us For Availability
P402
Connector,Wafer LGE EAG40457201 Contact Us For Availability
P800
Connector,Wafer LGE 6630V100105 Contact Us For Availability
P900
Connector,Wafer LGE 6602T12004E Contact Us For Availability
Q301
TRANSISTOR,BIPOLARS LGE 0TRDI80002A Contact Us For Availability
Q302
FET LGE EBK38029201 Contact Us For Availability
Q500
TRANSISTOR LGE 0TR390409AE Contact Us For Availability
Q801
TRANSISTOR LGE 0TR390609FA Contact Us For Availability
R116
RESISTOR,METAL GLAZE LGE 0RJ0102D677 Contact Us For Availability
R124
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R129
RESISTOR,METAL GLAZE LGE 0RJ0752D677 Contact Us For Availability
R131
RESISTOR,METAL GLAZE LGE 0RJ0682D677 Contact Us For Availability
R145
Resistor,Chip LGE 0RJ0182D677 Contact Us For Availability
R149
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R157
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R220
RESISTOR,METAL GLAZE LGE 0RJ0562D677 Contact Us For Availability
R226
RESISTOR,METAL GLAZE LGE 0RJ1302D677 Contact Us For Availability
R268
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R303
Resistor,Chip LGE 0RJ2402D677 Contact Us For Availability
R311
Resistor,Chip LGE 0RH5102D622 Contact Us For Availability
R315
RESISTOR CHIP 100K 1/10W 5 D. LGE 0RH1003D622 Contact Us For Availability
R318
Resistor,Chip LGE 0RH1102D422 Contact Us For Availability
R322
RESISTOR,METAL GLAZE LGE 0RJ5902C477 Contact Us For Availability
R328
RESISTOR,METAL GLAZE LGE 0RJ4990D477 Contact Us For Availability
R329
Resistor,Chip LGE 0RJ4301D477 Contact Us For Availability
R331
RESISTOR,FIXED SMALL LGE 0RX0331K668 Contact Us For Availability
R332
Resistor,Metal Oxide Film LGE 0RS0470K607 Contact Us For Availability
R336
RESISTOR,METAL GLAZE LGE 0RJ2001D677 Contact Us For Availability
R402
RESISTOR,METAL GLAZE LGE 0RJ1502D677 Contact Us For Availability
R409
Resistor,Chip LGE 0RH2401D422 Contact Us For Availability
R417
RESISTOR,METAL GLAZE LGE 0RJ5603D677 Contact Us For Availability
R518
Resistor,Chip LGE 0RJ7500D677 Contact Us For Availability
R526
RESISTOR,METAL GLAZE LGE 0RJ2202D677 Contact Us For Availability
R528
RESISTOR,METAL GLAZE LGE 0RJ1003D677 Contact Us For Availability
R803
RESISTOR,METAL GLAZE LGE 0RJ2200D677 Contact Us For Availability
R807
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R900
RESISTOR,METAL GLAZE LGE 0RJ4703D677 Contact Us For Availability
R902
Resistor,Chip LGE 0RJ8201D677 Contact Us For Availability
R909
RESISTOR,METAL GLAZE LGE 0RJ3900D677 Contact Us For Availability
R910
RESISTOR,METAL GLAZE LGE 0RJ2203D677 Contact Us For Availability
RA259
RESISTOR,METAL GLAZE LGE 0RJ0222C687 Contact Us For Availability
VR1
Varistor LGE 6102TTA001A Contact Us For Availability
X200
CRYSTAL LGE 6202TST001A Contact Us For Availability
X400
Crystal LGE EAW30536502 Contact Us For Availability
ZD803
DIODE,ZENERS LGE 0DZ560009GB Contact Us For Availability
× ![]()
