Model LG W2600H-PF – Common Parts & Diagrams

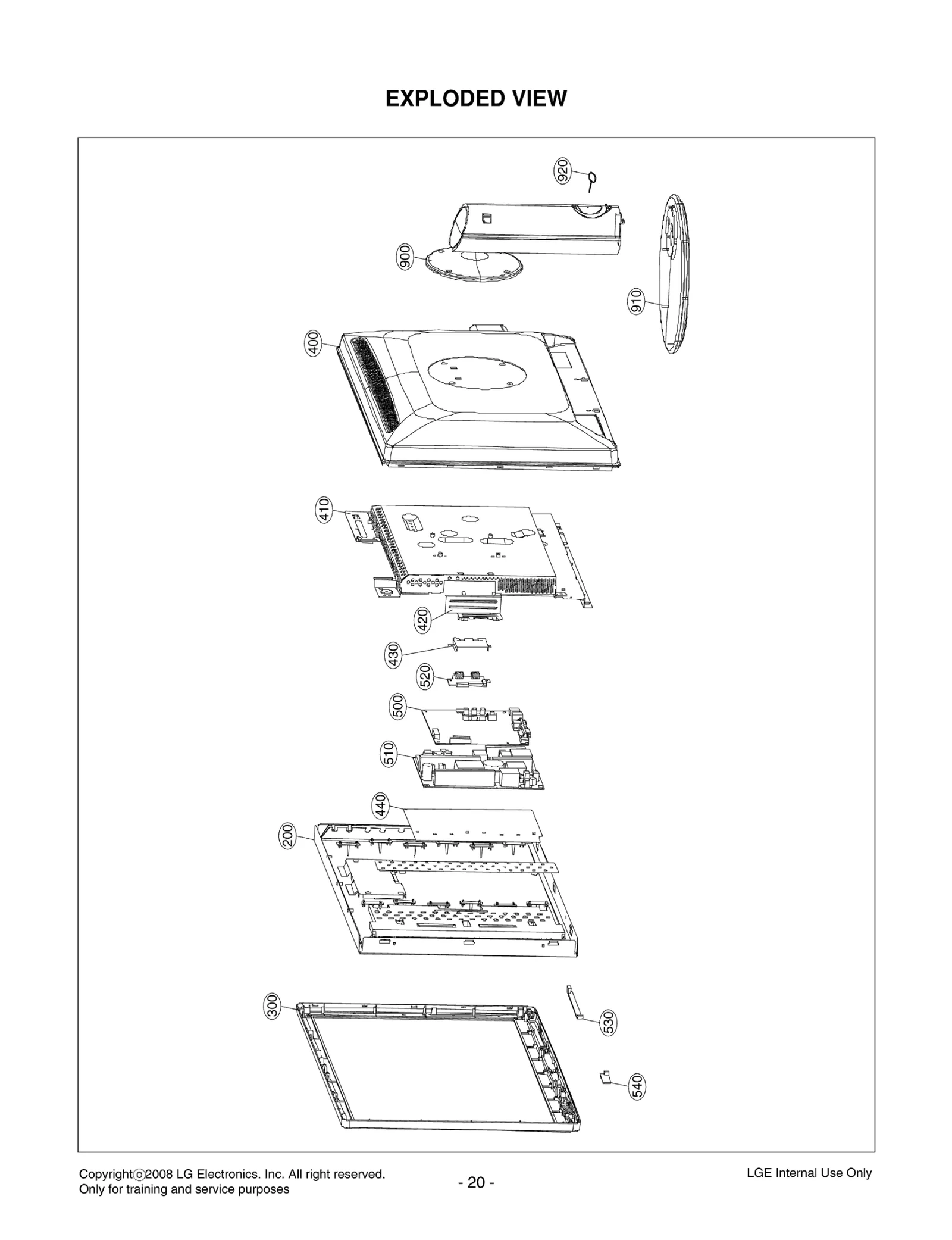

Diagram 0
Diagram 1
Common parts from model LG W2600H-PF
200
LCD,Module-TFT LGE EAJ43076901 Contact Us For Availability
300
Cabinet Assembly LGE ABJ35135306 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ35147308 Contact Us For Availability
410
Frame Assembly LGE ADV37120001 Contact Us For Availability
420
Plate,Shield LGE MGJ42718201 Contact Us For Availability
430
Plate LGE MGJ39998202 Contact Us For Availability
500
Main Total Assembly LGE EBU44310501 Contact Us For Availability
510
Power Supply Assembly LGE EAY38520202 Contact Us For Availability
520
PCB Assembly,Sub LGE EBR41389101 Contact Us For Availability
530
PCB Assembly,Keypad LGE EBR51237601 Contact Us For Availability
540
PCB Assembly,Sub LGE EBR40413301 Contact Us For Availability
900
Base Assembly LGE AAN34881805 Contact Us For Availability
910
Base Assembly LGE AAN30364404 Contact Us For Availability
A1
S/W Package LGE SAB32999801 Contact Us For Availability
A3
POWER CORD LGE 174-206M Contact Us For Availability
A6
CABLE,D-SUB LGE 6850TD9001K Contact Us For Availability
AR205
RESISTOR,METAL GLAZE LGE 0RJ0222C687 Contact Us For Availability
BU300
Buzzer,Piezo LGE 6908VB0001A Contact Us For Availability
C1
CONNECTOR ASSEMBLY LGE 6631T11020P Contact Us For Availability
C2
Harness,Single LGE EAD42464902 Contact Us For Availability
C3
Harness,Single LGE EAD42541601 Contact Us For Availability
C116
CAPACITOR,FIXED CERA LGE 0CC680CK41A Contact Us For Availability
C247
CAPACITOR,FIXED CERA LGE 0CC221CK41A Contact Us For Availability
C264
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C301
Capacitor,AL,Radial LGE 0CE107EH638 Contact Us For Availability
C307
Capacitor,Ceramic,Chip LGE 0CK105DH56A Contact Us For Availability
C308
CAPACITOR,FIXED ELEC LGE 0CE475WJ6DC Contact Us For Availability
C311
Capacitor,Ceramic,Chip LGE 0CC821CK41A Contact Us For Availability
C322
CAPACITOR,FIXED CERA LGE 0CK103CK51A Contact Us For Availability
C323
CAPACITOR,FIXED ELEC LGE 0CE107EF610 Contact Us For Availability
C510
CAPACITOR,FIXED CERA LGE 0CK475DD57A Contact Us For Availability
C800
CAPACITOR,FIXED CERA LGE 0CK102CK56A Contact Us For Availability
C903
CAPACITOR,FIXED CERA LGE 0CK103CK56A Contact Us For Availability
C904
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
D111
DIODE,SWITCHING LGE 0DSON00138A Contact Us For Availability
D300
DIODE,RECTIFIER LGE 0DR340009AA Contact Us For Availability
D503
DIODE,SWITCHING LGE 0DSIH00018A Contact Us For Availability
D800
LED LGE 0DLBE0048AA Contact Us For Availability
D801
DIODE,SWITCHING LGE 0DS226009AA Contact Us For Availability
IC100
IC,EEPROM LGE EAN35989901 Contact Us For Availability
IC200
IC Assembly LGE EAN44311701 Contact Us For Availability
IC201
IC,KEC LGE 0IKE704200H Contact Us For Availability
IC202
IC,Video Processors LGE EAN31470703 Contact Us For Availability
IC204
IC,SDRAM LGE EAN32236001 Contact Us For Availability
IC205
IC,MEMORIES LGE 0IMMRSG036B Contact Us For Availability
IC300
IC,DC,DC Converter LGE EAN50480501 Contact Us For Availability
IC302
IC,LDO Voltage Regul LGE EAN34140401 Contact Us For Availability
IC500
IC,Bus Controller LGE EAN32038601 Contact Us For Availability
IC503
IC,POWER MANAGEMENT LGE 0IPMGFA003G Contact Us For Availability
IC801
IC,PERIPHERALS LGE 0IPRPCR001A Contact Us For Availability
IC900
IC,Glass touch Driver LGE EAN38537901 Contact Us For Availability
JK100
CONNECTOR (CIRC),D-S LGE 6630TGA005B Contact Us For Availability
JK500
Connector,USB LGE 6630SK00704 Contact Us For Availability
JK501
Connector,USB LGE 6630SK00804 Contact Us For Availability
L104
Filter,Bead LGE EAM38769502 Contact Us For Availability
L106
Filter,Bead LGE EAM38769505 Contact Us For Availability
L300
COIL,CHOKE LGE 61409B0002A Contact Us For Availability
L507
Filter,Bead LGE EAM38769508 Contact Us For Availability
P100
Connector,Wafer LGE EAG40457401 Contact Us For Availability
P102
Connector,Wafer LGE 6602T12005E Contact Us For Availability
P301
CONNECTOR (CIRC),WAF LGE 6630VF00530 Contact Us For Availability
P502
Connector,Wafer LGE EAG40457201 Contact Us For Availability
P901
Connector,Wafer LGE 6630V100105 Contact Us For Availability
Q200
TRANSISTOR LGE 0TR390409AE Contact Us For Availability
Q301
FET LGE EBK38029201 Contact Us For Availability
Q302
TRANSISTOR,BIPOLARS LGE 0TRDI80002A Contact Us For Availability
Q801
TRANSISTOR LGE 0TR390609FA Contact Us For Availability
R103
RESISTOR,METAL GLAZE LGE 0RJ0682D677 Contact Us For Availability
R106
RESISTOR,METAL GLAZE LGE 0RJ0752D677 Contact Us For Availability
R123
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R220
RESISTOR,METAL GLAZE LGE 0RJ0562D677 Contact Us For Availability
R227
RESISTOR,METAL GLAZE LGE 0RJ1302D677 Contact Us For Availability
R257
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R305
Resistor,Chip LGE 0RH5102D622 Contact Us For Availability
R307
Resistor,Chip LGE 0RJ2402D677 Contact Us For Availability
R309
RESISTOR CHIP 100K 1/10W 5 D. LGE 0RH1003D622 Contact Us For Availability
R311
Resistor,Chip LGE 0RH1102D422 Contact Us For Availability
R313
RESISTOR,METAL GLAZE LGE 0RJ5902C477 Contact Us For Availability
R318
RESISTOR,FIXED SMALL LGE 0RX0331K668 Contact Us For Availability
R501
RESISTOR,METAL GLAZE LGE 0RJ1502D677 Contact Us For Availability
R510
Resistor,Chip LGE 0RH2401D422 Contact Us For Availability
R519
RESISTOR,METAL GLAZE LGE 0RJ5603D677 Contact Us For Availability
R803
RESISTOR,METAL GLAZE LGE 0RJ2200D677 Contact Us For Availability
R805
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R806
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R900
RESISTOR,METAL GLAZE LGE 0RJ4703D677 Contact Us For Availability
R907
Resistor,Chip LGE 0RJ4301D477 Contact Us For Availability
R908
RESISTOR,METAL GLAZE LGE 0RJ2001D677 Contact Us For Availability
R909
RESISTOR,METAL GLAZE LGE 0RJ3900D677 Contact Us For Availability
R910
RESISTOR,METAL GLAZE LGE 0RJ2203D677 Contact Us For Availability
VR1
Varistor LGE 6102TTA001A Contact Us For Availability
X200
CRYSTAL LGE 6202TST001A Contact Us For Availability
X500
Crystal LGE EAW30536502 Contact Us For Availability
ZD105
DIODE,ZENERS LGE 0DZ560009GB Contact Us For Availability
× ![]()
