Model LG W2453V-PF – Common Parts & Diagrams

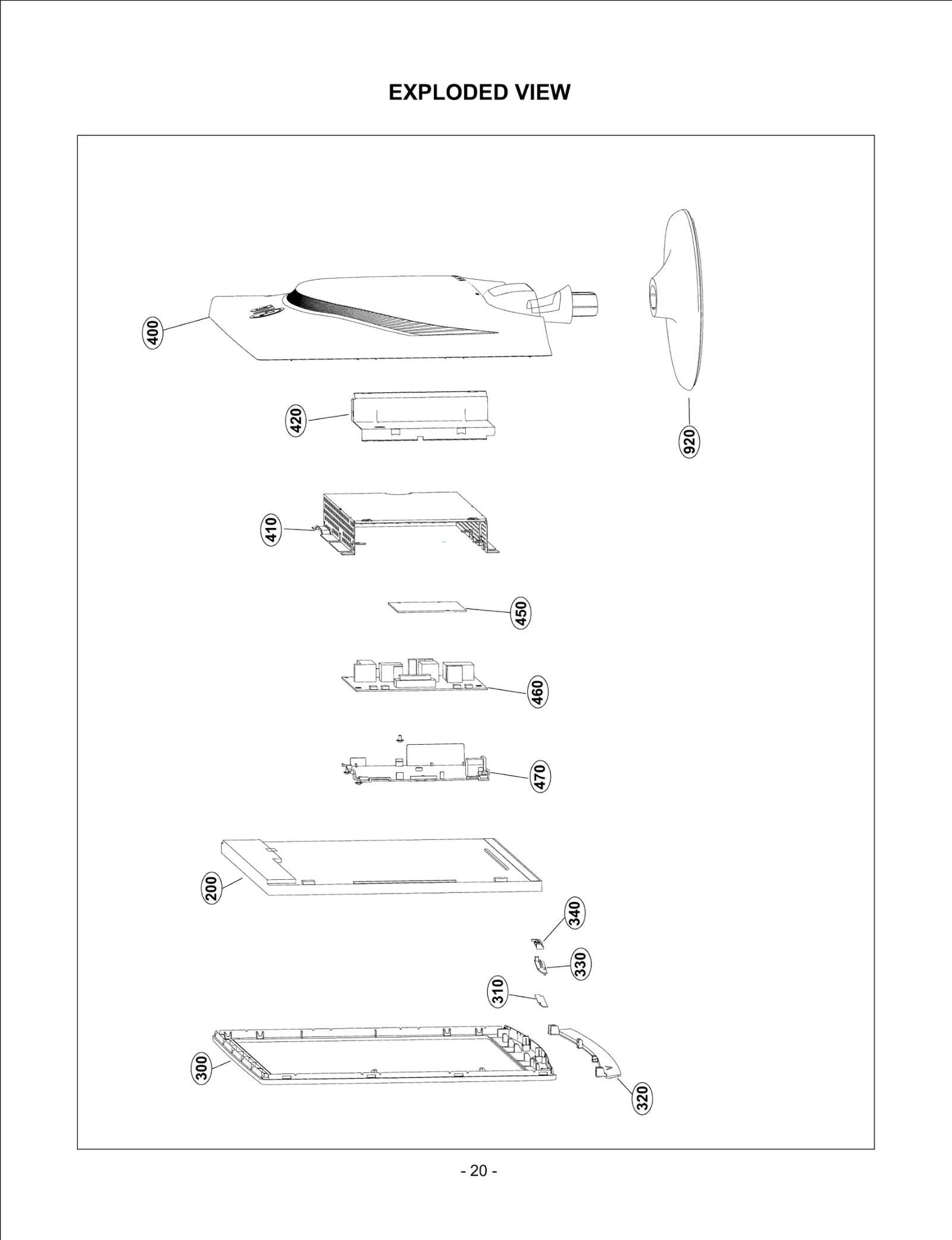

Diagram 0
Diagram 1
Common parts from model LG W2453V-PF
300
Cabinet LGE MBH59690101 Contact Us For Availability
320
Decor LGE MCR59690901 Contact Us For Availability
330
PCB Assembly LGE EBR59220208 Contact Us For Availability
330
PCB Assembly LGE EBR59220201 Contact Us For Availability
340
Bracket LGE MAZ61847201 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ70661901 Contact Us For Availability
410
Frame LGE MDQ53453503 Contact Us For Availability
420
Frame LGE MDQ59691701 Contact Us For Availability
450
Main Total Assembly LGE EBU60719101 Contact Us For Availability
460
Power Supply Assembly LGE EAY38422105 Contact Us For Availability
920
Base Assembly LGE AAN70662101 Contact Us For Availability
A1
S/W Package LGE SAB33074504 Contact Us For Availability
C2
CAPACITOR,FIXED CERA LGE 0CK475CC94A Contact Us For Availability
C5
Capacitor,Ceramic,Chip LGE 0CK225DF56A Contact Us For Availability
C105
CAPACITOR,FIXED CERA LGE 0CK224CF56A Contact Us For Availability
C110
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C124
CAPACITOR,AL.ELECTRO LGE 0CE106EK638 Contact Us For Availability
C204
CAPACITOR,FIXED CERA LGE 0CC680CK41A Contact Us For Availability
C304
Capacitor,AL,Radial LGE 0CE227EF638 Contact Us For Availability
C305
CAPACITOR,FIXED ELEC LGE 0CE475WJ6DC Contact Us For Availability
C328
CAPACITOR,FIXED ELEC LGE 0CE107EF610 Contact Us For Availability
C331
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C357
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C362
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
D217
DIODE,SWITCHING LGE 0DSON00138A Contact Us For Availability
D217
Diode,Schottky LGE EAH44241601 Contact Us For Availability
D218
Diode,TVS LGE 0DRCE00028A Contact Us For Availability
IC102
IC Assembly LGE EAN60762501 Contact Us For Availability
L350
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
P103
Connector,FFC/FPC/PIC LGE EAG60908201 Contact Us For Availability
P302
Connector,Wafer LGE 6602T20008E Contact Us For Availability
Q201
TRANSISTOR,BIPOLARS LGE 0TRDI80002A Contact Us For Availability
Q201
TRANSISTOR LGE 0TR390409AE Contact Us For Availability
Q201
TR,Bipolar LGE 0TRKE80046A Contact Us For Availability
R1
Resistor,Chip LGE 0RJ0432C678 Contact Us For Availability
R7
Resistor,Chip LGE 0RJ1500C678 Contact Us For Availability
R8
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R109
Resistor,Chip LGE 0RJ3900C678 Contact Us For Availability
R111
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R118
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R120
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R122
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R206
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R219
Resistor,Chip LGE 0RJ0752C678 Contact Us For Availability
R223
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R308
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R318
Resistor,Chip LGE 0RJ2001C678 Contact Us For Availability
R324
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R350
Resistor,Chip LGE 0RJ0512C678 Contact Us For Availability
X101
Crystal LGE 6212AA2001H Contact Us For Availability
X101
Crystal LGE EAW60658001 Contact Us For Availability
ZD9
Diode,Zener LGE EAH60661201 Contact Us For Availability
× ![]()
