Model LG W2452T-TF – Common Parts & Diagrams
Diagram 0

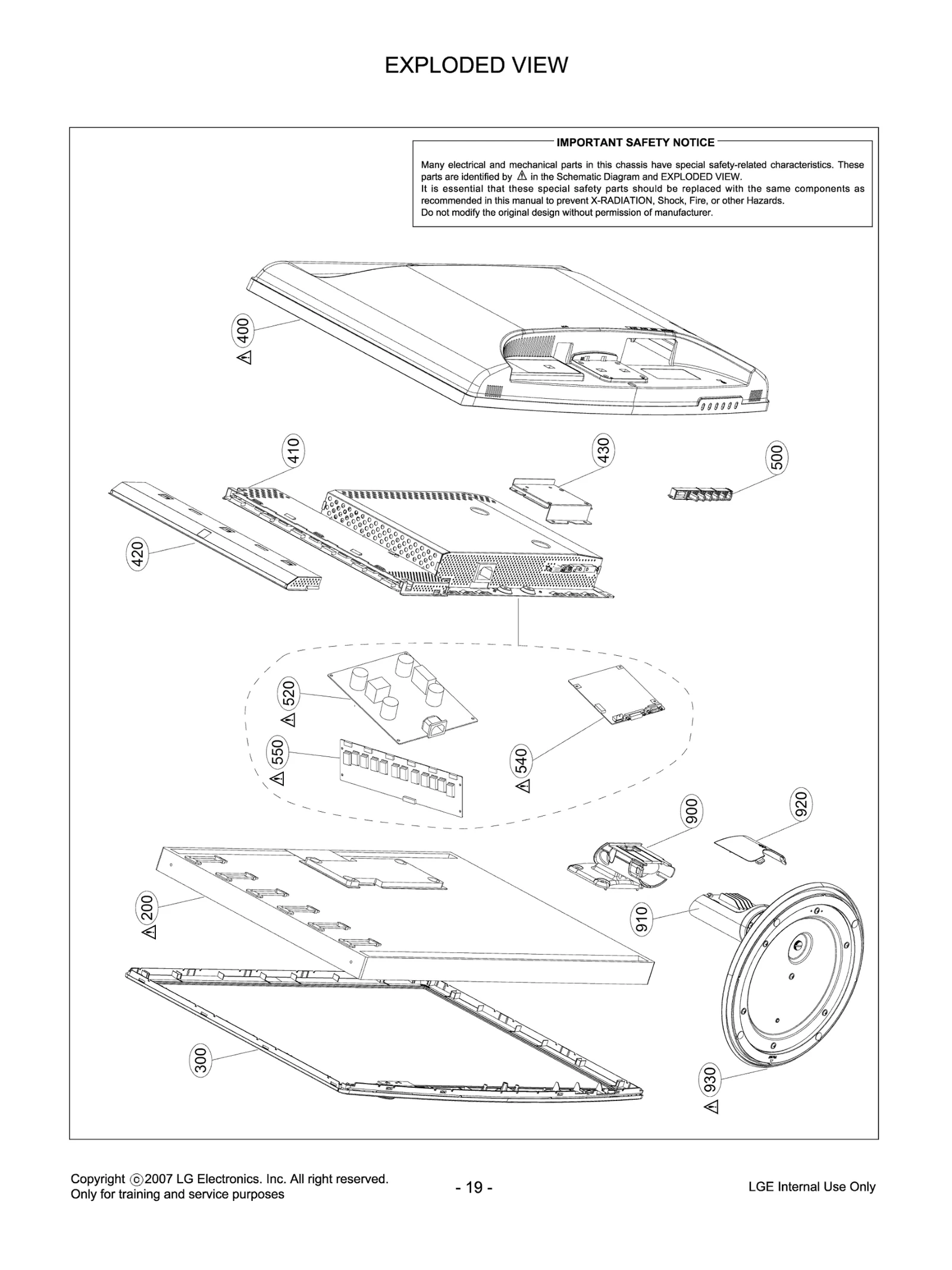

Diagram 1
Common parts from model LG W2452T-TF
300
Cabinet Assembly LGE ABJ36826301 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ36826401 Contact Us For Availability
410
Package Assembly LGE AGF36819901 Contact Us For Availability
420
Frame LGE MDQ42098603 Contact Us For Availability
430
Plate,Metal LGE MGJ42100701 Contact Us For Availability
500
Package Assembly LGE AGF52708101 Contact Us For Availability
510
PCB Assembly LGE EBR42021801 Contact Us For Availability
520
SMPS,AC/DC LGE EAY43292001 Contact Us For Availability
540
Main Total Assembly LGE EBU43461001 Contact Us For Availability
550
Inverter,DC/AC LGE EAY40297101 Contact Us For Availability
900
Cover Assembly LGE ACQ33707105 Contact Us For Availability
910
Base Assembly LGE AAN36827204 Contact Us For Availability
920
Plate,Metal LGE MGJ42100801 Contact Us For Availability
930
Base Assembly LGE AAN36826601 Contact Us For Availability
A1
S/W Package LGE SAB33070402 Contact Us For Availability
A3
POWER CORD LGE 64109UP002A Contact Us For Availability
A4
Card LGE MBM47116105 Contact Us For Availability
A5
CABLE,D-SUB LGE 6850TD9001K Contact Us For Availability
C1
Harness,Single LGE 6631900109D Contact Us For Availability
C2
Harness,Single LGE 6631900022T Contact Us For Availability
C3
Harness,Single LGE EAD31342003 Contact Us For Availability
C4
Harness,Single LGE EAD30507301 Contact Us For Availability
C5
Harness,Single LGE EAD42196803 Contact Us For Availability
C517
CAPACITOR,FIXED CERA LGE 0CC680CK41A Contact Us For Availability
C630
Capacitor,Ceramic,Ch LGE 0CK106DC67A Contact Us For Availability
C650
CAPACITOR,FIXED CERA LGE 0CC221CK41A Contact Us For Availability
C652
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C703
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C708
CAPACITOR,FIXED ELEC LGE 0CE475WJ6DC Contact Us For Availability
C711
Capacitor,AL,Radial LGE 0CE107EF628 Contact Us For Availability
C717
CAPACITOR,FIXED CERA LGE 0CK103CK56A Contact Us For Availability
D504
DIODE,SWITCHING LGE 0DSIH00018A Contact Us For Availability
D504
DIODE,SWITCHING LGE 0DS226009AA Contact Us For Availability
D511
DIODE,SWITCHING LGE 0DSON00138A Contact Us For Availability
IC600
IC,KEC LGE 0IKE704200H Contact Us For Availability
IC601
IC Assembly LGE EAN43462401 Contact Us For Availability
IC602
IC,Video Processors LGE EAN31470703 Contact Us For Availability
IC701
IC,LDO Voltage Regul LGE EAN33480801 Contact Us For Availability
P1
Connector,Wafer LGE 6602T12004E Contact Us For Availability
P2
CONNECTOR (CIRC),WAF LGE 6602T12004C Contact Us For Availability
P500
CONNECTOR (CIRC),D-S LGE 6630TGA005B Contact Us For Availability
P500
Connector,DSUB LGE EAG41681101 Contact Us For Availability
P501
Connector,DSUB LGE EAG54220901 Contact Us For Availability
P600
Connector,Wafer LGE 6630V90220C Contact Us For Availability
P700
Connector,Wafer LGE 6630V90220N Contact Us For Availability
P700
Connector,Wafer LGE 6602T20008N Contact Us For Availability
P701
WAFER LGE 6602T20009E Contact Us For Availability
P701
Connector,Wafer LGE EAG31366106 Contact Us For Availability
P702
Conector,Wafer LGE 6630V90219A Contact Us For Availability
Q701
TRANSISTOR LGE 0TR390609FA Contact Us For Availability
Q704
TRANSISTOR,BIPOLARS LGE 0TRDI80002A Contact Us For Availability
R1
Resistor,Chip LGE 0RJ1602D677 Contact Us For Availability
R4
Resistor,Chip LGE 0RJ1801D677 Contact Us For Availability
R6
Resistor,Chip LGE 0RJ2201D677 Contact Us For Availability
R8
RESISTOR,METAL GLAZE LGE 0RJ2701D677 Contact Us For Availability
R504
RESISTOR,METAL GLAZE LGE 0RJ0752D677 Contact Us For Availability
R508
RESISTOR,METAL GLAZE LGE 0RJ0682D677 Contact Us For Availability
R516
RESISTOR,METAL GLAZE LGE 0RJ0102D677 Contact Us For Availability
R610
RESISTOR,METAL GLAZE LGE 0RJ2202D677 Contact Us For Availability
R615
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R626
RESISTOR,METAL GLAZE LGE 0RJ0562D677 Contact Us For Availability
R644
RESISTOR,METAL GLAZE LGE 0RJ0222C687 Contact Us For Availability
R657
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R665
RESISTOR,METAL GLAZE LGE 0RJ2001D677 Contact Us For Availability
R704
RESISTOR,METAL GLAZE LGE 0RJ2700D677 Contact Us For Availability
R707
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R716
Resistor,Wire Wound LGE 0RB0330K607 Contact Us For Availability
R719
RESISTOR,FIXED SMALL LGE 0RX0331K668 Contact Us For Availability
R732
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
X600
CRYSTAL LGE 6202TST001A Contact Us For Availability
ZD500
DIODE,ZENERS LGE 0DZ560009GB Contact Us For Availability
× ![]()
