Model LG W2363D-PU – Common Parts & Diagrams

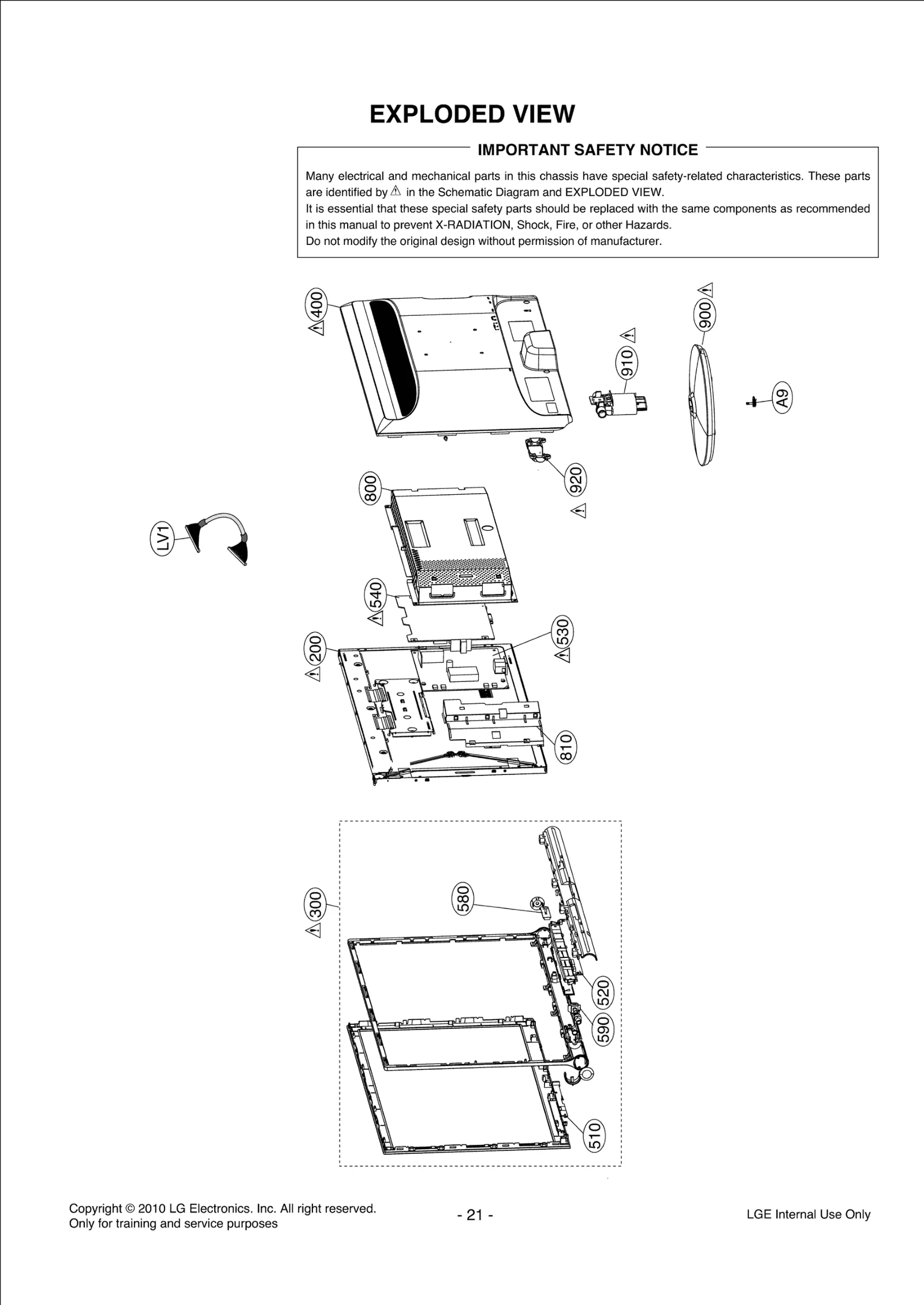

Diagram 0
Diagram 1
Common parts from model LG W2363D-PU
200
LCD,Module-TFT LGE EAJ60870701 Contact Us For Availability
300
Cabinet Assembly LGE ABJ72916110 Contact Us For Availability
510
PCB Assembly LGE EBR62357301 Contact Us For Availability
520
PCB Assembly,Display LGE EBR63397402 Contact Us For Availability
530
Power Supply Assembly LGE EAY60694002 Contact Us For Availability
540
BPR Total Assembly LGE EBU60932304 Contact Us For Availability
580
PCB Assembly LGE EBR62359901 Contact Us For Availability
590
BPR Total Assembly LGE EBU60733401 Contact Us For Availability
810
Frame LGE MDQ61931701 Contact Us For Availability
910
Base Assembly LGE AAN72925702 Contact Us For Availability
920
Cover LGE MCK62089601 Contact Us For Availability
A1
S/W Package LGE SAB34240902 Contact Us For Availability
A5
Cable,Assembly LGE 68509J0003C Contact Us For Availability
A5
Cable,Assembly LGE 68509J0003D Contact Us For Availability
A6
CORD,A/V LGE 6852TAZ006J Contact Us For Availability
A9
Screw,Machine LGE FAB30010901 Contact Us For Availability
C1
Harness,Single LGE EAD61057001 Contact Us For Availability
C167
CAPACITOR,FIXED CERA LGE 0CK102CK56A Contact Us For Availability
C178
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C235
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C243
Capacitor,Ceramic,Ch LGE 0CK106DC67A Contact Us For Availability
C325
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107WF6DC Contact Us For Availability
C352
CAPACITOR,FIXED CERA LGE 0CK104CF56A Contact Us For Availability
C432
Capacitor,Ceramic,Chip LGE 0CH1102K566 Contact Us For Availability
C605
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C623
CAPACITOR,FIXED CERA LGE 0CC331CK41A Contact Us For Availability
C641
Capacitor,Ceramic,Chip LGE 0CK225DF56A Contact Us For Availability
C645
CAPACITOR,FIXED ELEC LGE 0CE107WH6DC Contact Us For Availability
C649
Capacitor,Ceramic,Chip LGE 0CC821CK41A Contact Us For Availability
C650
CAPACITOR,FIXED CERA LGE 0CK222CK51A Contact Us For Availability
C655
CAPACITOR,FIXED CERA LGE 0CK105CF94A Contact Us For Availability
C722
Capacitor,AL,Chip LGE EAE38362601 Contact Us For Availability
C839
CAPACITOR,FIXED CERA LGE 0CK475CC94A Contact Us For Availability
C852
CAPACITOR,FIXED ELEC LGE 0CE475WJ6DC Contact Us For Availability
C861
CAPACITOR,FIXED CERA LGE 0CK473CK56A Contact Us For Availability
C872
CAPACITOR,FIXED CERA LGE 0CK103CK56A Contact Us For Availability
C876
Capacitor,Ceramic,Ch LGE 0CK225DD66A Contact Us For Availability
C882
CAPACITOR,FIXED CERA LGE 0CK225DH94A Contact Us For Availability
C885
CAPACITOR,FIXED ELEC LGE 0CE476WH6DC Contact Us For Availability
C886
CAPACITOR,FIXED CERA LGE 0CK474CH94A Contact Us For Availability
D300
DIODE,RECTIFIER LGE 0DR340009AA Contact Us For Availability
D506
DIODE,SWITCHING LGE 0DSON00138A Contact Us For Availability
D520
Diode,TVS LGE 0DRCE00028A Contact Us For Availability
D834
DIODE,SWITCHING LGE 0DD226239AA Contact Us For Availability
IC101
IC Assembly LGE EAN61016603 Contact Us For Availability
M1
Plate LGE 4950TKA310A Contact Us For Availability
Q500
TRANSISTOR,BIPOLARS LGE 0TRDI80002A Contact Us For Availability
R100
Resistor,Chip LGE 0RJ7503D677 Contact Us For Availability
R107
RESISTOR,METAL GLAZE LGE 0RJ2701D677 Contact Us For Availability
R108
RESISTOR,METAL GLAZE LGE 0RJ5101D677 Contact Us For Availability
R109
RESISTOR,METAL GLAZE LGE 0RJ2203D677 Contact Us For Availability
R314
Resistor,Chip LGE 0RJ3300D677 Contact Us For Availability
R323
RESISTOR CHIP 820 1/10W 5 D.R LGE 0RH8200D622 Contact Us For Availability
R324
RESISTOR,METAL GLAZE LGE 0RJ1001D477 Contact Us For Availability
R426
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R441
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R545
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R547
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R610
RESISTOR,METAL GLAZE LGE 0RJ1002D477 Contact Us For Availability
R614
Resistor,Chip LGE 0RJ4701D477 Contact Us For Availability
R618
Resistor,Chip LGE 0RJ1003D477 Contact Us For Availability
R629
RESISTOR,METAL GLAZE LGE 0RJ2700D677 Contact Us For Availability
R636
RESISTOR,METAL GLAZE LGE 0RJ2202D677 Contact Us For Availability
R642
RESISTOR,METAL GLAZE LGE 0RJ2001D677 Contact Us For Availability
R703
RESISTOR,METAL GLAZE LGE 0RJ1802D677 Contact Us For Availability
R705
RESISTOR,METAL GLAZE LGE 0RJ2000D477 Contact Us For Availability
R862
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R875
Resistor,Chip LGE 0RJ2000D677 Contact Us For Availability
R882
RESISTOR,METAL GLAZE LGE 0RJ0472D677 Contact Us For Availability
R905
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R926
RESISTOR,METAL GLAZE LGE 0RJ1003D677 Contact Us For Availability
ZD103
Diode,Zener LGE EAH60661201 Contact Us For Availability
× ![]()
