Model LG W2363D-PF – Common Parts & Diagrams

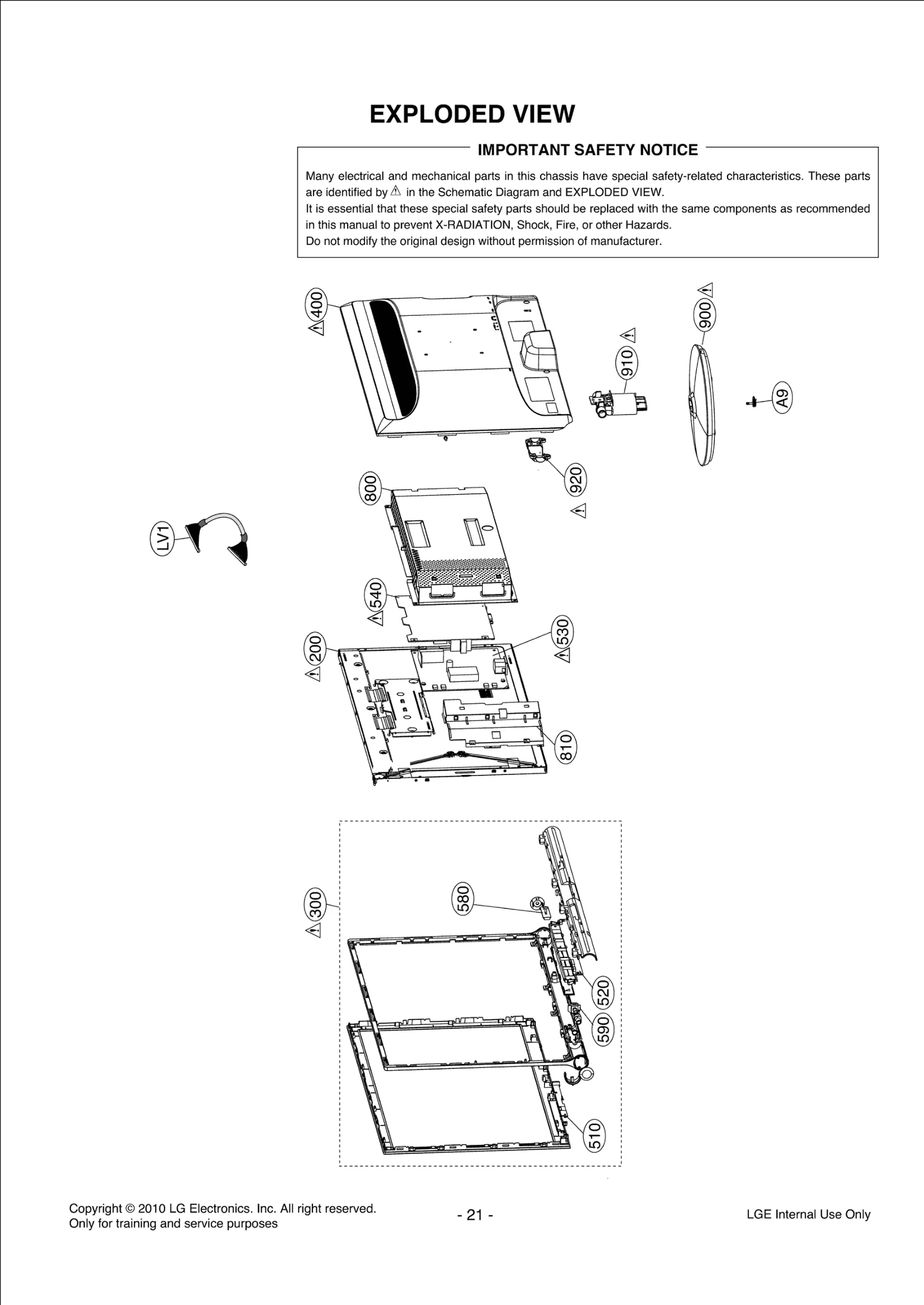

Diagram 0
Diagram 1
Common parts from model LG W2363D-PF
200
LCD,Module-TFT LGE EAJ60870701 Contact Us For Availability
300
Cabinet Assembly LGE ABJ72916111 Contact Us For Availability
510
PCB Assembly LGE EBR62357301 Contact Us For Availability
520
PCB Assembly,Display LGE EBR63397402 Contact Us For Availability
530
Power Supply Assembly LGE EAY60694002 Contact Us For Availability
540
BPR Total Assembly LGE EBU60932302 Contact Us For Availability
580
PCB Assembly LGE EBR62359901 Contact Us For Availability
590
BPR Total Assembly LGE EBU60733401 Contact Us For Availability
810
Frame LGE MDQ61931701 Contact Us For Availability
910
Base Assembly LGE AAN72925702 Contact Us For Availability
920
Cover LGE MCK62089601 Contact Us For Availability
A1
S/W Package LGE SAB34240902 Contact Us For Availability
A5
Cable,Assembly LGE 68509J0003C Contact Us For Availability
A5
Cable,Assembly LGE 68509J0003D Contact Us For Availability
A9
Screw,Machine LGE FAB30010901 Contact Us For Availability
C157
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107WF6DC Contact Us For Availability
C231
Capacitor,Ceramic,Chip LGE 0CH1102K566 Contact Us For Availability
C243
Capacitor,Ceramic,Ch LGE 0CK106DC67A Contact Us For Availability
C607
CAPACITOR,FIXED ELEC LGE 0CE475WJ6DC Contact Us For Availability
C608
CAPACITOR,FIXED ELEC LGE 0CE107WH6DC Contact Us For Availability
C613
CAPACITOR,FIXED CERA LGE 0CK103CK56A Contact Us For Availability
C623
CAPACITOR,FIXED CERA LGE 0CC331CK41A Contact Us For Availability
C630
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C634
CAPACITOR,FIXED CERA LGE 0CK102CK56A Contact Us For Availability
C641
Capacitor,Ceramic,Chip LGE 0CK225DF56A Contact Us For Availability
C646
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C649
Capacitor,Ceramic,Chip LGE 0CC821CK41A Contact Us For Availability
C650
CAPACITOR,FIXED CERA LGE 0CK222CK51A Contact Us For Availability
C655
CAPACITOR,FIXED CERA LGE 0CK105CF94A Contact Us For Availability
C835
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C838
CAPACITOR,FIXED CERA LGE 0CK475CC94A Contact Us For Availability
C841
Capacitor,AL,Chip LGE EAE38362601 Contact Us For Availability
C844
CAPACITOR,FIXED CERA LGE 0CK104CF56A Contact Us For Availability
C861
CAPACITOR,FIXED CERA LGE 0CK473CK56A Contact Us For Availability
C876
Capacitor,Ceramic,Ch LGE 0CK225DD66A Contact Us For Availability
C881
CAPACITOR,FIXED ELEC LGE 0CE476WH6DC Contact Us For Availability
C882
CAPACITOR,FIXED CERA LGE 0CK225DH94A Contact Us For Availability
C886
CAPACITOR,FIXED CERA LGE 0CK474CH94A Contact Us For Availability
L616
Coil,Choke LGE EAP36992501 Contact Us For Availability
LV1
Harness,Single LGE EAD61057001 Contact Us For Availability
M1
Plate LGE 4950TKA310A Contact Us For Availability
P300
Connector,Wafer LGE 6630V90141B Contact Us For Availability
R100
Resistor,Chip LGE 0RJ7503D677 Contact Us For Availability
R107
RESISTOR,METAL GLAZE LGE 0RJ2701D677 Contact Us For Availability
R108
RESISTOR,METAL GLAZE LGE 0RJ5101D677 Contact Us For Availability
R109
RESISTOR,METAL GLAZE LGE 0RJ2203D677 Contact Us For Availability
R144
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R147
RESISTOR,METAL GLAZE LGE 0RJ1001D477 Contact Us For Availability
R207
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R222
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R320
Resistor,Chip LGE 0RJ3300D677 Contact Us For Availability
R323
RESISTOR CHIP 820 1/10W 5 D.R LGE 0RH8200D622 Contact Us For Availability
R540
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R546
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R608
Resistor,Chip LGE 0RJ6202D677 Contact Us For Availability
R610
RESISTOR,METAL GLAZE LGE 0RJ1002D477 Contact Us For Availability
R614
Resistor,Chip LGE 0RJ4701D477 Contact Us For Availability
R618
Resistor,Chip LGE 0RJ1003D477 Contact Us For Availability
R626
RESISTOR,METAL GLAZE LGE 0RJ1802D677 Contact Us For Availability
R629
RESISTOR,METAL GLAZE LGE 0RJ2700D677 Contact Us For Availability
R640
RESISTOR,METAL GLAZE LGE 0RJ2000D477 Contact Us For Availability
R875
Resistor,Chip LGE 0RJ2000D677 Contact Us For Availability
R881
RESISTOR,METAL GLAZE LGE 0RJ2202D677 Contact Us For Availability
R882
RESISTOR,METAL GLAZE LGE 0RJ0472D677 Contact Us For Availability
R903
RESISTOR,METAL GLAZE LGE 0RJ2001D677 Contact Us For Availability
R926
RESISTOR,METAL GLAZE LGE 0RJ1003D677 Contact Us For Availability
R929
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
X801
Crystal LGE EAW50505901 Contact Us For Availability
X801
RESONATOR,CRYSTAL LGE 6212AB2873A Contact Us For Availability
ZD102
Diode,Zener LGE EAH60661201 Contact Us For Availability
× ![]()
