Model LG W2362TQ-PF – Common Parts & Diagrams
Diagram 0

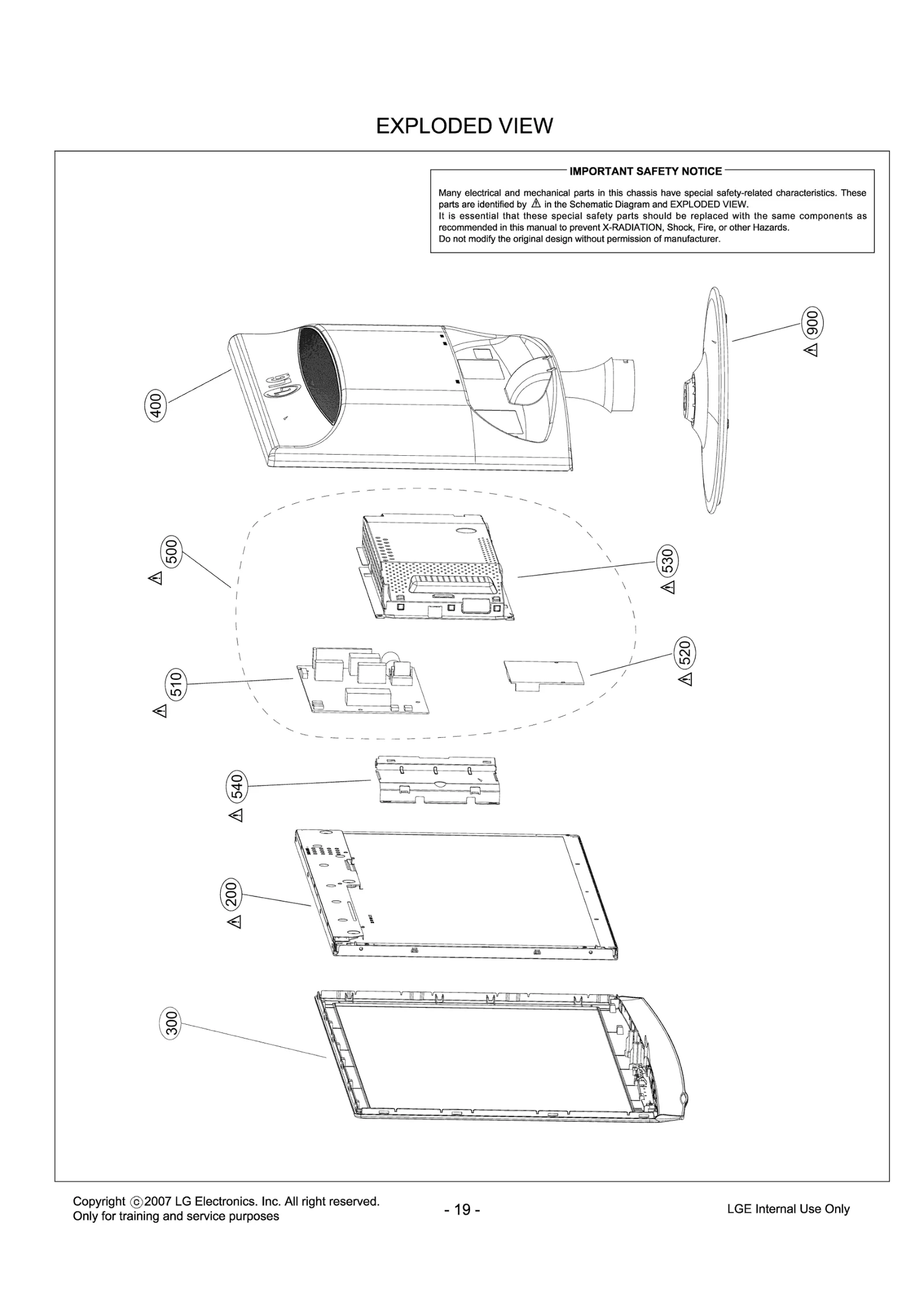

Diagram 1
Common parts from model LG W2362TQ-PF
200
LCD,Module-TFT LGE EAJ60868801 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ60682701 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ60682702 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ60682703 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ60868901 Contact Us For Availability
300
Cabinet Assembly LGE ABJ72914601 Contact Us For Availability
330
PCB Assembly LGE EBR62206901 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ73341401 Contact Us For Availability
500
Package Assembly LGE AGF73723702 Contact Us For Availability
510
Power Supply Assembly LGE EAY58333903 Contact Us For Availability
520
Main Total Assembly LGE EBU60698402 Contact Us For Availability
530
Frame Assembly LGE ADV72913602 Contact Us For Availability
540
Plate,Shield LGE MGJ61879901 Contact Us For Availability
900
Base Assembly LGE AAN72921701 Contact Us For Availability
A1
S/W Package LGE SAB33073806 Contact Us For Availability
A4
Card LGE MBM61965701 Contact Us For Availability
A5
Cable,Assembly LGE 68509F0003A Contact Us For Availability
C5
CAPACITOR,FIXED CERA LGE 0CK225DFK4A Contact Us For Availability
C502
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C514
CAPACITOR,FIXED CERA LGE 0CK224CF56A Contact Us For Availability
C515
CAPACITOR,AL.ELECTRO LGE 0CE106EK638 Contact Us For Availability
C701
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C702
CAPACITOR,FIXED CERA LGE 0CC680CK41A Contact Us For Availability
C720
CAPACITOR,FIXED CERA LGE 0CK475CC94A Contact Us For Availability
C724
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C727
CAPACITOR,FIXED ELEC LGE 0CE107EF610 Contact Us For Availability
C730
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C738
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
D711
DIODE,SWITCHING LGE 0DSON00138A Contact Us For Availability
D711
Diode,Schottky LGE EAH44241601 Contact Us For Availability
L702
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
P702
Connector,Wafer LGE 6602T20008E Contact Us For Availability
P704
Connector,Wafer LGE 6630V90220K Contact Us For Availability
P705
Connector,FFC/FPC/PIC LGE EAG60957401 Contact Us For Availability
Q700
TRANSISTOR LGE 0TR390409AE Contact Us For Availability
Q700
TR,Bipolar LGE 0TRKE80046A Contact Us For Availability
R4
RESISTOR,METAL GLAZE LGE 0RJ2700C678 Contact Us For Availability
R14
Resistor,Chip LGE 0RJ0432C678 Contact Us For Availability
R505
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R507
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R700
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R713
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R717
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R720
Resistor,Chip LGE 0RJ0752C678 Contact Us For Availability
R725
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R726
Resistor,Chip LGE 0RJ3900C678 Contact Us For Availability
R734
RESISTOR,FIXED SMALL LGE 0RX0331K668 Contact Us For Availability
R742
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R754
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R760
Resistor,Chip LGE 0RJ2001C678 Contact Us For Availability
ZD10
Diode,Zener LGE EAH60661201 Contact Us For Availability
× ![]()
