Model LG W2361V-PF – Common Parts & Diagrams

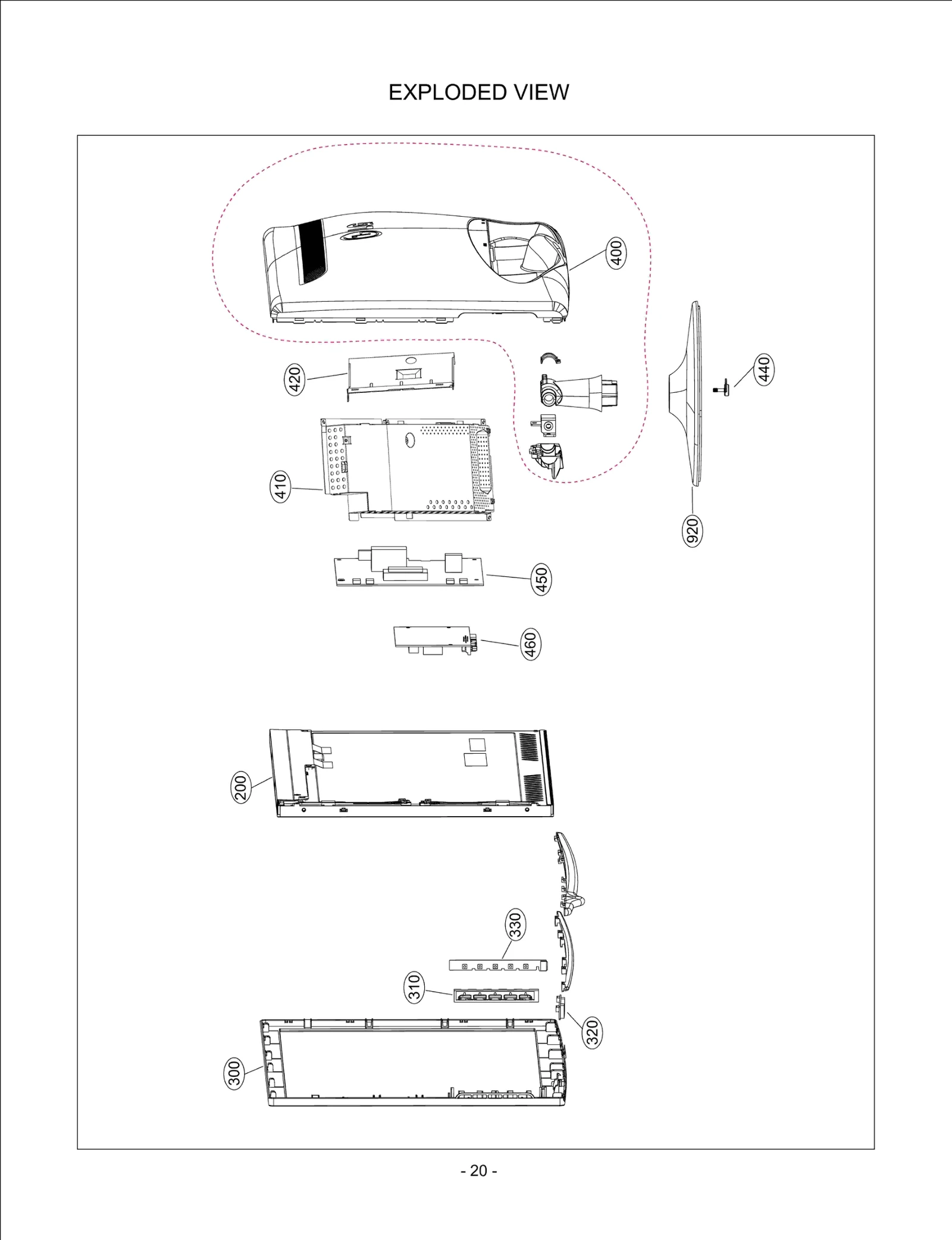

Diagram 0
Diagram 1
Common parts from model LG W2361V-PF
200
LCD,Module-TFT LGE EAJ60682703 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ60682701 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ60868801 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ60682702 Contact Us For Availability
300
Cabinet LGE MBH59370801 Contact Us For Availability
310
Knob LGE MEY55033201 Contact Us For Availability
330
PCB Assembly LGE EBR44165501 Contact Us For Availability
340
Cover LGE MCK59371101 Contact Us For Availability
350
Cover LGE MCK59371401 Contact Us For Availability
400
Cover Assembly LGE ACQ70329501 Contact Us For Availability
410
Frame Assembly LGE ADV72913703 Contact Us For Availability
420
Frame LGE MDQ58433901 Contact Us For Availability
440
Screw,Machine LGE FAB30010901 Contact Us For Availability
450
Power Supply Assembly LGE EAY58333903 Contact Us For Availability
460
Main Total Assembly LGE EBU60110301 Contact Us For Availability
920
Base Assembly LGE AAN55939305 Contact Us For Availability
A1
S/W Package LGE SAB32999311 Contact Us For Availability
A4
Card LGE MBM47116111 Contact Us For Availability
A5
Cable,Assembly LGE 68509F0003A Contact Us For Availability
C1
Harness,Single LGE 6631900030L Contact Us For Availability
C2
CONNECTOR ASSEMBLY LGE 6631T20023A Contact Us For Availability
C2
Harness,Single LGE 6631T20023T Contact Us For Availability
C109
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C124
CAPACITOR,AL.ELECTRO LGE 0CE106EK638 Contact Us For Availability
C202
CAPACITOR,FIXED CERA LGE 0CC680CK41A Contact Us For Availability
C205
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C304
Capacitor,AL,Radial LGE 0CE227EF638 Contact Us For Availability
C305
CAPACITOR,FIXED ELEC LGE 0CE475WJ6DC Contact Us For Availability
C316
CAPACITOR,FIXED ELEC LGE 0CE107EF610 Contact Us For Availability
C329
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C337
CAPACITOR,FIXED CERA LGE 0CK475CC94A Contact Us For Availability
C604
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
D213
DIODE,SWITCHING LGE 0DSON00138A Contact Us For Availability
D218
Diode,TVS LGE 0DRCE00028A Contact Us For Availability
D603
Diode,TVS LGE EAH33945901 Contact Us For Availability
D604
DIODE,SWITCHING LGE 0DSIH00018A Contact Us For Availability
IC103
IC,MEMORIES LGE 0IMMRSG036B Contact Us For Availability
IC103
IC,EEPROM LGE EAN55317101 Contact Us For Availability
IC600
Sensor,Magnetic LGE EBD44272401 Contact Us For Availability
JK202
CONNECTOR (CIRC),D-S LGE 6630TGA004F Contact Us For Availability
JK202
Connector,DSUB LGE EAG54220901 Contact Us For Availability
JK203
CONNECTOR (CIRC),D-S LGE 6630TGA005B Contact Us For Availability
JK203
Connector,DSUB LGE EAG41681101 Contact Us For Availability
JK350
Jack,Phone LGE 6612F00001B Contact Us For Availability
L302
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
LD601
LED,Chip LGE EAV57625101 Contact Us For Availability
P302
Connector,Wafer LGE 6602T20008E Contact Us For Availability
P600
Connector,Wafer LGE 6602T12005E Contact Us For Availability
P601
Connector,Wafer LGE 6602T12005C Contact Us For Availability
Q201
TRANSISTOR LGE 0TR390409AE Contact Us For Availability
Q201
TRANSISTOR,BIPOLARS LGE 0TRDI80002A Contact Us For Availability
Q303
TRANSISTOR LGE 0TR390609FA Contact Us For Availability
R104
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R109
Resistor,Chip LGE 0RJ3900C678 Contact Us For Availability
R117
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R118
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R202
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R205
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R218
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R220
Resistor,Chip LGE 0RJ0752C678 Contact Us For Availability
R223
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R231
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R301
RESISTOR,FIXED SMALL LGE 0RX0331K668 Contact Us For Availability
R318
Resistor,Chip LGE 0RJ2001C678 Contact Us For Availability
R351
Resistor,Chip LGE 0RJ0512C678 Contact Us For Availability
R368
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R605
RESISTOR,METAL GLAZE LGE 0RJ0682D677 Contact Us For Availability
R606
Resistor,Chip LGE 0RJ2000D677 Contact Us For Availability
R701
RESISTOR,METAL GLAZE LGE 0RJ7501D677 Contact Us For Availability
R704
Resistor,Chip LGE 0RJ1201D677 Contact Us For Availability
R705
Resistor,Chip LGE 0RJ1801D677 Contact Us For Availability
SW705
Switch,Tact LGE EBF55334201 Contact Us For Availability
SW705
SWITCH,TACT LGE 6600R00004C Contact Us For Availability
X101
Crystal LGE 6212AA2001H Contact Us For Availability
ZD602
Diode,Zener LGE EAH60661201 Contact Us For Availability
× ![]()
