Model LG W2353V-PF – Common Parts & Diagrams

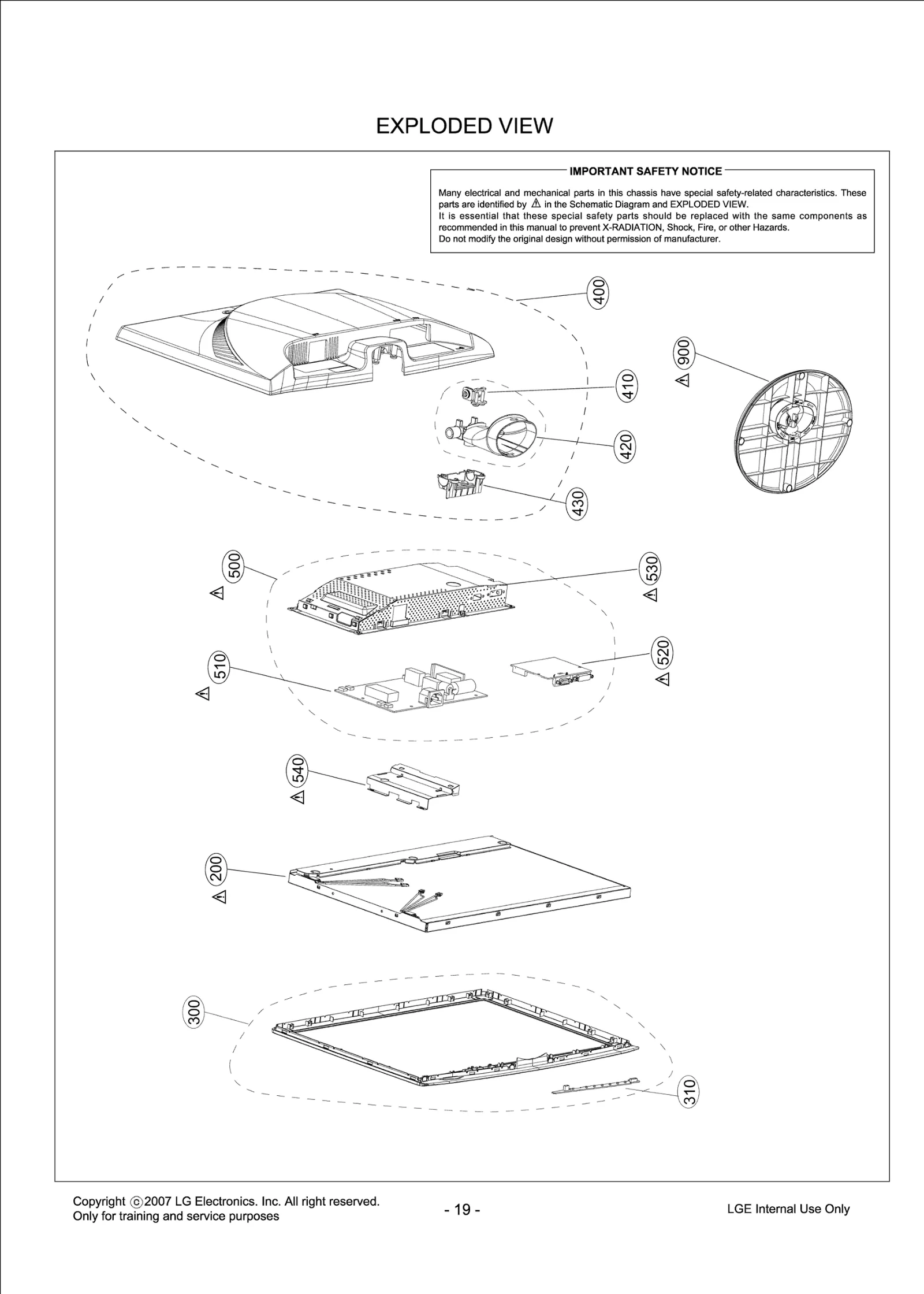

Diagram 0
Diagram 1
Common parts from model LG W2353V-PF
200
LCD,Module-TFT LGE EAJ60682702 Contact Us For Availability
300
Cabinet Assembly LGE ABJ69529701 Contact Us For Availability
310
PCB Assembly LGE EBR59220201 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ69530201 Contact Us For Availability
410
Bracket Assembly LGE ABA69843502 Contact Us For Availability
430
Cover LGE MCK58434201 Contact Us For Availability
500
Package Assembly LGE AGF67516613 Contact Us For Availability
510
Power Supply Assembly LGE EAY58333903 Contact Us For Availability
520
Main Total Assembly LGE EBU56656008 Contact Us For Availability
530
Frame Assembly LGE ADV72913711 Contact Us For Availability
540
Frame LGE MDQ58433901 Contact Us For Availability
900
Base Assembly LGE AAN69530401 Contact Us For Availability
A1
S/W Package LGE SAB33074503 Contact Us For Availability
A3
POWER CORD LGE 64109UP002A Contact Us For Availability
A4
Card LGE MBM41933007 Contact Us For Availability
A5
CABLE,D-SUB LGE 6850TD9007D Contact Us For Availability
A5
Cable,Assembly LGE 68509F0003E Contact Us For Availability
A5
Cable,Assembly LGE 68509F0003A Contact Us For Availability
C333
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C512
CAPACITOR,FIXED CERA LGE 0CK104CF56A Contact Us For Availability
C528
Capacitor,Ceramic,Ch LGE 0CK106DC67A Contact Us For Availability
C602
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C604
CAPACITOR,FIXED CERA LGE 0CK103CK56A Contact Us For Availability
C606
CAPACITOR,FIXED CERA LGE 0CC680CK41A Contact Us For Availability
C623
CAPACITOR,FIXED CERA LGE 0CK102CK56A Contact Us For Availability
C627
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C633
CAPACITOR,FIXED ELEC LGE 0CE107EF610 Contact Us For Availability
C702
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C720
Capacitor,Ceramic,Chip LGE 0CK225DF56A Contact Us For Availability
D706
DIODE,SWITCHING LGE 0DSON00138A Contact Us For Availability
D810
Diode,TVS LGE 0DRCE00028A Contact Us For Availability
IC501
IC Assembly LGE EAN56657107 Contact Us For Availability
IC603
IC,LDO Voltage Regulator LGE EAN60804201 Contact Us For Availability
L306
Filter,Bead LGE EAM38769507 Contact Us For Availability
L306
Filter,Bead LGE 6210TCE001H Contact Us For Availability
L606
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
P302
Connector,Wafer LGE 6602T20008E Contact Us For Availability
P601
CONNECTOR (CIRC),D-S LGE 6630TGA004F Contact Us For Availability
P601
Connector,DSUB LGE EAG54220901 Contact Us For Availability
P700
CONNECTOR (CIRC),D-S LGE 6630TGA005B Contact Us For Availability
P700
Connector,DSUB LGE EAG41681101 Contact Us For Availability
Q601
TRANSISTOR LGE 0TR390409AE Contact Us For Availability
Q601
TR,Bipolar LGE 0TRKE80046A Contact Us For Availability
Q601
TRANSISTOR,BIPOLARS LGE 0TRDI80002A Contact Us For Availability
R7
Resistor,Chip LGE 0RJ1500C678 Contact Us For Availability
R14
Resistor,Chip LGE 0RJ0432C678 Contact Us For Availability
R324
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R521
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R537
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R614
RESISTOR,METAL GLAZE LGE 0RJ0682D677 Contact Us For Availability
R617
Resistor,Chip LGE 0RJ1000D477 Contact Us For Availability
R622
RESISTOR,FIXED SMALL LGE 0RX0331K668 Contact Us For Availability
R635
RESISTOR,METAL GLAZE LGE 0RJ2001D677 Contact Us For Availability
R728
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R744
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
X500
RESONATOR,CRYSTAL LGE 6202TST001H Contact Us For Availability
X500
Crystal LGE EAW50464201 Contact Us For Availability
ZD301
Diode,Zener LGE EAH60661201 Contact Us For Availability
ZD301
DIODE,ZENERS LGE 0DZ560009GB Contact Us For Availability
× ![]()
