Model LG W2344T-PF – Common Parts & Diagrams
Diagram 0
Diagram 1

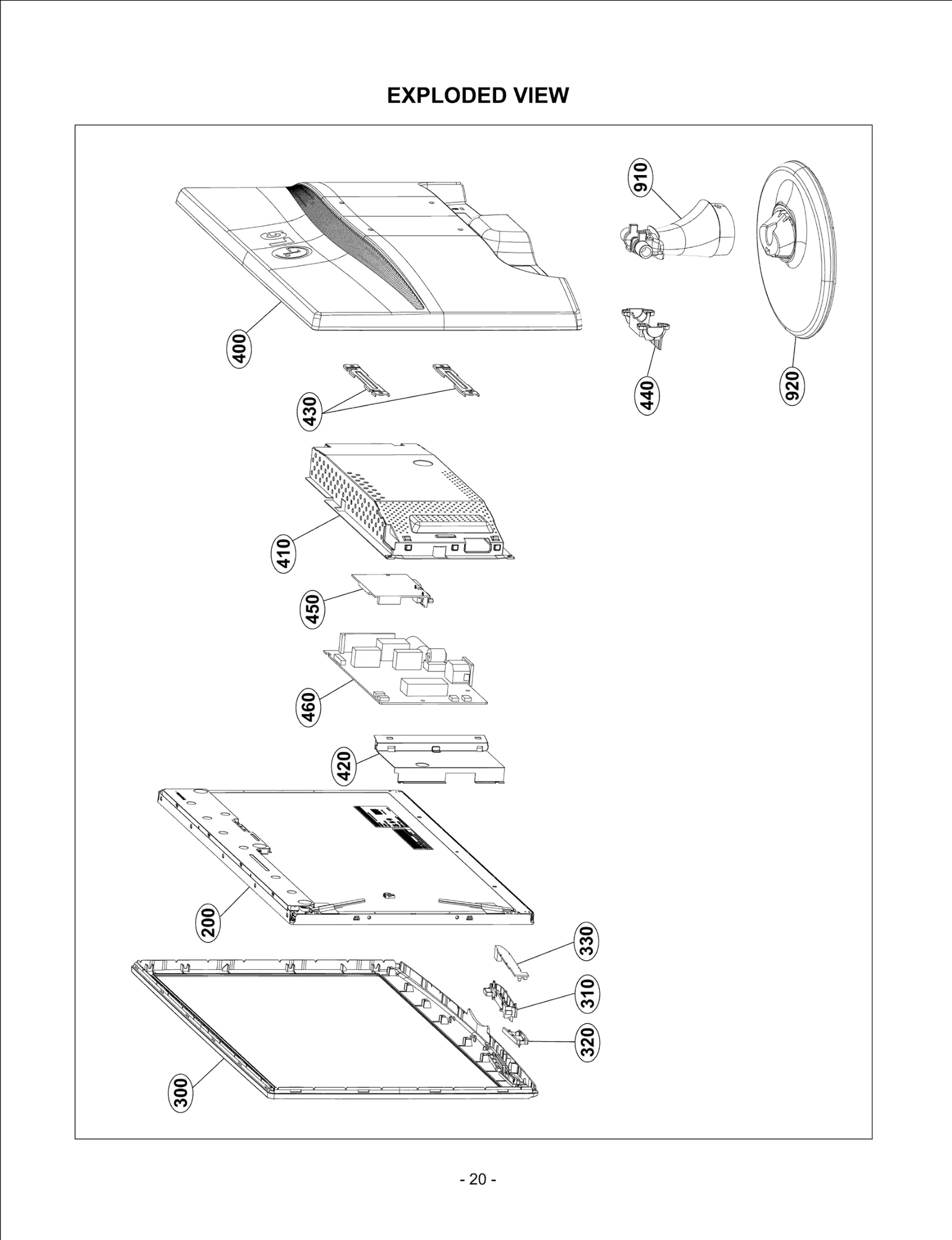

Common parts from model LG W2344T-PF
200
LCD,Module-TFT LGE EAJ60868801 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ60682702 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ60870601 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ60868901 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ60682701 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ60682703 Contact Us For Availability
300
Cabinet Assembly LGE ABJ72990201 Contact Us For Availability
310
Knob LGE MEY61874301 Contact Us For Availability
320
Bracket Assembly LGE ABA72988501 Contact Us For Availability
330
PCB Assembly LGE EBR64975501 Contact Us For Availability
400
Cover,Rear LGE MCK59506701 Contact Us For Availability
420
Frame LGE MDQ58433901 Contact Us For Availability
430
Plate,Metal LGE MGJ61850501 Contact Us For Availability
440
Cover LGE MCK58434201 Contact Us For Availability
450
Main Total Assembly LGE EBU60809101 Contact Us For Availability
460
Power Supply Assembly LGE EAY58333903 Contact Us For Availability
910
Base Assembly LGE AAN70808202 Contact Us For Availability
920
Base Assembly LGE AAN69530401 Contact Us For Availability
A1
S/W Package LGE SAB34138901 Contact Us For Availability
A4
Card LGE MBM62196301 Contact Us For Availability
C508
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C522
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C601
CAPACITOR,FIXED ELEC LGE 0CE107EF610 Contact Us For Availability
C603
CAPACITOR,FIXED CERA LGE 0CK475CC94A Contact Us For Availability
C605
Capacitor,AL,Radial LGE 0CE227EF638 Contact Us For Availability
C705
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C708
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C721
CAPACITOR,FIXED CERA LGE 0CC680CK41A Contact Us For Availability
J1
WAFER LGE 6602T20009E Contact Us For Availability
J1
Connector,Wafer LGE EAG31366106 Contact Us For Availability
J703
Connector,Wafer LGE 6630V90220K Contact Us For Availability
J704
Connector,Wafer LGE 6602T20008E Contact Us For Availability
J707
Connector,FFC/FPC/PIC LGE EAG60908201 Contact Us For Availability
Q601
TRANSISTOR LGE 0TR390409AE Contact Us For Availability
Q702
TRANSISTOR LGE 0TR390609FA Contact Us For Availability
Q702
TR,Bipolar LGE 0TR390609DC Contact Us For Availability
R1
Resistor,Chip LGE 0RH1602D422 Contact Us For Availability
R3
Resistor,Chip LGE 0RH2201D622 Contact Us For Availability
R5
Resistor,Chip LGE 0RH1801D422 Contact Us For Availability
R505
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R511
RESISTOR,METAL GLAZE LGE 0RJ2002C478 Contact Us For Availability
R527
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R603
Resistor,Chip LGE 0RJ3900C678 Contact Us For Availability
R604
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R605
Resistor,Metal Oxide Film LGE 0RX0511K665 Contact Us For Availability
R609
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R705
RESISTOR,METAL GLAZE LGE 0RJ2700C678 Contact Us For Availability
R724
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R727
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R731
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R736
Resistor,Chip LGE 0RJ0752C678 Contact Us For Availability
SW4
SWITCH LGE 140-058E Contact Us For Availability
SW4
Switch,Tact LGE 6600R000133 Contact Us For Availability
U502
IC Assembly LGE EAN60921801 Contact Us For Availability
ZD4
DIODE,ZENERS LGE 0DZ560009GB Contact Us For Availability
ZD4
Diode,Zener LGE EAH60661201 Contact Us For Availability
× ![]()
