Model LG W2262TQ-PF – Common Parts & Diagrams

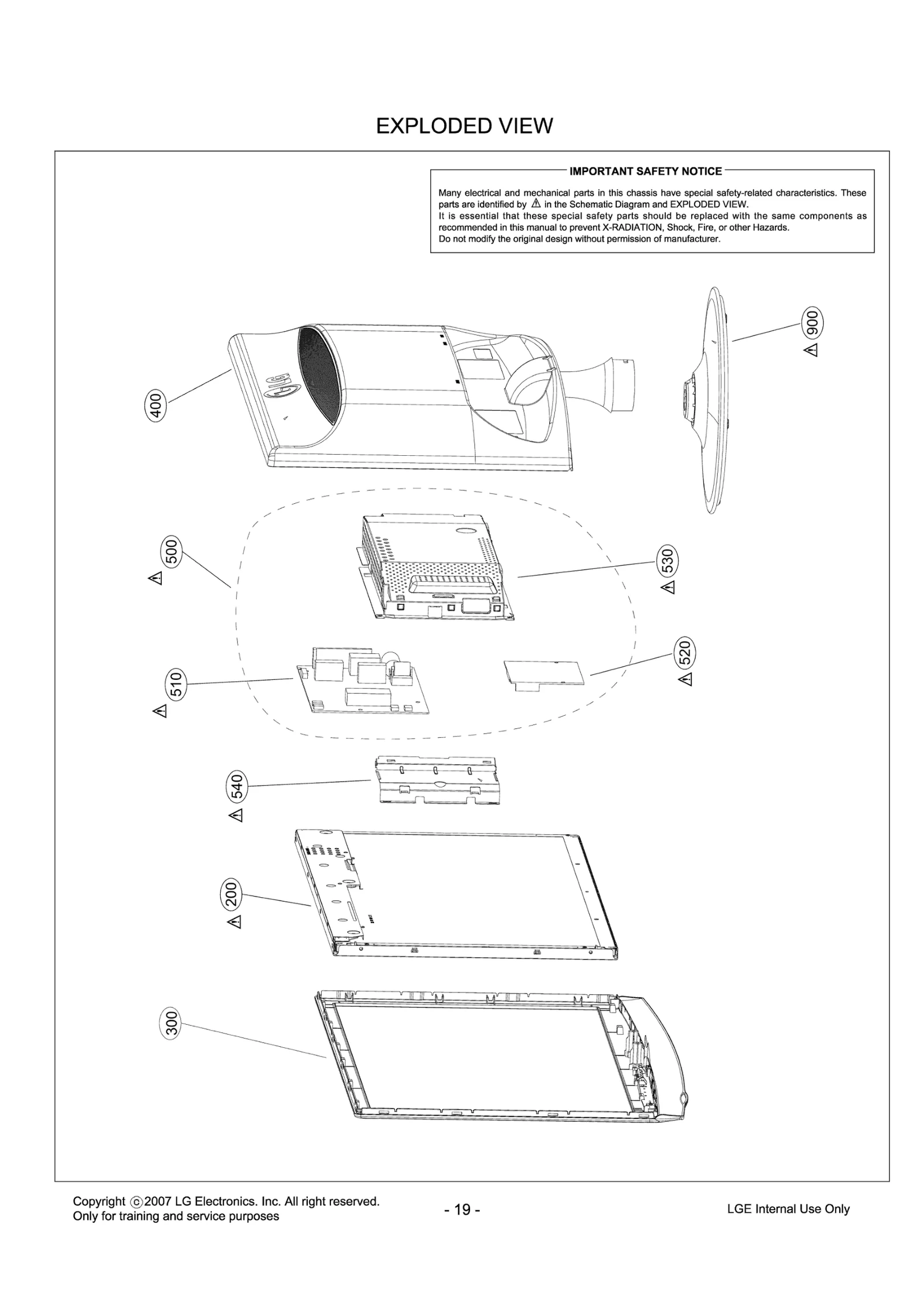

Diagram 0
Diagram 1
Common parts from model LG W2262TQ-PF
200
LCD,Module-TFT LGE EAJ60156902 Contact Us For Availability
300
Cabinet Assembly LGE ABJ72914501 Contact Us For Availability
310
PCB Assembly LGE EBR62206901 Contact Us For Availability
500
Package Assembly LGE AGF73723701 Contact Us For Availability
510
Power Supply Assembly LGE EAY58333602 Contact Us For Availability
510
PCB Assembly,Power LGE EBR36269408 Contact Us For Availability
520
Main Total Assembly LGE EBU60698401 Contact Us For Availability
530
Frame Assembly LGE ADV72913602 Contact Us For Availability
540
Plate,Shield LGE MGJ61879801 Contact Us For Availability
900
Base Assembly LGE AAN72921701 Contact Us For Availability
A1
S/W Package LGE SAB33073806 Contact Us For Availability
A4
Card LGE MBM61965701 Contact Us For Availability
A5
Cable,Assembly LGE 68509F0003A Contact Us For Availability
C2
CAPACITOR,FIXED CERA LGE 0CK475CC94A Contact Us For Availability
C5
CAPACITOR,FIXED CERA LGE 0CK225DFK4A Contact Us For Availability
C102
CAPACITOR,DRAWING LGE 0CKZTTA002Q Contact Us For Availability
C104
Capacitor,Ceramic,Chip LGE 0CH5681K416 Contact Us For Availability
C106
Capacitor,Ceramic,Ch LGE 0CK222DK56A Contact Us For Availability
C107
CAPACITOR CERAMIC (HIGH DIELE) LGE 0CK1040K945 Contact Us For Availability
C208
Capacitor,Ceramic,Radial LGE 0CKZTTA002E Contact Us For Availability
C302
Capacitor,Ceramic,Chip LGE 0CC225EKFBA Contact Us For Availability
C309
Capacitor,Ceramic,Chip LGE 0CH5101K416 Contact Us For Availability
C311
Capacitor,Ceramic,Chip LGE 0CH2222K516 Contact Us For Availability
C312
Capacitor,Ceramic,Chip LGE 0CK224DH56A Contact Us For Availability
C313
CAPACITOR CHIP[CERAMIC M/L HD LGE 0CH1223K566 Contact Us For Availability
C314
Capacitor,Ceramic,Ch LGE 0CH2102K566 Contact Us For Availability
C316
Capacitor,Ceramic,Ch LGE 0CK473DK56A Contact Us For Availability
C319
CAPACITOR,DRAWING LGE 0CZZTCT006D Contact Us For Availability
C403
Capacitor,Ceramic,Ch LGE EAE36711701 Contact Us For Availability
C410
Capacitor,Ceramic,Chip LGE 0CH1103K566 Contact Us For Availability
C503
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C514
CAPACITOR,FIXED CERA LGE 0CK224CF56A Contact Us For Availability
C515
CAPACITOR,AL.ELECTRO LGE 0CE106EK638 Contact Us For Availability
C522
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C704
CAPACITOR,FIXED CERA LGE 0CC680CK41A Contact Us For Availability
C724
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C727
CAPACITOR,FIXED ELEC LGE 0CE107EF610 Contact Us For Availability
C737
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C739
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
CX101
Capacitor,Film,Box LGE EAE36629401 Contact Us For Availability
D101
Diode,Rectifier LGE 0DRGF00354A Contact Us For Availability
D102
Diode,Rectifier LGE EAH39171701 Contact Us For Availability
D103
DIODE,SWITCHING LGE 0DSGF00019A Contact Us For Availability
D103
Diode,Switching LGE 0DSPT00029A Contact Us For Availability
D107
Diode,Rectifier LGE 0DRTW00274A Contact Us For Availability
D404
Diode,Switching LGE 0DSDI00068A Contact Us For Availability
D404
Diode,Switching LGE EAH39577901 Contact Us For Availability
D713
DIODE,SWITCHING LGE 0DSON00138A Contact Us For Availability
D713
Diode,Schottky LGE EAH44241601 Contact Us For Availability
FB101
CORE (CIRC),BEAD LGE 6210TCE003G Contact Us For Availability
J37
Wire,Jump LGE 971-0016 Contact Us For Availability
L700
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
P702
Connector,Wafer LGE 6602T20008E Contact Us For Availability
P704
Connector,Wafer LGE 6630V90220K Contact Us For Availability
P705
Connector,FFC/FPC/PIC LGE EAG60957401 Contact Us For Availability
PC201
IC,POWER MANAGEMENT LGE 0IPMG78432A Contact Us For Availability
Q101
FET LGE 0TFFC10017A Contact Us For Availability
Q101
TRANSISTOR,FETS LGE 0TF760000AD Contact Us For Availability
Q101
FET LGE EBK35695601 Contact Us For Availability
Q201
TR,Bipolar LGE 0TR222209AB Contact Us For Availability
Q700
TRANSISTOR LGE 0TR390409AE Contact Us For Availability
Q700
TR,Bipolar LGE 0TRKE80046A Contact Us For Availability
R1
Resistor,Chip LGE 0RJ0432C678 Contact Us For Availability
R6
RESISTOR,METAL GLAZE LGE 0RJ2700C678 Contact Us For Availability
R103
RESISTOR CHIP 1.0M 1/10W 5 D. LGE 0RH1004D622 Contact Us For Availability
R105
Resistor,Carbon Film LGE 0RD0512Q609 Contact Us For Availability
R106
RESISTOR CHIP 4.7K 1/10W 5 D. LGE 0RH4701D622 Contact Us For Availability
R107
Resistor,Carbon Film LGE 0RD8203A609 Contact Us For Availability
R108
Resistor,Carbon Film LGE 0RD4702A609 Contact Us For Availability
R111
Resistor,Carbon Film LGE 0RD0101Q609 Contact Us For Availability
R112
RESISTOR,METAL GLAZE LGE 0RJ1302E472 Contact Us For Availability
R116
Resistor,Chip LGE 0RH7503D622 Contact Us For Availability
R122
Resistor,Chip LGE 0RH0471D622 Contact Us For Availability
R202
Resistor,Metal Oxide Film LGE EBC01408502 Contact Us For Availability
R204
Resistor,Metal Film LGE 0RN6802F409 Contact Us For Availability
R205
RESISTOR FIX METAL FILM 2.20K LGE 0RN2201F409 Contact Us For Availability
R206
Resistor,Chip LGE 0RH3301D422 Contact Us For Availability
R211
RESISTOR,METAL GLAZE LGE 0RJ1001G476 Contact Us For Availability
R213
Resistor,Chip LGE 0RH1003D422 Contact Us For Availability
R304
Resistor,Chip LGE 0RH3602D422 Contact Us For Availability
R305
RESISTOR CHIP, 36K 1/10W 5 D. LGE 0RH3602D622 Contact Us For Availability
R307
Resistor,Chip LGE EBC01874003 Contact Us For Availability
R308
RESISTOR,METAL GLAZE LGE 0RH4702D422 Contact Us For Availability
R310
Resistor,Chip LGE 0RH4302D422 Contact Us For Availability
R311
RESISTOR CHIP 82K 1/10W 5 D.R LGE 0RH8202D622 Contact Us For Availability
R312
Resistor,Chip LGE 0RJ0471G676 Contact Us For Availability
R313
Resistor,Chip LGE 0RH4701D422 Contact Us For Availability
R314
Resistor,Chip LGE 0RH1000D422 Contact Us For Availability
R315
Resistor,Chip LGE 0RH1503D622 Contact Us For Availability
R319
Resistor,Chip LGE 0RH2401D422 Contact Us For Availability
R403
Resistor,Chip LGE 0RH5100D622 Contact Us For Availability
R410
Resistor,Chip LGE 0RH4700D422 Contact Us For Availability
R507
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R511
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R513
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R516
Resistor,Chip LGE 0RJ3900C678 Contact Us For Availability
R524
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R713
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R718
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R719
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R720
Resistor,Chip LGE 0RJ0752C678 Contact Us For Availability
R734
RESISTOR,FIXED SMALL LGE 0RX0331K668 Contact Us For Availability
R760
Resistor,Chip LGE 0RJ2001C678 Contact Us For Availability
SC101
SOCKET(CIRC),POWER LGE 6620K00020A Contact Us For Availability
TH101
THERMISTOR,NTC LGE 6322A00035A Contact Us For Availability
TH101
Thermistor,NTC LGE EBG60662801 Contact Us For Availability
U101
IC,POWER MANAGEMENT LGE 0IPMG78425A Contact Us For Availability
U201
IC,POWER MANAGEMENT LGE 0IPMG78424A Contact Us For Availability
U502
IC Assembly LGE EAN60719501 Contact Us For Availability
ZD2
Diode,Zener LGE EAH60661201 Contact Us For Availability
ZD201
Diode,Zener LGE 0DZ270009EB Contact Us For Availability
ZD201
Diode,Zener LGE 0DZPT56009C Contact Us For Availability
× ![]()
