Model LG W2253VP-PF – Common Parts & Diagrams

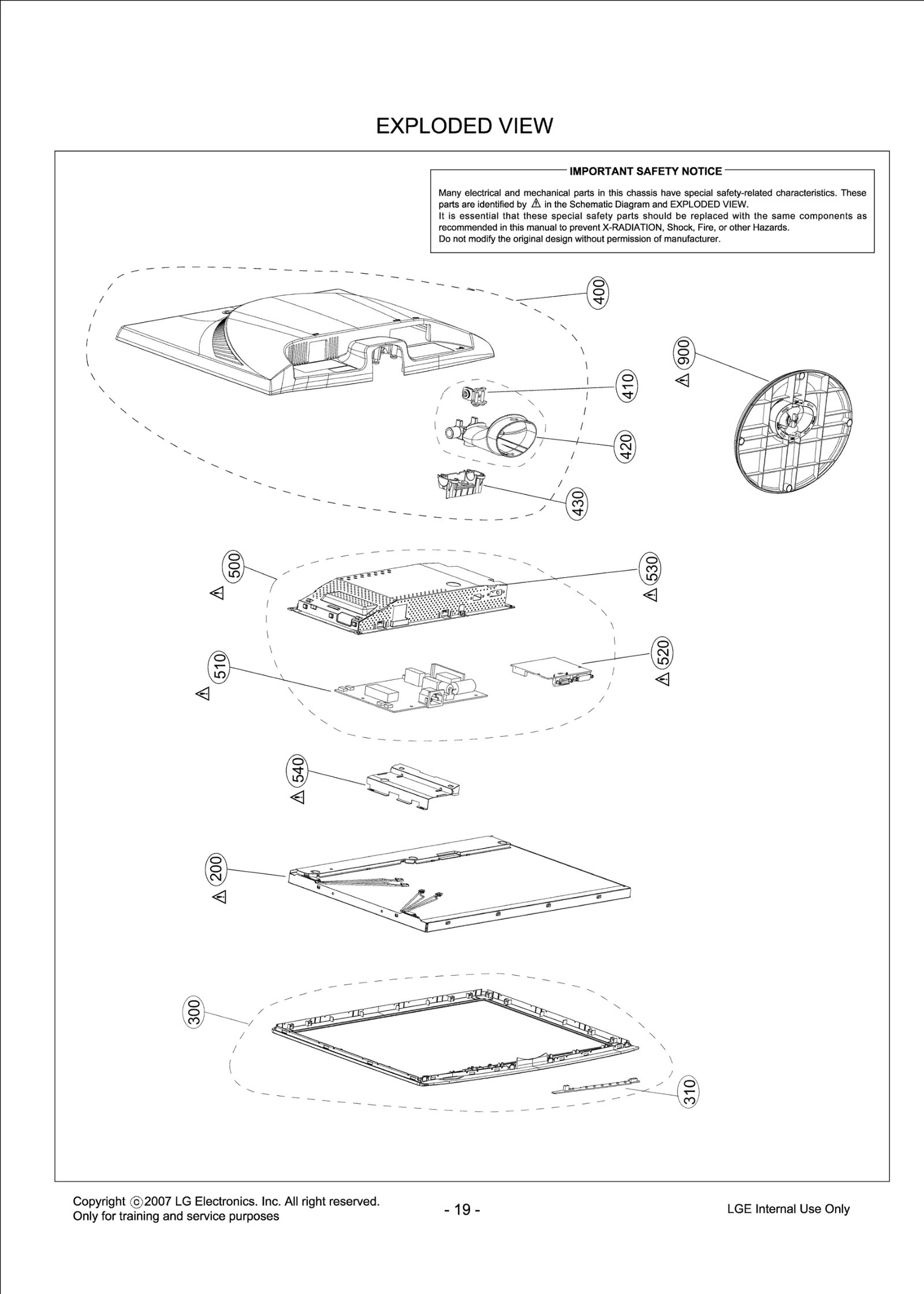

Diagram 0
Diagram 1
Common parts from model LG W2253VP-PF
200
LCD,Module-TFT LGE EAJ55729602 Contact Us For Availability
300
LGE ABJ69529542 LGE ABJ69529542 Contact Us For Availability
310
PCB Assembly LGE EBR59220210 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ69530107 Contact Us For Availability
410
Bracket Assembly LGE ABA69843502 Contact Us For Availability
430
Cover LGE MCK58434201 Contact Us For Availability
500
Package Assembly LGE AGF67516628 Contact Us For Availability
510
Power Supply Assembly LGE EAY58333902 Contact Us For Availability
520
Main Total Assembly LGE EBU56656020 Contact Us For Availability
530
Frame Assembly LGE ADV72913711 Contact Us For Availability
900
Base Assembly LGE AAN69530401 Contact Us For Availability
A1
S/W Package LGE SAB33074513 Contact Us For Availability
A4
Card LGE MBM41933018 Contact Us For Availability
C333
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C524
Capacitor,Ceramic,Ch LGE 0CK106DC67A Contact Us For Availability
C527
Capacitor,Ceramic,Chip LGE 0CK225DF56A Contact Us For Availability
C532
CAPACITOR,FIXED CERA LGE 0CK104CF56A Contact Us For Availability
C602
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C604
CAPACITOR,FIXED CERA LGE 0CK103CK56A Contact Us For Availability
C605
CAPACITOR,FIXED CERA LGE 0CC680CK41A Contact Us For Availability
C614
CAPACITOR,FIXED ELEC LGE 0CE107EF610 Contact Us For Availability
C623
CAPACITOR,FIXED CERA LGE 0CK102CK56A Contact Us For Availability
C636
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C706
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C717
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
D709
Diode,Schottky LGE EAH44241601 Contact Us For Availability
D709
DIODE,SWITCHING LGE 0DSON00138A Contact Us For Availability
D810
Diode,TVS LGE 0DRCE00028A Contact Us For Availability
IC501
IC Assembly LGE EAN56657118 Contact Us For Availability
IC603
IC,LDO Voltage Regulator LGE EAN60804201 Contact Us For Availability
L603
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
P302
Connector,Wafer LGE 6602T20008E Contact Us For Availability
P705
Connector,FFC/FPC/PIC LGE EAG60908201 Contact Us For Availability
Q601
TRANSISTOR,BIPOLARS LGE 0TRDI80002A Contact Us For Availability
Q601
TRANSISTOR LGE 0TR390409AE Contact Us For Availability
Q601
TR,Bipolar LGE 0TRKE80046A Contact Us For Availability
R1
Resistor,Chip LGE 0RJ0432C678 Contact Us For Availability
R6
Resistor,Chip LGE 0RJ1500C678 Contact Us For Availability
R321
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R512
RESISTOR,METAL GLAZE LGE 0RJ6201D677 Contact Us For Availability
R529
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R532
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R544
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R549
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R602
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R613
RESISTOR,METAL GLAZE LGE 0RJ0682D677 Contact Us For Availability
R617
Resistor,Chip LGE 0RJ1000D477 Contact Us For Availability
R635
RESISTOR,METAL GLAZE LGE 0RJ2001D677 Contact Us For Availability
R636
Resistor,Chip LGE 0RJ0752C678 Contact Us For Availability
R744
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R783
Resistor,Chip LGE 0RJ5600C678 Contact Us For Availability
X500
Crystal LGE EAW50464201 Contact Us For Availability
X500
RESONATOR,CRYSTAL LGE 6202TST001H Contact Us For Availability
ZD10
Diode,Zener LGE EAH60661201 Contact Us For Availability
× ![]()
