Model LG W2253TQ-PF – Common Parts & Diagrams

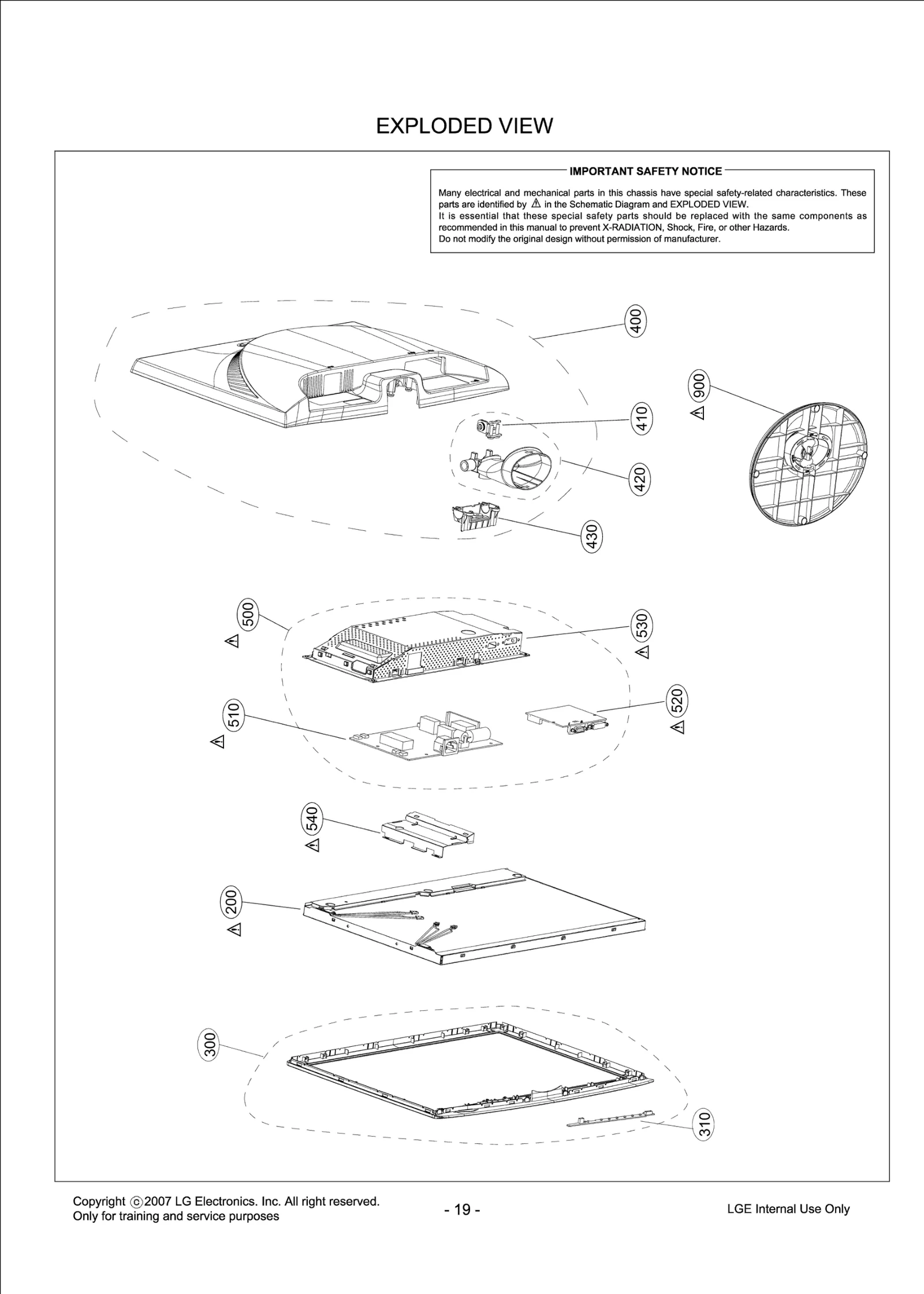

Diagram 0
Diagram 1
Common parts from model LG W2253TQ-PF
200
LCD,Module-TFT LGE EAJ55729602 Contact Us For Availability
300
Cabinet Assembly LGE ABJ69529502 Contact Us For Availability
310
PCB Assembly LGE EBR59220201 Contact Us For Availability
410
Bracket Assembly LGE ABA69843502 Contact Us For Availability
420
Base Assembly LGE AAN70808202 Contact Us For Availability
430
Cover LGE MCK58434201 Contact Us For Availability
510
Power Supply Assembly LGE EAY58333902 Contact Us For Availability
520
PCB Assembly,Main LGE EBR59062401 Contact Us For Availability
530
Frame Assembly LGE ADV72913602 Contact Us For Availability
900
Base Assembly LGE AAN69530401 Contact Us For Availability
A4
Card LGE MBM41933007 Contact Us For Availability
C1
Harness,Single LGE EAD60663002 Contact Us For Availability
C2
Harness,Single LGE 6631T20023T Contact Us For Availability
C2
CONNECTOR ASSEMBLY LGE 6631T20023A Contact Us For Availability
C5
Capacitor,Ceramic,Chip LGE 0CK225DF56A Contact Us For Availability
C504
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C514
CAPACITOR,FIXED CERA LGE 0CK224CF56A Contact Us For Availability
C515
CAPACITOR,AL.ELECTRO LGE 0CE106EK638 Contact Us For Availability
C536
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C701
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C702
CAPACITOR,FIXED CERA LGE 0CC680CK41A Contact Us For Availability
C720
CAPACITOR,FIXED CERA LGE 0CK475CC94A Contact Us For Availability
C724
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C725
CAPACITOR,FIXED ELEC LGE 0CE107EF610 Contact Us For Availability
C730
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
D713
DIODE,SWITCHING LGE 0DSON00138A Contact Us For Availability
D713
Diode,Schottky LGE EAH44241601 Contact Us For Availability
L700
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
P702
Connector,Wafer LGE 6602T20008E Contact Us For Availability
P704
Connector,Wafer LGE 6630V90220K Contact Us For Availability
P705
Connector,FFC/FPC/PIC LGE EAG60957401 Contact Us For Availability
Q700
TRANSISTOR LGE 0TR390409AE Contact Us For Availability
Q700
TR,Bipolar LGE 0TRKE80046A Contact Us For Availability
R1
Resistor,Chip LGE 0RJ0432C678 Contact Us For Availability
R6
Resistor,Chip LGE 0RJ1500C678 Contact Us For Availability
R8
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R507
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R513
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R530
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R713
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R717
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R721
Resistor,Chip LGE 0RJ0752C678 Contact Us For Availability
R728
Resistor,Chip LGE 0RJ3900C678 Contact Us For Availability
R734
RESISTOR,FIXED SMALL LGE 0RX0331K668 Contact Us For Availability
R760
Resistor,Chip LGE 0RJ2001C678 Contact Us For Availability
R763
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R767
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
U502
IC Assembly LGE EAN59062701 Contact Us For Availability
X501
Crystal LGE EAW60658001 Contact Us For Availability
X501
Crystal LGE 6212AA2001H Contact Us For Availability
ZD2
Diode,Zener LGE EAH60661201 Contact Us For Availability
× ![]()
