Model LG W2252TQ-TF.AUSVAPN – Common Parts & Diagrams

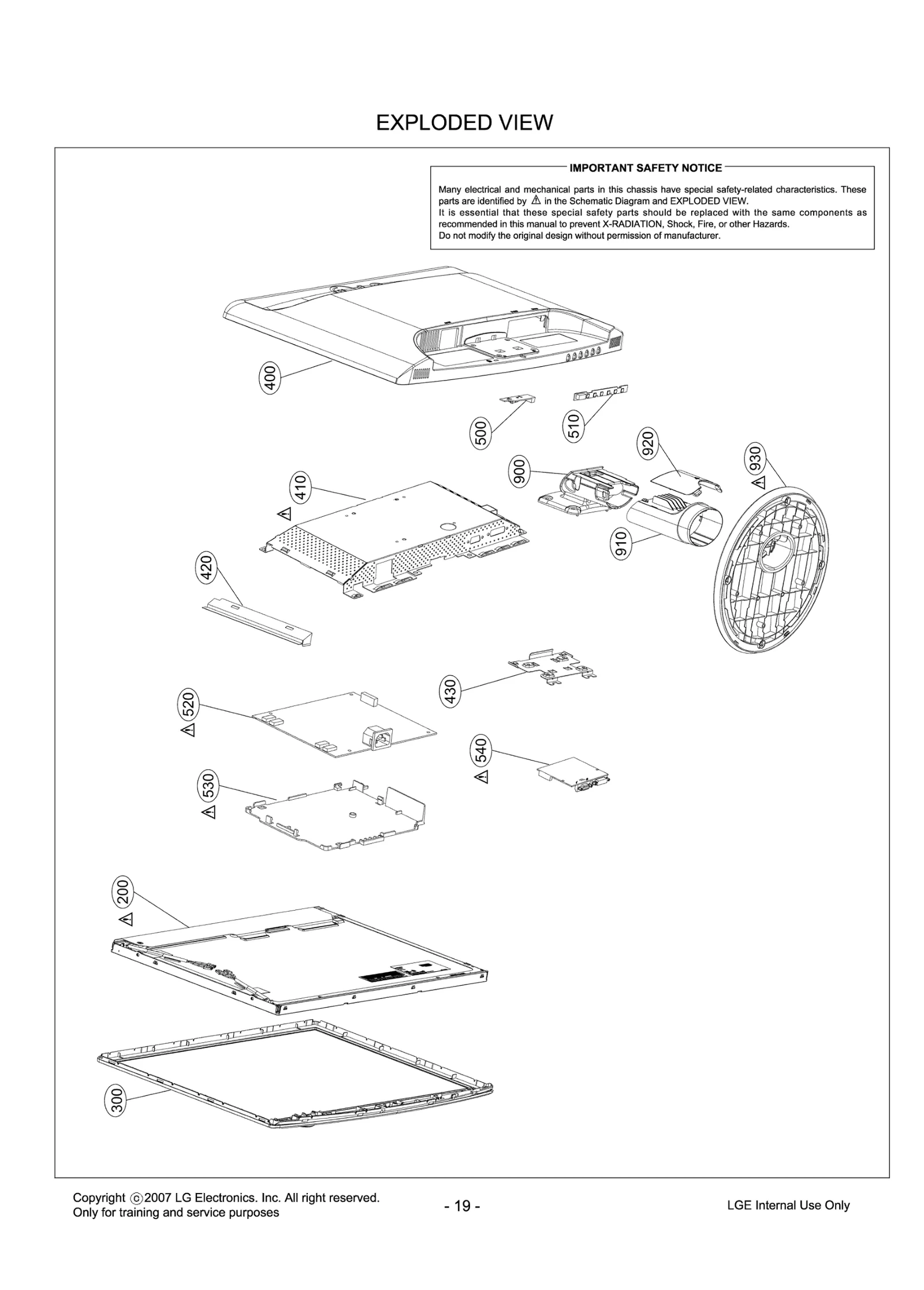

Diagram 0
Diagram 1
Common parts from model LG W2252TQ-TF.AUSVAPN
300
Cabinet Assembly LGE ABJ35706413 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ35706704 Contact Us For Availability
410
Package Assembly LGE AGF35751204 Contact Us For Availability
420
Plate,Shield LGE MGJ41193205 Contact Us For Availability
430
Plate,Metal LGE MGJ41207102 Contact Us For Availability
500
PCB Assembly LGE EBR42021801 Contact Us For Availability
510
PCB Assembly LGE EBR41684102 Contact Us For Availability
520
Power Supply Assembly LGE EAY41824001 Contact Us For Availability
520
Power Supply Assembly LGE EAY38280101 Contact Us For Availability
530
Cover LGE MCK38597701 Contact Us For Availability
540
PCB Assembly,Main LGE EBR41684704 Contact Us For Availability
900
Cover Assembly LGE ACQ33707105 Contact Us For Availability
910
Cover LGE MCK41193001 Contact Us For Availability
920
Cover LGE MCK41193101 Contact Us For Availability
930
Base Assembly LGE AAN35706805 Contact Us For Availability
A1
S/W Package LGE SAB32952502 Contact Us For Availability
A4
Card LGE MBM47116105 Contact Us For Availability
A5
CABLE,D-SUB LGE 6850TD9007D Contact Us For Availability
A5
Cable,Assembly LGE 68509F0003A Contact Us For Availability
C1
Harness,Single LGE EAD42157801 Contact Us For Availability
C2
Harness,Single LGE EAD42196801 Contact Us For Availability
C509
CAPACITOR,FIXED CERA LGE 0CC270CK41A Contact Us For Availability
C514
CAPACITOR,FIXED CERA LGE 0CK224CF56A Contact Us For Availability
C515
CAPACITOR,AL.ELECTRO LGE 0CE106EK638 Contact Us For Availability
C703
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C714
CAPACITOR,FIXED CERA LGE 0CC680CK41A Contact Us For Availability
C716
CAPACITOR,FIXED CERA LGE 0CK104CF56A Contact Us For Availability
C720
CAPACITOR,FIXED CERA LGE 0CK475CC94A Contact Us For Availability
C727
Capacitor,AL,Radial LGE 0CE107EF628 Contact Us For Availability
C729
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C732
CAPACITOR,FIXED CERA LGE 0CK102CK56A Contact Us For Availability
C736
CAPACITOR,FIXED CERA LGE 0CK103CK51A Contact Us For Availability
D704
DIODE,SWITCHING LGE 0DSIH00018A Contact Us For Availability
D704
DIODE,SWITCHING LGE 0DS226009AA Contact Us For Availability
D711
DIODE,SWITCHING LGE 0DSON00138A Contact Us For Availability
L700
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
LD2
LED,Chip LGE EAV44202401 Contact Us For Availability
P1
Connector,Wafer LGE 6602T12005E Contact Us For Availability
P2
Connector,Wafer LGE 6602T12005C Contact Us For Availability
P700
CONNECTOR (CIRC),D-S LGE 6630TGA005B Contact Us For Availability
P700
Connector,DSUB LGE EAG41681101 Contact Us For Availability
P701
Connector,DSUB LGE EAG54220901 Contact Us For Availability
P704
Connector,Wafer LGE 6630V90220K Contact Us For Availability
P705
Connector,FFC/FPC/PIC LGE EAG38153601 Contact Us For Availability
Q706
TR,Bipolar LGE 0TR390609DC Contact Us For Availability
Q761
TR,Bipolar LGE 0TRKE80046A Contact Us For Availability
Q761
TRANSISTOR,BIPOLARS LGE 0TRIH80001A Contact Us For Availability
R2
Resistor,Chip LGE 0RJ1602D677 Contact Us For Availability
R4
Resistor,Chip LGE 0RJ1801D677 Contact Us For Availability
R5
Resistor,Chip LGE 0RJ2201D677 Contact Us For Availability
R502
RESISTOR,METAL GLAZE LGE 0RJ0562D677 Contact Us For Availability
R508
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R519
RESISTOR,METAL GLAZE LGE 0RJ1502D677 Contact Us For Availability
R524
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R706
RESISTOR,METAL GLAZE LGE 0RJ0102D677 Contact Us For Availability
R717
RESISTOR,METAL GLAZE LGE 0RJ0682D677 Contact Us For Availability
R720
RESISTOR,METAL GLAZE LGE 0RJ0752D677 Contact Us For Availability
R723
Resistor,Chip LGE 0RJ3601D677 Contact Us For Availability
R728
RESISTOR,METAL GLAZE LGE 0RJ3900D677 Contact Us For Availability
R734
RESISTOR,FIXED SMALL LGE 0RX0331K668 Contact Us For Availability
R751
RESISTOR,METAL GLAZE LGE 0RJ2700D677 Contact Us For Availability
R755
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R760
RESISTOR,METAL GLAZE LGE 0RJ2001D677 Contact Us For Availability
SW6
Switch,Tact LGE EBF37991701 Contact Us For Availability
SW7
Switch,Tact LGE 6600R000133 Contact Us For Availability
U502
IC Assembly LGE EAN41686504 Contact Us For Availability
X501
Crystal LGE 6212AA2001H Contact Us For Availability
ZD9
DIODE,ZENERS LGE 0DZ560009GB Contact Us For Availability
× ![]()
