Model LG W2242TE-BFT – Common Parts & Diagrams

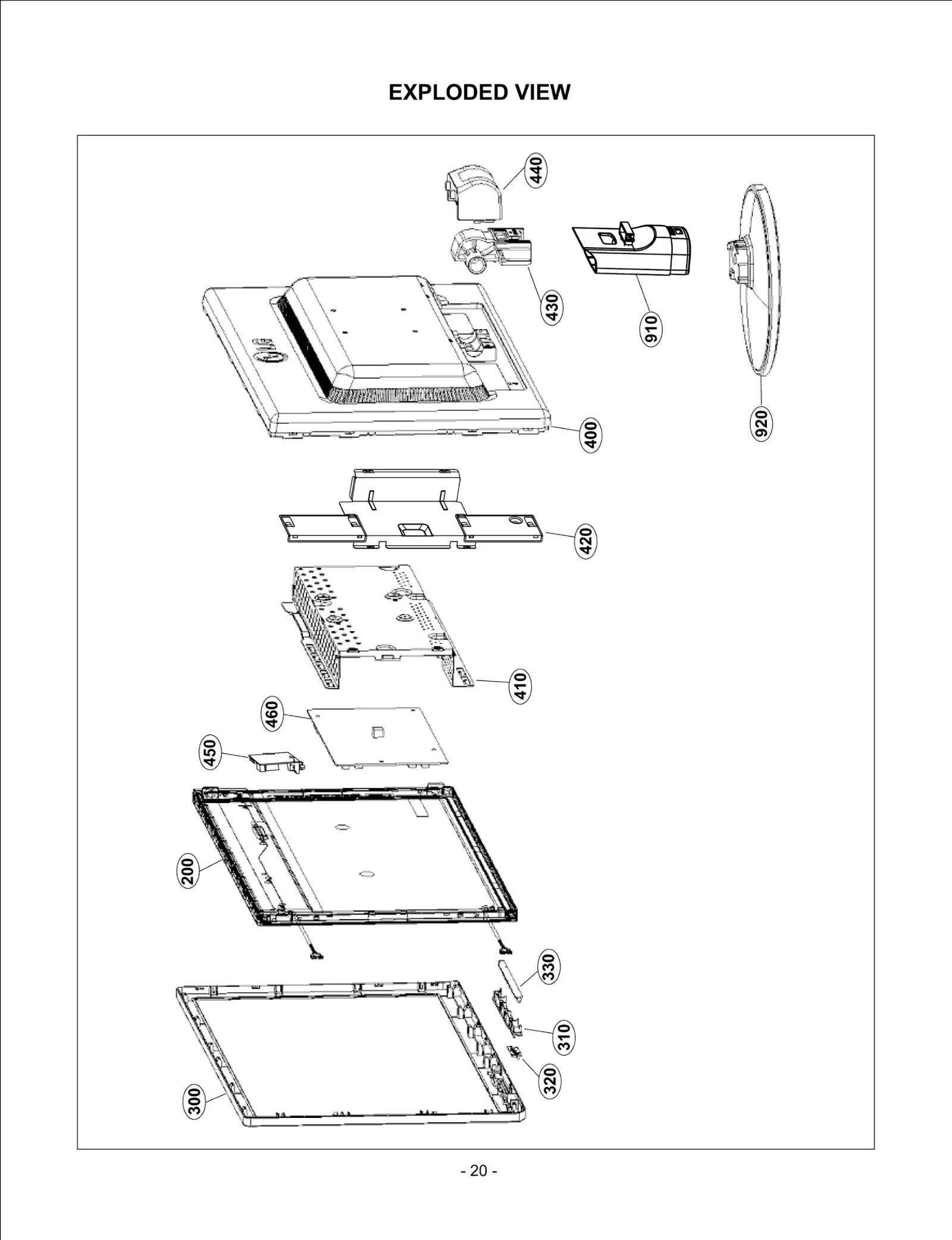

Diagram 0
Diagram 1
Common parts from model LG W2242TE-BFT
300
Cabinet Assembly LGE ABJ35705629 Contact Us For Availability
310
Knob LGE MEY40926601 Contact Us For Availability
320
Button,Power LGE MBG41956001 Contact Us For Availability
330
PCB Assembly LGE EBR41617001 Contact Us For Availability
410
Frame LGE MDQ40929501 Contact Us For Availability
420
Frame LGE MDQ40929602 Contact Us For Availability
430
Cover LGE MCK40926801 Contact Us For Availability
440
Cover LGE MCK40927901 Contact Us For Availability
460
Power Supply Assembly LGE EAY56379401 Contact Us For Availability
920
Base Assembly LGE AAN35581105 Contact Us For Availability
A1
Title LGE SAC31592323 Contact Us For Availability
C505
CAPACITOR,FIXED CERA LGE 0CK473CK56A Contact Us For Availability
C510
CAPACITOR,FIXED CERA LGE 0CC270CK41A Contact Us For Availability
C602
CAPACITOR,FIXED CERA LGE 0CK103CK51A Contact Us For Availability
C603
CAPACITOR,FIXED CERA LGE 0CK475CC94A Contact Us For Availability
C715
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C723
CAPACITOR,FIXED CERA LGE 0CC680CK41A Contact Us For Availability
C724
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C726
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C728
CAPACITOR,FIXED CERA LGE 0CC331CK41A Contact Us For Availability
C737
Capacitor,AL,Radial LGE 0CE107EF628 Contact Us For Availability
CA1
Harness,Single LGE EAD42157802 Contact Us For Availability
D709
DIODE,SWITCHING LGE 0DS226009AA Contact Us For Availability
J1
Connector,Wafer LGE 6602T12004E Contact Us For Availability
J701
Connector,DSUB LGE EAG54220901 Contact Us For Availability
J703
Connector,Wafer LGE 6630V90220K Contact Us For Availability
J706
Connector,DSUB LGE EAG41681101 Contact Us For Availability
L705
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
LED1
LED,DIP LGE EAV43331201 Contact Us For Availability
Q501
TR,Bipolar LGE 0TRKE80046A Contact Us For Availability
Q602
TR,Bipolar LGE EBK39150701 Contact Us For Availability
Q701
TR,Bipolar LGE 0TR390609DC Contact Us For Availability
R2
Resistor,Chip LGE 0RJ1602D677 Contact Us For Availability
R3
Resistor,Chip LGE 0RJ2201D677 Contact Us For Availability
R5
Resistor,Chip LGE 0RJ1801D677 Contact Us For Availability
R504
RESISTOR,METAL GLAZE LGE 0RJ0562D677 Contact Us For Availability
R505
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R515
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R601
Resistor,Chip LGE 0RJ3601D677 Contact Us For Availability
R602
RESISTOR,METAL GLAZE LGE 0RJ3900D677 Contact Us For Availability
R709
RESISTOR,METAL GLAZE LGE 0RJ2001D677 Contact Us For Availability
R714
Resistor,Chip LGE 0RJ0122D677 Contact Us For Availability
R720
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R723
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R730
RESISTOR,METAL GLAZE LGE 0RJ0682D677 Contact Us For Availability
R736
RESISTOR,METAL GLAZE LGE 0RJ0752D677 Contact Us For Availability
R739
RESISTOR,METAL GLAZE LGE 0RJ1802D677 Contact Us For Availability
R744
Resistor,Chip LGE 0RJ2402D677 Contact Us For Availability
SW6
Switch,Tact LGE 6600R000133 Contact Us For Availability
X501
Crystal LGE 6212AA2001H Contact Us For Availability
× ![]()
