Model LG W2230S-PF – Common Parts & Diagrams

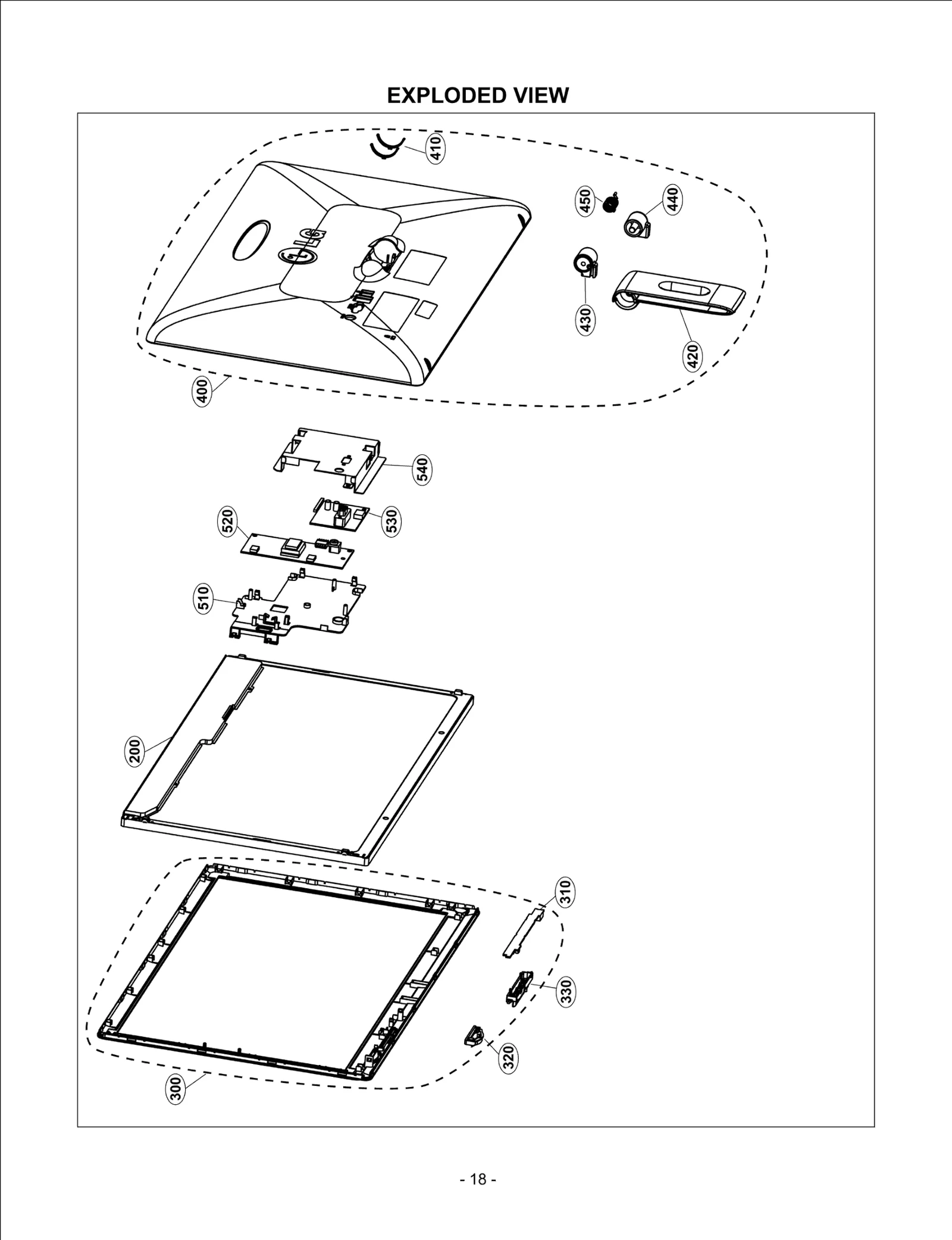

Diagram 0
Diagram 1
Common parts from model LG W2230S-PF
200
LCD,Module-TFT LGE EAJ60749301 Contact Us For Availability
300
Cabinet Assembly LGE ABJ72916607 Contact Us For Availability
310
PCB Assembly LGE EBR62702101 Contact Us For Availability
320
Button,Power LGE MBG61982401 Contact Us For Availability
330
Button,Control LGE MBG61982301 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ73770501 Contact Us For Availability
410
Bracket LGE MAZ61914801 Contact Us For Availability
420
Cover LGE MCK62251401 Contact Us For Availability
430
Shaft LGE MHJ61847901 Contact Us For Availability
450
Spring,Coil LGE MHY61869301 Contact Us For Availability
510
Bracket LGE MAZ61914901 Contact Us For Availability
520
PCB Assembly,Inverter LGE EBR62704701 Contact Us For Availability
530
Main Total Assembly LGE EBU60711501 Contact Us For Availability
540
Frame Assembly LGE ADV72951605 Contact Us For Availability
A1
S/W Package LGE SAB34096502 Contact Us For Availability
A5
Cable,Assembly LGE 68509F0003A Contact Us For Availability
A5
CABLE,D-SUB LGE 6850TD9007D Contact Us For Availability
C101
CAPACITOR,FIXED CERA LGE 0CC270CK41A Contact Us For Availability
C103
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C104
CAPACITOR,FIXED ELEC LGE 0CE106WFKDC Contact Us For Availability
C119
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C203
CAPACITOR,FIXED CERA LGE 0CC680CK41A Contact Us For Availability
C221
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C301
Capacitor,Ceramic,Chip LGE EAE60985601 Contact Us For Availability
C303
Capacitor,Ceramic,Chip LGE 0CH1103K566 Contact Us For Availability
C306
Capacitor,Ceramic,Ch LGE 0CK473DK56A Contact Us For Availability
C308
Capacitor,Ceramic,Chip LGE 0CK105DH56A Contact Us For Availability
C310
Capacitor,Ceramic,Chip LGE 0CK225DF56A Contact Us For Availability
C311
Capacitor,Ceramic,Ch LGE 0CH2102K566 Contact Us For Availability
C313
CAPACITOR,FIXED CERA LGE 0CK474DH56A Contact Us For Availability
C314
CAPACITOR CHIP[CERAMIC M/L HD LGE 0CH1223K566 Contact Us For Availability
C808
CAPACITOR,CHIP[CERAMIC LD-LESS LGE 0CH6152K406 Contact Us For Availability
C810
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107WF6DC Contact Us For Availability
C813
Capacitor,Ceramic,Chip LGE 0CH2103K516 Contact Us For Availability
IC102
IC Assembly LGE EAN60739101 Contact Us For Availability
L802
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
P200
Connector,DSUB LGE EAG55280002 Contact Us For Availability
P201
WAFER LGE 6602T20009E Contact Us For Availability
P202
Connector,BtoB LGE EAG60947201 Contact Us For Availability
P301
Connector,BtoB LGE EAG60946601 Contact Us For Availability
Q200
TRANSISTOR LGE 0TR390409AE Contact Us For Availability
Q202
TRANSISTOR LGE 0TR390609FA Contact Us For Availability
Q303
TR,Bipolar LGE 0TRKE80046A Contact Us For Availability
R106
Resistor,Chip LGE 0RJ3900C678 Contact Us For Availability
R108
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R110
Resistor,Chip LGE 0RJ1004C678 Contact Us For Availability
R120
RESISTOR,METAL GLAZE LGE 0RJ2002C478 Contact Us For Availability
R210
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R212
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R216
Resistor,Chip LGE 0RJ0752C678 Contact Us For Availability
R217
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R227
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R245
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R301
RESISTOR CHIP, 10K 1/10W 1% D LGE 0RH1002D422 Contact Us For Availability
R302
RESISTOR,METAL GLAZE LGE 0RJ6801E472 Contact Us For Availability
R303
Resistor,Chip LGE 0RH2002D422 Contact Us For Availability
R307
RESISTOR CHIP 10 1/10W 5 C.R/ LGE 0RH0102D622 Contact Us For Availability
R313
Resistor,Chip LGE 0RH1303D622 Contact Us For Availability
R314
RESISTOR CHIP 100K 1/10W 5 D. LGE 0RH1003D622 Contact Us For Availability
R316
RESISTOR,METAL GLAZE LGE 0RH4702D422 Contact Us For Availability
R319
Resistor,Chip LGE 0RH0471D622 Contact Us For Availability
R321
RESISTOR CHIP 1.0M 1/10W 5 D. LGE 0RH1004D622 Contact Us For Availability
R323
Resistor,Chip LGE 0RH4701D422 Contact Us For Availability
R401
RESISTOR CHIP 2.0K 1/10W 5 D.R LGE 0RH2001D622 Contact Us For Availability
R402
Resistor,Chip LGE EBC60665702 Contact Us For Availability
R501
RESISTOR CHIP 3.9K 1/10W 5 D. LGE 0RH3901D622 Contact Us For Availability
R502
Resistor,Chip LGE 0RH1801D622 Contact Us For Availability
R504
Resistor,Chip LGE 0RH2201D622 Contact Us For Availability
R801
RESISTOR,METAL GLAZE LGE 0RJ1202D477 Contact Us For Availability
R806
Resistor,Chip LGE 0RJ2402D677 Contact Us For Availability
SW504
Switch,Tact LGE 6600S-TV01A Contact Us For Availability
X100
Crystal LGE 6212AA2001H Contact Us For Availability
ZD203
Diode,Zener LGE EAH60661201 Contact Us For Availability
× ![]()
