Model Whirlpool W216 ELECTRIC WALL OVEN – Common Parts & Diagrams

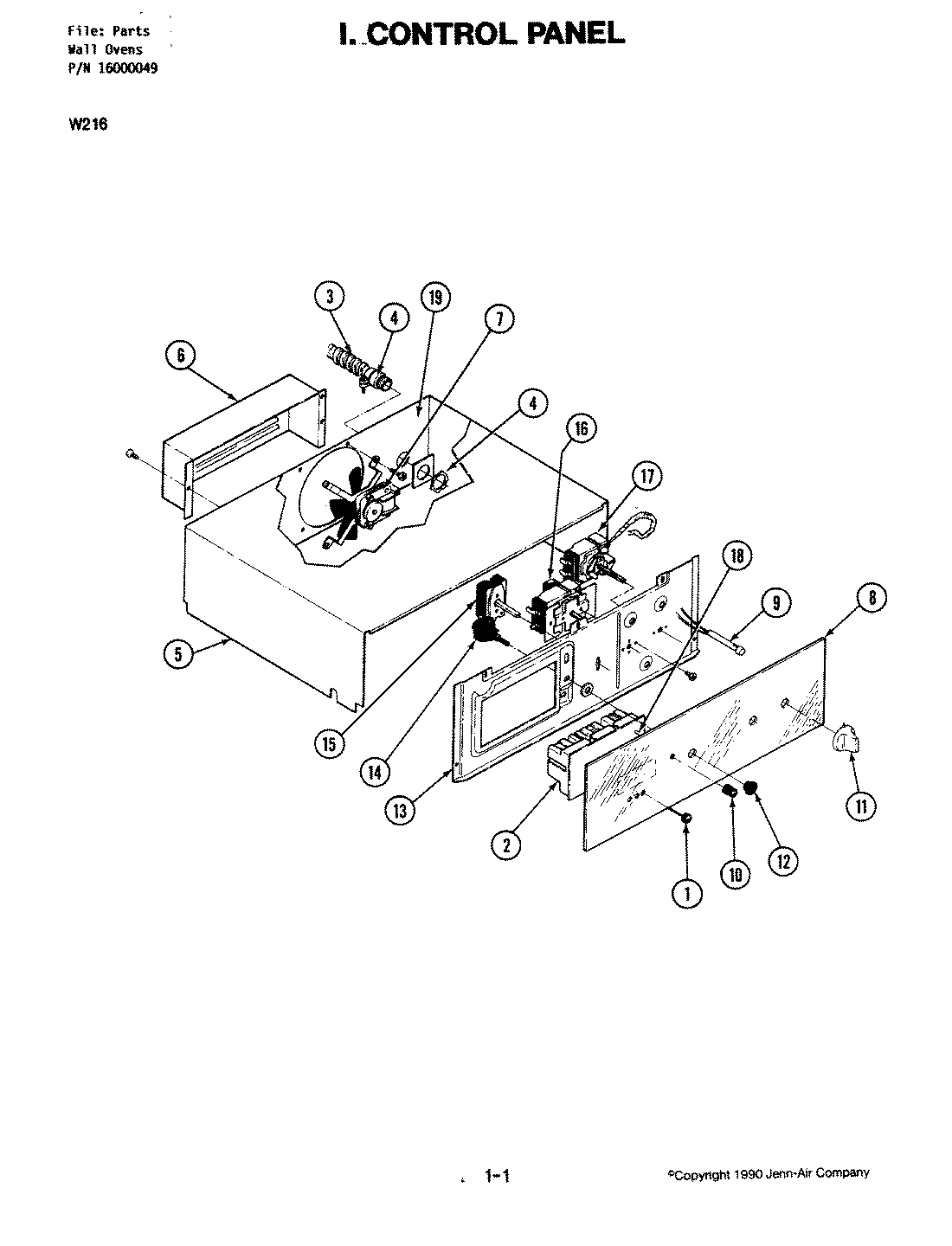

02 - CONTROL PANEL
04 - DOOR (LOWER)
01 - BODY
03 - DOOR
Common parts from model Whirlpool W216 ELECTRIC WALL OVEN
1
CLAMP, WIRE WPL 7111P01560 Contact Us For Availability
1
KNOB, CLOCK (BUTTON-BLK) WPL 7711P17160 Contact Us For Availability
1
BAFFLE, DOOR WPL 3601F10351 Contact Us For Availability
1
BACK MAIN WPL 4002F07951 Contact Us For Availability
1
BAFFLE, DOOR WPL 3601F13151 Contact Us For Availability
1
SCREW (10ABX1.0-ZN) WPL 7101P06060 Contact Us For Availability
2
CLOCK WPL 7601P12360 Contact Us For Availability
2
END CAP, HANDLE (BLK) WPL 7744P00760 Contact Us For Availability
2
BAFFLE, BASE WPL 3601F00580 Contact Us For Availability
3
TUBING, 1/2 X 48`` FLEXIBLE WPL 3414F03744 Contact Us For Availability
3
CLIP WPL 3819F01080 Contact Us For Availability
3
BASE, WALL OVEN WPL 4003F01180 Contact Us For Availability
4
CONNECTOR, CABLE WPL 7417P00360 Contact Us For Availability
4
CONNECTOR, CABLE WPL 7417P01760 Contact Us For Availability
4
FRAME, WINDOW----NA WPL 3603F01380 Contact Us For Availability
4
BOX, VENT WPL 4006W04645 Contact Us For Availability
4
GASKET WPL 7201P00460 Contact Us For Availability
5
COVER, WIRE WPL 4005F15051 Contact Us For Availability
5
GLASS, DOOR INNER WPL 7902P03560 Contact Us For Availability
5
CHANNEL, VENT ASSEMBLY WPL 3818W00215 Contact Us For Availability
5
GASKET WPL 7201P02060 Contact Us For Availability
6
COVER, FAN WPL 4005F26251 Contact Us For Availability
6
GLASS, DOOR SCREENED WPL 7902P25760 Contact Us For Availability
6
GLASS, DOOR LOWER WPL 7902P33860 Contact Us For Availability
6
COVER, BOX WPL 4005F20251 Contact Us For Availability
6
GLASS, DOOR SCREENED WPL 7902P25860 Contact Us For Availability
6
GLASS, DOOR UPPER WPL 7902P33960 Contact Us For Availability
7
FAN ASSEMBLY WPL 7427P00660 Contact Us For Availability
7
COVER, LOCK WPL 4005F16045 Contact Us For Availability
7
GLASS, INNER WPL 7902P09760 Contact Us For Availability
8
GLASS, CONTROL PANEL WPL 7912P05960 Contact Us For Availability
8
HANDLE, DOOR----NA WPL 7701P07160 Contact Us For Availability
8
LINING ASSEMBLY WPL 2402W13215 Contact Us For Availability
8
LINING, DOOR WPL 2402W13219 Contact Us For Availability
8
ELEMENT BAKE WPL 7406P01360 Contact Us For Availability
8
ELEMENT, BAKE WPL 7406P07560 Contact Us For Availability
9
LIGHT, INDICATOR WPL 5700A23660 Contact Us For Availability
9
PANEL, OVEN DOOR WPL 2401F05470 Contact Us For Availability
9
PANEL, DOOR (BLK) WPL 2401F10470 Contact Us For Availability
9
SCREW WPL 7101P06560 Contact Us For Availability
9
GASKET, ELEMENT WPL 7201P00360 Contact Us For Availability
9
ELEMENT,BROIL WPL 7406P00360 Contact Us For Availability
9
ELEMENT, BROIL WPL 7406P07660 Contact Us For Availability
9
LINING ASSEMBLY WPL 2402W13015 Contact Us For Availability
9
LINING, DOOR WPL 2402W13019 Contact Us For Availability
10
KNOB, CLOCK WPL 7711P42760 Contact Us For Availability
10
SEAL, DOOR (VERTICAL) WPL 7212P00760 Contact Us For Availability
10
EXTRUSION, BOTTOM (BLK) WPL 7706P15360 Contact Us For Availability
10
PAD, OVEN DOOR WPL 2410W03815 Contact Us For Availability
10
PAD DOOR WPL 2410W04215 Contact Us For Availability
10
PAD, DOOR WPL 2410W04219 Contact Us For Availability
11
KNOB, THERMOSTAT WPL 7711P25660 Contact Us For Availability
11
SEAL, DOOR (HORIZONTAL) WPL 7212P00660 Contact Us For Availability
11
EXTRUSION, SIDE-L WPL 7750P01460 Contact Us For Availability
11
EXTENSION, SIDE (LEFT) WPL 7750P02960 Contact Us For Availability
11
PANEL, OVEN DOOR WPL 2401F04570 Contact Us For Availability
11
PANEL, DOOR (BLK) WPL 2401F10370 Contact Us For Availability
12
SLEEVE, SWITCH (BLK) WPL 7214P00760 Contact Us For Availability
12
EXTRUSION, SIDE-R WPL 7750P01560 Contact Us For Availability
12
EXTENSION, SIDE (RIGHT) WPL 7750P03060 Contact Us For Availability
12
RETAINER, GASKET WPL 3804F02145 Contact Us For Availability
13
PLATE, BACKING WPL 3605F11380 Contact Us For Availability
13
EXTRUSION, TOP FRONT WPL 7706P18560 Contact Us For Availability
13
EXTRUSION, TOP (BLK) WPL 7706P19960 Contact Us For Availability
13
FRAME, WINDOW WPL 7706P12860 Contact Us For Availability
14
SWITCH, PUSH (BLK) WPL 7403P10960 Contact Us For Availability
14
SPACER, GLASS WPL 8010P01660 Contact Us For Availability
14
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
14
NUT, SNAP (ROUND-WHT) WPL 7103P03960 Contact Us For Availability
14
NUT, SNAP (WHT) WPL 7103P04060 Contact Us For Availability
14
NUT, SNAP WPL 7103P05160 Contact Us For Availability
14
EXTRUSION, VENT WPL 7756P02360 Contact Us For Availability
14
EXTRUSION, VENT (BLK) WPL 7756P07060 Contact Us For Availability
15
SWITCH, SELECTOR WPL 7403P02360 Contact Us For Availability
15
GASKET, HOUSING WPL 7201P01460 Contact Us For Availability
15
GLASS, INNER WPL 7902P10460 Contact Us For Availability
16
THERMOSTAT, UPPER WPL 7404P03960 Contact Us For Availability
16
GLASS, LAMP GUARD WPL 7902P05760 Contact Us For Availability
16
SEAL, GLASS WPL 7208P00160 Contact Us For Availability
17
SCREW W/WASHER WPL 7101P27960 Contact Us For Availability
17
THERMOSTAT, LOWER WPL 7404P04260 Contact Us For Availability
17
HINGE, UPPER WPL 7106A01960 Contact Us For Availability
17
HINGE, OVEN DOOR WPL 7106A02060 Contact Us For Availability
17
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
18
SHAFT, CLOCK WPL 8312P01760 Contact Us For Availability
18
INSERT, BROILER PAN WPL 3413F01315 Contact Us For Availability
18
GLASS, WINDOW OUTER WPL 7902P10260 Contact Us For Availability
19
PLATE, CONDUIT WPL 3605F10051 Contact Us For Availability
19
SCREW, HINGE WPL 7101P01760 Contact Us For Availability
19
HANDLE, LATCH (BLK) WPL 7701P06860 Contact Us For Availability
20
SCREW WPL 7101P23260 Contact Us For Availability
20
SCREW WPL 7101P11560 Contact Us For Availability
20
LEVER, LATCH WPL 8009P01160 Contact Us For Availability
21
HOUSING LAMP WPL 4001W01251 Contact Us For Availability
21
BULB, OVEN WPL 7407P02660 Contact Us For Availability
21
RECEPT, OVEN LIGHT WPL 7408P00160 Contact Us For Availability
21
RECEPTACLE, LAMP WPL 7408P00260 Contact Us For Availability
21
SCREW WPL 7101P06160 Contact Us For Availability
22
SCREW WPL 7101P24260 Contact Us For Availability
22
LATCH ASSY. WPL 8002P01660 Contact Us For Availability
23
PAN, BROILER WPL 3401F01415 Contact Us For Availability
24
PANEL, SIDE RIGHT WPL 2618F05551 Contact Us For Availability
24
PANEL, SIDE-LT WPL 2618F05651 Contact Us For Availability
25
RACK WPL 7801P00560 Contact Us For Availability
26
RACK, OFFSET WPL 7801P00760 Contact Us For Availability
27
RETAINER, BOTTOM WPL 3804W03451 Contact Us For Availability
28
RETAINER, INSULATION WPL 3804F05451 Contact Us For Availability
29
RETAINER WPL 3804F01145 Contact Us For Availability
29
GASKET, LAMP RETAINER WPL 7201P01560 Contact Us For Availability
30
RET REAR INSUL WPL 3804F05251 Contact Us For Availability
31
RETAINER,TOP WPL 3804F05351 Contact Us For Availability
32
SHIELD, AIR WPL 3604F10180 Contact Us For Availability
33
COVER WPL 3604F03744 Contact Us For Availability
34
SHIELD, TERMINAL WPL 3604F04880 Contact Us For Availability
35
SUPPORT, BROIL ELEMENT WPL 3807F17615 Contact Us For Availability
36
SUPPORT WPL 3807F13580 Contact Us For Availability
37
SCREW, SWITCH WPL 7101P03560 Contact Us For Availability
37
SWITCH, DOOR LOCK WPL 7403P00760 Contact Us For Availability
38
SWITCH, HIGH LIMIT WPL 7403P06360 Contact Us For Availability
39
TUBE, OVEN VENT WPL 8026P01460 Contact Us For Availability
40
BUMPER DOOR (ROUND) WPL 8003P00260 Contact Us For Availability
40
BUMPER, DOOR (SQUARE) WPL 8003P00960 Contact Us For Availability
41
BRACKET, HI LIMIT WPL 3801F12845 Contact Us For Availability
42
BAFFLE, SIDE WPL 3601F13051 Contact Us For Availability
43
CLIP, OVEN FRONT WPL 7112P02060 Contact Us For Availability
44
COVER, CAP HOLE WPL 4005F01135 Contact Us For Availability
45
B WPL 3801F02451 Contact Us For Availability
45
WPL 7201P01660 WPL 7201P01660 Contact Us For Availability
45
WPL 7505P01860 WPL 7505P01860 Contact Us For Availability
46
WPL 7112P00460 WPL 7112P00460 Contact Us For Availability
47
WPL 2205F00415 WPL 2205F00415 Contact Us For Availability
47
WPL 2205F00419 WPL 2205F00419 Contact Us For Availability
48
WPL 2205F00315 WPL 2205F00315 Contact Us For Availability
48
WPL 2205F00319 WPL 2205F00319 Contact Us For Availability
× ![]()
