Model LG W2061TQ-PF – Common Parts & Diagrams

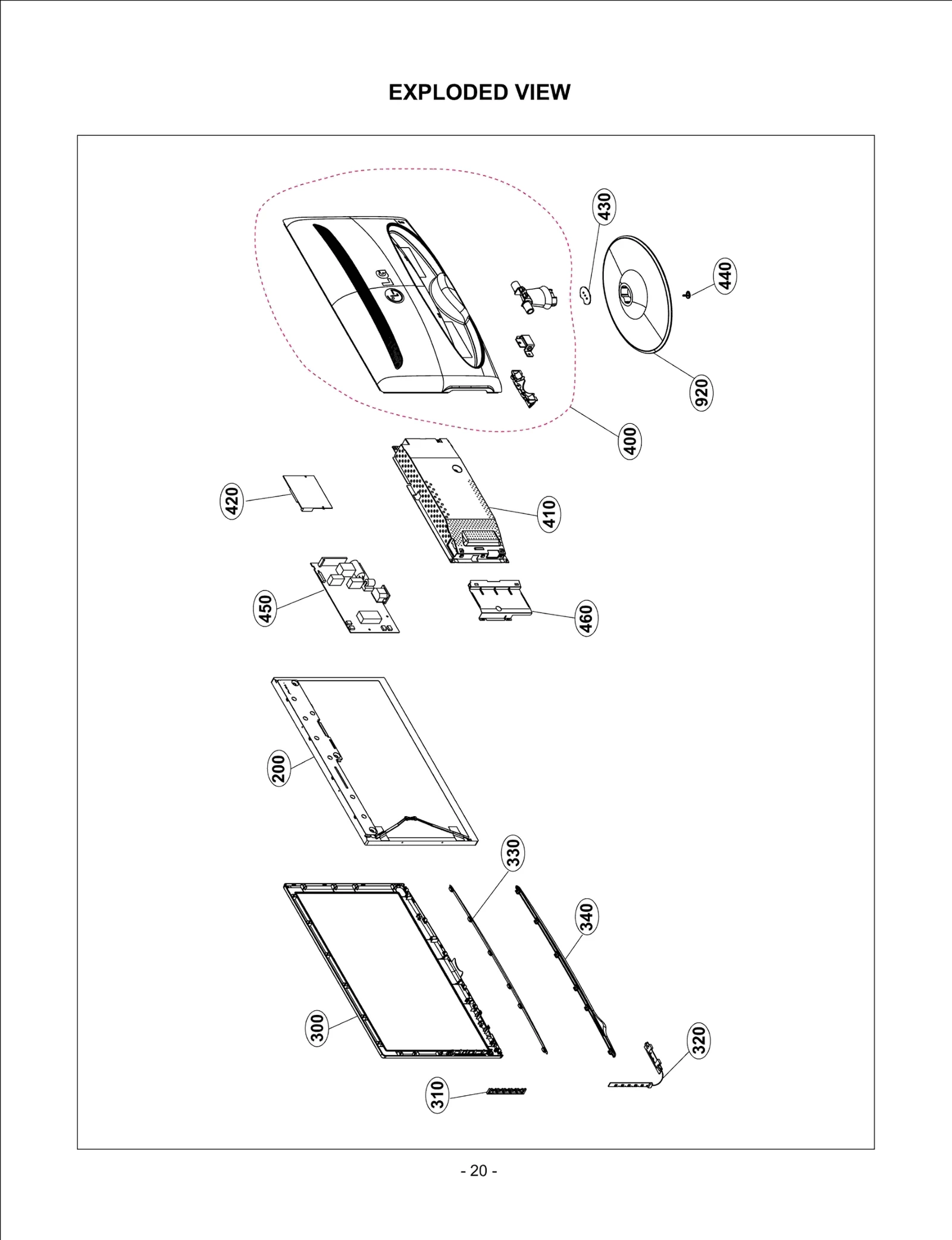

Diagram 0
Diagram 1
Common parts from model LG W2061TQ-PF
300
Cabinet LGE MBH61844401 Contact Us For Availability
310
Knob LGE MEY55033201 Contact Us For Availability
320
Package Assembly LGE AGF73973301 Contact Us For Availability
330
Cover LGE MCK61957501 Contact Us For Availability
340
Cover LGE MCK61957401 Contact Us For Availability
410
Frame Assembly LGE ADV72913602 Contact Us For Availability
420
Main Total Assembly LGE EBU60672101 Contact Us For Availability
430
Plate,Metal LGE MGJ47300801 Contact Us For Availability
440
Screw,Machine LGE FAB30010901 Contact Us For Availability
450
Power Supply Assembly LGE EAY58333902 Contact Us For Availability
460
Frame LGE MDQ58433901 Contact Us For Availability
920
Base LGE MAM47298701 Contact Us For Availability
A1
S/W Package LGE SAB32999313 Contact Us For Availability
A3
POWER CORD LGE 64109UP002A Contact Us For Availability
A4
Card LGE MBM47116113 Contact Us For Availability
A5
Cable,Assembly LGE 68509F0003A Contact Us For Availability
C2
CONNECTOR ASSEMBLY LGE 6631T20023A Contact Us For Availability
C2
Harness,Single LGE 6631T20023T Contact Us For Availability
C3
Harness,Single LGE EAD60663002 Contact Us For Availability
C505
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C514
CAPACITOR,FIXED CERA LGE 0CK224CF56A Contact Us For Availability
C515
CAPACITOR,AL.ELECTRO LGE 0CE106EK638 Contact Us For Availability
C714
CAPACITOR,FIXED CERA LGE 0CC680CK41A Contact Us For Availability
C720
CAPACITOR,FIXED CERA LGE 0CK475CC94A Contact Us For Availability
C724
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C727
CAPACITOR,FIXED ELEC LGE 0CE107EF610 Contact Us For Availability
C728
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
D603
Diode,TVS LGE EAH33945901 Contact Us For Availability
D604
DIODE,SWITCHING LGE 0DSIH00018A Contact Us For Availability
D713
DIODE,SWITCHING LGE 0DSON00138A Contact Us For Availability
IC600
Sensor,Magnetic LGE EBD44272401 Contact Us For Availability
L702
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
LD602
LED,Chip LGE EAV57625101 Contact Us For Availability
P600
Connector,Wafer LGE 6602T12005E Contact Us For Availability
P601
Connector,Wafer LGE 6602T12005C Contact Us For Availability
P700
CONNECTOR (CIRC),D-S LGE 6630TGA005B Contact Us For Availability
P700
Connector,DSUB LGE EAG41681101 Contact Us For Availability
P701
Connector,DSUB LGE EAG54220901 Contact Us For Availability
P702
Connector,Wafer LGE 6602T20008E Contact Us For Availability
P704
Connector,Wafer LGE 6630V90220K Contact Us For Availability
Q700
TRANSISTOR LGE 0TR390409AE Contact Us For Availability
Q707
TRANSISTOR LGE 0TR390609FA Contact Us For Availability
R505
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R507
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R605
RESISTOR,METAL GLAZE LGE 0RJ0682D677 Contact Us For Availability
R606
Resistor,Chip LGE 0RJ2000D677 Contact Us For Availability
R701
RESISTOR,METAL GLAZE LGE 0RJ7501D677 Contact Us For Availability
R704
Resistor,Chip LGE 0RJ1201D677 Contact Us For Availability
R705
Resistor,Chip LGE 0RJ1801D677 Contact Us For Availability
R713
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R718
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R720
Resistor,Chip LGE 0RJ0752C678 Contact Us For Availability
R734
RESISTOR,FIXED SMALL LGE 0RX0331K668 Contact Us For Availability
R760
Resistor,Chip LGE 0RJ2001C678 Contact Us For Availability
SW704
Switch,Tact LGE EBF55334201 Contact Us For Availability
SW704
SWITCH,TACT LGE 6600R00004C Contact Us For Availability
U502
IC Assembly LGE EAN60688601 Contact Us For Availability
X501
Crystal LGE EAW60658001 Contact Us For Availability
X501
Crystal LGE 6212AA2001H Contact Us For Availability
ZD600
DIODE,ZENERS LGE 0DZ560009GB Contact Us For Availability
ZD600
Diode,Zener LGE EAH60661201 Contact Us For Availability
× ![]()
