Model LG W2052TQ-TF – Common Parts & Diagrams

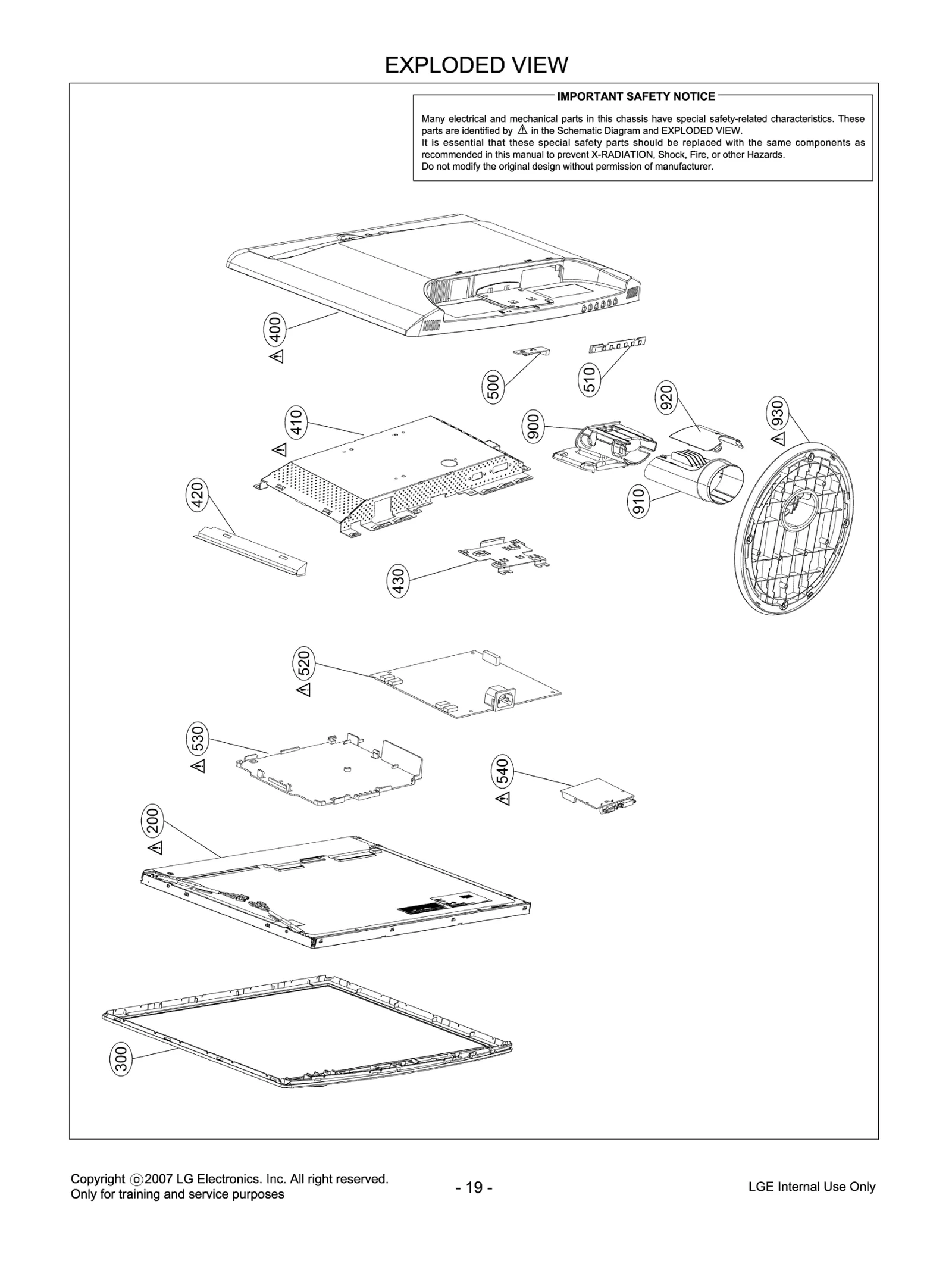

Diagram 0
Diagram 1
Common parts from model LG W2052TQ-TF
200
LCD,Module-TFT LGE EAJ38176902 Contact Us For Availability
300
Cabinet Assembly LGE ABJ37087301 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ37087601 Contact Us For Availability
410
Package Assembly LGE AGF37104201 Contact Us For Availability
420
Plate,Shield LGE MGJ41193205 Contact Us For Availability
430
Plate LGE MGJ42344201 Contact Us For Availability
500
PCB Assembly LGE EBR42021810 Contact Us For Availability
510
PCB Assembly LGE EBR41684112 Contact Us For Availability
520
Power Supply Assembly LGE EAY38280101 Contact Us For Availability
520
Power Supply Assembly LGE EAY41824001 Contact Us For Availability
530
Cover LGE MCK38597701 Contact Us For Availability
540
PCB Assembly,Main LGE EBR44303601 Contact Us For Availability
900
Cover Assembly LGE ACQ33707101 Contact Us For Availability
910
Cover LGE MCK41193001 Contact Us For Availability
920
Cover LGE MCK41193101 Contact Us For Availability
930
Base Assembly LGE AAN35706801 Contact Us For Availability
A1
S/W Package LGE SAB32933802 Contact Us For Availability
A3
POWER CORD LGE 64109UP002A Contact Us For Availability
A4
Card LGE MBM47116102 Contact Us For Availability
A5
Cable,Assembly LGE 68509F0003A Contact Us For Availability
A5
CABLE,D-SUB LGE 6850TD9007D Contact Us For Availability
C1
Harness,Single LGE EAD42157801 Contact Us For Availability
C3
Harness,Single LGE EAD42196801 Contact Us For Availability
C510
CAPACITOR,FIXED CERA LGE 0CC270CK41A Contact Us For Availability
C512
CAPACITOR,FIXED CERA LGE 0CK103CK51A Contact Us For Availability
C514
CAPACITOR,FIXED CERA LGE 0CK224CF56A Contact Us For Availability
C702
CAPACITOR,FIXED CERA LGE 0CC680CK41A Contact Us For Availability
C703
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C710
CAPACITOR,FIXED CERA LGE 0CK104CF56A Contact Us For Availability
C720
CAPACITOR,FIXED CERA LGE 0CK475CC94A Contact Us For Availability
C726
Capacitor,AL,Radial LGE 0CE107EF628 Contact Us For Availability
C728
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C732
CAPACITOR,FIXED CERA LGE 0CK102CK56A Contact Us For Availability
C780
CAPACITOR,AL.ELECTRO LGE 0CE106EK638 Contact Us For Availability
D707
DIODE,SWITCHING LGE 0DSIH00018A Contact Us For Availability
D707
DIODE,SWITCHING LGE 0DS226009AA Contact Us For Availability
D711
DIODE,SWITCHING LGE 0DSON00138A Contact Us For Availability
L700
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
LD2
LED,Chip LGE EAV44202401 Contact Us For Availability
P1
Connector,Wafer LGE 6602T12005E Contact Us For Availability
P2
Connector,Wafer LGE 6602T12005C Contact Us For Availability
P700
Connector,DSUB LGE EAG41681101 Contact Us For Availability
P700
CONNECTOR (CIRC),D-S LGE 6630TGA005B Contact Us For Availability
P701
Connector,DSUB LGE EAG54220901 Contact Us For Availability
P704
Connector,Wafer LGE 6630V90220K Contact Us For Availability
P705
Connector,FFC/FPC/PIC LGE EAG38153601 Contact Us For Availability
Q705
TR,Bipolar LGE 0TRKE80046A Contact Us For Availability
Q705
TRANSISTOR,BIPOLARS LGE 0TRIH80001A Contact Us For Availability
Q707
TR,Bipolar LGE 0TR390609DC Contact Us For Availability
R2
Resistor,Chip LGE 0RJ1602D677 Contact Us For Availability
R4
Resistor,Chip LGE 0RJ1801D677 Contact Us For Availability
R5
Resistor,Chip LGE 0RJ2201D677 Contact Us For Availability
R502
RESISTOR,METAL GLAZE LGE 0RJ0562D677 Contact Us For Availability
R510
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R517
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R519
RESISTOR,METAL GLAZE LGE 0RJ1502D677 Contact Us For Availability
R705
RESISTOR,METAL GLAZE LGE 0RJ0102D677 Contact Us For Availability
R713
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R717
RESISTOR,METAL GLAZE LGE 0RJ0682D677 Contact Us For Availability
R720
RESISTOR,METAL GLAZE LGE 0RJ0752D677 Contact Us For Availability
R723
Resistor,Chip LGE 0RJ3601D677 Contact Us For Availability
R726
RESISTOR,METAL GLAZE LGE 0RJ3900D677 Contact Us For Availability
R751
RESISTOR,METAL GLAZE LGE 0RJ2700D677 Contact Us For Availability
R773
RESISTOR,METAL GLAZE LGE 0RJ2001D677 Contact Us For Availability
SW2
Switch,Tact LGE EBF37991701 Contact Us For Availability
SW7
Switch,Tact LGE 6600R000133 Contact Us For Availability
U502
IC Assembly LGE EAN44304801 Contact Us For Availability
X501
Crystal LGE 6212AA2001H Contact Us For Availability
ZD701
DIODE,ZENERS LGE 0DZ560009GB Contact Us For Availability
× ![]()
