Model LG W2046S-BF – Common Parts & Diagrams

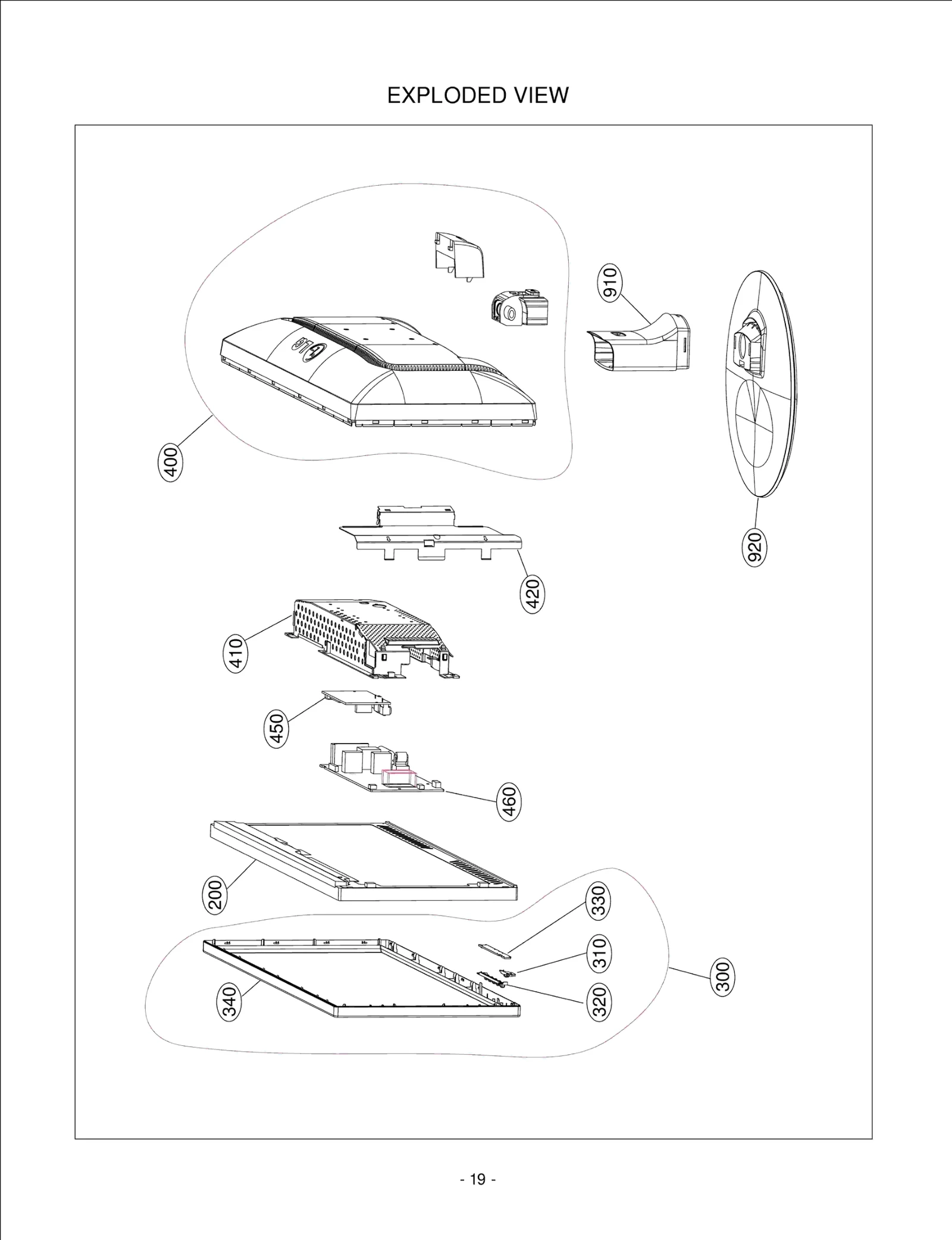

Diagram 0
Diagram 1
Common parts from model LG W2046S-BF
200
LCD,Module-TFT LGE EAJ61067801 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ61107601 Contact Us For Availability
300
Cabinet Assembly LGE ABJ72923902 Contact Us For Availability
310
Bracket Assembly LGE ABA72946301 Contact Us For Availability
330
PCB Assembly LGE EBR63981801 Contact Us For Availability
340
Cabinet LGE MBH61857601 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ74885402 Contact Us For Availability
410
Frame Assembly LGE ADV73107303 Contact Us For Availability
420
Frame LGE MDQ61925801 Contact Us For Availability
450
Main Total Assembly LGE EBU60806601 Contact Us For Availability
460
Power Supply Assembly LGE EAY60804802 Contact Us For Availability
920
Base Assembly LGE AAN72944701 Contact Us For Availability
A1
S/W Package LGE SAB32999320 Contact Us For Availability
A5
Cable,Assembly LGE 68509F0003A Contact Us For Availability
C1
CAPACITOR,FIXED CERA LGE 0CK475CC94A Contact Us For Availability
C512
Capacitor,Ceramic,Chip LGE 0CK223BF5CA Contact Us For Availability
C513
CAPACITOR,AL.ELECTRO LGE 0CE106EK638 Contact Us For Availability
C520
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C603
CAPACITOR,FIXED CERA LGE 0CC680CK41A Contact Us For Availability
C604
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C605
Capacitor,AL,Radial LGE 0CE227EF638 Contact Us For Availability
C609
CAPACITOR,FIXED ELEC LGE 0CE107EF610 Contact Us For Availability
C616
Capacitor,Ceramic,Chip LGE 0CK471BK56A Contact Us For Availability
C619
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
D604
DIODE,SWITCHING LGE 0DS226009AA Contact Us For Availability
IC502
IC Assembly LGE EAN60917801 Contact Us For Availability
P603
Connector,Wafer LGE 6602T20008E Contact Us For Availability
P604
Connector,FFC/FPC/PIC LGE EAG60908201 Contact Us For Availability
P605
Connector,Wafer LGE 6630V90220K Contact Us For Availability
Q601
TRANSISTOR,BIPOLARS LGE 0TRDI80002A Contact Us For Availability
Q601
TRANSISTOR,BIPOLARS LGE 0TRIH80001A Contact Us For Availability
Q601
TR,Bipolar LGE 0TRKE80046A Contact Us For Availability
Q601
TRANSISTOR LGE 0TR390409AE Contact Us For Availability
Q602
TR,Bipolar LGE EBK39150701 Contact Us For Availability
Q604
TR,Bipolar LGE 0TR390609DC Contact Us For Availability
Q604
TRANSISTOR LGE 0TR390609FA Contact Us For Availability
R1
Resistor,Chip LGE 0RH1602D422 Contact Us For Availability
R5
Resistor,Chip LGE 0RH1801D422 Contact Us For Availability
R509
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R511
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R512
RESISTOR,METAL GLAZE LGE 0RJ2002C478 Contact Us For Availability
R602
Resistor,Metal Oxide Film LGE 0RX0511K665 Contact Us For Availability
R604
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R606
Resistor,Chip LGE 0RJ3900C678 Contact Us For Availability
R607
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R612
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R614
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R615
Resistor,Chip LGE 0RJ0752C678 Contact Us For Availability
R622
RESISTOR,METAL GLAZE LGE 0RJ2700C678 Contact Us For Availability
R626
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R628
Resistor,Chip LGE 0RJ2001C678 Contact Us For Availability
SW4
SWITCH,TACT LGE 6600R00004C Contact Us For Availability
X501
Crystal LGE 6212AA2001H Contact Us For Availability
X501
Crystal LGE EAW60658001 Contact Us For Availability
ZD4
Diode,Zener LGE EAH60661201 Contact Us For Availability
× ![]()
