Model LG W2044T-PF – Common Parts & Diagrams

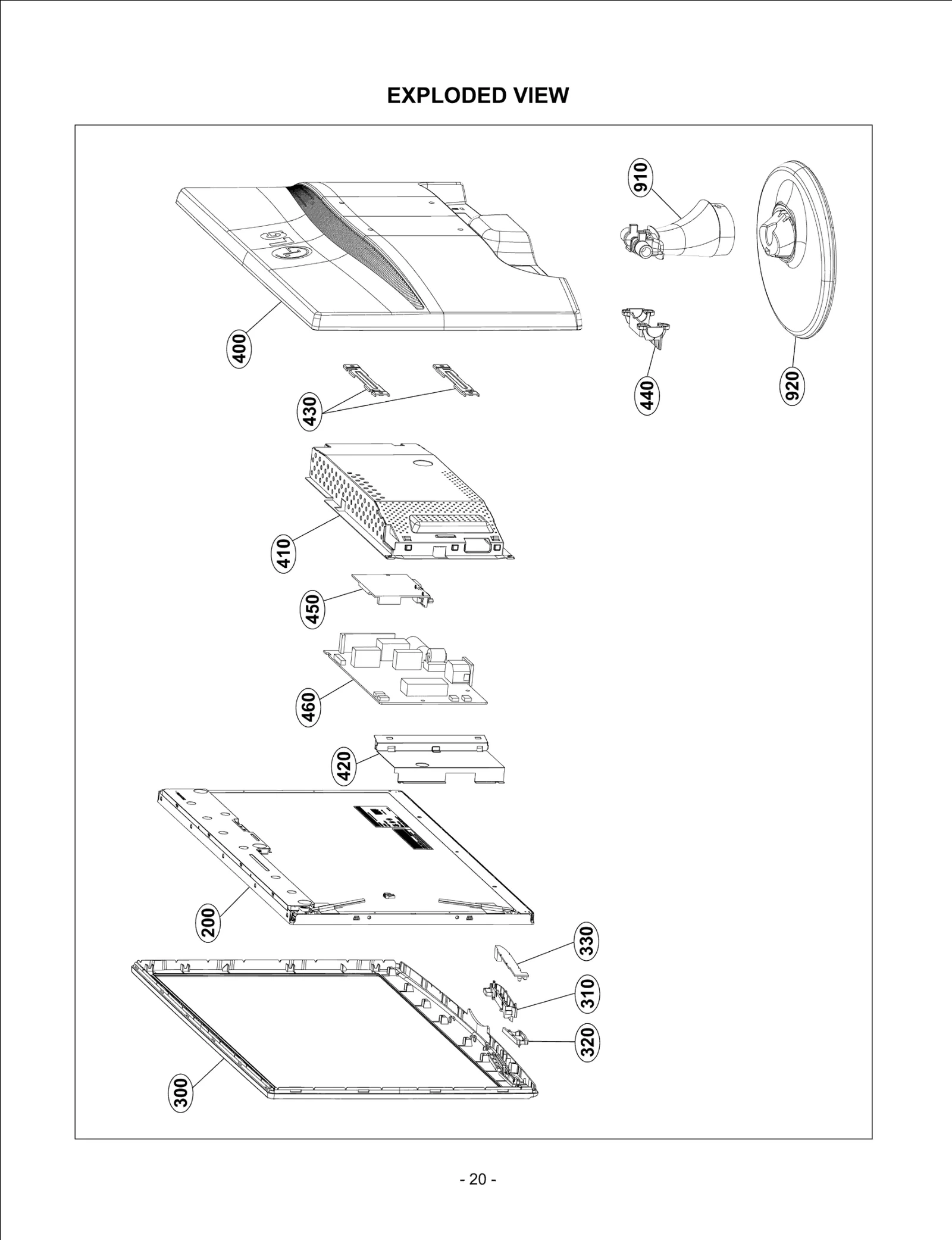

Diagram 0
Diagram 1
Common parts from model LG W2044T-PF
200
LCD,Module-TFT LGE EAJ60707101 Contact Us For Availability
300
Cabinet Assembly LGE ABJ72967501 Contact Us For Availability
310
Knob LGE MEY61874301 Contact Us For Availability
320
Bracket Assembly LGE ABA72988501 Contact Us For Availability
330
PCB Assembly LGE EBR64975501 Contact Us For Availability
400
Cover,Rear LGE MCK61606501 Contact Us For Availability
410
Frame Assembly LGE ADV72913602 Contact Us For Availability
430
Plate,Metal LGE MGJ61850501 Contact Us For Availability
440
Cover LGE MCK58434201 Contact Us For Availability
450
Main Total Assembly LGE EBU60808901 Contact Us For Availability
460
Power Supply Assembly LGE EAY58333602 Contact Us For Availability
460
PCB Assembly,Power LGE EBR36269408 Contact Us For Availability
910
Base Assembly LGE AAN70808202 Contact Us For Availability
920
Base Assembly LGE AAN69530301 Contact Us For Availability
A1
S/W Package LGE SAB34138901 Contact Us For Availability
A4
Card LGE MBM62196301 Contact Us For Availability
C102
CAPACITOR,DRAWING LGE 0CKZTTA002Q Contact Us For Availability
C104
Capacitor,Ceramic,Chip LGE 0CH5681K416 Contact Us For Availability
C106
Capacitor,Ceramic,Ch LGE 0CK222DK56A Contact Us For Availability
C107
CAPACITOR CERAMIC (HIGH DIELE) LGE 0CK1040K945 Contact Us For Availability
C208
Capacitor,Ceramic,Radial LGE 0CKZTTA002E Contact Us For Availability
C302
Capacitor,Ceramic,Chip LGE 0CC225EKFBA Contact Us For Availability
C309
Capacitor,Ceramic,Chip LGE 0CH5101K416 Contact Us For Availability
C311
Capacitor,Ceramic,Chip LGE 0CH2222K516 Contact Us For Availability
C312
Capacitor,Ceramic,Chip LGE 0CK224DH56A Contact Us For Availability
C313
CAPACITOR CHIP[CERAMIC M/L HD LGE 0CH1223K566 Contact Us For Availability
C314
Capacitor,Ceramic,Ch LGE 0CH2102K566 Contact Us For Availability
C315
Capacitor,Ceramic,Chip LGE 0CH1103K566 Contact Us For Availability
C316
Capacitor,Ceramic,Ch LGE 0CK473DK56A Contact Us For Availability
C320
CAPACITOR,DRAWING LGE 0CZZTCT006D Contact Us For Availability
C404
Capacitor,Ceramic,Ch LGE EAE36711701 Contact Us For Availability
C504
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C601
CAPACITOR,FIXED ELEC LGE 0CE107EF610 Contact Us For Availability
C605
Capacitor,AL,Radial LGE 0CE227EF638 Contact Us For Availability
C607
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C666
CAPACITOR,FIXED CERA LGE 0CK475CC94A Contact Us For Availability
C704
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C706
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C721
CAPACITOR,FIXED CERA LGE 0CC680CK41A Contact Us For Availability
CX101
Capacitor,Film,Box LGE EAE36629401 Contact Us For Availability
D101
Diode,Rectifier LGE 0DRGF00354A Contact Us For Availability
D102
Diode,Rectifier LGE EAH39171701 Contact Us For Availability
D103
DIODE,SWITCHING LGE 0DSGF00019A Contact Us For Availability
D103
Diode,Switching LGE 0DSPT00029A Contact Us For Availability
D104
Diode,Rectifier LGE 0DRTW00274A Contact Us For Availability
D402
Diode,Switching LGE 0DSDI00068A Contact Us For Availability
D402
Diode,Switching LGE EAH39577901 Contact Us For Availability
FB101
CORE (CIRC),BEAD LGE 6210TCE003G Contact Us For Availability
J1
WAFER LGE 6602T20009E Contact Us For Availability
J1
Connector,Wafer LGE EAG31366106 Contact Us For Availability
J703
Connector,Wafer LGE 6630V90220K Contact Us For Availability
J704
Connector,Wafer LGE 6602T20008E Contact Us For Availability
J707
Connector,FFC/FPC/PIC LGE EAG60908201 Contact Us For Availability
PC201
IC,POWER MANAGEMENT LGE 0IPMG78432A Contact Us For Availability
Q101
FET LGE 0TFFC10017A Contact Us For Availability
Q101
FET LGE EBK35695601 Contact Us For Availability
Q101
TRANSISTOR,FETS LGE 0TF760000AD Contact Us For Availability
Q201
TR,Bipolar LGE 0TR222209AB Contact Us For Availability
Q601
TRANSISTOR LGE 0TR390409AE Contact Us For Availability
Q601
TR,Bipolar LGE 0TRKE80046A Contact Us For Availability
Q702
TR,Bipolar LGE 0TR390609DC Contact Us For Availability
Q702
TRANSISTOR LGE 0TR390609FA Contact Us For Availability
R2
Resistor,Chip LGE 0RH1602D422 Contact Us For Availability
R3
Resistor,Chip LGE 0RH2201D622 Contact Us For Availability
R5
Resistor,Chip LGE 0RH1801D422 Contact Us For Availability
R102
RESISTOR,METAL GLAZE LGE 0RJ6801E472 Contact Us For Availability
R103
RESISTOR CHIP 1.0M 1/10W 5 D. LGE 0RH1004D622 Contact Us For Availability
R105
Resistor,Carbon Film LGE 0RD0512Q609 Contact Us For Availability
R106
RESISTOR CHIP 4.7K 1/10W 5 D. LGE 0RH4701D622 Contact Us For Availability
R107
Resistor,Carbon Film LGE 0RD8203A609 Contact Us For Availability
R108
Resistor,Carbon Film LGE 0RD4702A609 Contact Us For Availability
R111
Resistor,Carbon Film LGE 0RD0101Q609 Contact Us For Availability
R112
RESISTOR,METAL GLAZE LGE 0RJ1302E472 Contact Us For Availability
R115
Resistor,Chip LGE 0RH7503D622 Contact Us For Availability
R122
Resistor,Chip LGE 0RH0471D622 Contact Us For Availability
R202
Resistor,Metal Oxide Film LGE EBC01408502 Contact Us For Availability
R204
Resistor,Metal Film LGE 0RN6802F409 Contact Us For Availability
R205
RESISTOR FIX METAL FILM 2.20K LGE 0RN2201F409 Contact Us For Availability
R206
Resistor,Chip LGE 0RH3301D422 Contact Us For Availability
R211
RESISTOR,METAL GLAZE LGE 0RJ1001G476 Contact Us For Availability
R213
Resistor,Chip LGE 0RH1003D422 Contact Us For Availability
R304
Resistor,Chip LGE 0RH3602D422 Contact Us For Availability
R305
RESISTOR CHIP, 36K 1/10W 5 D. LGE 0RH3602D622 Contact Us For Availability
R307
Resistor,Chip LGE EBC01874003 Contact Us For Availability
R308
RESISTOR,METAL GLAZE LGE 0RH4702D422 Contact Us For Availability
R310
Resistor,Chip LGE 0RH4302D422 Contact Us For Availability
R311
RESISTOR CHIP 82K 1/10W 5 D.R LGE 0RH8202D622 Contact Us For Availability
R312
Resistor,Chip LGE 0RJ0471G676 Contact Us For Availability
R313
Resistor,Chip LGE 0RH4701D422 Contact Us For Availability
R314
Resistor,Chip LGE 0RH1000D422 Contact Us For Availability
R315
Resistor,Chip LGE 0RH1503D622 Contact Us For Availability
R319
Resistor,Chip LGE 0RH2401D422 Contact Us For Availability
R404
Resistor,Chip LGE 0RH5100D622 Contact Us For Availability
R410
Resistor,Chip LGE 0RH4700D422 Contact Us For Availability
R502
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R508
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R509
Resistor,Chip LGE 0RJ3900C678 Contact Us For Availability
R511
RESISTOR,METAL GLAZE LGE 0RJ2002C478 Contact Us For Availability
R522
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R524
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R605
Resistor,Metal Oxide Film LGE 0RX0511K665 Contact Us For Availability
R705
RESISTOR,METAL GLAZE LGE 0RJ2700C678 Contact Us For Availability
R709
Resistor,Chip LGE 0RJ2001C678 Contact Us For Availability
R720
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R728
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R729
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R730
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R736
Resistor,Chip LGE 0RJ0752C678 Contact Us For Availability
SC101
SOCKET(CIRC),POWER LGE 6620K00020A Contact Us For Availability
SW4
SWITCH LGE 140-058E Contact Us For Availability
SW4
Switch,Tact LGE 6600R000133 Contact Us For Availability
TH101
Thermistor,NTC LGE EBG60662801 Contact Us For Availability
TH101
THERMISTOR,NTC LGE 6322A00035A Contact Us For Availability
U101
IC,POWER MANAGEMENT LGE 0IPMG78425A Contact Us For Availability
U201
IC KEC KIA431 (TP) CQ465,CS556 LGE 0IKE431000B Contact Us For Availability
U201
IC,POWER MANAGEMENT LGE 0IPMG78424A Contact Us For Availability
U502
IC Assembly LGE EAN60921601 Contact Us For Availability
X501
Crystal LGE 6212AA2001H Contact Us For Availability
X501
Crystal LGE EAW60658001 Contact Us For Availability
ZD4
DIODE,ZENERS LGE 0DZ560009GB Contact Us For Availability
ZD4
Diode,Zener LGE EAH60661201 Contact Us For Availability
ZD201
Diode,Zener LGE 0DZ270009EB Contact Us For Availability
ZD201
Diode,Zener LGE 0DZPT56009C Contact Us For Availability
× ![]()
