Model LG W1946SM-BF – Common Parts & Diagrams

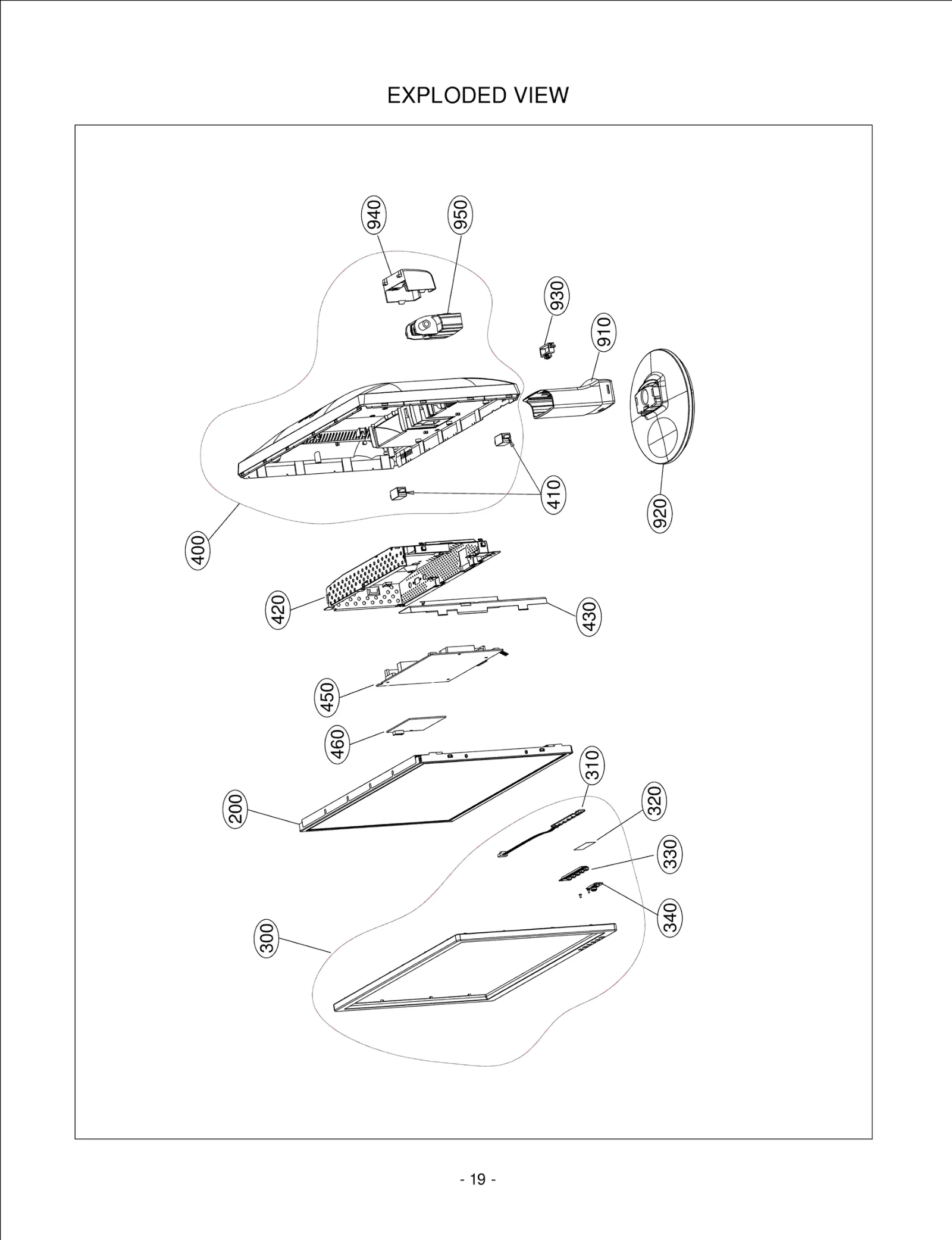

Diagram 0
Diagram 1
Common parts from model LG W1946SM-BF
200
LCD,Module-TFT LGE EAJ60989901 Contact Us For Availability
300
LGE ABJ72923621 LGE ABJ72923621 Contact Us For Availability
310
PCB Assembly LGE EBR63981801 Contact Us For Availability
320
Gasket LGE MDS61915956 Contact Us For Availability
340
Bracket Assembly LGE ABA72946301 Contact Us For Availability
400
Cover Assembly LGE ACQ74884708 Contact Us For Availability
410
Speaker Assembly LGE EAB51749303 Contact Us For Availability
420
Frame Assembly LGE ADV73107314 Contact Us For Availability
430
Frame LGE MDQ61925703 Contact Us For Availability
450
Power Supply Assembly LGE EAY60804802 Contact Us For Availability
450
PCB Assembly,Power LGE EBR36269414 Contact Us For Availability
460
Main Total Assembly LGE EBU60855201 Contact Us For Availability
920
Base Assembly LGE AAN72944701 Contact Us For Availability
930
HOLDER LGE 4930TKK055A Contact Us For Availability
940
Cover LGE MCK62686601 Contact Us For Availability
950
Cover Assembly LGE ACQ74885602 Contact Us For Availability
A1
S/W Package LGE SAB32999322 Contact Us For Availability
A4
Card LGE MBM62116801 Contact Us For Availability
A5
Cable,Assembly LGE 68509F0003A Contact Us For Availability
A6
CORD,A/V LGE 6852TAZ006J Contact Us For Availability
C101
Capacitor,AL,Radial LGE EAE43494301 Contact Us For Availability
C101
Capacitor,AL,Radial LGE EAE48859721 Contact Us For Availability
C102
CAPACITOR,DRAWING LGE 0CKZTTA002Q Contact Us For Availability
C104
Capacitor,Ceramic,Chip LGE 0CH2222K516 Contact Us For Availability
C205
Capacitor,AL,Radial LGE EAE48875607 Contact Us For Availability
C205
CAPACITOR,DRAWING LGE 0CZZ9ST018A Contact Us For Availability
C205
Capacitor,AL,Radial LGE EAE61104901 Contact Us For Availability
C207
Capacitor,AL,Radial LGE EAE48859715 Contact Us For Availability
C207
CAPACITOR,DRAWING LGE 0CZZ9ST021A Contact Us For Availability
C207
Capacitor,AL,Radial LGE EAE61104903 Contact Us For Availability
C210
Capacitor,Ceramic,Chip LGE 0CK224DH56A Contact Us For Availability
C301
Capacitor,Ceramic,Chip LGE EAE60985601 Contact Us For Availability
C302
Capacitor,Ceramic,Chip LGE 0CK105DH56A Contact Us For Availability
C303
Capacitor,Ceramic,Chip LGE 0CH1103K566 Contact Us For Availability
C305
Capacitor,Ceramic,Ch LGE 0CK474DK56A Contact Us For Availability
C311
Capacitor,Ceramic,Chip LGE 0CH5221K416 Contact Us For Availability
C312
Capacitor,Ceramic,Chip LGE 0CH2472K516 Contact Us For Availability
C404
Capacitor,Ceramic,Chip LGE 0CH1102K566 Contact Us For Availability
C407
Capacitor,Ceramic,Radial LGE 0CKZTTA002A Contact Us For Availability
C507
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C512
Capacitor,Ceramic,Chip LGE 0CK223BF5CA Contact Us For Availability
C513
CAPACITOR,AL.ELECTRO LGE 0CE106EK638 Contact Us For Availability
C601
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C605
Capacitor,AL,Radial LGE 0CE227EF638 Contact Us For Availability
C606
CAPACITOR,FIXED CERA LGE 0CC680CK41A Contact Us For Availability
C612
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C616
Capacitor,Ceramic,Chip LGE 0CK471BK56A Contact Us For Availability
C619
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C621
CAPACITOR,FIXED CERA LGE 0CK475CC94A Contact Us For Availability
C904
CAPACITOR,FIXED ELEC LGE 0CE107EF610 Contact Us For Availability
C910
CAPACITOR,FIXED CERA LGE 0CK103CK51A Contact Us For Availability
C912
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
CX101
Capacitor,Film,Box LGE EAE36629401 Contact Us For Availability
CY104
Capacitor,Ceramic,Radial LGE 0CKZTBU004E Contact Us For Availability
D101
Diode,Rectifier LGE EAH36077301 Contact Us For Availability
D101
Diode,Rectifier LGE 0DRGF00354A Contact Us For Availability
D102
Diode,Rectifier LGE EAH39171701 Contact Us For Availability
D102
Diode,Rectifier LGE EAH58801901 Contact Us For Availability
D106
Diode,Rectifier LGE 0DRTW00274A Contact Us For Availability
D603
DIODE,SWITCHING LGE 0DS226009AA Contact Us For Availability
EL3
EYELET LGE 4014TZZ001A Contact Us For Availability
EL19
Eyelet LGE 4014900002A Contact Us For Availability
FB101
CORE (CIRC),BEAD LGE 6210TCE003G Contact Us For Availability
IC502
IC Assembly LGE EAN61018101 Contact Us For Availability
J707
Connector,FFC/FPC/PIC LGE EAG60908201 Contact Us For Availability
JK901
JACK,PHONE LGE 6612F00001C Contact Us For Availability
P603
Connector,Wafer LGE 6602T20008E Contact Us For Availability
P605
Connector,Wafer LGE 6630V90220K Contact Us For Availability
P901
CONNECTOR (CIRC),WAF LGE 6602T20009C Contact Us For Availability
PC201
IC,POWER MANAGEMENT LGE 0IPMG78432A Contact Us For Availability
Q201
TR,Bipolar LGE 0TR222209AB Contact Us For Availability
Q302
TRANSISTOR,BIPOLARS LGE 0TRDI80002A Contact Us For Availability
Q302
TR,Bipolar LGE 0TRKE80046A Contact Us For Availability
Q302
TRANSISTOR LGE 0TR390409AE Contact Us For Availability
Q601
TRANSISTOR,BIPOLARS LGE 0TRIH80001A Contact Us For Availability
Q602
TR,Bipolar LGE EBK39150701 Contact Us For Availability
Q604
TR,Bipolar LGE 0TR390609DC Contact Us For Availability
Q604
TRANSISTOR LGE 0TR390609FA Contact Us For Availability
R1
Resistor,Chip LGE 0RH1602D422 Contact Us For Availability
R5
Resistor,Chip LGE 0RH1801D422 Contact Us For Availability
R110
Resistor,Metal Oxide Film LGE 0RX1003K607 Contact Us For Availability
R111
Resistor,Carbon Film LGE 0RD0221Q609 Contact Us For Availability
R112
RESISTOR CHIP 22 1/10W 5 D.R/ LGE 0RH0222D622 Contact Us For Availability
R116
Resistor,Chip LGE 0RH7503D622 Contact Us For Availability
R203
Resistor,Chip LGE 0RH1000D422 Contact Us For Availability
R209
Resistor,Chip LGE 0RH6800D622 Contact Us For Availability
R212
Resistor,Metal Oxide Film LGE 0RX1001K607 Contact Us For Availability
R213
RESISTOR CHIP 100K 1/10W 5 D. LGE 0RH1003D622 Contact Us For Availability
R301
RESISTOR CHIP, 10K 1/10W 1% D LGE 0RH1002D422 Contact Us For Availability
R302
RESISTOR,METAL GLAZE LGE 0RJ6801E472 Contact Us For Availability
R307
RESISTOR CHIP 10 1/10W 5 C.R/ LGE 0RH0102D622 Contact Us For Availability
R308
Resistor,Chip LGE 0RH8202D422 Contact Us For Availability
R311
Resistor,Chip LGE 0RH2201D422 Contact Us For Availability
R313
Resistor,Chip LGE 0RH1303D622 Contact Us For Availability
R316
RESISTOR,METAL GLAZE LGE 0RH4702D422 Contact Us For Availability
R317
Resistor,Chip LGE 0RH1802D422 Contact Us For Availability
R321
RESISTOR CHIP 1.0M 1/10W 5 D. LGE 0RH1004D622 Contact Us For Availability
R324
Resistor,Chip LGE 0RJ8201E472 Contact Us For Availability
R326
Resistor,Chip LGE 0RH2002D422 Contact Us For Availability
R401
Resistor,Chip LGE 0RH3001D622 Contact Us For Availability
R408
RESISTOR,METAL GLAZE LGE 0RJ1302E472 Contact Us For Availability
R506
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R507
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R512
RESISTOR,METAL GLAZE LGE 0RJ2002C478 Contact Us For Availability
R602
Resistor,Metal Oxide Film LGE 0RX0511K665 Contact Us For Availability
R604
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R607
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R609
Resistor,Chip LGE 0RJ3900C678 Contact Us For Availability
R612
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R614
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R618
Resistor,Chip LGE 0RJ0752C678 Contact Us For Availability
R622
RESISTOR,METAL GLAZE LGE 0RJ2700C678 Contact Us For Availability
R626
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R628
Resistor,Chip LGE 0RJ2001C678 Contact Us For Availability
R901
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R902
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R914
Resistor,Chip LGE 0RJ7500D677 Contact Us For Availability
R916
RESISTOR,METAL GLAZE LGE 0RJ1003D677 Contact Us For Availability
R926
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R927
RESISTOR,METAL GLAZE LGE 0RJ2001D677 Contact Us For Availability
SC101
Jack,DC Power LGE 6620K00020B Contact Us For Availability
SW6
SWITCH,TACT LGE 6600R00004C Contact Us For Availability
TH101
THERMISTOR,NTC LGE 6322A00035A Contact Us For Availability
TH101
Thermistor,NTC LGE EBG60662801 Contact Us For Availability
X501
Crystal LGE 6212AA2001H Contact Us For Availability
X501
Crystal LGE EAW60658001 Contact Us For Availability
ZD4
Diode,Zener LGE EAH60661201 Contact Us For Availability
ZD204
DIODE,ZENERS LGE 0DZ560009GB Contact Us For Availability
× ![]()
