Model LG W1946S-BF – Common Parts & Diagrams

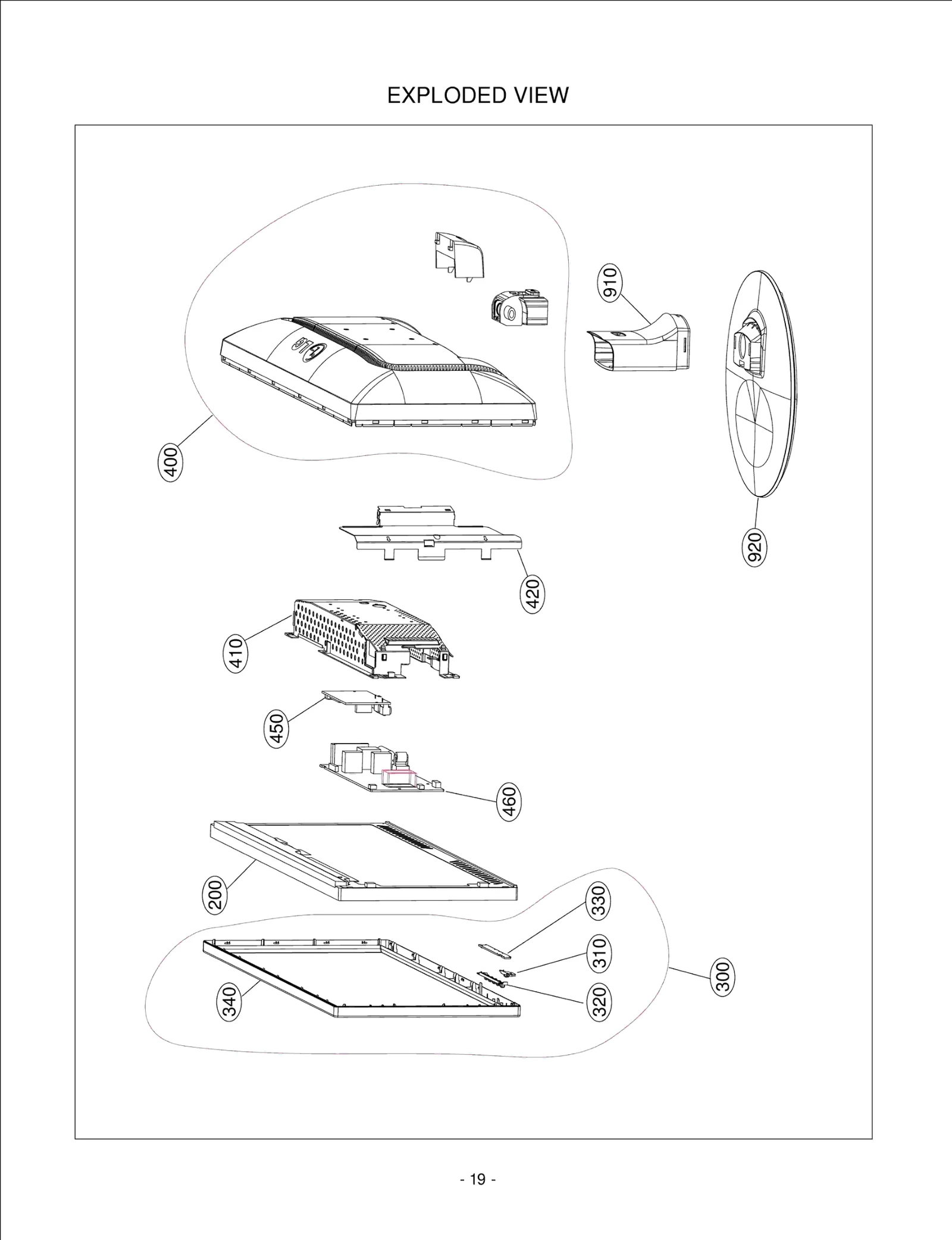

Diagram 0
Diagram 1
Common parts from model LG W1946S-BF
200
LCD,Module-TFT LGE EAJ60989901 Contact Us For Availability
300
Cabinet Assembly LGE ABJ72923616 Contact Us For Availability
310
Bracket Assembly LGE ABA72946301 Contact Us For Availability
330
PCB Assembly LGE EBR63981801 Contact Us For Availability
340
Cabinet LGE MBH61857701 Contact Us For Availability
400
Cover Assembly LGE ACQ74884706 Contact Us For Availability
410
Frame Assembly LGE ADV73107301 Contact Us For Availability
420
Frame LGE MDQ61925703 Contact Us For Availability
450
Main Total Assembly LGE EBU60785606 Contact Us For Availability
460
PCB Assembly,Power LGE EBR36269413 Contact Us For Availability
460
Power Supply Assembly LGE EAY60804801 Contact Us For Availability
920
Base Assembly LGE AAN72944701 Contact Us For Availability
A1
S/W Package LGE SAB32999320 Contact Us For Availability
A4
Card LGE MBM62116801 Contact Us For Availability
A5
Cable,Assembly LGE 68509F0003A Contact Us For Availability
C102
CAPACITOR,DRAWING LGE 0CKZTTA002Q Contact Us For Availability
C104
Capacitor,Ceramic,Chip LGE 0CH2222K516 Contact Us For Availability
C202
Capacitor,Ceramic,Chip LGE 0CK224DH56A Contact Us For Availability
C305
Capacitor,Ceramic,Ch LGE 0CK474DK56A Contact Us For Availability
C309
Capacitor,Ceramic,Chip LGE 0CK105DH56A Contact Us For Availability
C311
Capacitor,Ceramic,Chip LGE 0CH5221K416 Contact Us For Availability
C312
Capacitor,Ceramic,Chip LGE 0CH2472K516 Contact Us For Availability
C404
Capacitor,Ceramic,Chip LGE EAE60985601 Contact Us For Availability
C512
Capacitor,Ceramic,Chip LGE 0CK223BF5CA Contact Us For Availability
C513
CAPACITOR,AL.ELECTRO LGE 0CE106EK638 Contact Us For Availability
C520
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C603
CAPACITOR,FIXED CERA LGE 0CC680CK41A Contact Us For Availability
C609
CAPACITOR,FIXED ELEC LGE 0CE107EF610 Contact Us For Availability
C616
Capacitor,Ceramic,Chip LGE 0CK471BK56A Contact Us For Availability
C619
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C621
CAPACITOR,FIXED CERA LGE 0CK475CC94A Contact Us For Availability
C626
CAPACITOR,FIXED CERA LGE 0CC331CK41A Contact Us For Availability
C631
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C632
CAPACITOR,FIXED CERA LGE 0CK102CK56A Contact Us For Availability
C638
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C641
Capacitor,AL,Radial LGE 0CE226EK638 Contact Us For Availability
CX101
Capacitor,Film,Box LGE EAE36629401 Contact Us For Availability
CY104
Capacitor,Ceramic,Radial LGE 0CKZTBU004E Contact Us For Availability
D101
Diode,Rectifier LGE 0DRGF00354A Contact Us For Availability
D101
Diode,Rectifier LGE EAH36077301 Contact Us For Availability
D102
Diode,Rectifier LGE EAH58801901 Contact Us For Availability
D102
Diode,Rectifier LGE EAH39171701 Contact Us For Availability
D106
Diode,Rectifier LGE 0DRTW00274A Contact Us For Availability
D602
DIODE,SWITCHING LGE 0DS226009AA Contact Us For Availability
EL1
EYELET LGE 4014TZZ001A Contact Us For Availability
EL9
Eyelet LGE 4014900002A Contact Us For Availability
FB101
CORE (CIRC),BEAD LGE 6210TCE003G Contact Us For Availability
IC502
IC Assembly LGE EAN60898006 Contact Us For Availability
J707
Connector,FFC/FPC/PIC LGE EAG60908201 Contact Us For Availability
L603
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
LF101
FILTER(CIRC),EMC LGE 6200J000154 Contact Us For Availability
P603
Connector,Wafer LGE 6602T20008E Contact Us For Availability
P605
Connector,Wafer LGE 6630V90220K Contact Us For Availability
PC201
IC,POWER MANAGEMENT LGE 0IPMG78432A Contact Us For Availability
Q201
TR,Bipolar LGE 0TR222209AB Contact Us For Availability
Q303
TRANSISTOR LGE 0TR390409AE Contact Us For Availability
Q303
TRANSISTOR,BIPOLARS LGE 0TRDI80002A Contact Us For Availability
Q501
TR,Bipolar LGE 0TRKE80046A Contact Us For Availability
Q501
TRANSISTOR,BIPOLARS LGE 0TRIH80001A Contact Us For Availability
Q602
TR,Bipolar LGE EBK39150701 Contact Us For Availability
Q604
TRANSISTOR LGE 0TR390609FA Contact Us For Availability
Q604
TR,Bipolar LGE 0TR390609DC Contact Us For Availability
R5
Resistor,Chip LGE 0RH1801D422 Contact Us For Availability
R101
Resistor,Chip LGE 0RH7503D622 Contact Us For Availability
R110
Resistor,Metal Oxide Film LGE 0RX1003K607 Contact Us For Availability
R111
Resistor,Carbon Film LGE 0RD0221Q609 Contact Us For Availability
R112
RESISTOR CHIP 22 1/10W 5 D.R/ LGE 0RH0222D622 Contact Us For Availability
R203
Resistor,Chip LGE 0RH1000D422 Contact Us For Availability
R209
Resistor,Chip LGE 0RH6800D622 Contact Us For Availability
R212
Resistor,Metal Oxide Film LGE 0RX1001K607 Contact Us For Availability
R301
RESISTOR CHIP, 10K 1/10W 1% D LGE 0RH1002D422 Contact Us For Availability
R306
RESISTOR CHIP 10 1/10W 5 C.R/ LGE 0RH0102D622 Contact Us For Availability
R308
Resistor,Chip LGE 0RH8202D422 Contact Us For Availability
R311
Resistor,Chip LGE 0RH2201D422 Contact Us For Availability
R313
Resistor,Chip LGE 0RH1303D622 Contact Us For Availability
R314
RESISTOR CHIP 100K 1/10W 5 D. LGE 0RH1003D622 Contact Us For Availability
R317
Resistor,Chip LGE 0RH1802D422 Contact Us For Availability
R321
RESISTOR CHIP 1.0M 1/10W 5 D. LGE 0RH1004D622 Contact Us For Availability
R324
Resistor,Chip LGE 0RJ8201E472 Contact Us For Availability
R326
Resistor,Chip LGE 0RH2002D422 Contact Us For Availability
R401
Resistor,Chip LGE 0RH3001D622 Contact Us For Availability
R407
Resistor,Chip LGE 0RH3902D422 Contact Us For Availability
R408
Resistor,Chip LGE 0RH1602D422 Contact Us For Availability
R506
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R511
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R512
RESISTOR,METAL GLAZE LGE 0RJ2002C478 Contact Us For Availability
R519
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R523
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R606
Resistor,Chip LGE 0RJ3900C678 Contact Us For Availability
R612
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R614
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R618
Resistor,Chip LGE 0RJ0752C678 Contact Us For Availability
R622
RESISTOR,METAL GLAZE LGE 0RJ2700C678 Contact Us For Availability
R628
Resistor,Chip LGE 0RJ2001C678 Contact Us For Availability
R642
RESISTOR,METAL GLAZE LGE 0RJ1802D677 Contact Us For Availability
R645
Resistor,Chip LGE 0RJ2402D677 Contact Us For Availability
SC101
SOCKET(CIRC),POWER LGE 6620K00020A Contact Us For Availability
SW4
SWITCH,TACT LGE 6600R00004C Contact Us For Availability
TH101
THERMISTOR,NTC LGE 6322A00035A Contact Us For Availability
TH101
Thermistor,NTC LGE EBG60662801 Contact Us For Availability
X501
Crystal LGE EAW60658001 Contact Us For Availability
X501
Crystal LGE 6212AA2001H Contact Us For Availability
ZD4
Diode,Zener LGE EAH60661201 Contact Us For Availability
ZD202
DIODE,ZENERS LGE 0DZ560009GB Contact Us For Availability
× ![]()
