Model LG W1943SE-PF – Common Parts & Diagrams

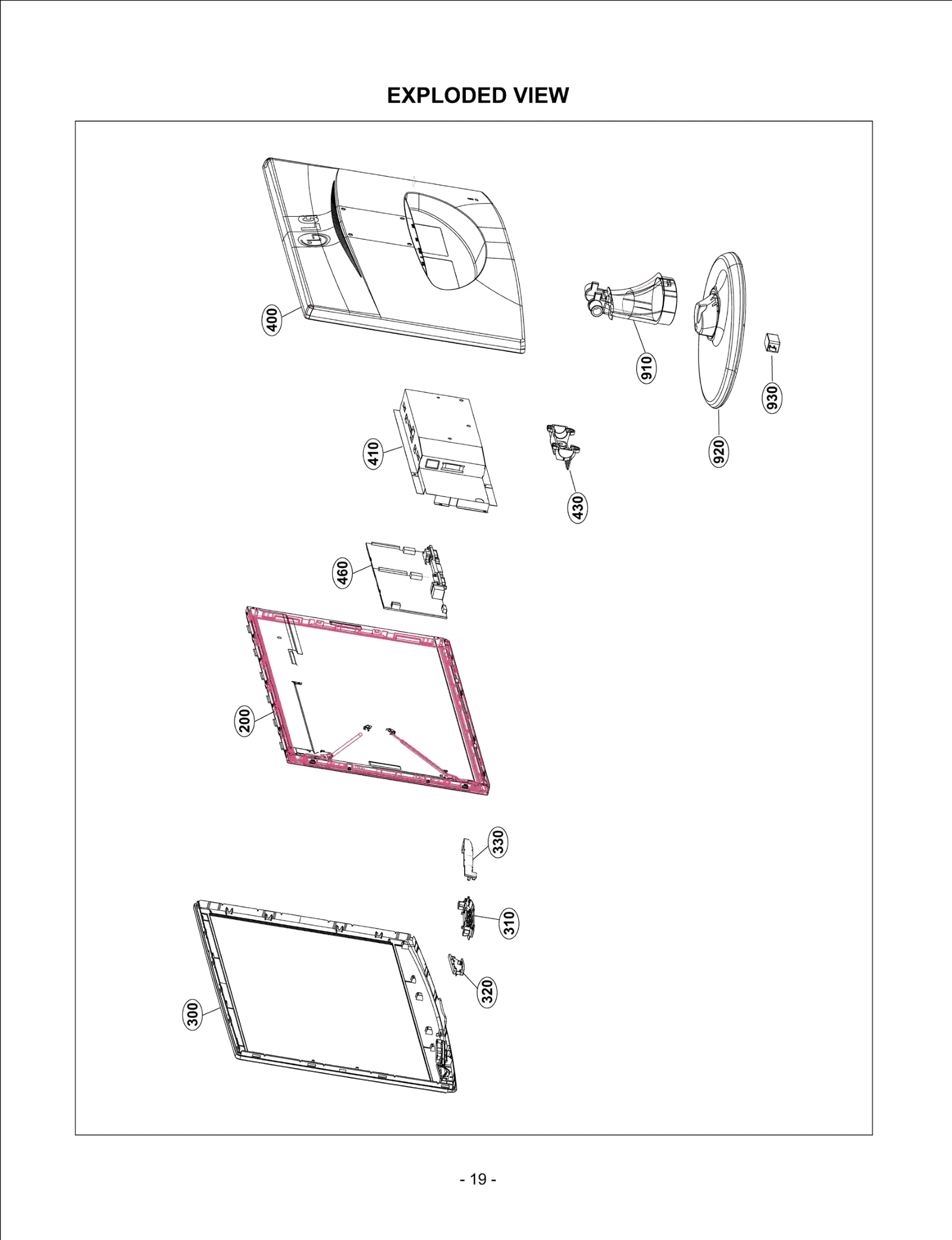

Diagram 0
Diagram 1
Common parts from model LG W1943SE-PF
200
LCD,Module-TFT LGE EAJ60797901 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ60989901 Contact Us For Availability
300
Cabinet Assembly LGE ABJ70462246 Contact Us For Availability
310
Knob LGE MEY59510001 Contact Us For Availability
320
Button,Power LGE MBG59510201 Contact Us For Availability
400
Cover,Rear LGE MCK59506510 Contact Us For Availability
410
Frame LGE MDQ59509602 Contact Us For Availability
430
Cover,Rear LGE MCK63605001 Contact Us For Availability
460
Main Total Assembly LGE EBU59424133 Contact Us For Availability
930
Locker LGE MFG58432901 Contact Us For Availability
A1
S/W Package LGE SAB34098106 Contact Us For Availability
A4
Card LGE MBM61865901 Contact Us For Availability
C301
Capacitor,AL,Radial LGE 0CZZ9ST021B Contact Us For Availability
C307
Capacitor,Ceramic,Chip LGE 0CH5101K416 Contact Us For Availability
C309
Capacitor,Ceramic,Chip LGE 0CK224DH56A Contact Us For Availability
C312
Capacitor,Ceramic,Chip LGE 0CH2333K516 Contact Us For Availability
C313
Capacitor,Ceramic,Chip LGE 0CH1102K566 Contact Us For Availability
C314
Capacitor,Ceramic,Ch LGE 0CK334DK56A Contact Us For Availability
C320
Capacitor,Ceramic,Chip LGE 0CH1103K566 Contact Us For Availability
C322
Capacitor,Ceramic,Chip LGE 0CK105DH56A Contact Us For Availability
C332
Capacitor,AL,Radial LGE EAE52764401 Contact Us For Availability
C336
CAPACITOR,FIXED CERA LGE 0CK225DH94A Contact Us For Availability
C352
CAPACITOR,CHIP[CERAMIC LD-LESS LGE 0CH6152K406 Contact Us For Availability
C355
Capacitor,AL,Radial LGE 0CE227EF638 Contact Us For Availability
C360
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C362
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C407
Capacitor,Ceramic,Chip LGE 0CK103DN56A Contact Us For Availability
C510
CAPACITOR,FIXED CERA LGE 0CK475CC94A Contact Us For Availability
C511
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C517
CAPACITOR,AL.ELECTRO LGE 0CE107CF638 Contact Us For Availability
C601
CAPACITOR,FIXED ELEC LGE 0CE107EF610 Contact Us For Availability
C723
CAPACITOR,FIXED CERA LGE 0CC680CK41A Contact Us For Availability
C903
Capacitor,AL,Radial LGE 0CE477ED610 Contact Us For Availability
D714
Diode,TVS LGE EAH56919501 Contact Us For Availability
D714
Diode,TVS LGE 0DRCE00028B Contact Us For Availability
J601
WAFER LGE 6602T20009E Contact Us For Availability
J601
Connector,Wafer LGE EAG31366106 Contact Us For Availability
J603
Connector,FFC/FPC/PIC LGE EAG60908201 Contact Us For Availability
LV1
Cable,FFC LGE EAD57188303 Contact Us For Availability
Q601
TR,Bipolar LGE EBK39150701 Contact Us For Availability
Q602
TRANSISTOR,BIPOLARS LGE 0TRDI80002A Contact Us For Availability
Q602
TR,Bipolar LGE 0TRKE80046A Contact Us For Availability
Q602
TR,Bipolar LGE EBK61471901 Contact Us For Availability
Q602
TRANSISTOR,BIPOLARS LGE 0TRIH80001A Contact Us For Availability
R1
Resistor,Chip LGE 0RH1602D422 Contact Us For Availability
R3
Resistor,Chip LGE 0RH2201D622 Contact Us For Availability
R5
Resistor,Chip LGE 0RH1801D422 Contact Us For Availability
R304
Resistor,Chip LGE 0RH3302D622 Contact Us For Availability
R308
Resistor,Chip LGE 0RH3902D422 Contact Us For Availability
R309
RESISTOR CHIP 4.7K 1/10W 5 D. LGE 0RH4701D622 Contact Us For Availability
R314
Resistor,Chip LGE 0RH1503D622 Contact Us For Availability
R315
RESISTOR CHIP 100K 1/10W 5 D. LGE 0RH1003D622 Contact Us For Availability
R316
Resistor,Chip LGE 0RH1102D422 Contact Us For Availability
R317
RESISTOR,METAL GLAZE LGE 0RJ5902C477 Contact Us For Availability
R321
Resistor,Chip LGE 0RH2401D422 Contact Us For Availability
R351
Resistor,Chip LGE 0RJ2402D677 Contact Us For Availability
R355
Resistor,Chip LGE 0RH2002D422 Contact Us For Availability
R361
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R363
Resistor,Chip LGE 0RJ2001C678 Contact Us For Availability
R406
Resistor,Chip LGE 0RH4700D422 Contact Us For Availability
R508
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R509
RESISTOR,METAL GLAZE LGE 0RJ2002C478 Contact Us For Availability
R530
Resistor,Chip LGE 0RJ1004C678 Contact Us For Availability
R622
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R628
Resistor,Chip LGE 0RJ3900C678 Contact Us For Availability
R731
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R732
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R735
Resistor,Chip LGE 0RJ0752C678 Contact Us For Availability
R902
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
SW5
Switch,Tact LGE EBF61054601 Contact Us For Availability
SW5
Switch,Tact LGE 6600S-TV01A Contact Us For Availability
X501
Crystal LGE 6212AA2001H Contact Us For Availability
X501
Crystal LGE EAW60658001 Contact Us For Availability
ZD602
Diode,Zener LGE EAH60661201 Contact Us For Availability
× ![]()
