Model LG W1942T-PF – Common Parts & Diagrams
Diagram 0

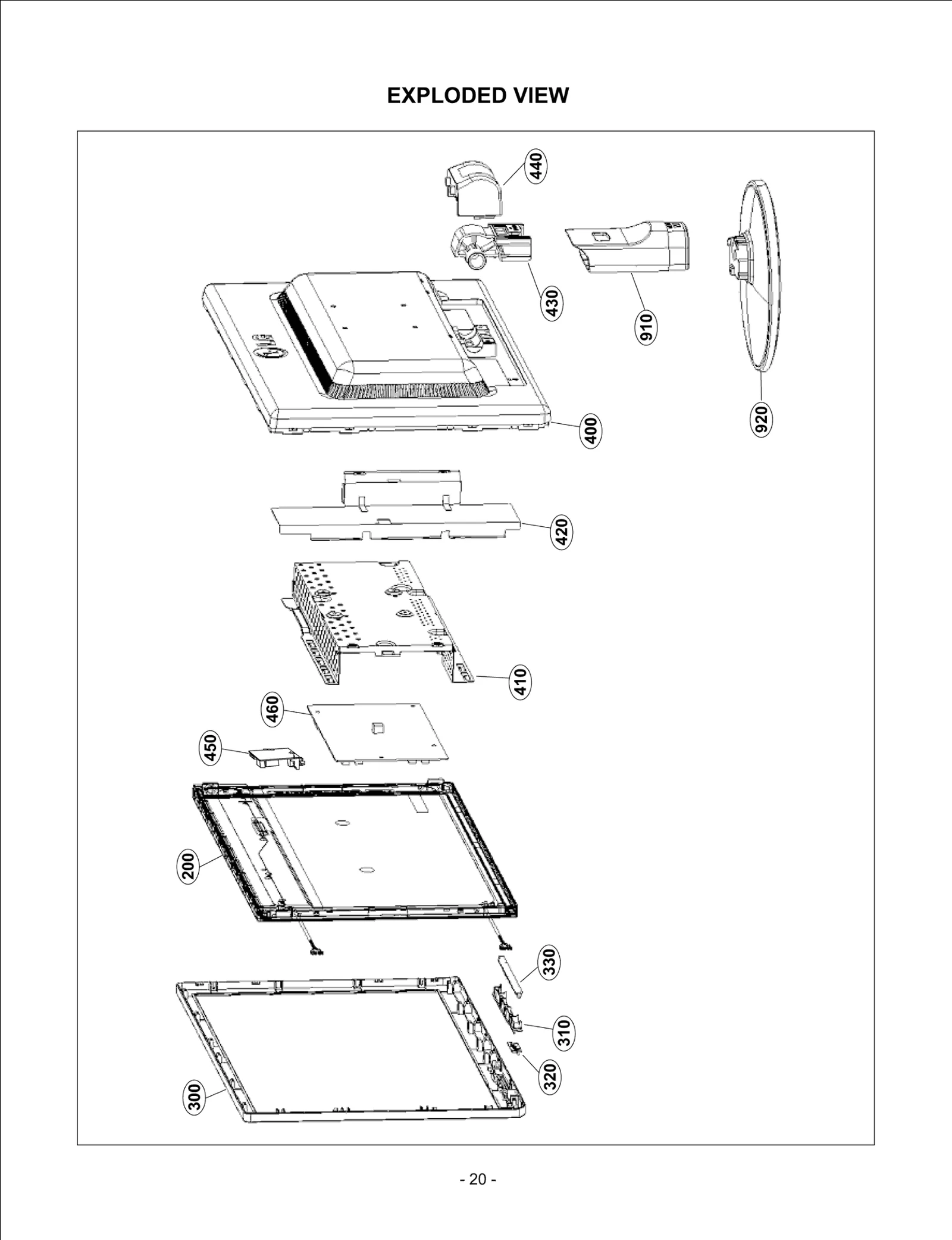

Diagram 1
Common parts from model LG W1942T-PF
200
LCD,Module-TFT LGE EAJ35661001 Contact Us For Availability
300
Cabinet Assembly LGE ABJ37045301 Contact Us For Availability
310
Knob LGE MEY40926601 Contact Us For Availability
320
Button,Power LGE MBG41956001 Contact Us For Availability
330
PCB Assembly LGE EBR41617001 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ35578203 Contact Us For Availability
410
Frame LGE MDQ41956302 Contact Us For Availability
420
Frame LGE MDQ41956801 Contact Us For Availability
430
Cover LGE MCK40926801 Contact Us For Availability
440
Cover LGE MCK40927901 Contact Us For Availability
450
Main Total Assembly LGE EBU41613801 Contact Us For Availability
460
Power Supply Assembly LGE EAY41830902 Contact Us For Availability
460
PCB Assembly,Power LGE EBR36269403 Contact Us For Availability
910
Cover LGE MCK40928201 Contact Us For Availability
920
Base Assembly LGE AAN35581007 Contact Us For Availability
A1
S/W Package LGE SAB32999301 Contact Us For Availability
A3
POWER CORD LGE 64109UP002A Contact Us For Availability
A5
Cable,Assembly LGE 68509F0003A Contact Us For Availability
A5
CABLE,D-SUB LGE 6850TD9007D Contact Us For Availability
C1
Harness,Single LGE EAD42157802 Contact Us For Availability
C507
CAPACITOR,FIXED CERA LGE 0CK473CK56A Contact Us For Availability
C510
CAPACITOR,FIXED CERA LGE 0CC270CK41A Contact Us For Availability
C520
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C602
CAPACITOR,FIXED CERA LGE 0CK103CK51A Contact Us For Availability
C604
Capacitor,AL,Radial LGE 0CE107EF618 Contact Us For Availability
C605
Capacitor,AL,Radial LGE 0CE227EF638 Contact Us For Availability
C606
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C666
CAPACITOR,FIXED CERA LGE 0CK475CC94A Contact Us For Availability
C723
CAPACITOR,FIXED CERA LGE 0CC680CK41A Contact Us For Availability
D704
DIODE,SWITCHING LGE 0DSIH00018A Contact Us For Availability
D704
DIODE,SWITCHING LGE 0DS226009AA Contact Us For Availability
D715
DIODE,SWITCHING LGE 0DSON00138A Contact Us For Availability
J1
Connector,Wafer LGE 6602T12004E Contact Us For Availability
J701
Connector,DSUB LGE EAG54220901 Contact Us For Availability
J703
Connector,Wafer LGE 6630V90220K Contact Us For Availability
J704
Connector,Wafer LGE 6602T20008E Contact Us For Availability
J706
CONNECTOR (CIRC),D-S LGE 6630TGA005B Contact Us For Availability
J706
Connector,DSUB LGE EAG41681101 Contact Us For Availability
LED2
LED,DIP LGE EAV43331201 Contact Us For Availability
LED2
LED,DIP LGE EAV30486601 Contact Us For Availability
Q501
TR,Bipolar LGE 0TRKE80046A Contact Us For Availability
Q501
TRANSISTOR LGE 0TR390409AE Contact Us For Availability
Q602
TR,Bipolar LGE EBK39150701 Contact Us For Availability
Q702
TRANSISTOR LGE 0TR390609FA Contact Us For Availability
Q702
TR,Bipolar LGE 0TR390609DC Contact Us For Availability
R1
Resistor,Chip LGE 0RJ1602D677 Contact Us For Availability
R3
Resistor,Chip LGE 0RJ2201D677 Contact Us For Availability
R5
Resistor,Chip LGE 0RJ1801D677 Contact Us For Availability
R7
RESISTOR,METAL GLAZE LGE 0RJ0752D677 Contact Us For Availability
R504
RESISTOR,METAL GLAZE LGE 0RJ0562D677 Contact Us For Availability
R505
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R512
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R601
Resistor,Chip LGE 0RJ3601D677 Contact Us For Availability
R602
RESISTOR,METAL GLAZE LGE 0RJ3900D677 Contact Us For Availability
R709
RESISTOR,METAL GLAZE LGE 0RJ2001D677 Contact Us For Availability
R714
Resistor,Chip LGE 0RJ0122D677 Contact Us For Availability
R720
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R722
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R731
RESISTOR,METAL GLAZE LGE 0RJ0682D677 Contact Us For Availability
SW2
Switch,Tact LGE 6600R000133 Contact Us For Availability
SW2
SWITCH LGE 140-058E Contact Us For Availability
U503
IC,MEMORIES LGE 0IMMRSG036B Contact Us For Availability
U601
IC,LDO Voltage Regul LGE EAN33480801 Contact Us For Availability
U602
IC,LDO Voltage Regul LGE EAN33480501 Contact Us For Availability
U603
IC,MEMORIES LGE 0IMMR00014A Contact Us For Availability
U603
IC,MEMORIES LGE 0IMMRSG036A Contact Us For Availability
X501
Crystal LGE 6212AA2001G Contact Us For Availability
X501
RESONATOR,CRYSTAL LGE 6212AA2004F Contact Us For Availability
ZD4
DIODE,ZENERS LGE 0DZ560009GB Contact Us For Availability
× ![]()
