Model Whirlpool W132B ELECTRIC WALL OVEN – Common Parts & Diagrams
06 - WIRING INFORMATION

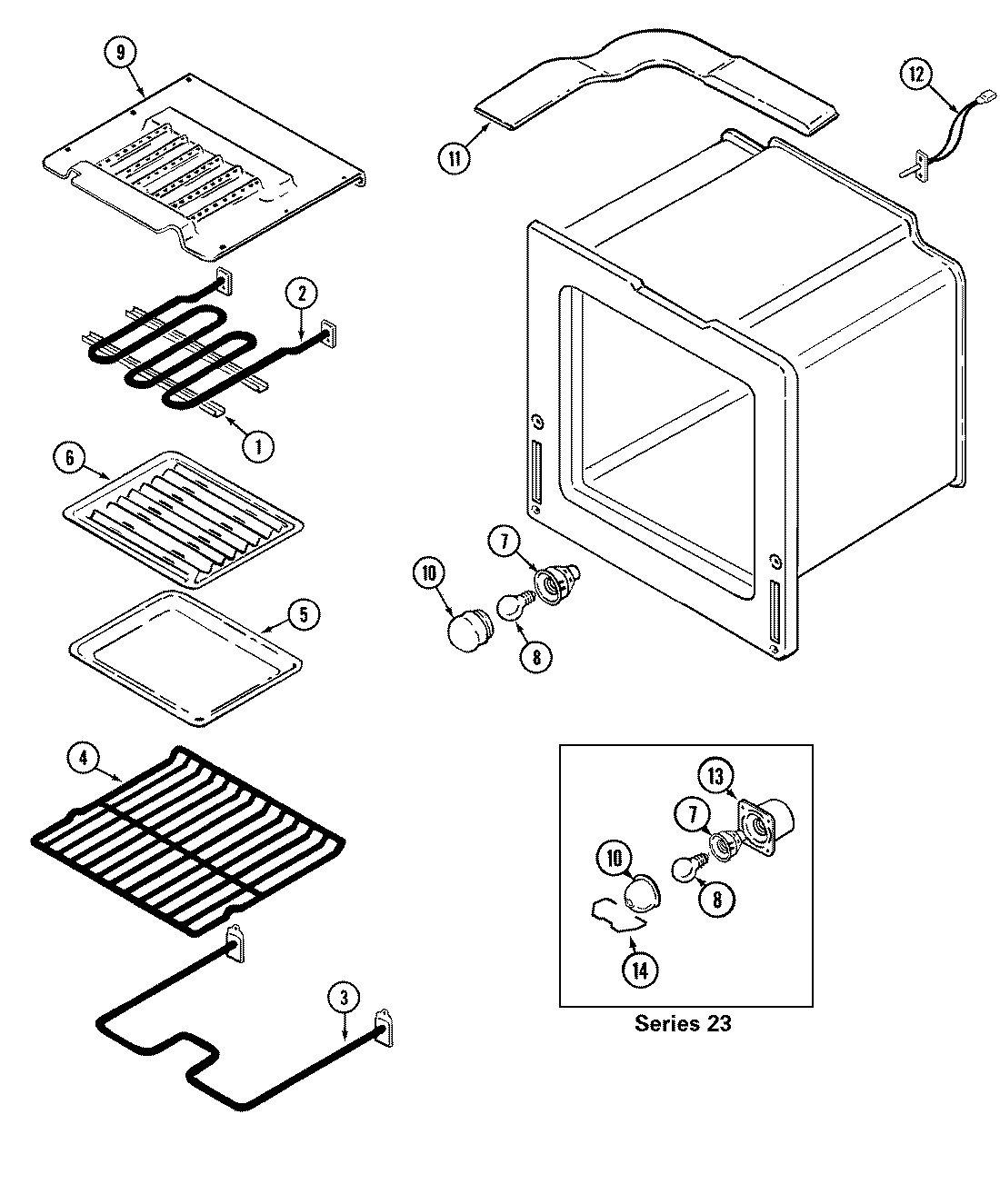

05 - OVEN

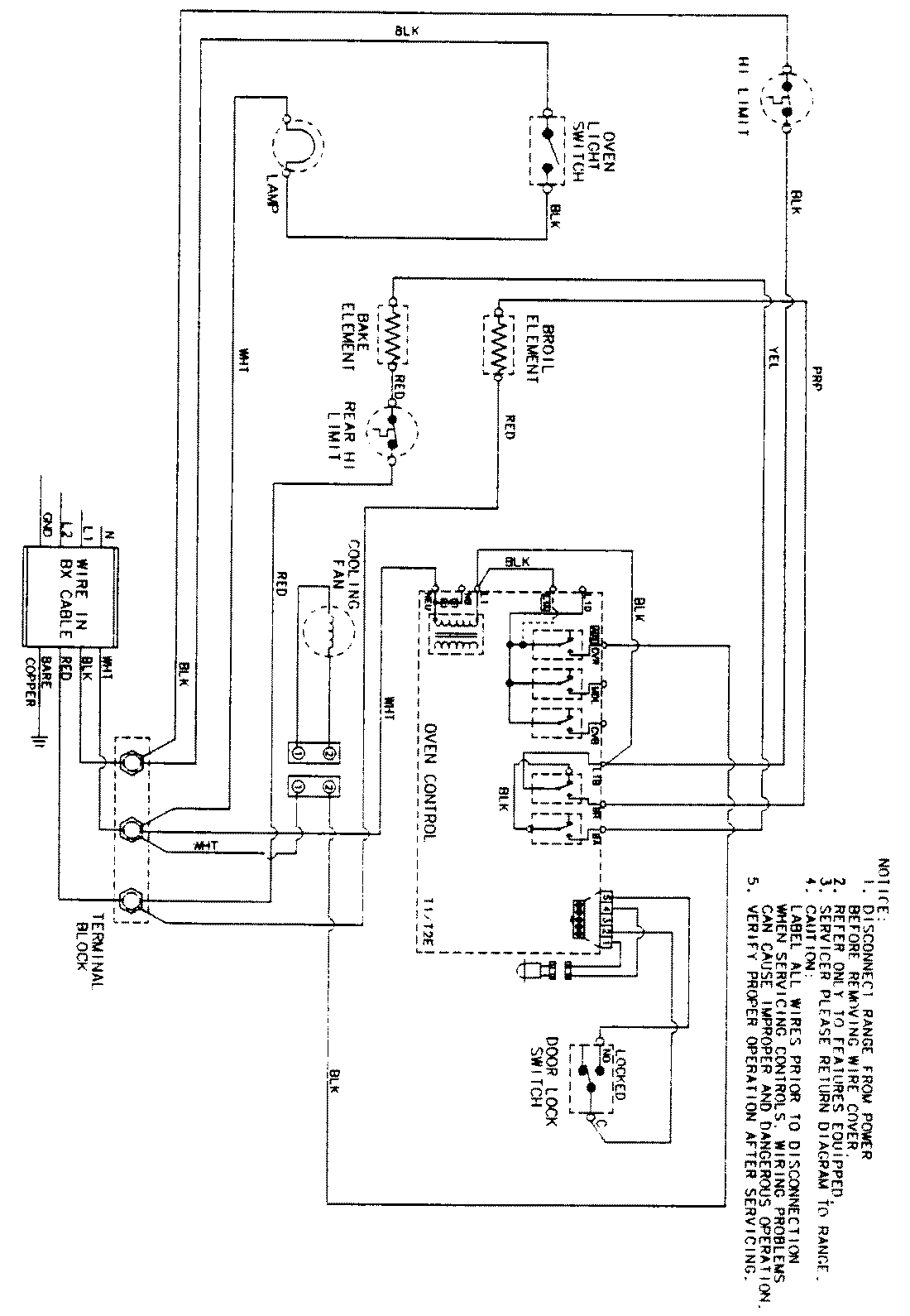

07 - WIRING INFORMATION (SERIES 23)

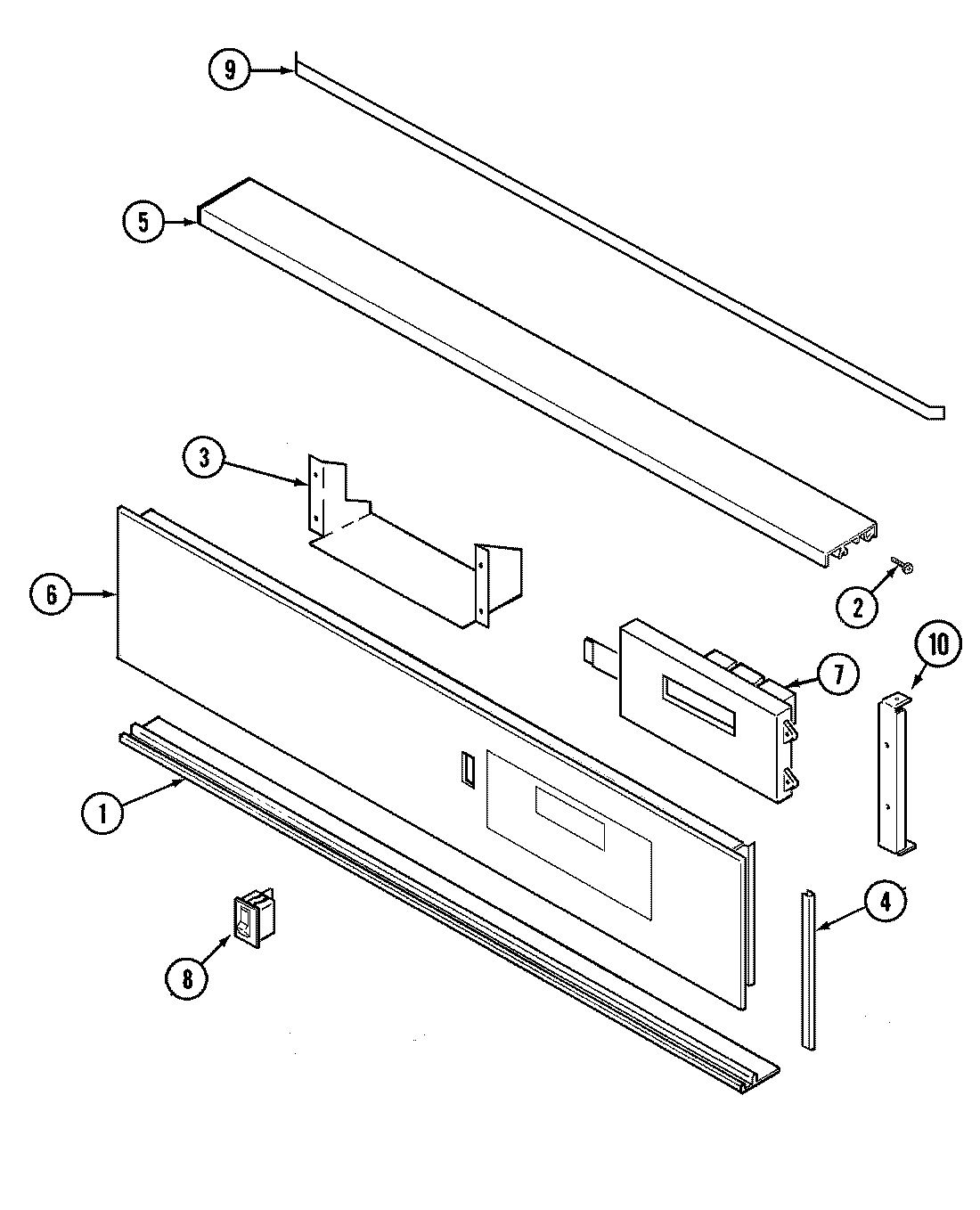

02 - CONTROL PANEL

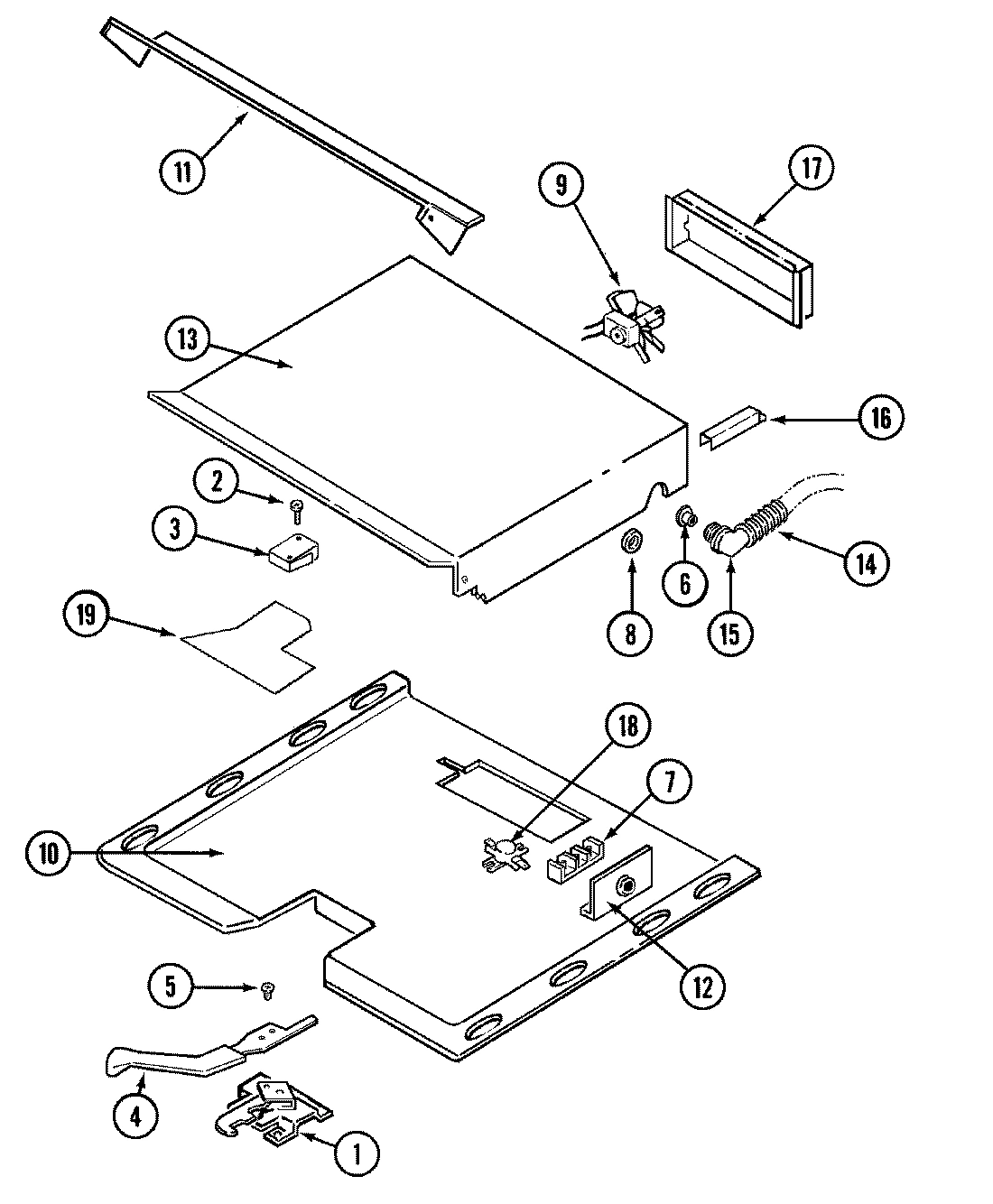

04 - INTERNAL CONTROLS

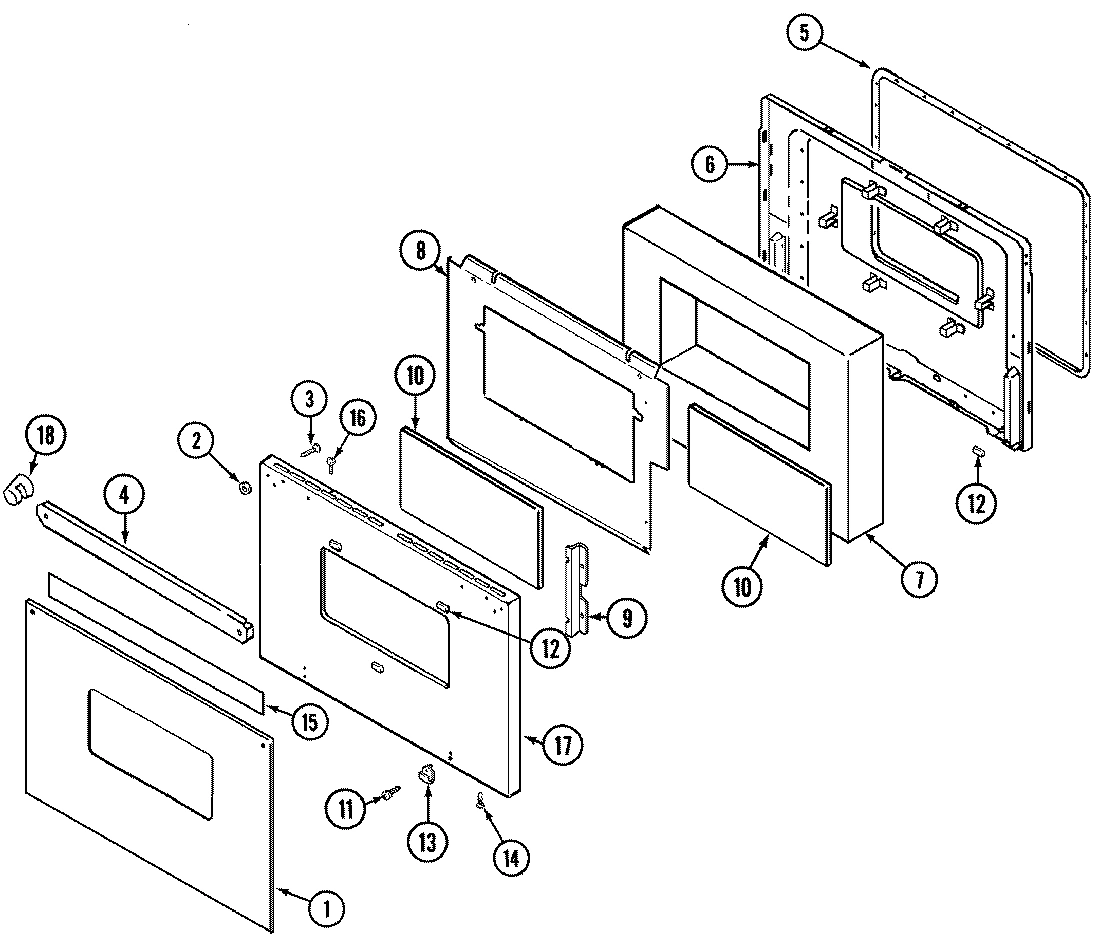

03 - DOOR

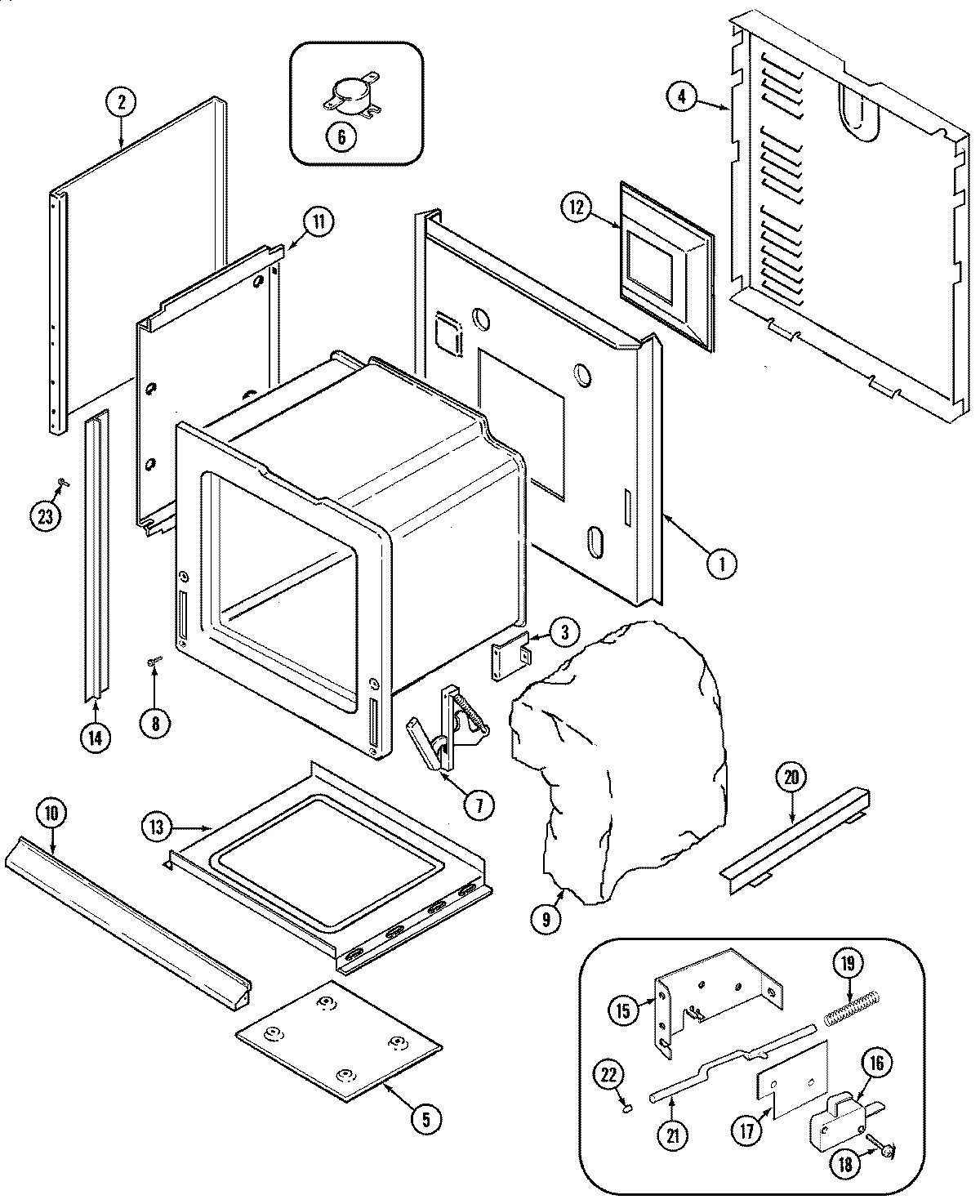

01 - BODY
Common parts from model Whirlpool W132B ELECTRIC WALL OVEN
1
SUPPORT, BROIL ELEMENT WPL 3807F38745 Contact Us For Availability
1
SCREW WPL 7101P34560 Contact Us For Availability
1
TRIM, VENT (BLK) WPL 71003299 Contact Us For Availability
1
TRIM, VENT (BLK) WPL 7756P09860 Contact Us For Availability
1
INSULATION, LATCH ASSY. WPL 4804F02860 Contact Us For Availability
1
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
1
LATCH, DOOR WPL 74003380 Contact Us For Availability
1
LATCH ASSY. WPL 8002P02560 Contact Us For Availability
1
GLASS, OVEN (BLK)----NA WPL 71002810 Contact Us For Availability
1
GLASS, DOOR (BLK)----NA WPL 7902P37260 Contact Us For Availability
1
BACK, MAIN WPL 74001581 Contact Us For Availability
2
ELEMENT, BROIL (6 PASS) WPL 74004041 Contact Us For Availability
2
ELEMENT, BROIL WPL Y04000072 Contact Us For Availability
2
SPACER, GLASS WPL 8010P01660 Contact Us For Availability
2
PANEL, SIDE WPL 2618F08251 Contact Us For Availability
3
ELEMENT, BAKE WPL 74004039 Contact Us For Availability
3
INSULATION, FIBERBOARD WPL 7003P05660 Contact Us For Availability
3
INSULATION, FIBERBOARD WPL 71003304 Contact Us For Availability
3
SWITCH, DOOR LATCH WPL 74003383 Contact Us For Availability
3
SWITCH, DOOR LATCH WPL 7403P36160 Contact Us For Availability
3
SCREW WPL 7101P32660 Contact Us For Availability
3
SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability
4
TRIM, CONTROL PANEL (BLK) WPL 7720P15160 Contact Us For Availability
4
LEVER, LATCH (BLK) WPL 74003005 Contact Us For Availability
4
TAPE, DBL. SIDED (BLK) WPL 71002091 Contact Us For Availability
4
HANDLE, OVEN DOOR (BLK) WPL 71002814 Contact Us For Availability
4
HANDLE, DOOR (BLK) WPL 790297 Contact Us For Availability
4
COVER, REAR WPL 4005F43451 Contact Us For Availability
5
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
5
EXTRUSION, TOP TRIM (BLK) WPL 71002699 Contact Us For Availability
5
TRIM, TOP (BLK) WPL 71003301 Contact Us For Availability
5
TRIM, TOP (BLK) WPL 7756P10060 Contact Us For Availability
5
SCREW, LEVER WPL 7101P23060 Contact Us For Availability
5
GASKET, DOOR WPL 7201P04660 Contact Us For Availability
5
SHIELD, HEAT WPL 3604F18951 Contact Us For Availability
5
SHIELD, HEAT WPL 74003035 Contact Us For Availability
6
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
6
PANEL, CONTROL (BLK) WPL 71003323 Contact Us For Availability
6
PANEL, CONTROL (BLK) WPL 74003189 Contact Us For Availability
6
GROMMET WPL 8008P01760 Contact Us For Availability
6
LINING, DOOR WPL 74001058 Contact Us For Availability
6
LINING, DOOR WPL 74003244 Contact Us For Availability
6
SWITCH, HI-LIMIT WPL 7403P31660 Contact Us For Availability
7
RECEPTACLE, BULB WPL 74003387 Contact Us For Availability
7
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
7
CLOCK (BLK) WPL 71003325 Contact Us For Availability
7
OVERLAY, CLOCK (BLK) WPL 71003327 Contact Us For Availability
7
CLOCK (BLK) WPL 74002872 Contact Us For Availability
7
OVERLAY, CLOCK (BLK) WPL 74002873 Contact Us For Availability
7
BLOCK, TERMINAL WPL 7401P03860 Contact Us For Availability
7
INSULATION, DOOR WPL 74001842 Contact Us For Availability
7
HINGE WPL 7106P05760 Contact Us For Availability
8
BULB-OVEN WPL 7407P10360 Contact Us For Availability
8
SWITCH, ROCKER (BLK) WPL 7403P10260 Contact Us For Availability
8
WASHER WPL 7109P00260 Contact Us For Availability
8
BAFFLE, DOOR WPL 74001843 Contact Us For Availability
8
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
9
BAFFLE, BROIL WPL 3601F23747 Contact Us For Availability
9
SCREW, BLACK WPL 7101P27060 Contact Us For Availability
9
TRIM, FILLER STRIP (BLK) WPL 7752P01060 Contact Us For Availability
9
FAN ASSY. WPL 7427P01060 Contact Us For Availability
9
RETAINER, GLASS WPL 74001844 Contact Us For Availability
9
INSULATION, BACK WPL 74001800 Contact Us For Availability
9
INSULATION, OVEN WRAP WPL 74003036 Contact Us For Availability
10
COVER, BULB WPL 74003389 Contact Us For Availability
10
COVER, BULB WPL 7724P04760 Contact Us For Availability
10
BRACKET, CLOCK MOUNTING WPL 71003305 Contact Us For Availability
10
SUPPORT, CLOCK WPL 74002932 Contact Us For Availability
10
RETAINER, TOP INSULATION WPL 74001793 Contact Us For Availability
10
RETAINER, TOP INSULATION WPL 74004094 Contact Us For Availability
10
GLASS, INNER WPL 74001841 Contact Us For Availability
10
SHIELD, LOWER VENT (BLK) WPL 3604F18170 Contact Us For Availability
10
SHIELD, VENT (LWR-BLK) WPL 74004096 Contact Us For Availability
11
TUBE, VENT WPL 74004097 Contact Us For Availability
11
TUBE, VENT WPL 7506P12560 Contact Us For Availability
11
COVER, FAN HOUSING WPL 4005F43151 Contact Us For Availability
11
RETAINER, INSULATION (SIDE) WPL 74001436 Contact Us For Availability
12
SENSOR, OVEN WPL 7430P01060 Contact Us For Availability
12
HARNESS, MAIN WPL 71003329 Contact Us For Availability
12
HARNESS, OVEN SENSOR/LOCK WPL 71003330 Contact Us For Availability
12
HARNESS, WIRE DOOR SWITCH WPL 74001604 Contact Us For Availability
12
HARNESS, WIRE MAIN WPL 74001614 Contact Us For Availability
12
PLATE, CONDUIT TUBING WPL 3605F17451 Contact Us For Availability
12
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
12
RETAINER, INSUL. (BACK) WPL 74001801 Contact Us For Availability
13
HOUSING, BULB WPL 74003388 Contact Us For Availability
13
GUIDE, COOKING WPL 71002782 Contact Us For Availability
13
MANUAL, USE & CARE WPL 71003331 Contact Us For Availability
13
MANUAL, USE & CARE WPL 74002701 Contact Us For Availability
13
HOUSING, FAN WPL 4001F09251 Contact Us For Availability
13
CLIP, GLASS (BLK) WPL 7112P09360 Contact Us For Availability
13
BOTTOM, MAIN WPL 74001742 Contact Us For Availability
14
RETAINER, BULB COVER WPL 74003391 Contact Us For Availability
14
GUIDE, QUICK REF - JENN-AIR WPL 16000326 Contact Us For Availability
14
TUBING, CONDUIT WPL 3414F06651 Contact Us For Availability
14
WIRES, CONDUIT TUBING WPL 74002774 Contact Us For Availability
14
TUBING, CONDUIT WPL 74003953 Contact Us For Availability
14
EXTRUSION, SIDE TRIM (LT-BLK) WPL 71002697 Contact Us For Availability
14
EXTRUSION, SIDE TRIM (RT-BLK) WPL 71002698 Contact Us For Availability
14
TRIM, SIDE (LT-BLK) WPL 71003308 Contact Us For Availability
14
TRIM, SIDE (RT-BLK) WPL 71003309 Contact Us For Availability
14
EXTRUSION, SIDE (RT-BLK) WPL 74001389 Contact Us For Availability
14
EXTRUSION, SIDE (LT-BLK) WPL 74001391 Contact Us For Availability
14
TRIM, SIDE (LT-BLK) WPL 74004958 Contact Us For Availability
14
TRIM, SIDE (RT-BLK) WPL 74004959 Contact Us For Availability
15
CONNECTOR, CONDUIT WPL 7417P00560 Contact Us For Availability
15
TAPE, FOIL (3`` WIDE) WPL 8270P09060 Contact Us For Availability
15
BRACKET, SWITCH ACTUATOR WPL 74001632 Contact Us For Availability
16
RACEWAY, WIRE WPL 3830F00851 Contact Us For Availability
16
SWITCH WPL 74001802 Contact Us For Availability
17
COVER, FAN WPL 4005F26251 Contact Us For Availability
17
PANEL, DOOR (BLK) WPL 2401F12370 Contact Us For Availability
17
PANEL, DOOR (BLK) WPL 71003620 Contact Us For Availability
17
INSULATOR, SWITCH WPL 74001872 Contact Us For Availability
18
NOT REQUIRED PART OR SEE NOTE NOT REQUIRED (B WPL W10124350 Contact Us For Availability
18
SCREW, SWITCH WPL 7101P33060 Contact Us For Availability
18
SCREW (8ABX3/8-ZN) WPL 7101P31360 Contact Us For Availability
18
SWITCH, HI-LIMIT WPL 7403P31360 Contact Us For Availability
18
CAP, END (BLK) WPL 790210 Contact Us For Availability
19
SPRING, DOOR SWITCH WPL 74001629 Contact Us For Availability
19
INSULATOR, LATCH SWITCH WPL 74001804 Contact Us For Availability
20
INSULATOR, DOOR SWITCH WPL 74001627 Contact Us For Availability
21
ROD, DOOR LIGHT SWITCH WPL 74001630 Contact Us For Availability
22
BUMPER, ROD WPL 74001631 Contact Us For Availability
23
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
23
SCREW (8ABX3/8-BLK) WPL 7101P34760 Contact Us For Availability
24
SPACER, MTG. ADAPTER (BLK) WPL 74001394 Contact Us For Availability
25
SCREW (BLK) WPL 74001387 Contact Us For Availability
NI
WIRING INFORMATION WPL 15002485 Contact Us For Availability
× ![]()
