Model Whirlpool W131B ELECTRIC WALL OVEN – Common Parts & Diagrams

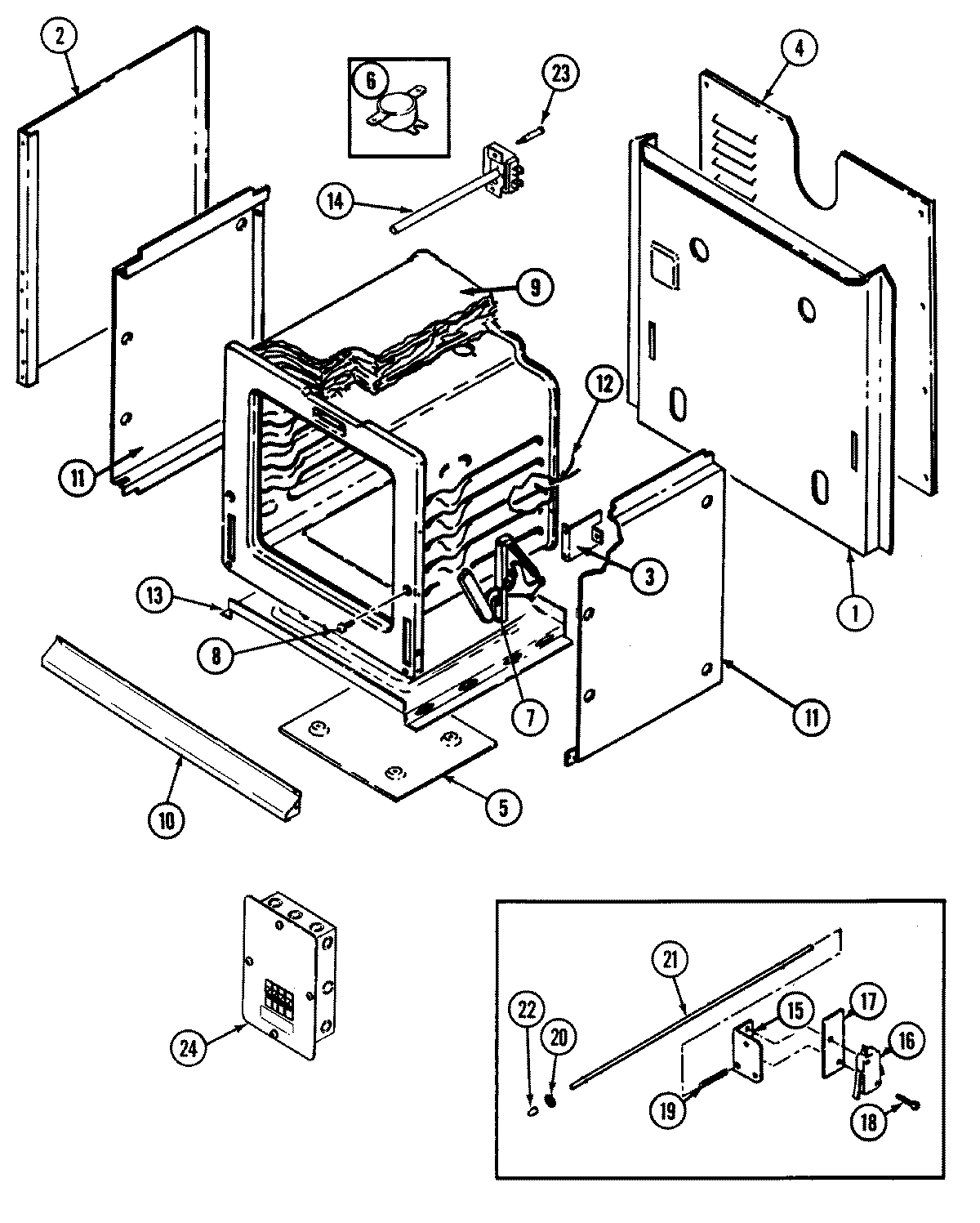

01 - BODY

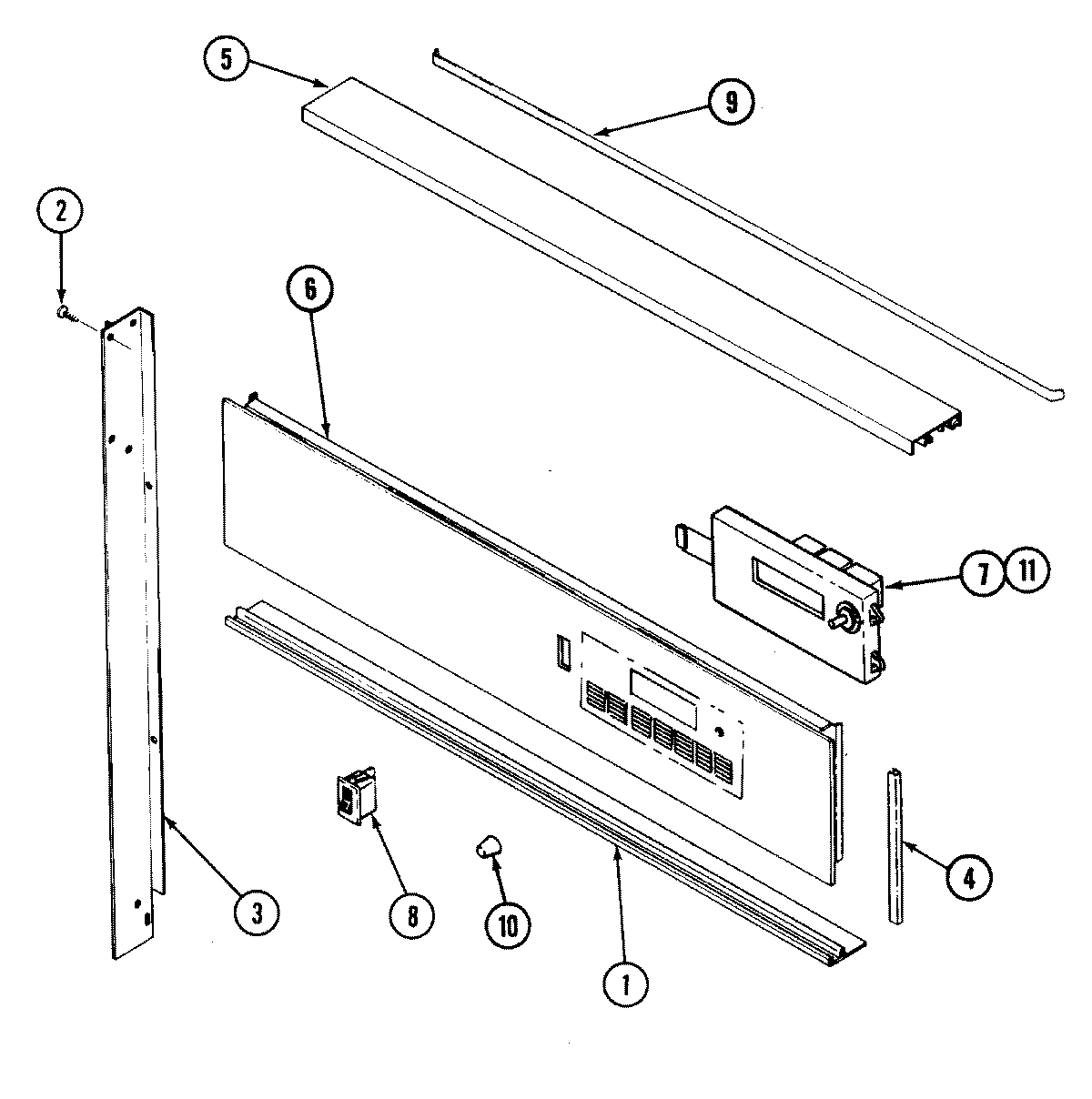

02 - CONTROL PANEL

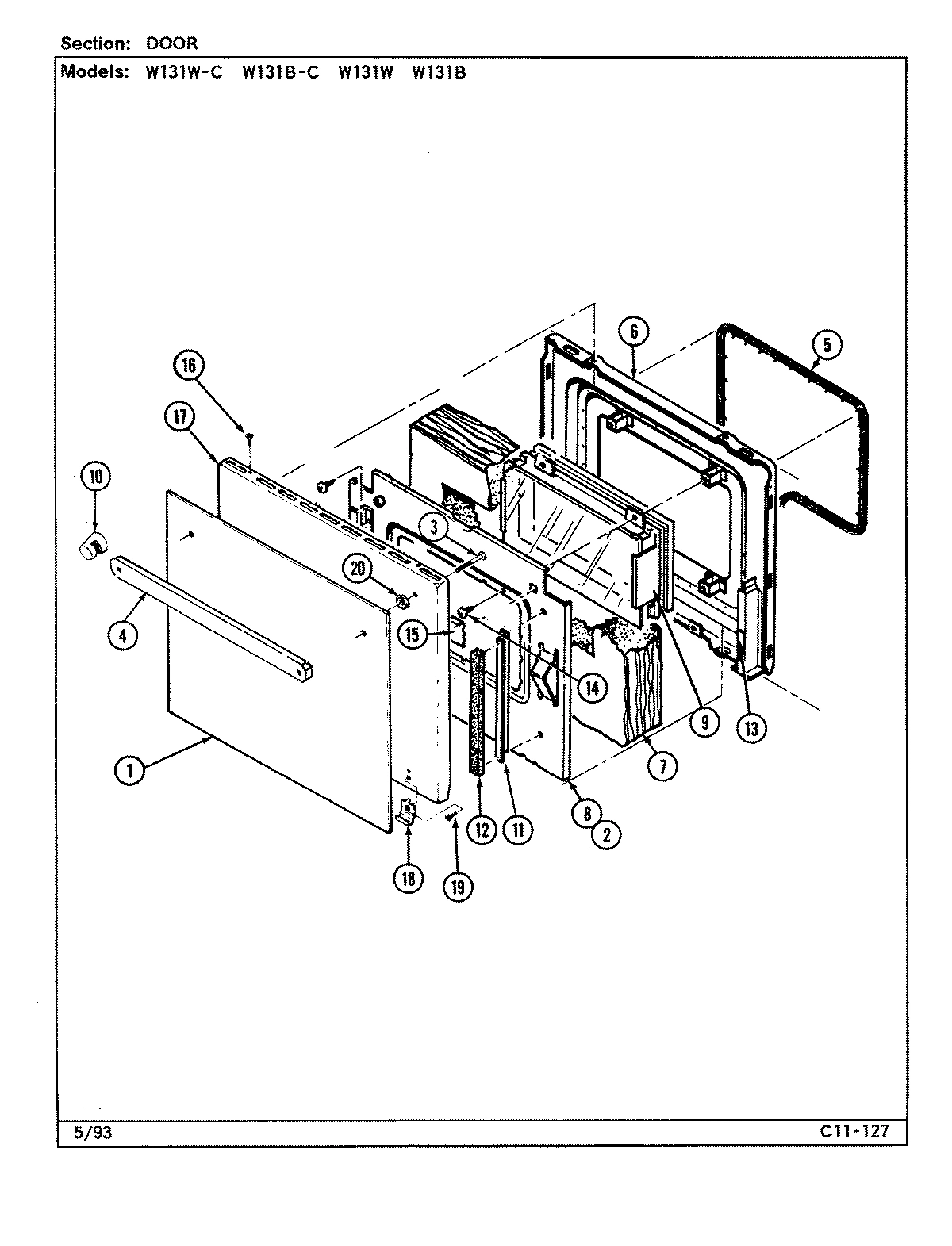

03 - DOOR

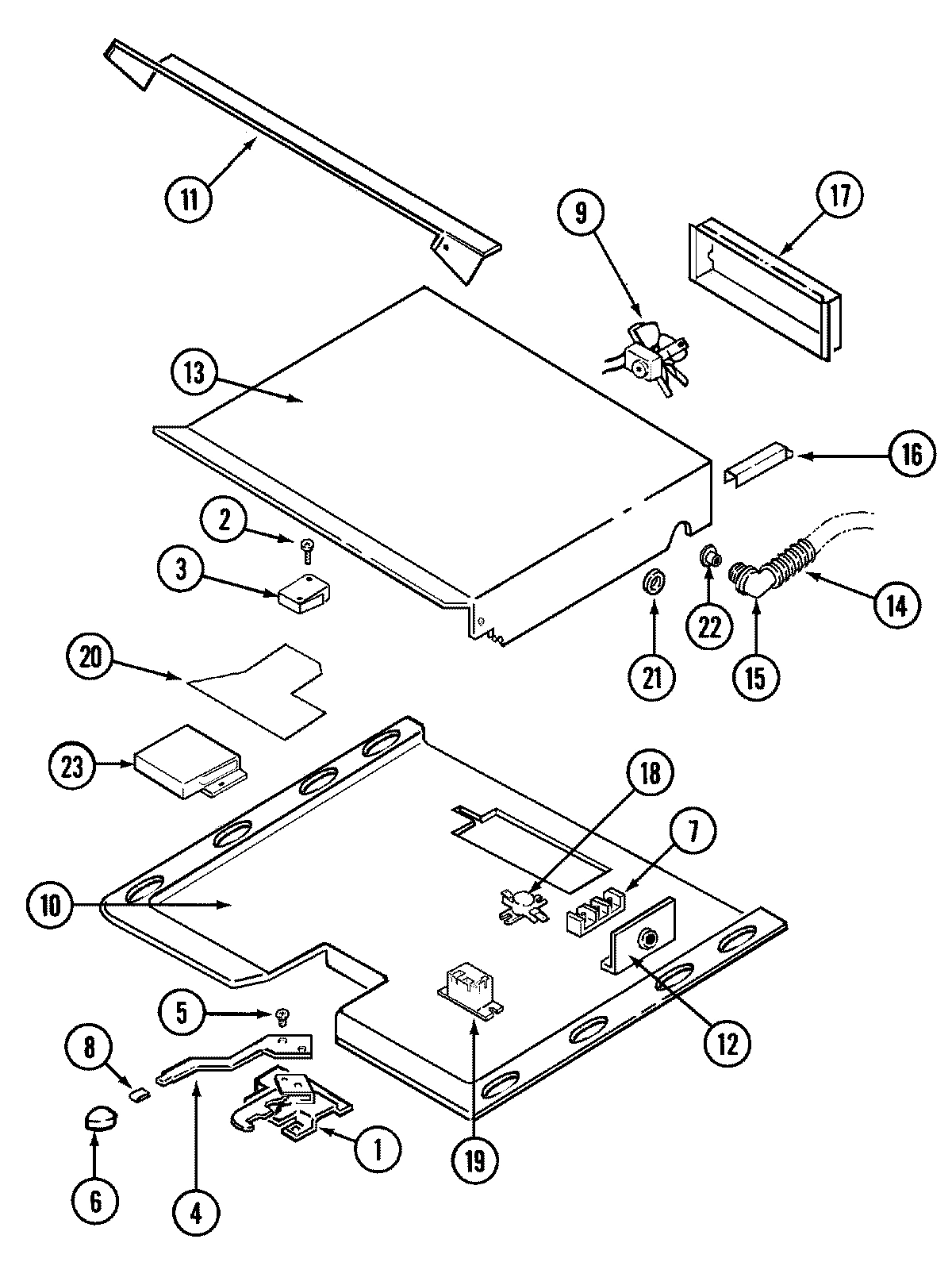

04 - INTERNAL CONTROLS

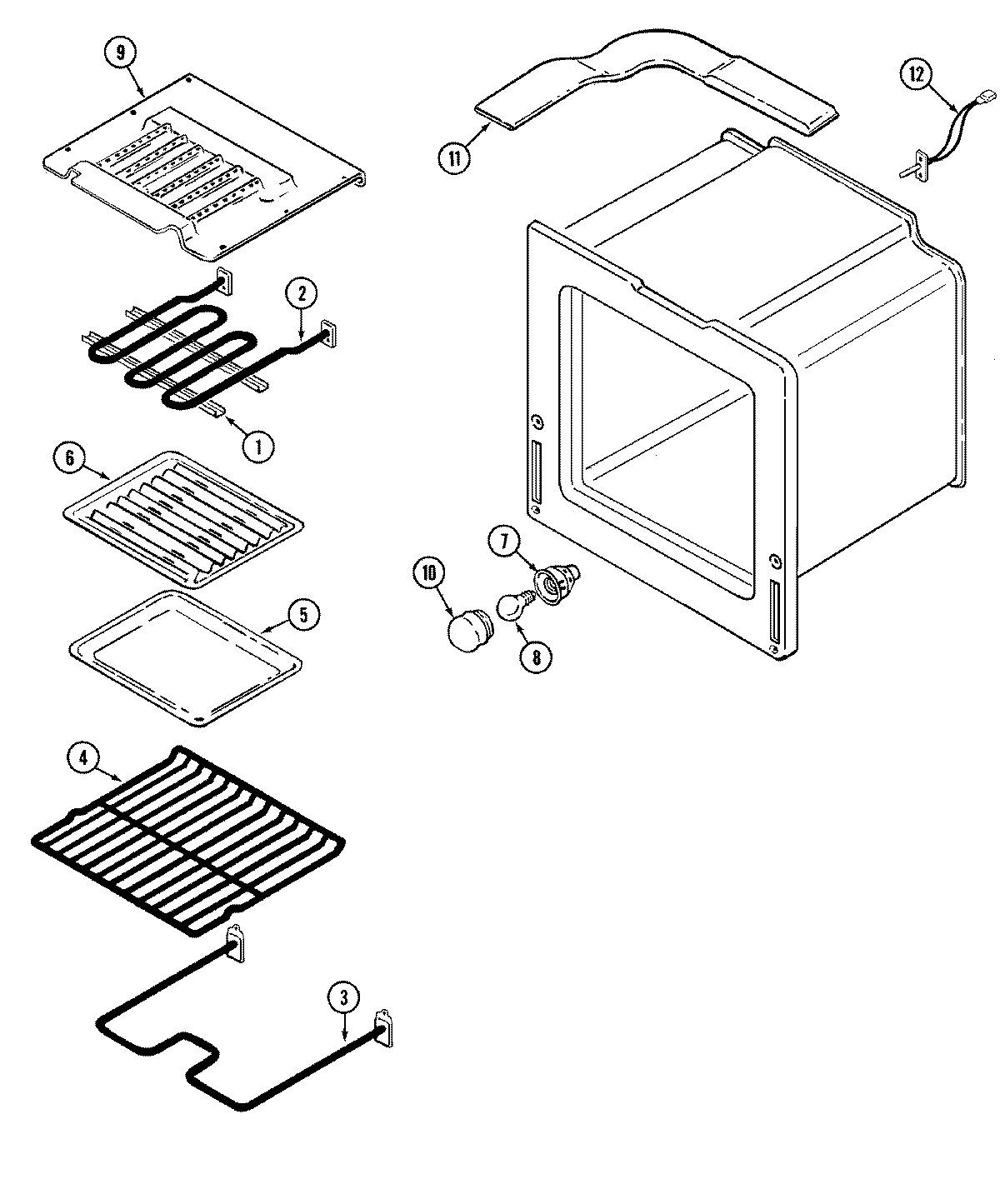

05 - OVEN
Common parts from model Whirlpool W131B ELECTRIC WALL OVEN
1
BACK, MAIN WPL 4002F16951 Contact Us For Availability
1
TRIM, VENT (BLACK) WPL 7756P06060 Contact Us For Availability
1
TRIM, VENT (BLK) WPL 7756P09860 Contact Us For Availability
1
GLASS, DOOR (BLK)----NA WPL 7902P37260 Contact Us For Availability
1
SCREW WPL 7101P29060 Contact Us For Availability
1
INSULATION, LATCH ASSY. WPL 4804F02860 Contact Us For Availability
1
LATCH ASSY. WPL 8002P02560 Contact Us For Availability
1
SUPPORT, BROIL ELEMENT WPL 3807F38745 Contact Us For Availability
1
SCREW WPL 7101P33460 Contact Us For Availability
2
PANEL, SIDE WPL 2618F08251 Contact Us For Availability
2
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
2
SCREW, LATCH SWITCH WPL 7101P13060 Contact Us For Availability
2
ELEMENT, BROIL WPL 7406P07960 Contact Us For Availability
3
SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability
3
SPACER, MTG. ADAPTER (BLK) WPL 74001394 Contact Us For Availability
3
SCREW (WHT) WPL 74001388 Contact Us For Availability
3
TRIM, SIDE (RIGHT) BLACK WPL 7750P05260 Contact Us For Availability
3
TRIM, SIDE (LEFT) BLACK WPL 7750P06560 Contact Us For Availability
3
TRIM, SIDE (RT-BLK) WPL 7750P09760 Contact Us For Availability
3
TRIM, SIDE (LT-BLK) WPL 7750P09860 Contact Us For Availability
3
SCREW WPL 7101P23260 Contact Us For Availability
3
WASHER, LOCK WPL 7109P01260 Contact Us For Availability
3
SWITCH, DOOR LATCH WPL 7403P36160 Contact Us For Availability
3
ELEMENT, BAKE WPL 7406P07860 Contact Us For Availability
4
COVER, REAR WPL 4005F43451 Contact Us For Availability
4
TRIM, CONTROL PANEL (BLK) WPL 7720P15160 Contact Us For Availability
4
SCREW, HANDLE WPL 7101P32560 Contact Us For Availability
4
HANDLE, DOOR (BLACK) WPL 7701P07360 Contact Us For Availability
4
LEVER WPL 8009P02060 Contact Us For Availability
4
RACK----NA WPL 7801P03960 Contact Us For Availability
4
RACK, OVEN WPL 7801P05060 Contact Us For Availability
5
SHIELD, HEAT WPL 3604F18951 Contact Us For Availability
5
TRIM, TOP (BLACK) WPL 7756P05860 Contact Us For Availability
5
GASKET, DOOR WPL 7201P04660 Contact Us For Availability
5
SCREW, LEVER WPL 7101P23060 Contact Us For Availability
5
BOLT WPL 7116P00360 Contact Us For Availability
5
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
6
SWITCH, HI-LIMIT WPL 7403P31660 Contact Us For Availability
6
PANEL, CONTROL (BLK) WPL 74001230 Contact Us For Availability
6
PANEL, CONTROL (BLK) WPL 7721P04160 Contact Us For Availability
6
LINING, DOOR WPL 2402W20219 Contact Us For Availability
6
LINING, DOOR WPL 2402W20919 Contact Us For Availability
6
HANDLE, DOOR LATCH (BLK) WPL 7701P13260 Contact Us For Availability
6
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
7
HINGE----NA WPL 7106P05060 Contact Us For Availability
7
SHIELD, CLOCK INSULATION WPL 7003P04860 Contact Us For Availability
7
CLOCK WPL 7601P21460 Contact Us For Availability
7
CLOCK WPL 7601P23360 Contact Us For Availability
7
INSULATION, DOOR WPL 4804F03460 Contact Us For Availability
7
INSULATION, DOOR WPL 74001842 Contact Us For Availability
7
BLOCK, TERMINAL WPL 7401P03860 Contact Us For Availability
7
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
8
SCREW WPL 7101P11560 Contact Us For Availability
8
SWITCH, ROCKER (BLK) WPL 7403P10260 Contact Us For Availability
8
BAFFLE, DOOR WPL 3601F23245 Contact Us For Availability
8
BAFFLE, DOOR WPL 74001843 Contact Us For Availability
8
CLIP, LATCH HANDLE WPL 7112P00360 Contact Us For Availability
8
BULB, OVEN WPL 7407P09560 Contact Us For Availability
9
INSULATION, WRAP WPL 4804F02960 Contact Us For Availability
9
INSULATION, BACK & BOTTOM WPL 4804F03060 Contact Us For Availability
9
TRIM, FILLER STRIP (BLK) WPL 7752P01060 Contact Us For Availability
9
GLASS, INNER WPL 74001841 Contact Us For Availability
9
WINDOW ASY. WPL 7907P02160 Contact Us For Availability
9
FAN ASSY. WPL 7427P01060 Contact Us For Availability
9
BAFFLE. BROIL WPL 3601F20245 Contact Us For Availability
10
SHIELD, LOWER VENT (BLK) WPL 3604F18170 Contact Us For Availability
10
KNOB, CLOCK (BLK) WPL 7711P47560 Contact Us For Availability
10
END CAP, HANDLE (BLK) WPL 7744P00760 Contact Us For Availability
10
RETAINER, TOP INSULATION WPL 3804F11151 Contact Us For Availability
10
COVER, BULB WPL 7724P04760 Contact Us For Availability
11
RETAINER, INSULATION (SIDE) WPL 3804F10851 Contact Us For Availability
11
HARNESS, WIRE LOOSE WPL 5125A34360 Contact Us For Availability
11
HARNESS, MAIN WIRE WPL 5170D17860 Contact Us For Availability
11
HARNESS, OVEN SENSOR/LOCK WPL 5170P17160 Contact Us For Availability
11
HARNESS, OVEN SENSOR/LOCK WPL 74001731 Contact Us For Availability
11
CHANNEL, AIR WPL 3818F05251 Contact Us For Availability
11
RETAINER, GLASS WPL 74001844 Contact Us For Availability
11
COVER, FAN HOUSING WPL 4005F43151 Contact Us For Availability
11
COVER, VENT WPL 4005F40351 Contact Us For Availability
11
TUBE, VENT WPL 7506P12560 Contact Us For Availability
12
SENSOR, OVEN WPL 7430P01060 Contact Us For Availability
12
MANUAL, USE & CARE WPL 8111P01260 Contact Us For Availability
12
SEAL WPL 7208P00260 Contact Us For Availability
12
PLATE, CONDUIT TUBING WPL 3605F17451 Contact Us For Availability
13
BOTTOM, MAIN WPL 4011F21751 Contact Us For Availability
13
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
13
HOUSING, FAN WPL 4001F09251 Contact Us For Availability
14
WIRES, CONDUIT TUBING WPL 5140A03760 Contact Us For Availability
14
TUBING, CONDUIT (CANADA) WPL 7434P01060 Contact Us For Availability
15
BRACKET, LIGHT SWITCH WPL 3801F31651 Contact Us For Availability
15
BRACKET, LIGHT SWITCH WPL 3801F35451 Contact Us For Availability
15
TAPE, FOIL (3`` WIDE) WPL 8270P09060 Contact Us For Availability
15
CONNECTOR, CONDUIT WPL 7417P00560 Contact Us For Availability
16
SWITCH, MICRO WPL 7403P28160 Contact Us For Availability
16
SWITCH, DOOR LIGHT WPL 7403P35760 Contact Us For Availability
16
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
16
RACEWAY, WIRE WPL 3830F00851 Contact Us For Availability
17
INSULATOR, SWITCH WPL 7003P04760 Contact Us For Availability
17
INSULATOR, SWITCH WPL 7003P06260 Contact Us For Availability
17
PANEL, DOOR (BLK) WPL 2401F11770 Contact Us For Availability
17
COVER, FAN WPL 4005F26251 Contact Us For Availability
18
SCREW, SWITCH WPL 7101P33060 Contact Us For Availability
18
CLIP, GLASS (BLK) WPL 7112P09360 Contact Us For Availability
18
SCREW, SWITCH WPL 7101P14860 Contact Us For Availability
18
SWITCH, HI-LIMIT WPL 7403P31360 Contact Us For Availability
19
SPRING WPL 7803P06760 Contact Us For Availability
19
SCREW (BLK) WPL 7101P27660 Contact Us For Availability
20
WASHER WPL 7109P02060 Contact Us For Availability
20
SPACER, GLASS WPL 8010P01660 Contact Us For Availability
20
INSULATION, FIBERBOARD WPL 7003P05160 Contact Us For Availability
21
ROD WPL 7809P01860 Contact Us For Availability
21
ROD WPL 7809P02360 Contact Us For Availability
21
WASHER WPL 7109P00260 Contact Us For Availability
22
BUMPER WPL 8003P01260 Contact Us For Availability
22
GROMMET WPL 8008P01760 Contact Us For Availability
23
SCREW WPL 7101P33760 Contact Us For Availability
23
COVER WPL 4005F42880 Contact Us For Availability
25
SCREW (BLK) WPL 74001387 Contact Us For Availability
× ![]()
