Model Whirlpool W116 ELECTRIC WALL OVEN – Common Parts & Diagrams

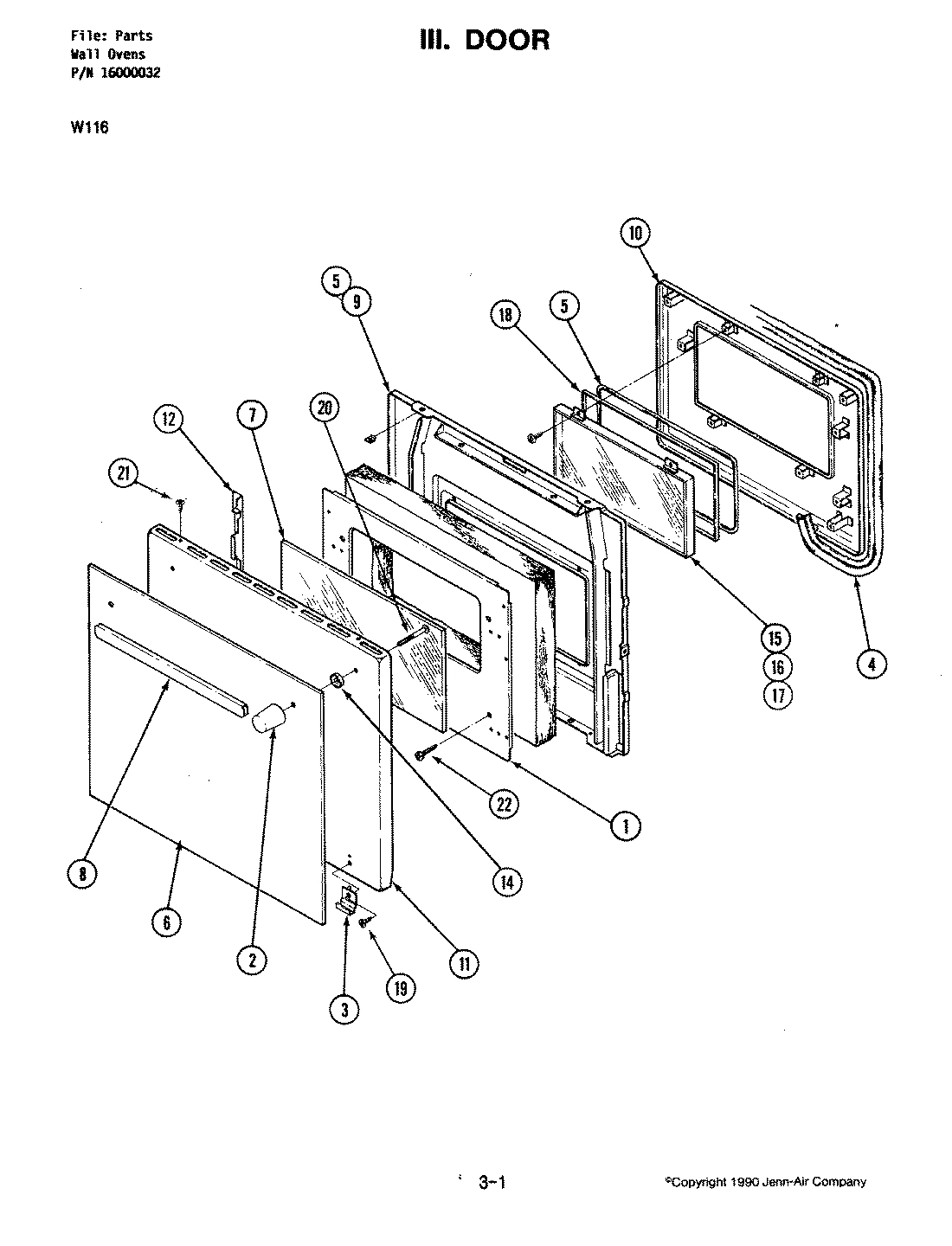

03 - DOOR

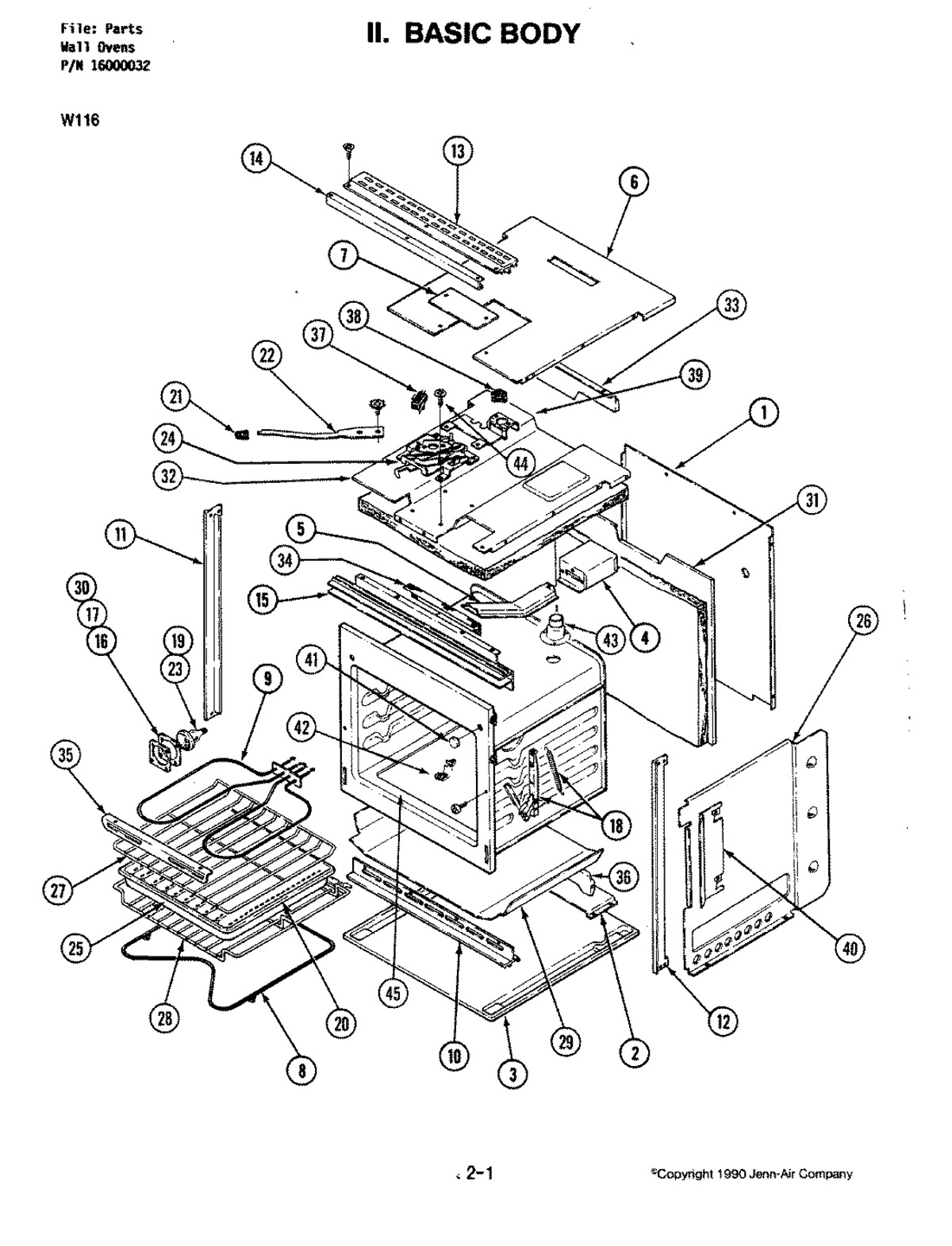

01 - BODY

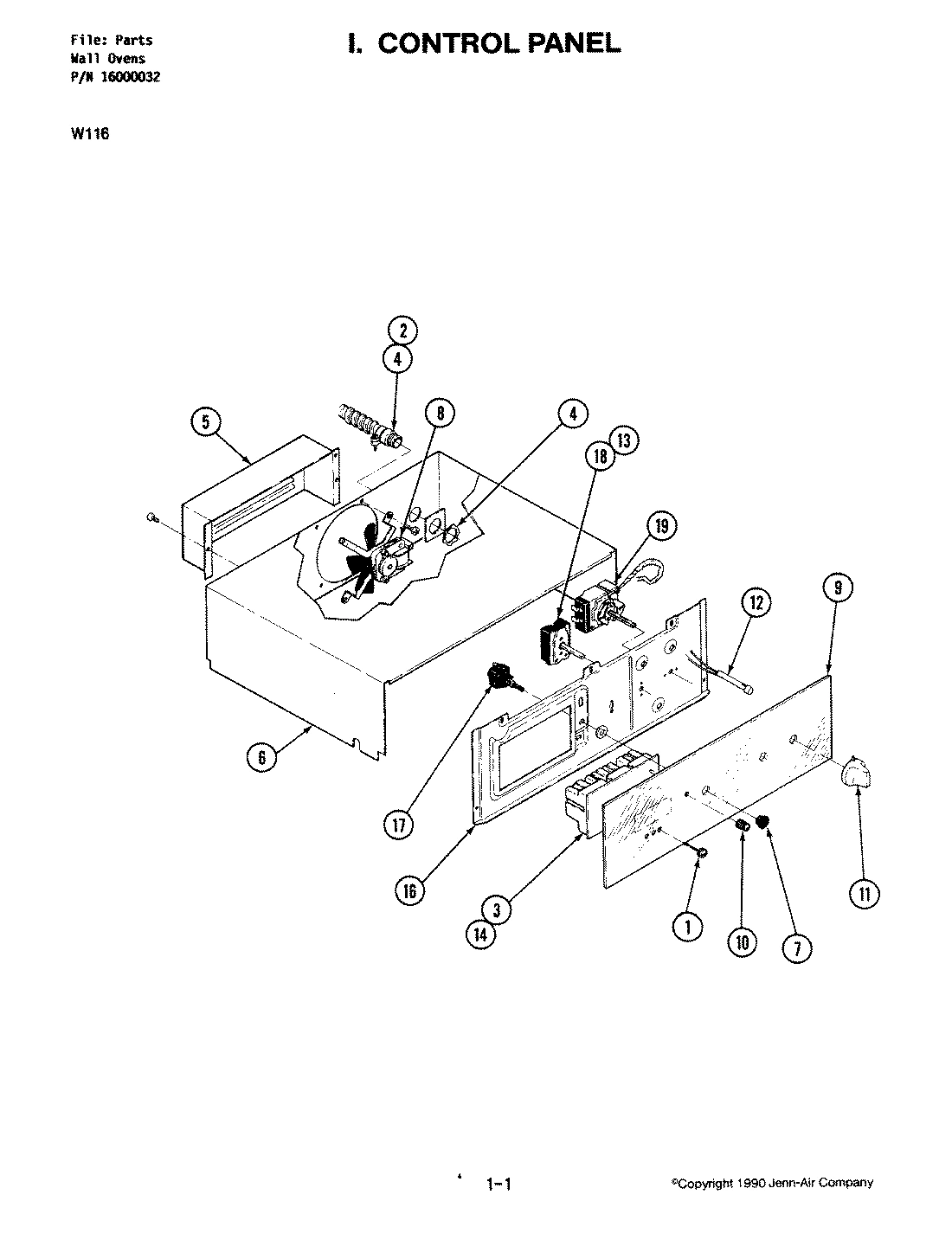

02 - CONTROL PANEL
Common parts from model Whirlpool W116 ELECTRIC WALL OVEN
1
BAFFLE, DOOR ASSEMBLY WPL 3601W13151 Contact Us For Availability
1
BACK, MAIN WPL 4002F12151 Contact Us For Availability
1
KNOB, CLOCK (BUTTON-BLK) WPL 7711P17160 Contact Us For Availability
2
END CAP, HANDLE (BLK) WPL 7744P00760 Contact Us For Availability
2
BAFFLE, BASE WPL 3601F00580 Contact Us For Availability
2
CLAMP, WIRE WPL 7111P01560 Contact Us For Availability
3
CLIP WPL 3819F01080 Contact Us For Availability
3
BASE, WALL OVEN WPL 4003F01180 Contact Us For Availability
3
CLOCK WPL 7601P12360 Contact Us For Availability
4
GASKET WPL 7201P00460 Contact Us For Availability
4
BOX, VENT WPL 4006W04645 Contact Us For Availability
4
BLOCK, DISCONNECT WPL 74002306 Contact Us For Availability
4
INSULATOR, TERMINAL WPL 7414P00360 Contact Us For Availability
4
CONNECTOR, CABLE WPL 7417P01760 Contact Us For Availability
5
SEAL, GLASS WPL 7208P00160 Contact Us For Availability
5
CHANNEL, VENT ASSEMBLY WPL 3818W00215 Contact Us For Availability
5
COVER, FAN WPL 4005F26251 Contact Us For Availability
6
GLASS, DOOR SCREENED WPL 7902P25860 Contact Us For Availability
6
GLASS, DOOR UPPER WPL 7902P33960 Contact Us For Availability
6
COVER, BOX WPL 4005F20251 Contact Us For Availability
6
COVER, WIRE WPL 4005F15051 Contact Us For Availability
7
GLASS, INNER WPL 7902P09760 Contact Us For Availability
7
COVER, LOCK WPL 4005F16045 Contact Us For Availability
8
HANDLE, DOOR----NA WPL 7701P07160 Contact Us For Availability
8
ELEMENT BAKE WPL 7406P01360 Contact Us For Availability
8
ELEMENT, BAKE WPL 7406P07560 Contact Us For Availability
8
FAN ASSEMBLY WPL 7427P00660 Contact Us For Availability
9
LINING ASSEMBLY WPL 2402W13015 Contact Us For Availability
9
LINING, DOOR WPL 2402W13019 Contact Us For Availability
9
ELEMENT,BROIL WPL 7406P00360 Contact Us For Availability
9
ELEMENT, BROIL WPL 7406P07660 Contact Us For Availability
9
GLASS CONTROL PANEL WPL 7912P05860 Contact Us For Availability
10
PAD, OVEN DOOR WPL 2410W03815 Contact Us For Availability
10
PAD DOOR WPL 2410W04215 Contact Us For Availability
10
PAD, DOOR WPL 2410W04219 Contact Us For Availability
10
EXTRUSION, BOTTOM (BLK) WPL 7706P15360 Contact Us For Availability
10
KNOB, CLOCK WPL 7711P42760 Contact Us For Availability
11
PANEL, OVEN DOOR WPL 2401F04570 Contact Us For Availability
11
PANEL, DOOR (BLK) WPL 2401F10370 Contact Us For Availability
11
EXTRUSION, SIDE-L WPL 7750P01660 Contact Us For Availability
11
EXTRUSION, SIDE (LT-BLK) WPL 7750P03160 Contact Us For Availability
11
KNOB, THERMOSTAT WPL 7711P25660 Contact Us For Availability
12
RETAINER, GLASS WPL 3804F05180 Contact Us For Availability
12
EXTRUSION, SIDE-R WPL 7750P01760 Contact Us For Availability
12
EXTRUSION, SIDE (RT-BLK) WPL 7750P03260 Contact Us For Availability
12
LIGHT, INDICATOR WPL 5700A23660 Contact Us For Availability
13
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
13
EXTRUSION, TOP (BLK) WPL 7706P19960 Contact Us For Availability
13
SCREW W/WASHER WPL 7101P27960 Contact Us For Availability
14
SPACER, GLASS WPL 8010P01660 Contact Us For Availability
14
EXTRUSION, TOP FRONT WPL 7706P18560 Contact Us For Availability
14
SHAFT, CLOCK WPL 8312P01760 Contact Us For Availability
15
FRAME, WINDOW WPL 7706P12860 Contact Us For Availability
15
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
15
NUT, SNAP (ROUND-WHT) WPL 7103P03960 Contact Us For Availability
15
NUT, SNAP (WHT) WPL 7103P04060 Contact Us For Availability
15
NUT, SNAP WPL 7103P05160 Contact Us For Availability
15
EXTRUSION, VENT WPL 7756P02360 Contact Us For Availability
15
EXTRUSION, VENT (BLK) WPL 7756P07060 Contact Us For Availability
15
SLEEVE, SWITCH (BLK) WPL 7214P00760 Contact Us For Availability
16
GLASS, INNER WPL 7902P10460 Contact Us For Availability
16
GASKET, LAMP RETAINER WPL 7201P01560 Contact Us For Availability
16
PLATE, BACKING WPL 3605F11380 Contact Us For Availability
17
GLASS, WINDOW OUTER WPL 7902P10260 Contact Us For Availability
17
GLASS, LAMP GUARD WPL 7902P05760 Contact Us For Availability
17
SWITCH, PUSH (BLK) WPL 7403P10960 Contact Us For Availability
18
RETAINER, GASKET WPL 3804F02145 Contact Us For Availability
18
GASKET WPL 7201P02060 Contact Us For Availability
18
HINGE, UPPER WPL 7106A01960 Contact Us For Availability
18
SWITCH, SELECTOR WPL 7403P02360 Contact Us For Availability
19
SCREW, HINGE WPL 7101P01760 Contact Us For Availability
19
HOUSING LAMP WPL 4001W01251 Contact Us For Availability
19
THERMOSTAT, UPPER WPL 7404P03960 Contact Us For Availability
20
SCREW WPL 7101P23260 Contact Us For Availability
20
INSERT, BROILER PAN WPL 3413F01015 Contact Us For Availability
20
INSERT, BROIL PAN WPL 3413F01319 Contact Us For Availability
21
SCREW WPL 7101P24260 Contact Us For Availability
21
HANDLE, LATCH (BLK) WPL 7701P06860 Contact Us For Availability
21
CLIP, LATCH HANDLE WPL 790277 Contact Us For Availability
22
LEVER, LATCH WPL 8009P01160 Contact Us For Availability
23
BULB, OVEN WPL 7407P02660 Contact Us For Availability
23
RECEPTACLE, LAMP WPL 7408P00260 Contact Us For Availability
24
LATCH ASSY. WPL 8002P01660 Contact Us For Availability
25
PAN, BROILER WPL 3401F01415 Contact Us For Availability
25
PAN, BROIL WPL 3401F01419 Contact Us For Availability
26
PANEL, SIDE (RT) WPL 2618F05351 Contact Us For Availability
26
PANEL, SIDE (LT) WPL 2618F05451 Contact Us For Availability
27
RACK WPL 7801P00560 Contact Us For Availability
28
RACK, OFFSET WPL 7801P00760 Contact Us For Availability
29
RETAINER, BOTTOM WPL 3804W03451 Contact Us For Availability
30
RETAINER WPL 3804F01145 Contact Us For Availability
31
RETAINER, REAR WPL 3804F09651 Contact Us For Availability
32
RETAINER,TOP WPL 3804F05351 Contact Us For Availability
33
SHIELD, AIR WPL 3604F10180 Contact Us For Availability
34
SHIELD, TERMINAL WPL 3604F04880 Contact Us For Availability
35
SUPPORT, BROIL ELEMENT WPL 3807F17615 Contact Us For Availability
36
SUPPORT WPL 3807F13780 Contact Us For Availability
37
HARNESS DOOR LOCK WPL 5195A01860 Contact Us For Availability
37
SWITCH, DOOR LOCK WPL 7403P00760 Contact Us For Availability
38
SWITCH, HIGH LIMIT WPL 7403P06360 Contact Us For Availability
39
BRACKET, HI LIMIT WPL 3801F12845 Contact Us For Availability
41
BUMPER DOOR (ROUND) WPL 8003P00260 Contact Us For Availability
41
BUMPER, DOOR (SQUARE) WPL 8003P00960 Contact Us For Availability
42
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
43
GASKET WPL 7201P01660 Contact Us For Availability
43
CATALYST BURNER WPL 7505P01860 Contact Us For Availability
44
SCREW WPL 7101P06160 Contact Us For Availability
45
BOTTOM, OVEN (UPPER) WPL 2205F00315 Contact Us For Availability
45
BOTTOM, OVEN WPL 2205F00319 Contact Us For Availability
45
BLOCK, TERMINAL---- WPL 7401P00360 Contact Us For Availability
× ![]()
