Model Whirlpool VM11CN-8P MICROWAVE – Common Parts & Diagrams

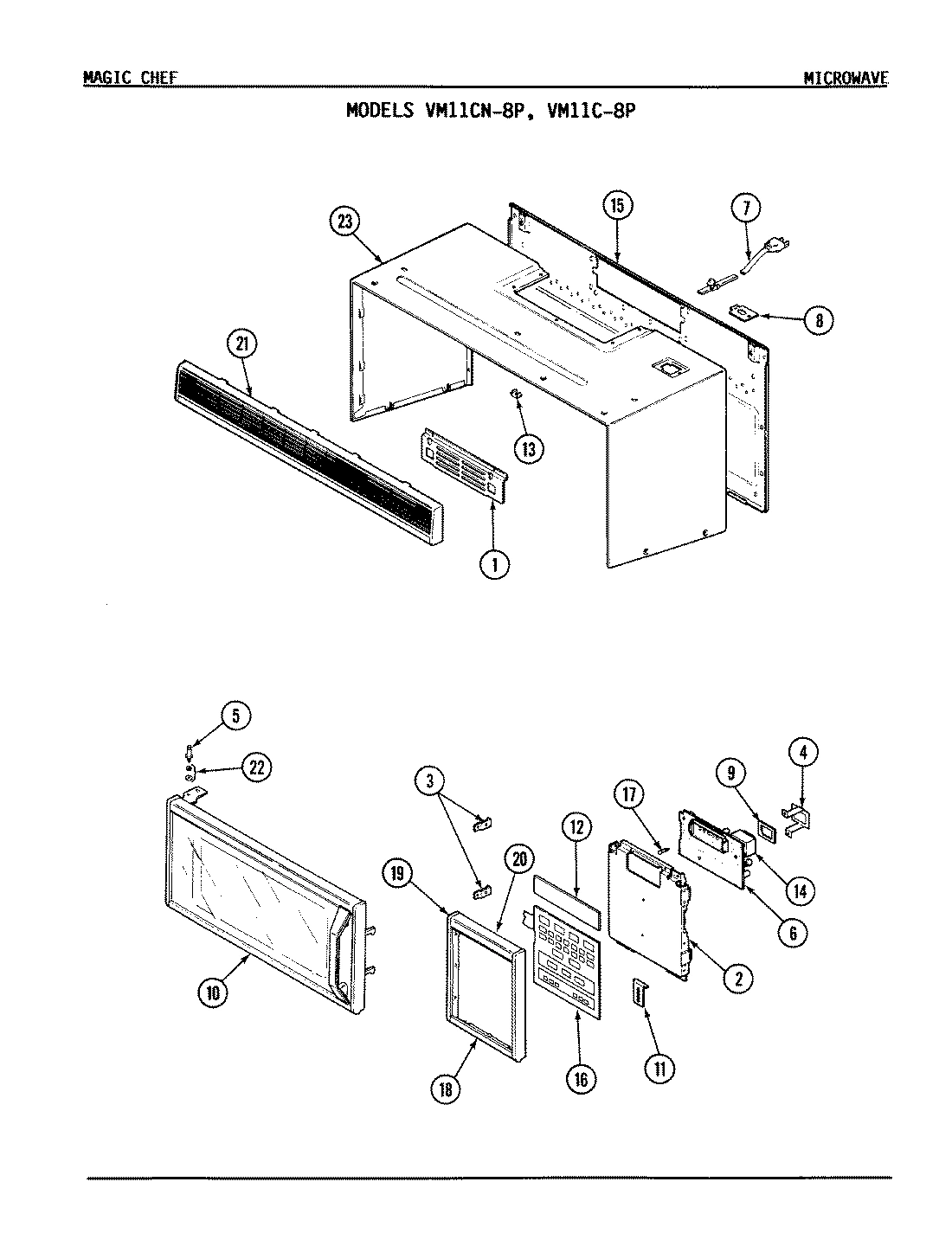

02 - CONTROL, DOOR & WRAPPER

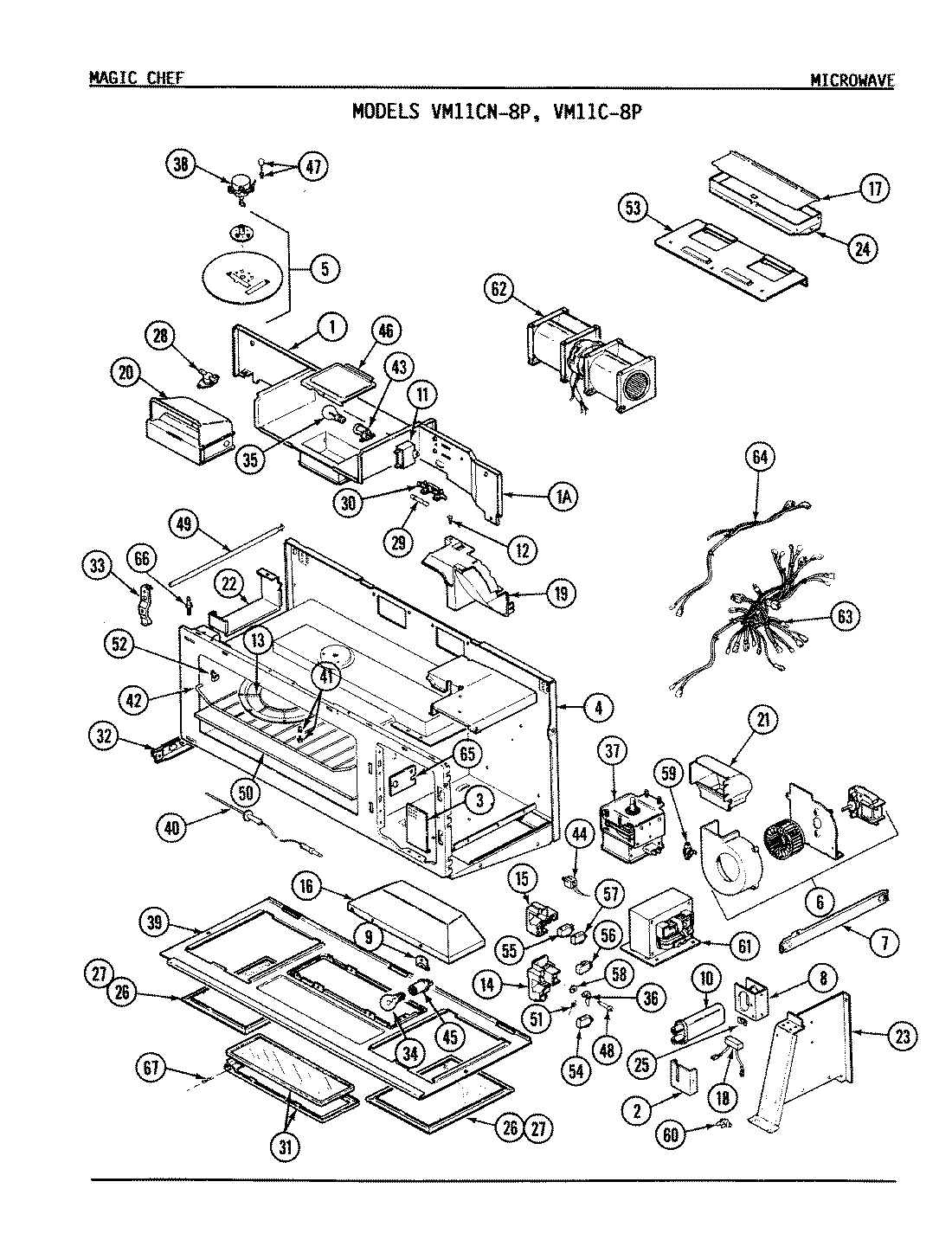

01 - BASE & CAVITY
Common parts from model Whirlpool VM11CN-8P MICROWAVE
1
BARRIER-FRONT WPL 05200105 Contact Us For Availability
1
DUCT ASSEMBLY - UPPER WPL 05200057 Contact Us For Availability
1A
DUCT ASSEMBLY WPL 05200058 Contact Us For Availability
2
SCREW WPL 05200043 Contact Us For Availability
2
BRACKET CONTROL PANEL WPL 05200125 Contact Us For Availability
2
BARRIER WPL 20800007 Contact Us For Availability
3
BRACKET, FRONT PANEL WPL 05200093 Contact Us For Availability
3
SCREW WPL Y05200006 Contact Us For Availability
3
BARRIER, H.V. TRANSFORMER WPL 21450050 Contact Us For Availability
4
BASE PLATE WPL Y05200063 Contact Us For Availability
5
STIRRER BLADE ASSY WPL Y05200107 Contact Us For Availability
6
CONTROL BOARD & DISPLAY WPL 05200126 Contact Us For Availability
6
MOTOR, BLOWER WPL 27200010 Contact Us For Availability
7
CORD, POWER SUPPLY WPL 05200064 Contact Us For Availability
7
BRACKET - EXHAUST WPL 05200073 Contact Us For Availability
7
BRACKET WPL 21450048 Contact Us For Availability
8
CLAMP, CABLE WPL Y05200026 Contact Us For Availability
8
BRACKET - HV CAPACITOR WPL 05200078 Contact Us For Availability
9
BRACKET, LV TRANSFORMER WPL 05200102 Contact Us For Availability
9
BRACKET - SOCKET WPL 05200112 Contact Us For Availability
10
DOOR ASSY WHITE WPL 05200019 Contact Us For Availability
10
CAPACITOR - HV WPL Y05200079 Contact Us For Availability
11
HINGE ASSEMBLY WPL 25200010 Contact Us For Availability
11
CAPACITOR - MOTOR WPL Y05200095 Contact Us For Availability
12
CRYSTAL WPL 05200089 Contact Us For Availability
12
CLIP WPL 05200034 Contact Us For Availability
13
COVER - STIRRER WPL 05200082 Contact Us For Availability
14
TRANSFORMER LV WPL Y05200127 Contact Us For Availability
14
LATCH, BRACKET (UPPER) WPL 22750041 Contact Us For Availability
14
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
15
PLATE MOUNTING WPL 05200056 Contact Us For Availability
15
LATCH, BRACKET (LOWER) WPL 22750043 Contact Us For Availability
16
SWITCH, MEMBRANE WPL Y05200128 Contact Us For Availability
16
COVER LAMP WPL 05200111 Contact Us For Availability
17
SUPPORT, TUB WPL 05200106 Contact Us For Availability
17
DOOR, DAMPER WPL 23050002 Contact Us For Availability
18
TRIM PANEL WHT WPL 05200013 Contact Us For Availability
18
DIODE WPL 23150004 Contact Us For Availability
19
CONTROL PANEL WPL 05200055 Contact Us For Availability
19
DUCT WPL 05200108 Contact Us For Availability
20
TRIM PANEL UPPER WHT WPL Y05200027 Contact Us For Availability
20
DUCT EXHAUST WPL 05200072 Contact Us For Availability
21
SCREW - GRILLE WPL 05200119 Contact Us For Availability
21
VENT - GRILLE ASSY WPL 05200130 Contact Us For Availability
22
WASHER WPL 32800033 Contact Us For Availability
22
WASHER WPL 32800040 Contact Us For Availability
22
DUCT - SIDE - LEFT WPL 05200061 Contact Us For Availability
23
OUTER CASE - WHITE WPL 05200062 Contact Us For Availability
23
SCREW WPL 30050162 Contact Us For Availability
23
DUCT - SIDE WPL 05200080 Contact Us For Availability
24
FRAME, DAMPER WPL Y05200066 Contact Us For Availability
25
FASTENER, HVC (SCREW) WPL 05200077 Contact Us For Availability
26
FILTER, AIR WPL 23900003 Contact Us For Availability
27
FILTER KIT (CHARCOAL) WPL Y05200037 Contact Us For Availability
28
FLAME, SENSOR WPL 05200060 Contact Us For Availability
29
FUSE 15A 125V WPL Y01050005 Contact Us For Availability
31
COVER GLASS ASSEMBLY WPL Y05200109 Contact Us For Availability
32
BASE - BRIDGE - LEFT WPL 05200071 Contact Us For Availability
33
GUIDE, MTG SHAFT WPL 25200011 Contact Us For Availability
34
INSTALLATION KIT WPL 26100007 Contact Us For Availability
34
LAMP WPL 26350005 Contact Us For Availability
35
LIGHT, OVEN WPL 26650003 Contact Us For Availability
36
LEVER, HOOK WPL 26600017 Contact Us For Availability
37
MAGNETRON WPL Y05200074 Contact Us For Availability
38
MOTOR - STIRRER WPL 05200083 Contact Us For Availability
39
BOTTOM PLATE ASSY WPL 05200124 Contact Us For Availability
40
PROBE WPL 28600002 Contact Us For Availability
42
RACK WPL 29050014 Contact Us For Availability
43
RECEPTACLE, BULB WPL 05200052 Contact Us For Availability
44
RECEPTACLE WPL 29150009 Contact Us For Availability
45
RECEPTACLE, BULB (COOKTOP) WPL 05200053 Contact Us For Availability
46
COVER, LAMP WPL 05200059 Contact Us For Availability
47
PUSH RIVET WPL 29500005 Contact Us For Availability
48
SCREW, CAM WPL 30050114 Contact Us For Availability
49
SHAFT, MOUNTING WPL 05200085 Contact Us For Availability
50
SHELVE WPL 30250004 Contact Us For Availability
51
SPRING, HOOK WPL 30700024 Contact Us For Availability
52
SUPPORT, RACK WPL Y05200084 Contact Us For Availability
53
BRACKET, MOTOR SUPPORT WPL Y05200065 Contact Us For Availability
54
SWITCH, SECONDARY WPL 31350085 Contact Us For Availability
55
SWITCH, DOOR WPL 05200081 Contact Us For Availability
56
SWITCH WPL Y01140049 Contact Us For Availability
57
SWITCH, PRIMARY WPL 31350086 Contact Us For Availability
58
CAM, SWITCH WPL 21950007 Contact Us For Availability
59
THERMOSTAT, SWITCH WPL 31600010 Contact Us For Availability
60
THERMOSTAT - HOOD WPL 31600006 Contact Us For Availability
61
TRANSFORMER, H.V. WPL 05200076 Contact Us For Availability
62
MOTOR, VENT. WPL 27200018 Contact Us For Availability
63
MAIN WIRE HARNESS WPL 05200096 Contact Us For Availability
64
WIRE HARNESS WPL 05200097 Contact Us For Availability
65
COVER, MA WPL 20800006 Contact Us For Availability
66
WPL 05200023 WPL 05200023 Contact Us For Availability
67
WPL 05200035 WPL 05200035 Contact Us For Availability
× ![]()
