Model Whirlpool VM11B-8PDY MICROWAVE – Common Parts & Diagrams
01 - BASE & CAVITY PARTS

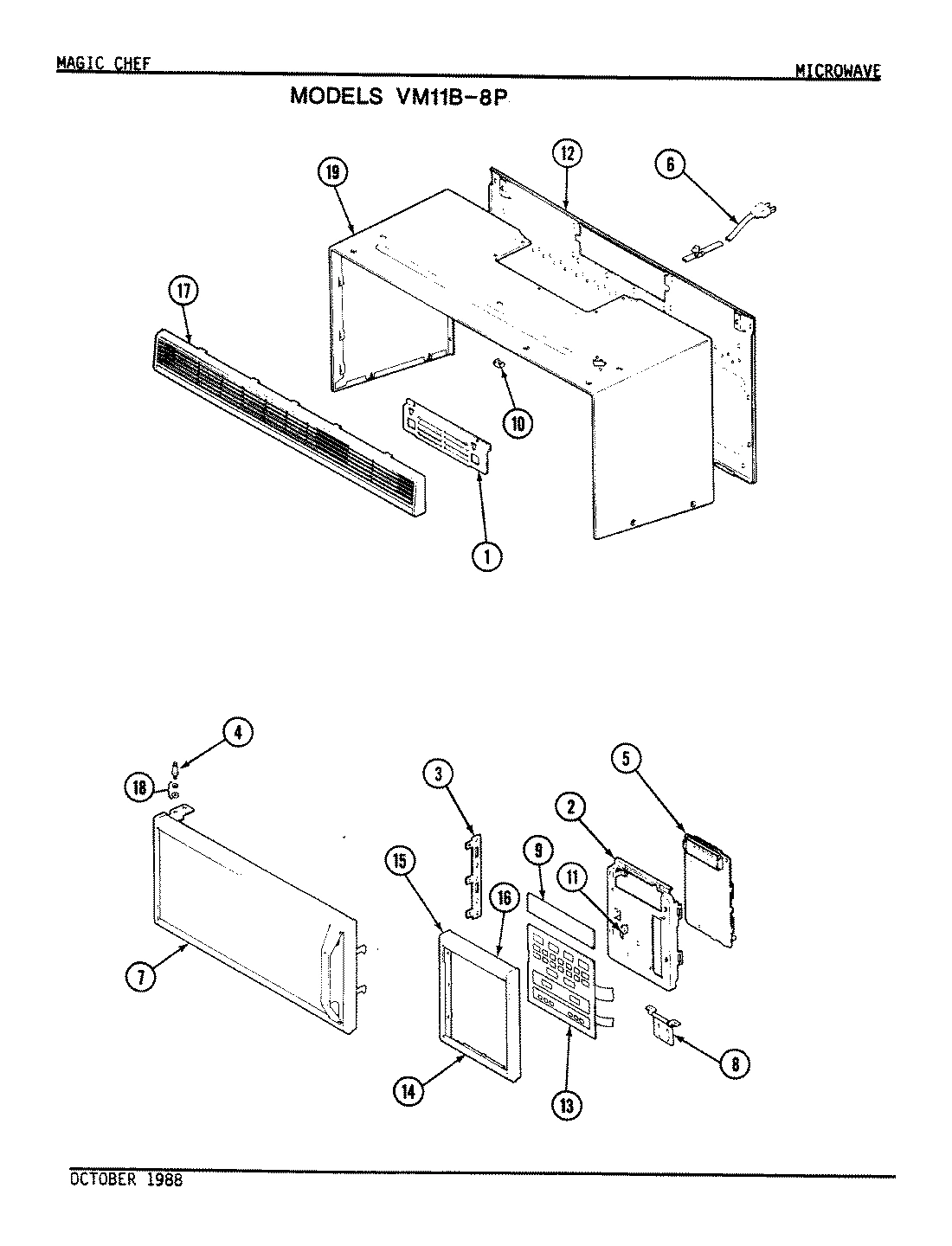

02 - CONTROL, DOOR & WRAPPER
Common parts from model Whirlpool VM11B-8PDY MICROWAVE
1
DAMPER WPL 20800003 Contact Us For Availability
2
BASE WPL 20850005 Contact Us For Availability
2
BRACKET, PANEL WPL 05200028 Contact Us For Availability
3
BLADE ASSY, STIRRER WPL 21100005 Contact Us For Availability
3
BRACKET, PANEL WPL 21450045 Contact Us For Availability
4
MOTOR, BLOWER WPL 27200010 Contact Us For Availability
4
BOLT WPL 30050112 Contact Us For Availability
5
BRACKET WPL 21450048 Contact Us For Availability
5
BOARD, CONTROL $20. WPL 05200018 Contact Us For Availability
6
BRACKET, CAPACITOR WPL 21450073 Contact Us For Availability
6
POWER CORD WPL 22700007 Contact Us For Availability
7
CAPACITOR WPL 22100004 Contact Us For Availability
7
DOOR ASSY. WPL 23250005 Contact Us For Availability
8
CAPACITOR WPL 22100009 Contact Us For Availability
8
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
8
HINGE ASSY WPL 25200018 Contact Us For Availability
9
COVER, STIRRER WPL 22750040 Contact Us For Availability
9
DISPLAY, WINDOW WPL 32850004 Contact Us For Availability
10
LATCH, BRACKET (LOWER) WPL 22750043 Contact Us For Availability
10
NUT WPL 27350024 Contact Us For Availability
11
LATCH, BRACKET (UPPER) WPL 22750041 Contact Us For Availability
12
DOOR, DAMPER WPL 23050002 Contact Us For Availability
12
PLATE, MOUNTING WPL 28450032 Contact Us For Availability
13
SWITCH, MEMBRANE WPL 31350084 Contact Us For Availability
14
DUCT ASSY WPL 23350022 Contact Us For Availability
14
CONTROL TRIM BTM WPL 32300074 Contact Us For Availability
15
DUCT, AIR WPL 23350015 Contact Us For Availability
15
TRIM, CONTROL PANEL WPL 32300098 Contact Us For Availability
16
DUCT, MAGNETRON WPL 23350023 Contact Us For Availability
16
CONTROL TRIM TOP WPL 32300073 Contact Us For Availability
17
DUCT, SIDE LEFT WPL 31300020 Contact Us For Availability
17
VENT WPL 32650007 Contact Us For Availability
17
SCREW WPL 32650008 Contact Us For Availability
18
BAFFLE, UPPER WPL 20450010 Contact Us For Availability
18
DUCT, SIDE (RT) WPL 31300021 Contact Us For Availability
18
WASHER WPL 32800040 Contact Us For Availability
19
WRAPPER WPL 05200009 Contact Us For Availability
21
FILTER, AIR WPL 23900003 Contact Us For Availability
21
FILTER(NON-VENT) WPL 23900004 Contact Us For Availability
21
FUSE WPL 24350001 Contact Us For Availability
21
FUSE HOLDER WPL 24350005 Contact Us For Availability
22
GLASS, COVER ASSY WPL 22750039 Contact Us For Availability
23
CLIP, BOTTOM WPL 25200012 Contact Us For Availability
24
GUIDE, MTG SHAFT WPL 25200011 Contact Us For Availability
24
INSTALLATION KIT WPL 26100007 Contact Us For Availability
25
LAMP, OVEN 30 W WPL 26350004 Contact Us For Availability
25
LAMP WPL 26350005 Contact Us For Availability
26
LEVER, HOOK WPL 26600017 Contact Us For Availability
27
COVER, MAGNETRON WPL 20800006 Contact Us For Availability
27
MAGNETRON WPL 27050006 Contact Us For Availability
28
MOTOR, STIRRER WPL 27200011 Contact Us For Availability
29
PLATE, BOTTOM WPL 28450033 Contact Us For Availability
30
PROBE WPL 28600002 Contact Us For Availability
31
RACK WPL 29050014 Contact Us For Availability
33
RECEPTACLE WPL 29150009 Contact Us For Availability
34
REFLECTOR, LAMP WPL 29200004 Contact Us For Availability
35
RIVET, PUSH WPL 29500007 Contact Us For Availability
36
SCREW, CAM WPL 30050114 Contact Us For Availability
37
SHAFT, MTG WPL 05200012 Contact Us For Availability
38
SHELVE WPL 30250004 Contact Us For Availability
40
SUPPORT, MOTOR WPL 31300017 Contact Us For Availability
41
RACK, SUPPORT WPL 31300018 Contact Us For Availability
42
BRACKET, MOTOR WPL 31300019 Contact Us For Availability
43
SWITCH, SECONDARY WPL 31350085 Contact Us For Availability
44
CAM, SWITCH WPL 21950007 Contact Us For Availability
45
SWITCH, PRIMARY WPL 31350086 Contact Us For Availability
46
SWITCH, MONITOR WPL 31350059 Contact Us For Availability
47
SWITCH, LOGIC WPL 31350087 Contact Us For Availability
48
THERMOSTAT, SWITCH WPL 31600010 Contact Us For Availability
49
THERMOSTAT - HOOD WPL 31600006 Contact Us For Availability
50
VARISTOR WPL 01010009 Contact Us For Availability
50
TRANSFORMER, H.V. WPL 32150012 Contact Us For Availability
51
MOTOR, VENT. WPL 27200018 Contact Us For Availability
53
GLASS, LAMP WPL 24550013 Contact Us For Availability
54
WIRE HARNESS WPL 05200015 Contact Us For Availability
55
WIRE HARNESS WPL 05200016 Contact Us For Availability
55
PAINT, TOUCH UP WPL 27800002 Contact Us For Availability
NI
RECEPTACLE, LAMP WPL 29150008 Contact Us For Availability
NI
FASTENER WPL 23850004 Contact Us For Availability
NI
SPRING, HOOK WPL 30700024 Contact Us For Availability
× ![]()
