Model LG VFBMW3 – Common Parts & Diagrams

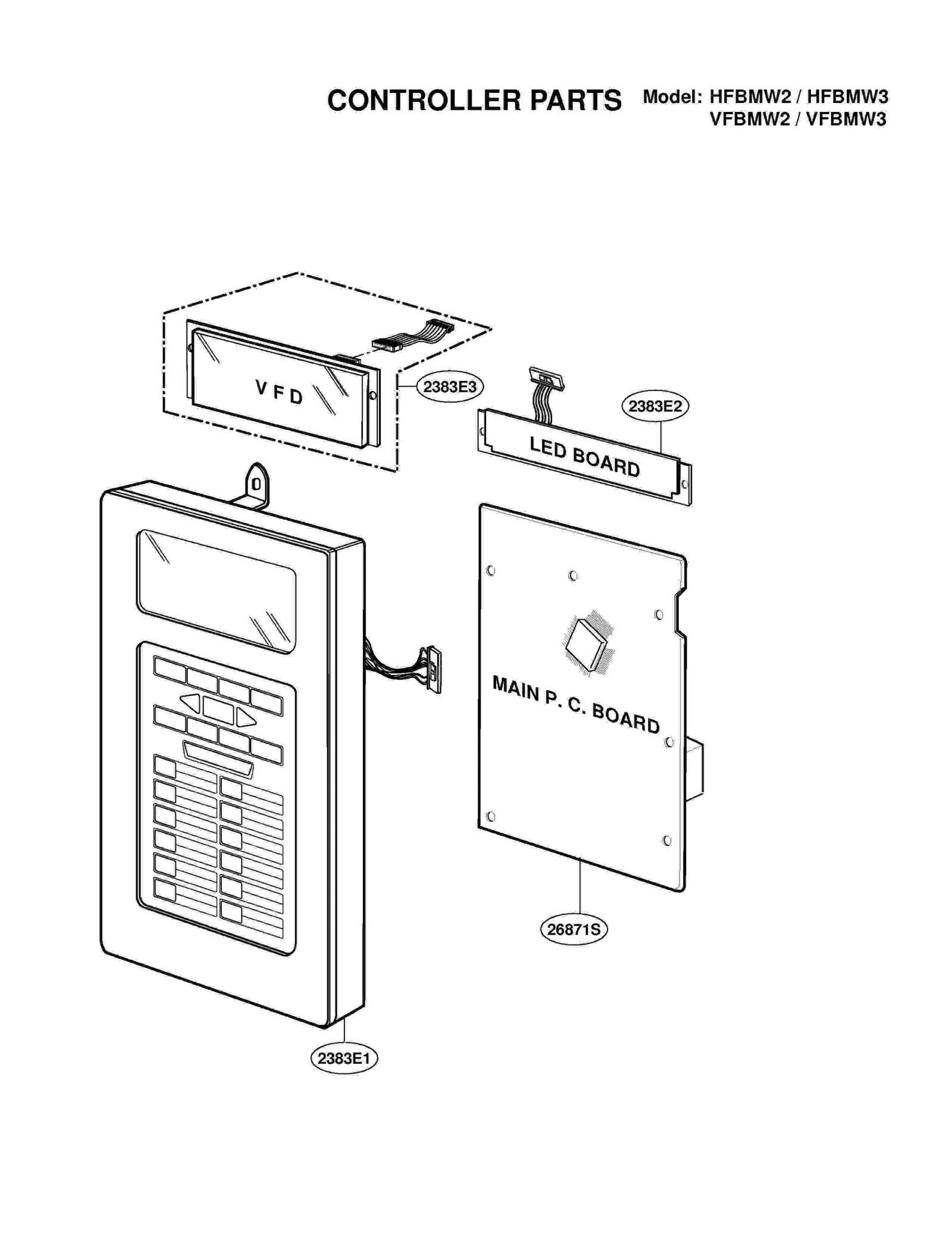

Diagram 0

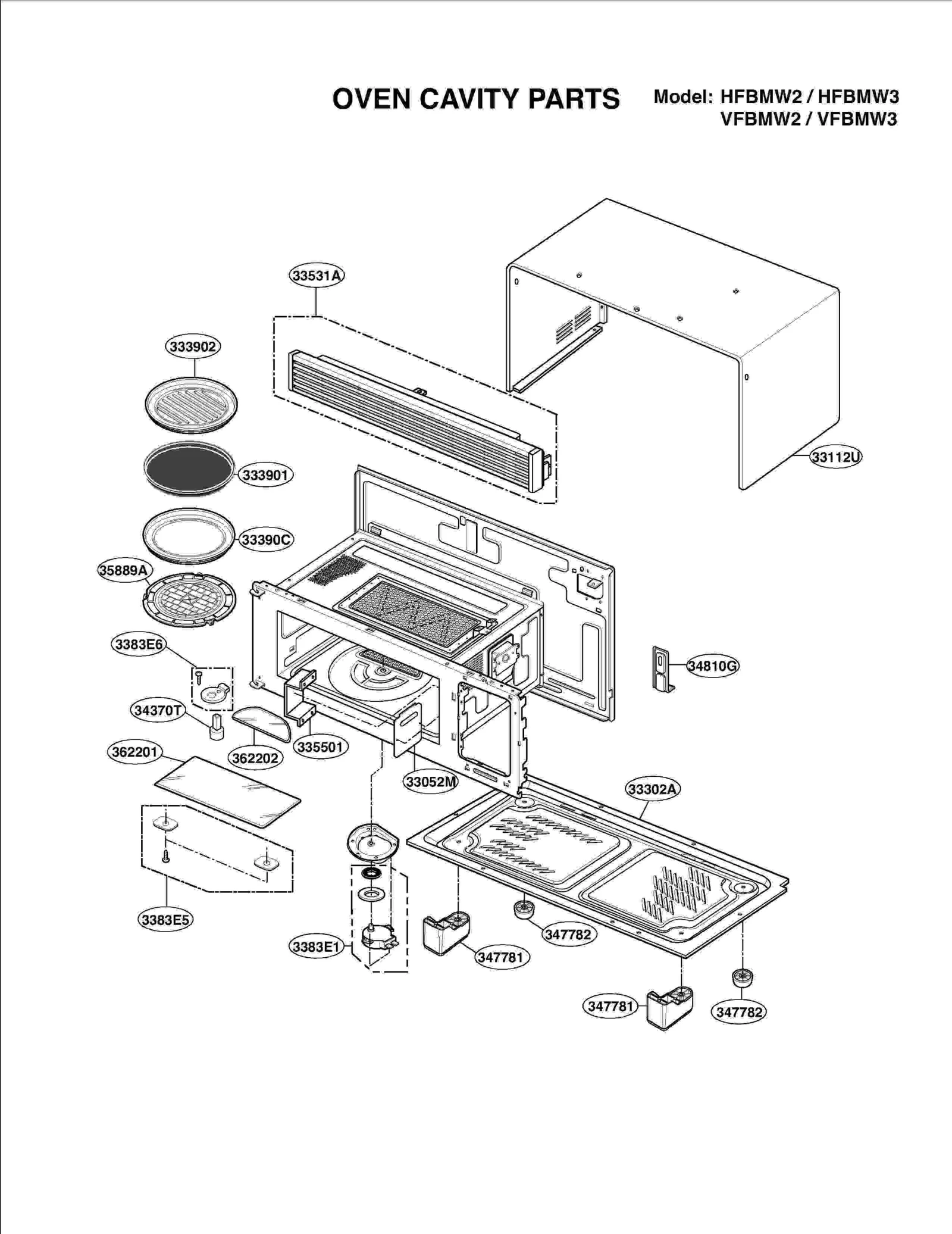

Diagram 1

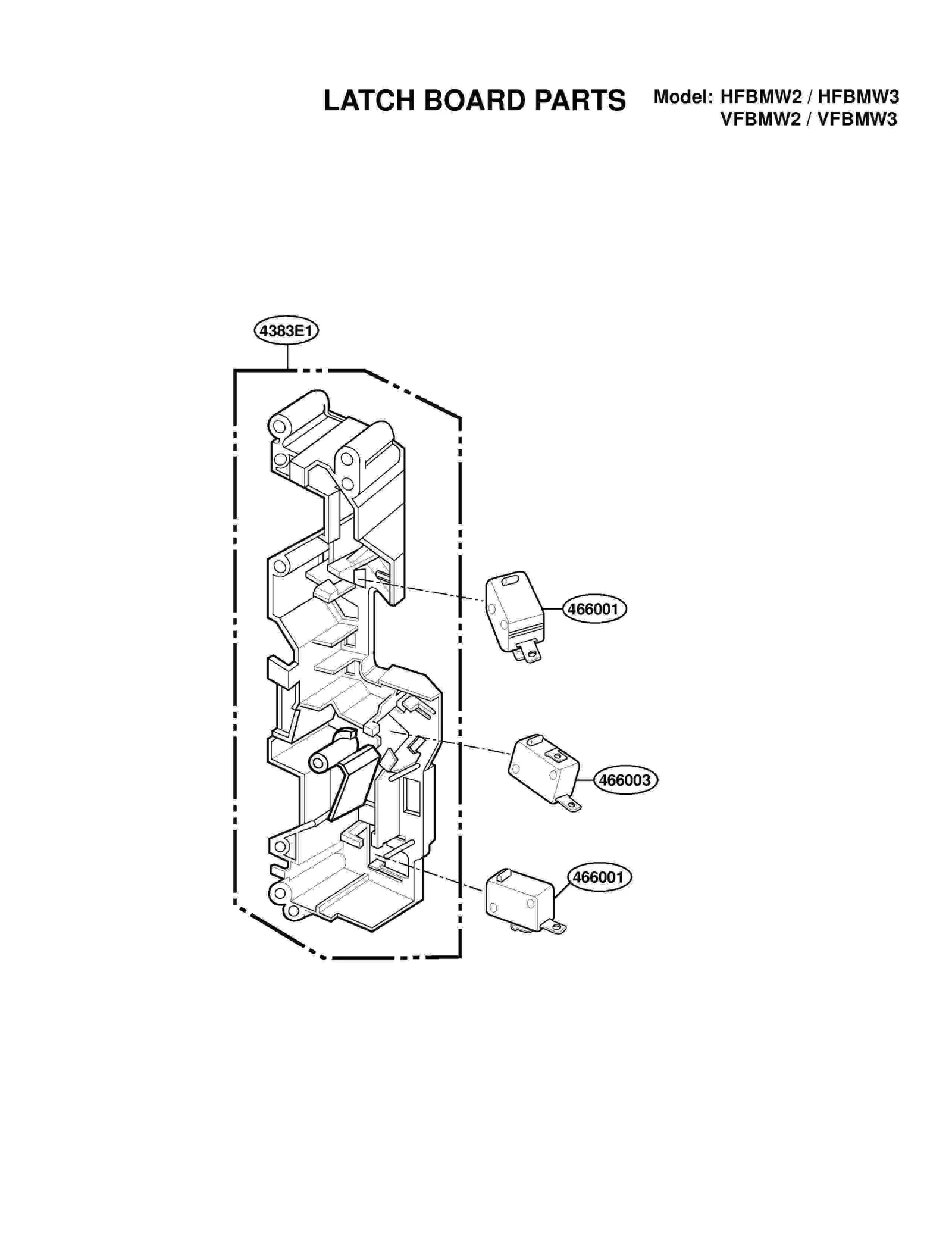

Diagram 2
Diagram 3

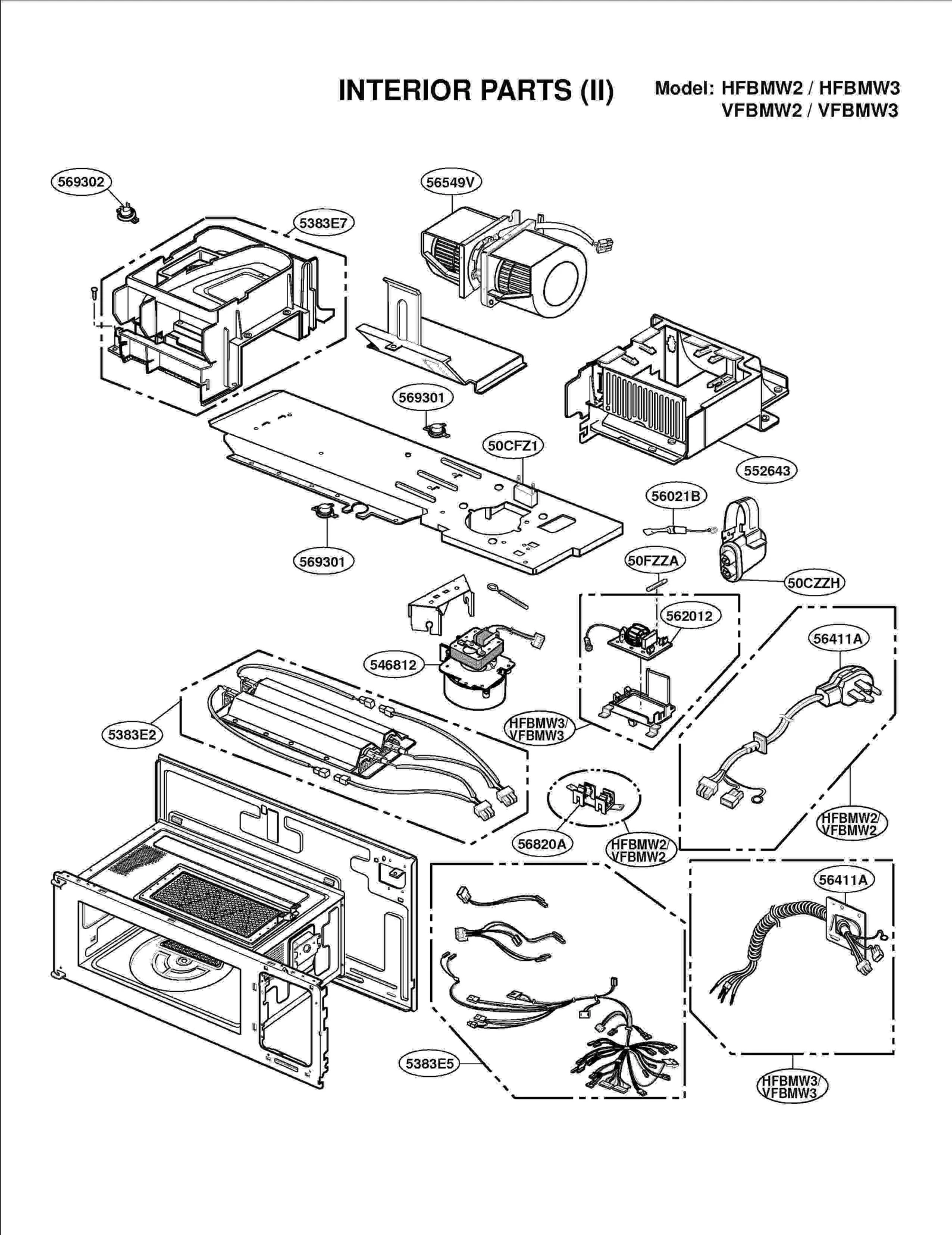

Diagram 4
Diagram 5
Common parts from model LG VFBMW3
*01
MANUAL,OWNERS LGE 3828W5A1831 Contact Us For Availability
*04
LGE 3828W5U0119 LGE 3828W5U0119 Contact Us For Availability
*05
LGE 3850W3D069A LGE 3850W3D069A Contact Us For Availability
*05
Label,Cooking Guide LGE 3850W5D001B Contact Us For Availability
*10
LGE 3890W3Y195A LGE 3890W3Y195A Contact Us For Availability
50CFZ1
Capacitor,Film,Box LGE 3B72440A Contact Us For Availability
1383E1
LGE 383EW0A003C LGE 383EW0A003C Contact Us For Availability
1383E2
SERVICE PARTS LGE 383EW2A001A Contact Us For Availability
3383E1
Parts Assembly,SVC LGE 383EW3A006A Contact Us For Availability
3383E5
LGE 383EW3A004B LGE 383EW3A004B Contact Us For Availability
3383E6
LGE 383EW3A005B LGE 383EW3A005B Contact Us For Availability
4383E1
SERVICE PARTS LGE 383EW1A005A Contact Us For Availability
5383E1
LGE 383EW1A001A LGE 383EW1A001A Contact Us For Availability
5383E2
LGE 383EW1A002A LGE 383EW1A002A Contact Us For Availability
5383E3
LGE 383EW1A006A LGE 383EW1A006A Contact Us For Availability
5383E4
SERVICE PARTS LGE 383EW1A007A Contact Us For Availability
5383E5
LGE 383EW1A009C LGE 383EW1A009C Contact Us For Availability
5383E7
LGE 383EW1A008B LGE 383EW1A008B Contact Us For Availability
13552A
LGE 3552W1A041A LGE 3552W1A041A Contact Us For Availability
13651A
LGE 3651W1A002D LGE 3651W1A002D Contact Us For Availability
26302A
VFD LGE 6302W5A011B Contact Us For Availability
33052M
Cover,Insulator LGE 3052W3M020A Contact Us For Availability
33112U
LGE 3112W1U024A LGE 3112W1U024A Contact Us For Availability
33302A
LGE 3302W0A027B LGE 3302W0A027B Contact Us For Availability
33390C
TRAY,[CERAMIC] LGE 3390W1C001A Contact Us For Availability
33531A
LGE 3531W1A009A LGE 3531W1A009A Contact Us For Availability
34370T
SHAFT,TURN TABLE LGE 4370W3T011A Contact Us For Availability
34810G
LGE 4810W3G147A LGE 4810W3G147A Contact Us For Availability
54975S
LGE 4975W1S060A LGE 4975W1S060A Contact Us For Availability
56021B
DIODE ASSY,DIODE+CABLE LGE 6021W3B001L Contact Us For Availability
56170D
LGE 6170W1D002C LGE 6170W1D002C Contact Us For Availability
56170G
TRANSFORMER,POWER LGE 6170W2G008A Contact Us For Availability
56322V
LGE 2B72827J LGE 2B72827J Contact Us For Availability
56411A
LGE 6411W1A007D LGE 6411W1A007D Contact Us For Availability
56549V
LGE 6549W1V007A LGE 6549W1V007A Contact Us For Availability
56820A
HOLDER ALL 20A,300V MAX,LITTEL LGE 4930W3B025A Contact Us For Availability
56871S
LGE 6871W2S187B LGE 6871W2S187B Contact Us For Availability
56901A
Fuse Assembly LGE 6901W3A003A Contact Us For Availability
333902
Tray,Metal LGE 3390W2M005D Contact Us For Availability
335501
LGE 3550W2A110A LGE 3550W2A110A Contact Us For Availability
347781
LGE 4778W3A005A LGE 4778W3A005A Contact Us For Availability
347782
LGE 4778W3A006A LGE 4778W3A006A Contact Us For Availability
362202
Filter,Ceramic LGE 6220W3A001A Contact Us For Availability
546811
MOTOR ASSY LGE 4681W2A001A Contact Us For Availability
546812
MOTOR ASSY LGE 4681W2A002A Contact Us For Availability
552643
LGE 5264W0A003A LGE 5264W0A003A Contact Us For Availability
569301
THERMOSTAT ALL PW-2N.145/0.H.P LGE 6930W3A001B Contact Us For Availability
569303
THERMOSTAT 160 V PW MA-1554M LGE 6930WRT003A Contact Us For Availability
× ![]()
