Model LG VDS-ST9HN Dumping Station (Vacuum Cleaner), A9K 599 Single Station – Common Parts & Diagrams
Diagram 0

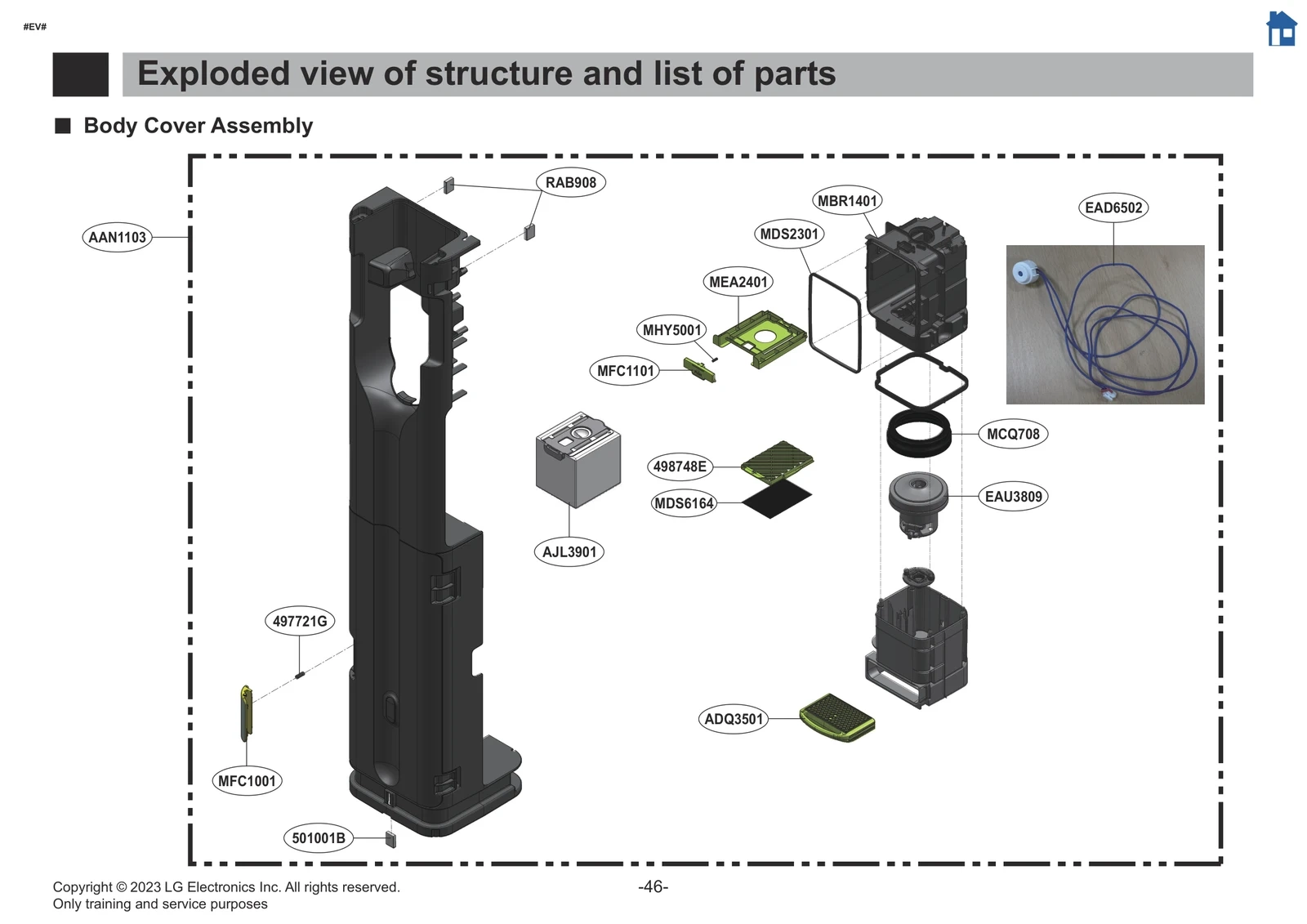

Diagram 1

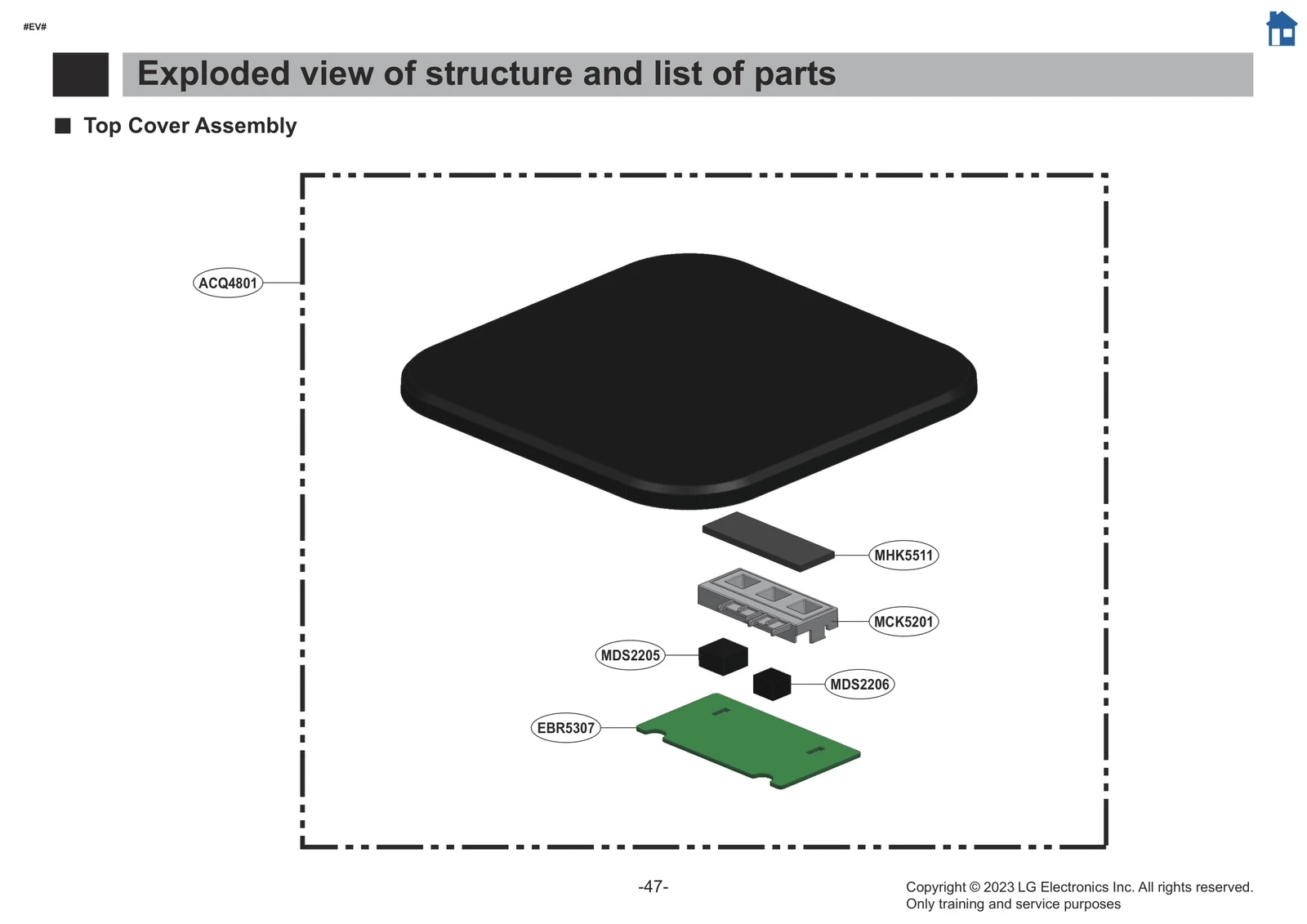

Diagram 2

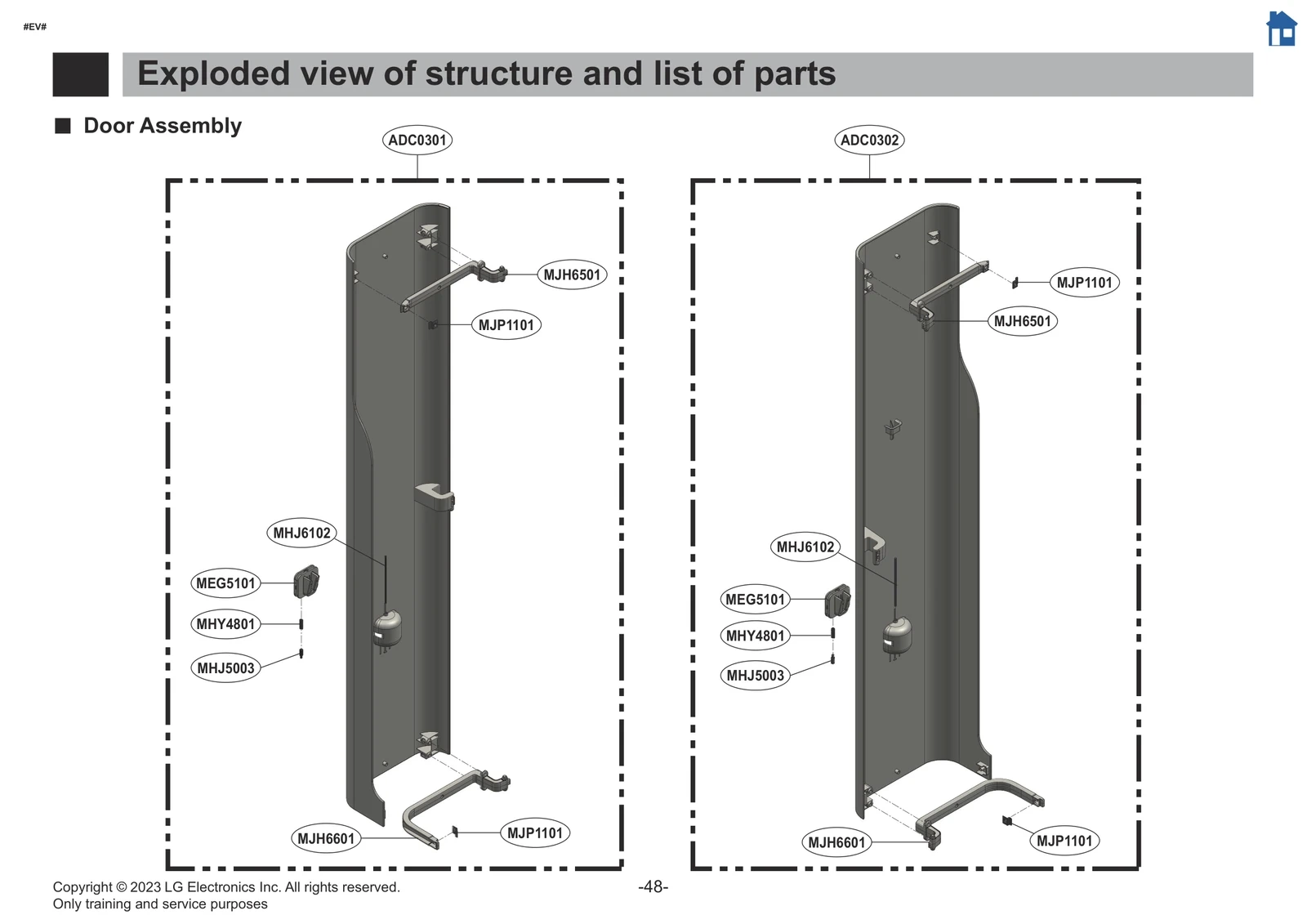

Diagram 3

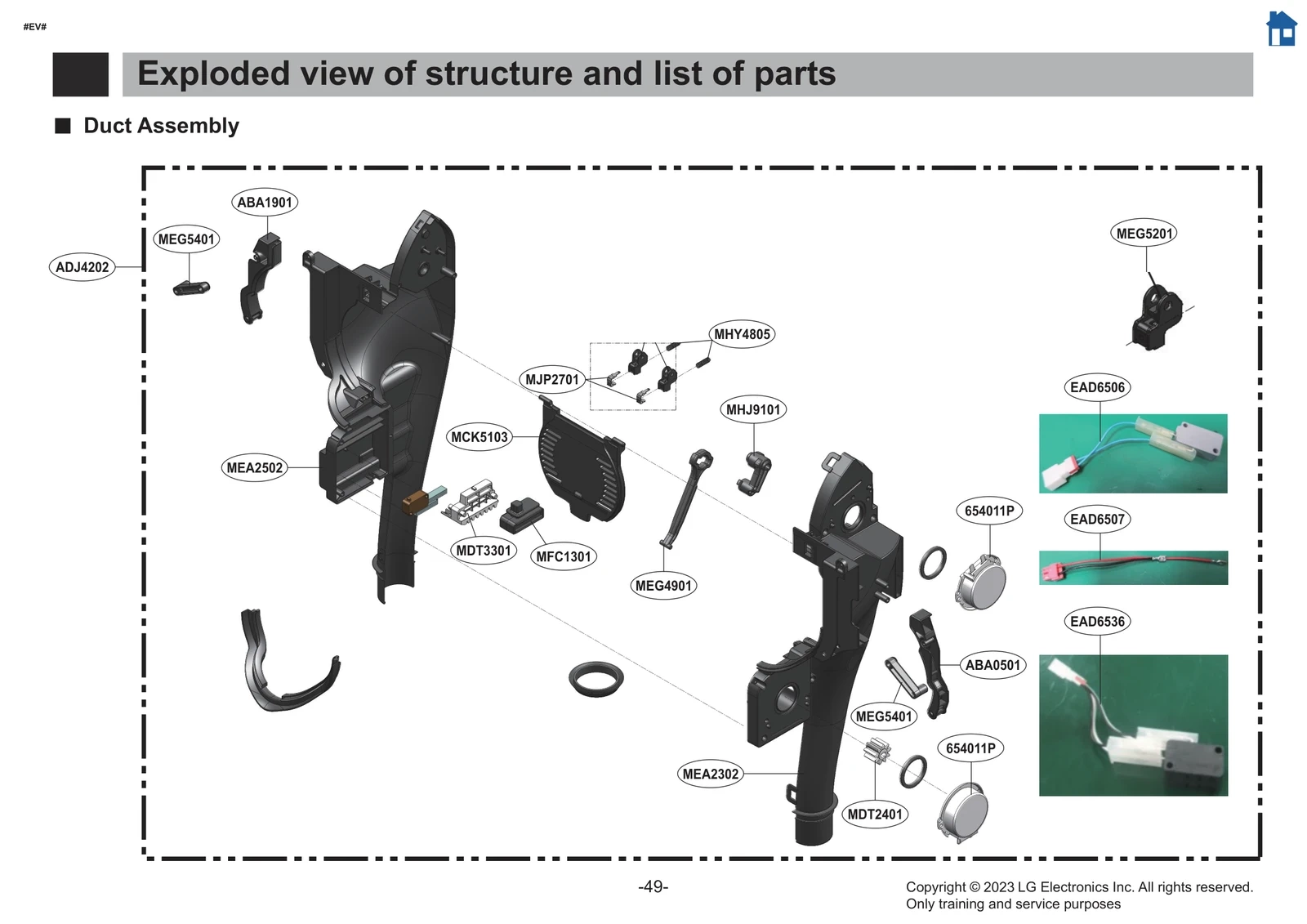

Diagram 4

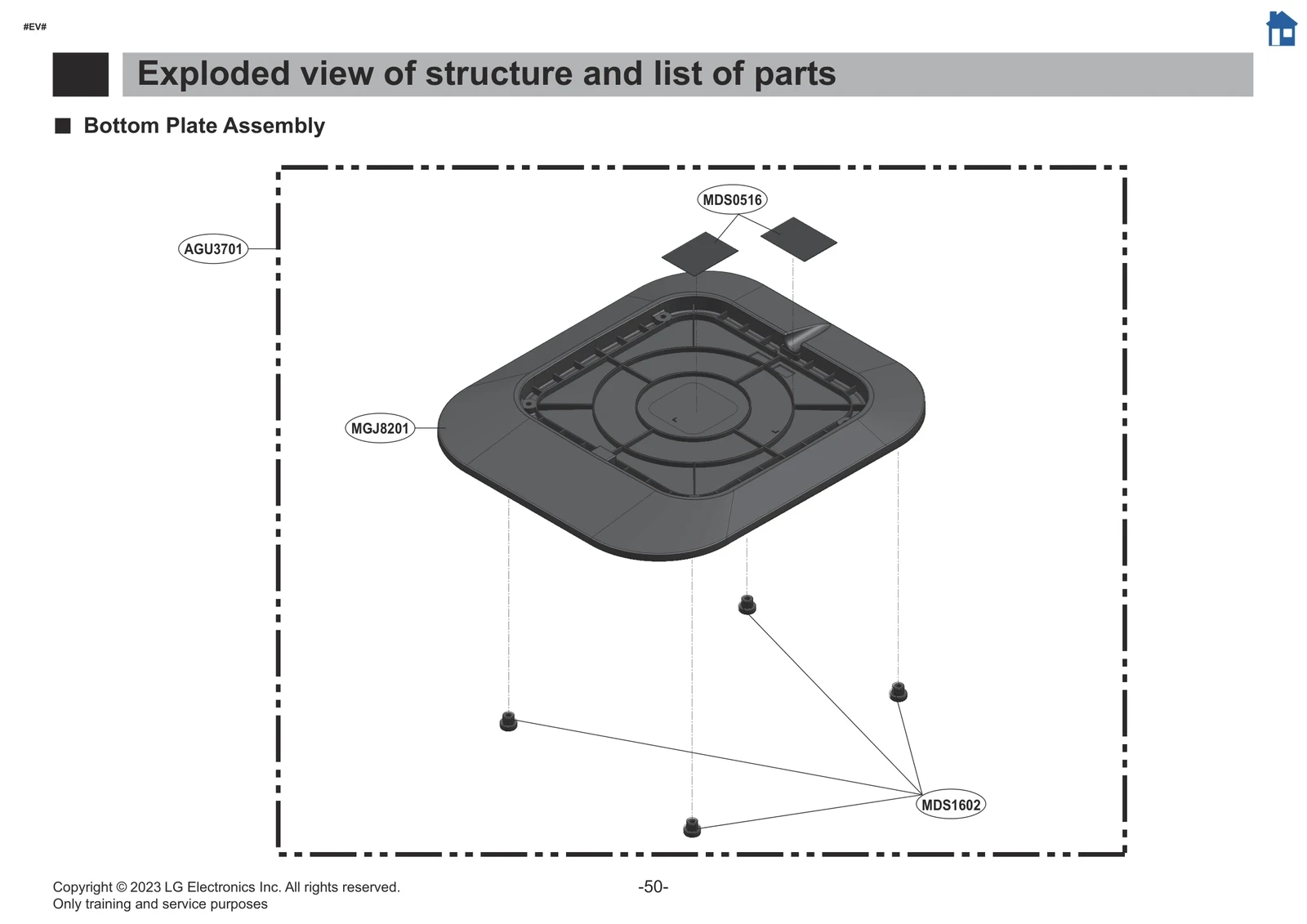

Diagram 5
Common parts from model LG VDS-ST9HN Dumping Station (Vacuum Cleaner), A9K 599 Single Station
497721G
Spring,Coil LGE 4970FI4721G Contact Us For Availability
501001B
Magnet,NdFeB LGE 5016F73001B Contact Us For Availability
654011P
Motor, AC Synchronous LGE 6549W1S013U Contact Us For Availability
AAN1103
Base Assembly,Body LGE AAN30071103 Contact Us For Availability
ABA0501
Bracket Assembly LGE ABA30040505 Contact Us For Availability
ABA1901
Bracket Assembly LGE ABA30031905 Contact Us For Availability
ACQ5011
Cover Assembly LGE ACQ30315064 Contact Us For Availability
ADC0301
Door Assembly LGE ADC30010340 Contact Us For Availability
ADC0302
Door Assembly LGE ADC30010341 Contact Us For Availability
ADJ4202
Duct Assembly,Dust LGE ADJ75614223 Contact Us For Availability
EAD5901
Power Cord Assembly LGE EAD65895903 Contact Us For Availability
EAD6502
Harness,Single LGE EAD65896513 Contact Us For Availability
EAD6506
Harness,Single LGE EAD65896506 Contact Us For Availability
EAD6507
Harness,Single LGE EAD65896507 Contact Us For Availability
EAD6535
Harness,Single LGE EAD65896535 Contact Us For Availability
EAD6536
Harness,Single LGE EAD65896536 Contact Us For Availability
EAU3809
Motor Assembly,AC LGE EAU60683809 Contact Us For Availability
EBR1201
PCB Assembly,Main LGE EBR33171227 Contact Us For Availability
EBR5307
PCB Assembly,Sub LGE EBR32115307 Contact Us For Availability
MBR1401
Chamber LGE MBR62501409 Contact Us For Availability
MCK4701
Cover,Rear LGE MCK71494716 Contact Us For Availability
MCK5201
Cover,LED LGE MCK71495203 Contact Us For Availability
MCQ708
Damper,Motor LGE MCQ70890202 Contact Us For Availability
MDS0516
Gasket LGE MDS63630517 Contact Us For Availability
MDS2206
Gasket LGE MDS61982206 Contact Us For Availability
MDS6164
Gasket LGE MDS49556164 Contact Us For Availability
MDT3301
Gear LGE MDT64513301 Contact Us For Availability
MEA2302
Guide,Air LGE MEA66352307 Contact Us For Availability
MEA2502
Guide,Air LGE MEA66352508 Contact Us For Availability
MEG201
Holder,Fixing LGE MEG62519201 Contact Us For Availability
MEG4901
Holder LGE MEG66714901 Contact Us For Availability
MEG5101
Holder,Nozzle LGE MEG66665110 Contact Us For Availability
MEG5301
Holder,Accessory LGE MEG66665305 Contact Us For Availability
MEG5301
Holder,Accessory LGE MEG66665304 Contact Us For Availability
MEG5401
Holder LGE MEG66665401 Contact Us For Availability
MFC1001
Lever,Release LGE MFC64331001 Contact Us For Availability
MFC1101
Lever,Release LGE MFC64331102 Contact Us For Availability
MFC1101
Lever,Release LGE MFC64331101 Contact Us For Availability
MFC1301
Lever,Release LGE MFC64331303 Contact Us For Availability
MGJ8201
Plate,Bottom LGE MGJ67228204 Contact Us For Availability
MHJ5003
Shaft LGE MHJ65845005 Contact Us For Availability
MHJ6102
Shaft LGE MHJ65596102 Contact Us For Availability
MHY4801
Spring,Coil LGE MHY62904803 Contact Us For Availability
MHY5001
Spring,Coil LGE MHY38975002 Contact Us For Availability
MJH4201
Supporter,Case LGE MJH66254206 Contact Us For Availability
MJH4201
Supporter,Case LGE MJH66254205 Contact Us For Availability
MJH6501
Supporter,Cover LGE MJH66256508 Contact Us For Availability
MJH6601
Supporter,Cover LGE MJH66256608 Contact Us For Availability
MJP1101
Terminal LGE MJP62731101 Contact Us For Availability
MJP2701
Terminal,Contact LGE MJP63552701 Contact Us For Availability
× ![]()
