Model LG VDS-ST8TN Dumping Station (Vacuum Cleaner), A9KP station, non uv – Common Parts & Diagrams
Diagram 0

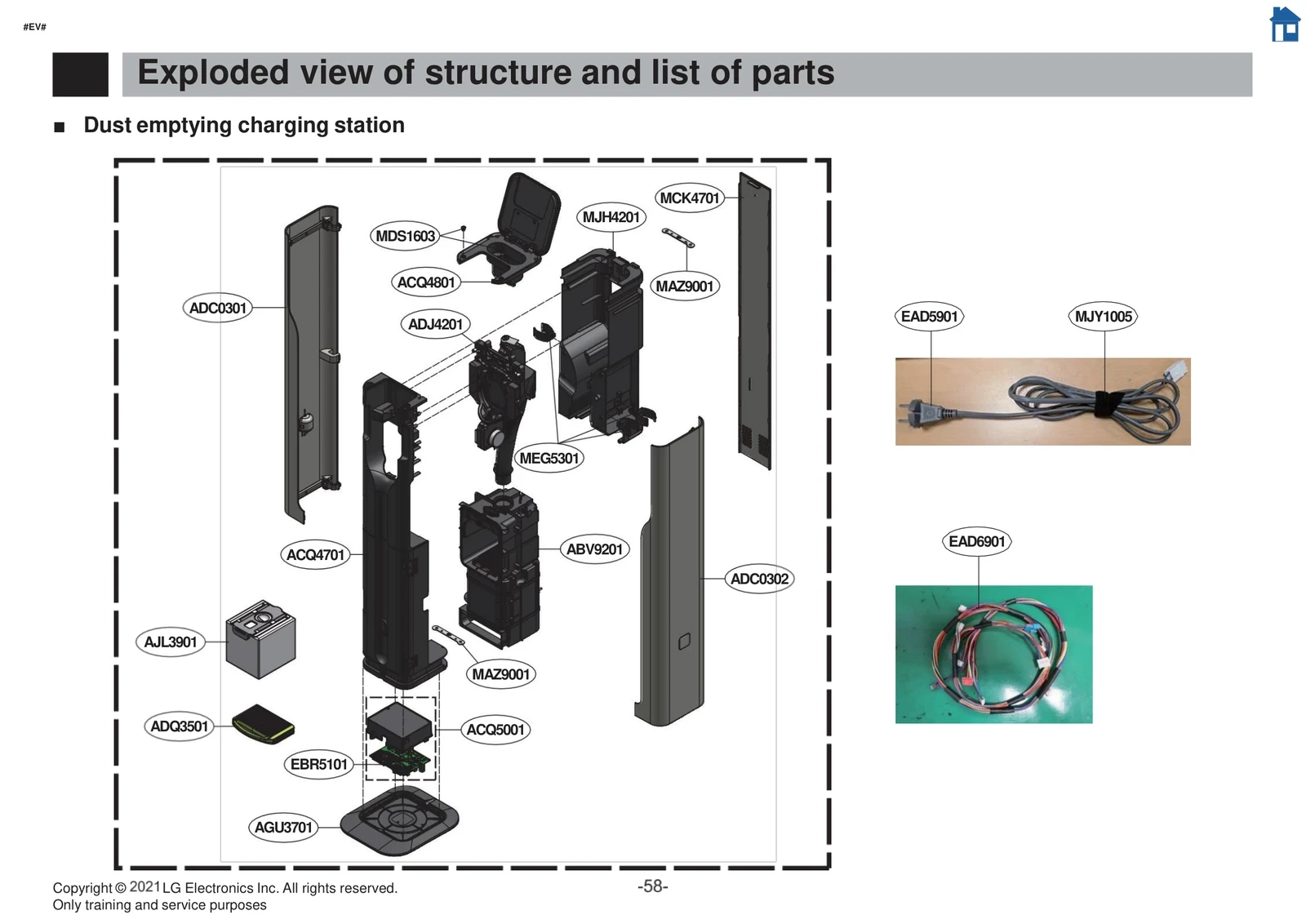

Diagram 1

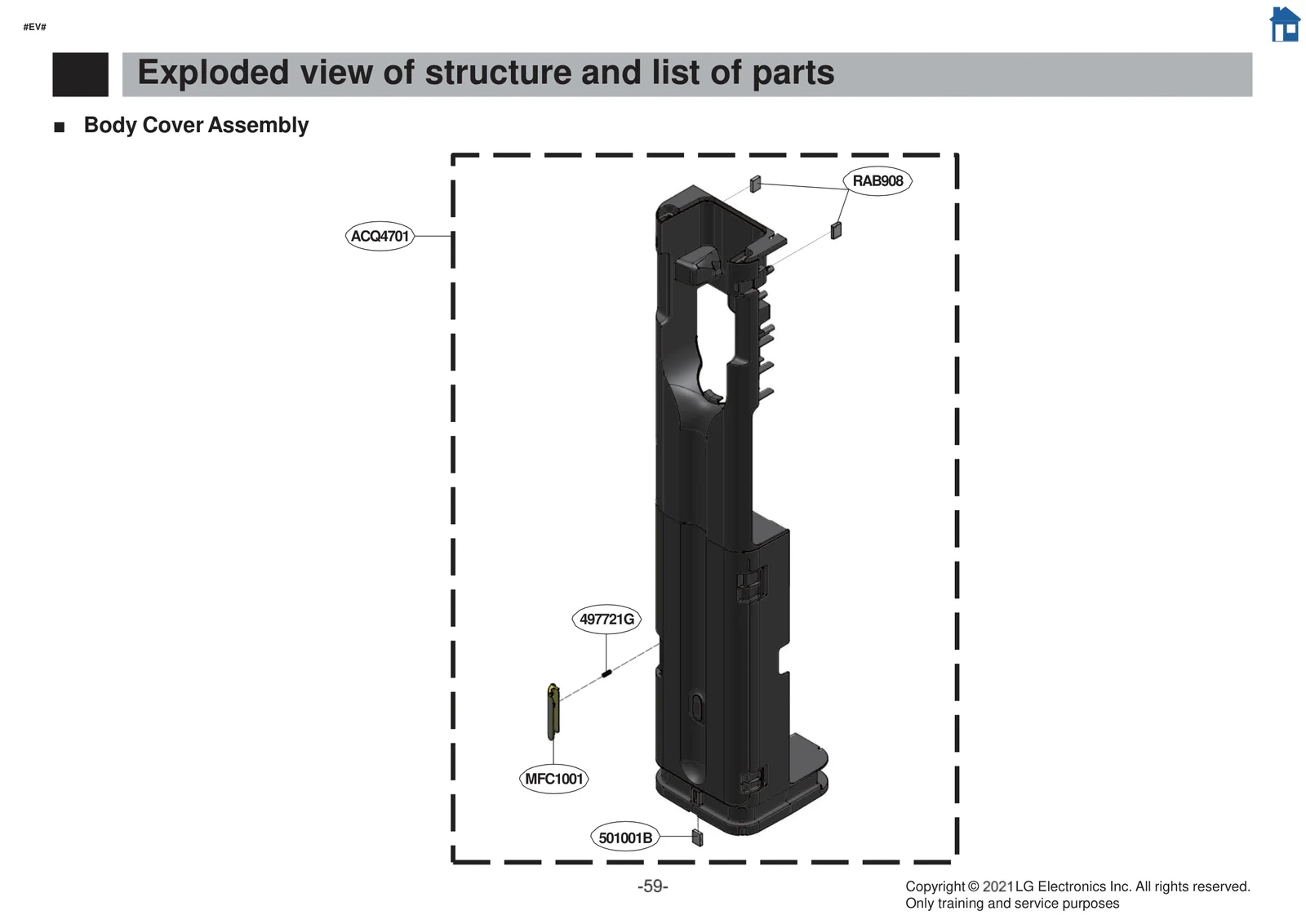

Diagram 2
Diagram 3

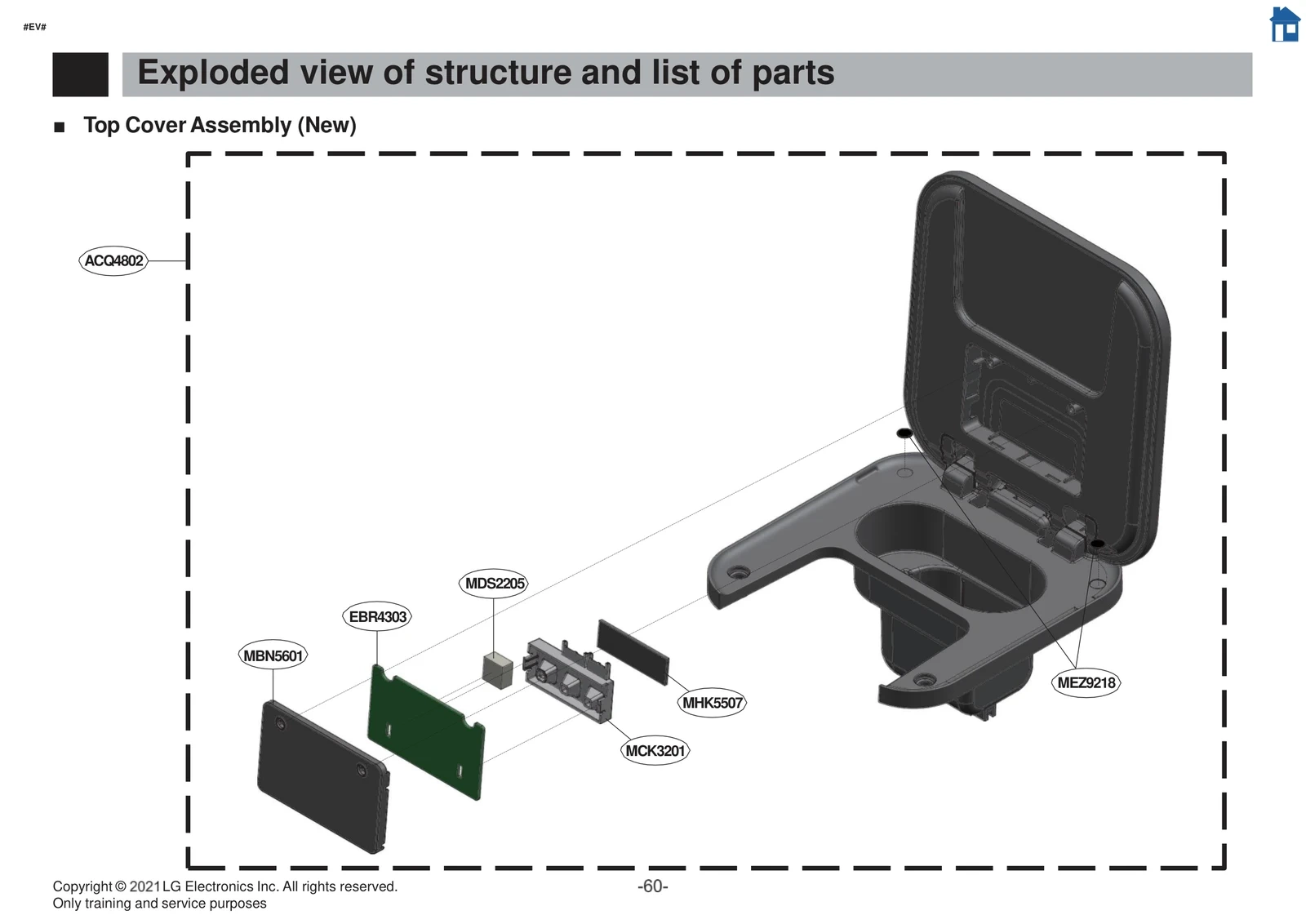

Diagram 4

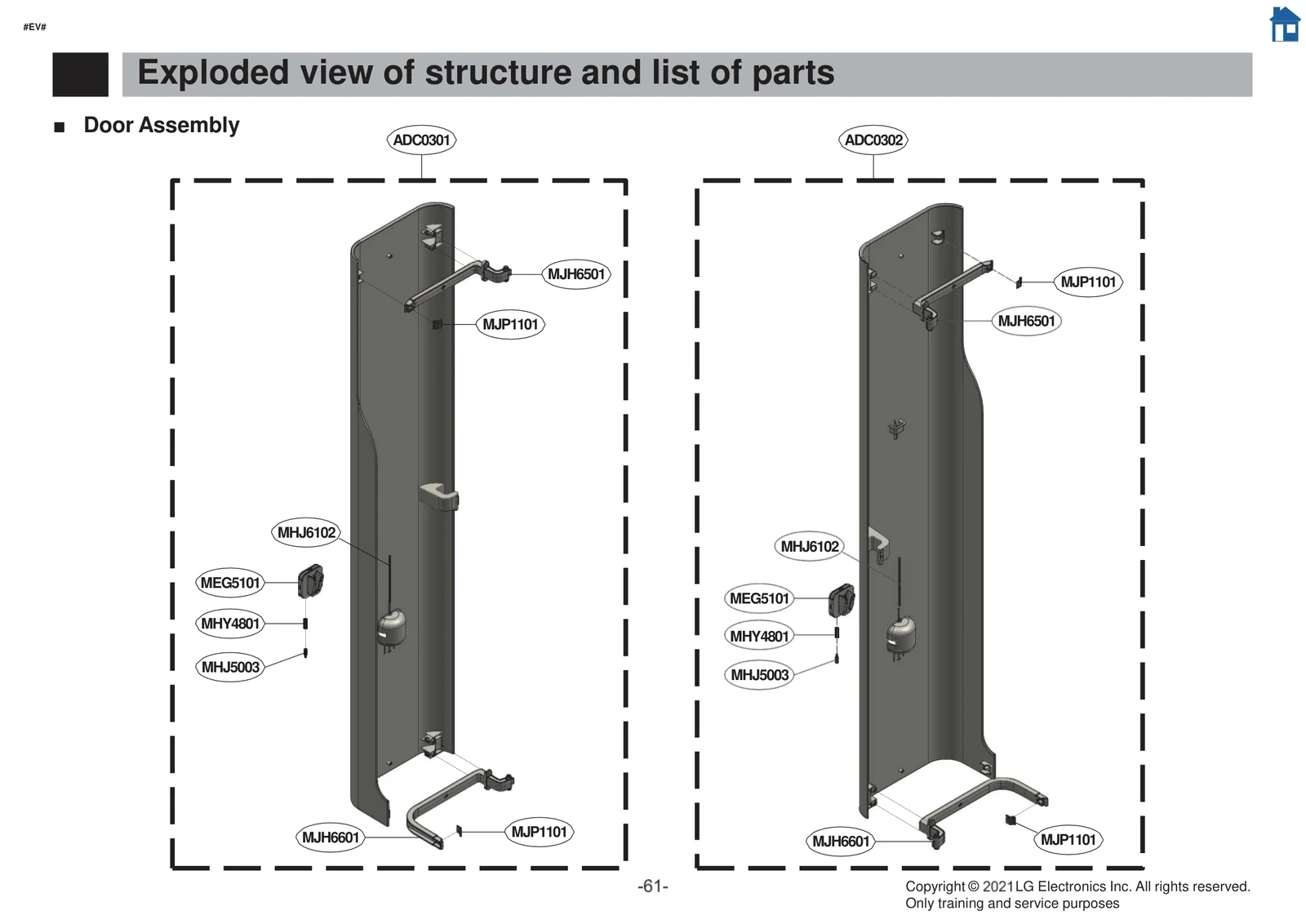

Diagram 5

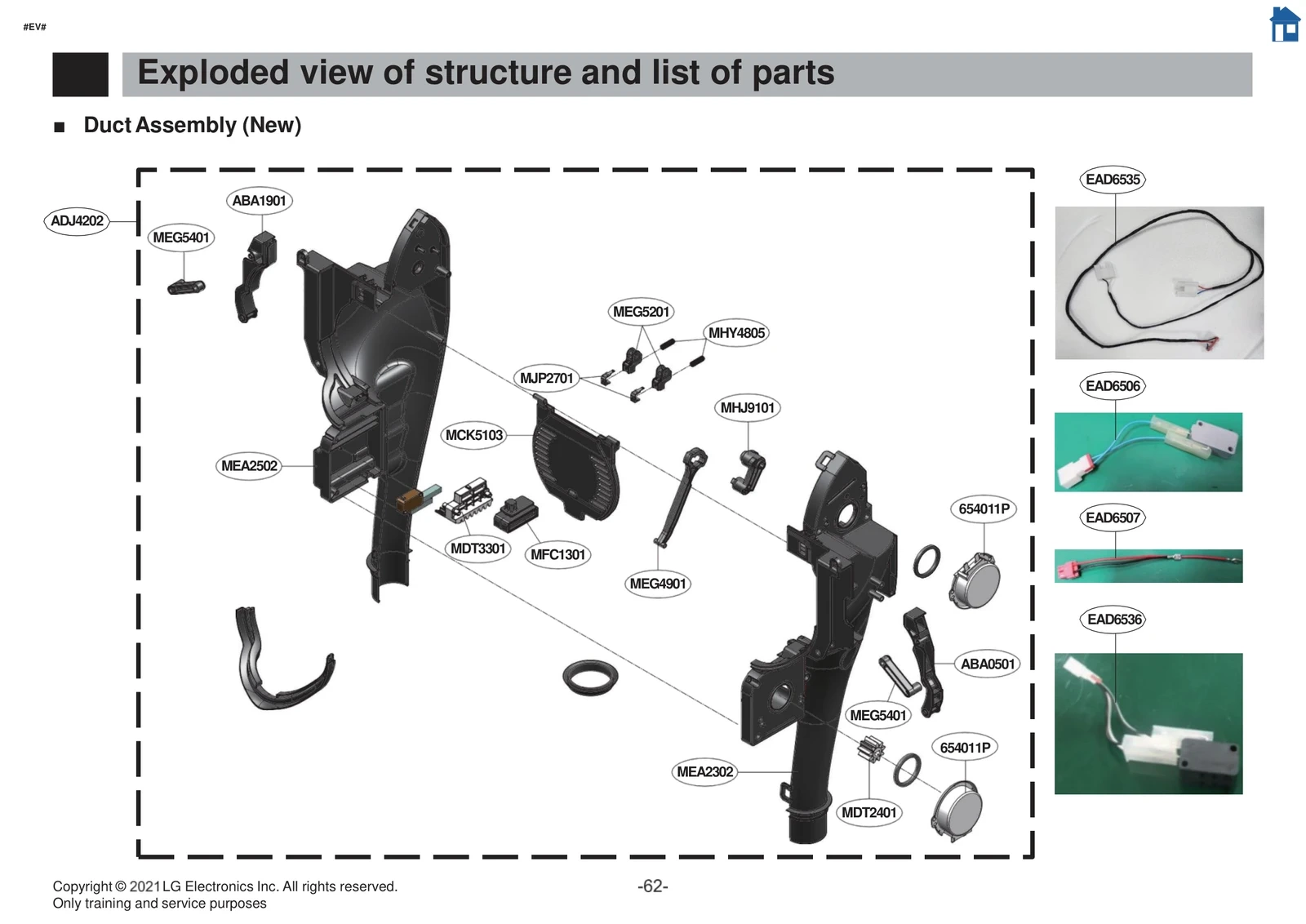

Diagram 6

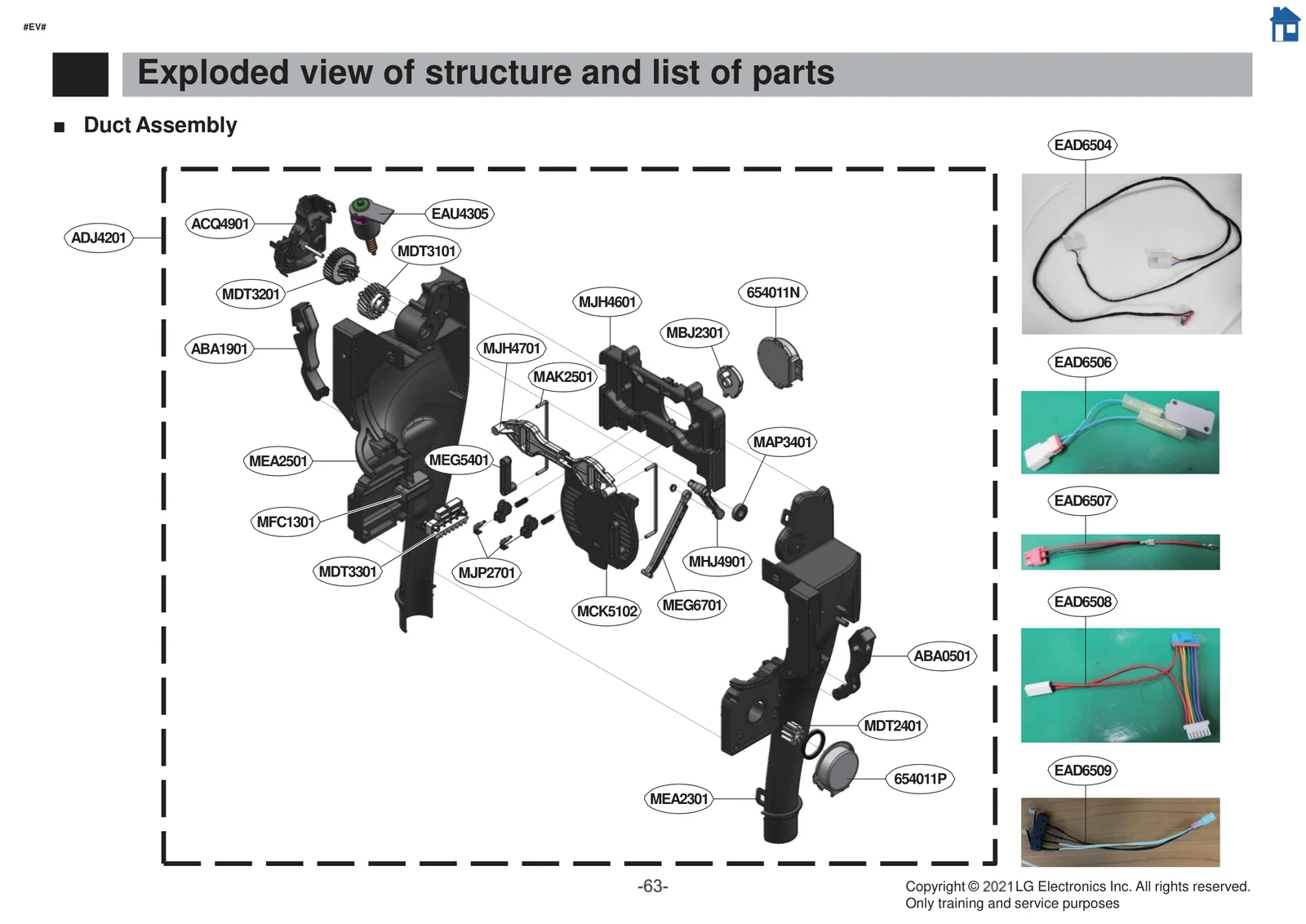

Diagram 7

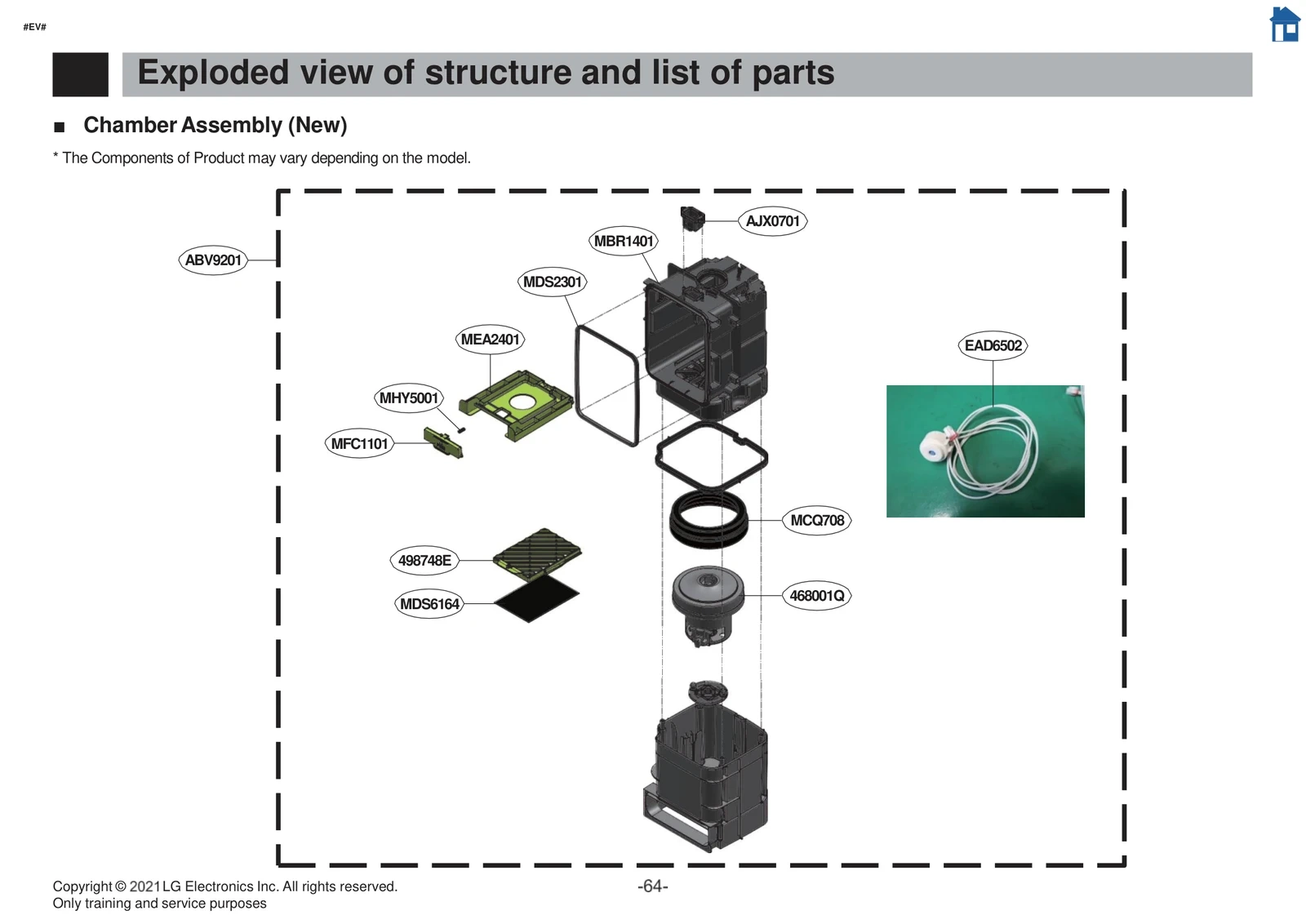

Diagram 8

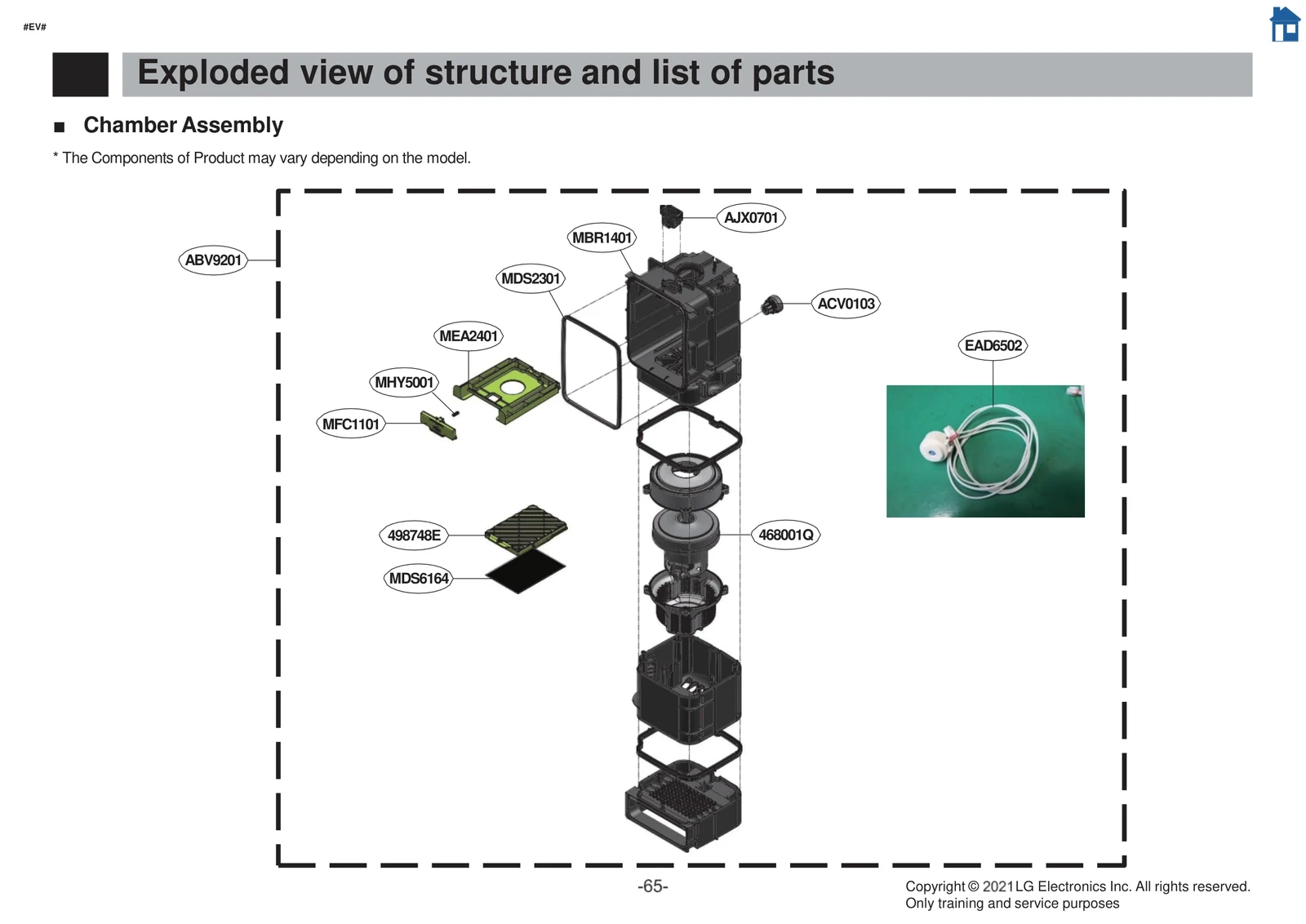

Diagram 9

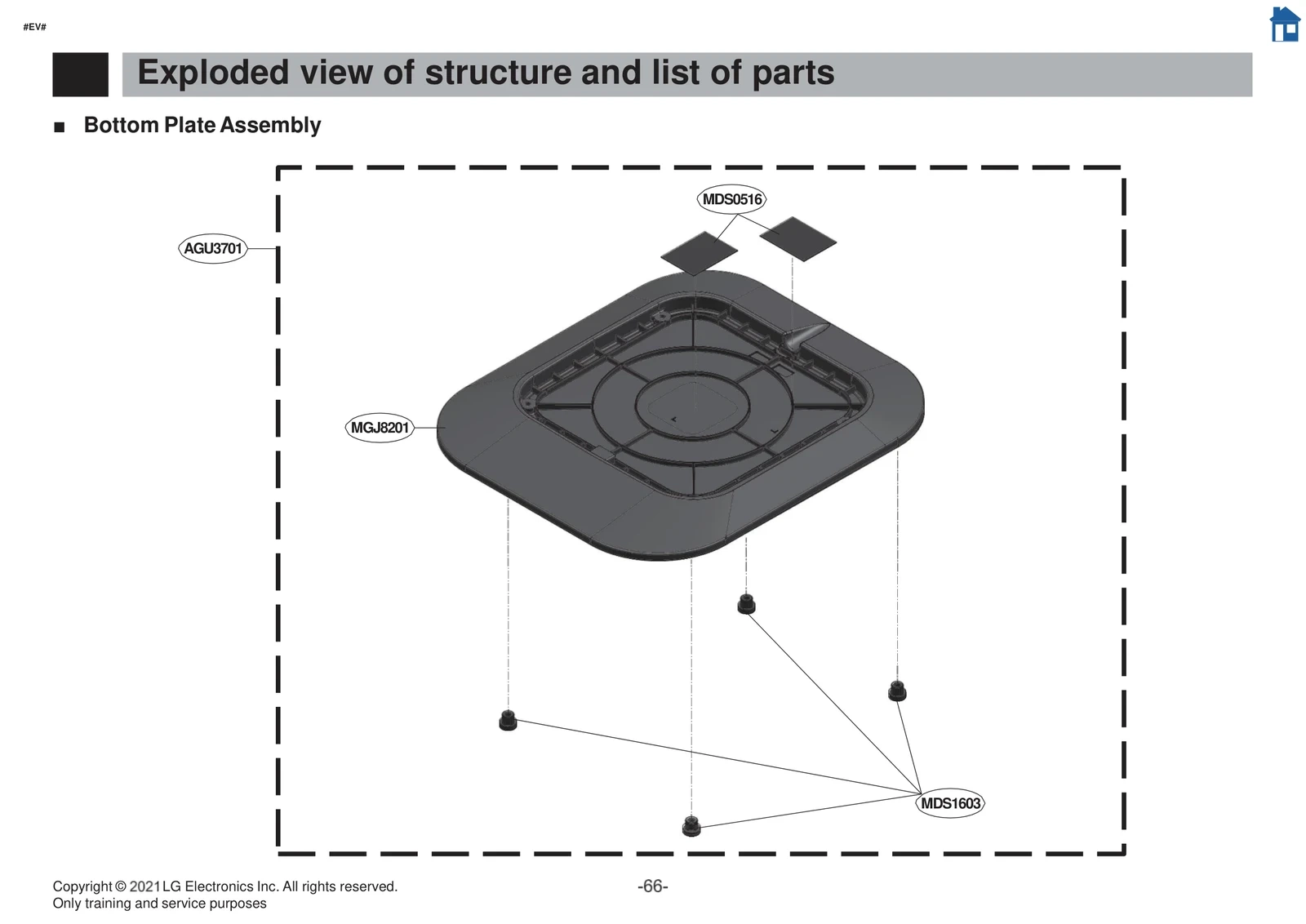

Diagram 10
Diagram 11
Common parts from model LG VDS-ST8TN Dumping Station (Vacuum Cleaner), A9KP station, non uv
497721G
Spring,Coil LGE 4970FI4721G Contact Us For Availability
654011P
Motor, AC Synchronous LGE 6549W1S013U Contact Us For Availability
ABA0501
Bracket Assembly LGE ABA30040505 Contact Us For Availability
ABA1901
Bracket Assembly LGE ABA30031905 Contact Us For Availability
ACQ4701
Cover Assembly,Body LGE ACQ30314707 Contact Us For Availability
ACQ4801
Cover Assembly,Top LGE ACQ30314818 Contact Us For Availability
ACQ5046
Cover Assembly LGE ACQ30315046 Contact Us For Availability
ADC0301
Door Assembly LGE ADC30010338 Contact Us For Availability
ADC0302
Door Assembly LGE ADC30010339 Contact Us For Availability
ADJ4202
Duct Assembly,Dust LGE ADJ75614219 Contact Us For Availability
EAD5901
Power Cord Assembly LGE EAD65895903 Contact Us For Availability
EAD6502
Harness,Single LGE EAD65896513 Contact Us For Availability
EAD6506
Harness,Single LGE EAD65896506 Contact Us For Availability
EAD6507
Harness,Single LGE EAD65896548 Contact Us For Availability
EAD6535
Harness,Single LGE EAD65896535 Contact Us For Availability
EAD6536
Harness,Single LGE EAD65896536 Contact Us For Availability
EAD6901
Harness,Multi LGE EAD65906916 Contact Us For Availability
EAU3811
Motor Assembly,AC LGE EAU60683811 Contact Us For Availability
EBR1221
PCB Assembly,Main LGE EBR33171221 Contact Us For Availability
EBR5301
PCB Assembly,Sub LGE EBR32115306 Contact Us For Availability
MAZ9001
Bracket,Hinge LGE MAZ67499002 Contact Us For Availability
MBN5601
Case LGE MBN66475603 Contact Us For Availability
MBR1412
Chamber LGE MBR62501412 Contact Us For Availability
MCK4701
Cover,Rear LGE MCK71494714 Contact Us For Availability
MCK5201
Cover,LED LGE MCK71495201 Contact Us For Availability
MCQ2003
Damper,Motor Mount LGE MCQ70812003 Contact Us For Availability
MDS0516
Gasket LGE MDS63630516 Contact Us For Availability
MDS1603
Gasket LGE MDS64791603 Contact Us For Availability
MDS2206
Gasket LGE MDS61982206 Contact Us For Availability
MDS6164
Gasket LGE MDS49556164 Contact Us For Availability
MDS7702
Gasket,Foam LGE MDS67577702 Contact Us For Availability
MDS7706
Gasket,Foam LGE MDS67577706 Contact Us For Availability
MDT3301
Gear LGE MDT64513301 Contact Us For Availability
MEA2302
Guide,Air LGE MEA66352307 Contact Us For Availability
MEA2502
Guide,Air LGE MEA66352508 Contact Us For Availability
MEG4901
Holder LGE MEG66714901 Contact Us For Availability
MEG5101
Holder,Nozzle LGE MEG66665109 Contact Us For Availability
MEG5301
Holder,Accessory LGE MEG66665304 Contact Us For Availability
MEG5401
Holder LGE MEG66665401 Contact Us For Availability
MFC1001
Lever,Release LGE MFC64331001 Contact Us For Availability
MFC1101
Lever,Release LGE MFC64331101 Contact Us For Availability
MFC1301
Lever,Release LGE MFC64331303 Contact Us For Availability
MGJ8201
Plate,Bottom LGE MGJ67228204 Contact Us For Availability
MHJ5003
Shaft LGE MHJ65845003 Contact Us For Availability
MHJ6102
Shaft LGE MHJ65596102 Contact Us For Availability
MHY5001
Spring,Coil LGE MHY38975001 Contact Us For Availability
MJH4201
Supporter,Case LGE MJH66254204 Contact Us For Availability
MJH6501
Supporter,Cover LGE MJH66256507 Contact Us For Availability
MJH6601
Supporter,Cover LGE MJH66256607 Contact Us For Availability
MJP1101
Terminal LGE MJP62731101 Contact Us For Availability
MJP2701
Terminal,Contact LGE MJP63552701 Contact Us For Availability
× ![]()
