Model LG VDS-ST1WU Dumping Station (Vacuum Cleaner) – Common Parts & Diagrams
Diagram 0

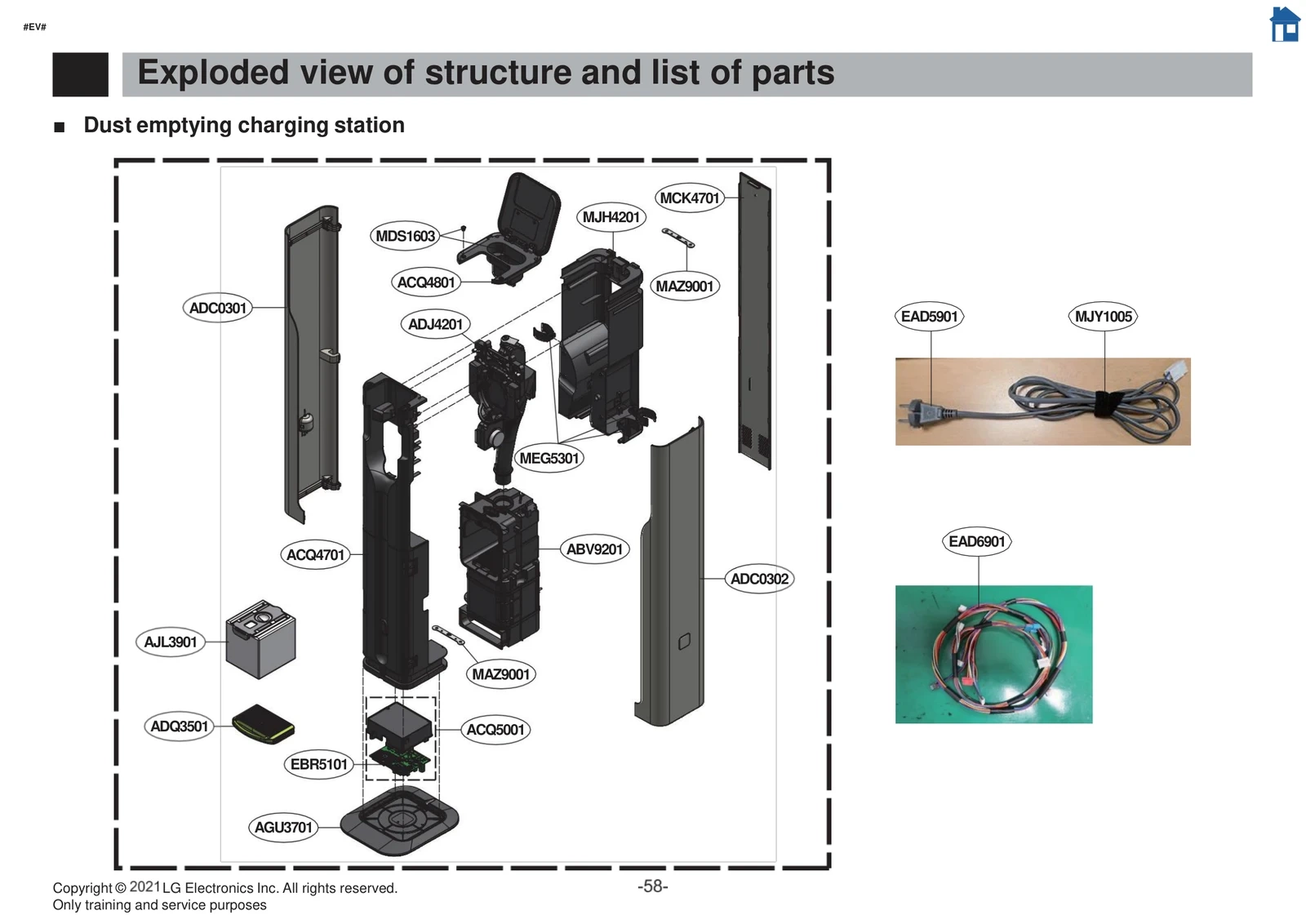

Diagram 1

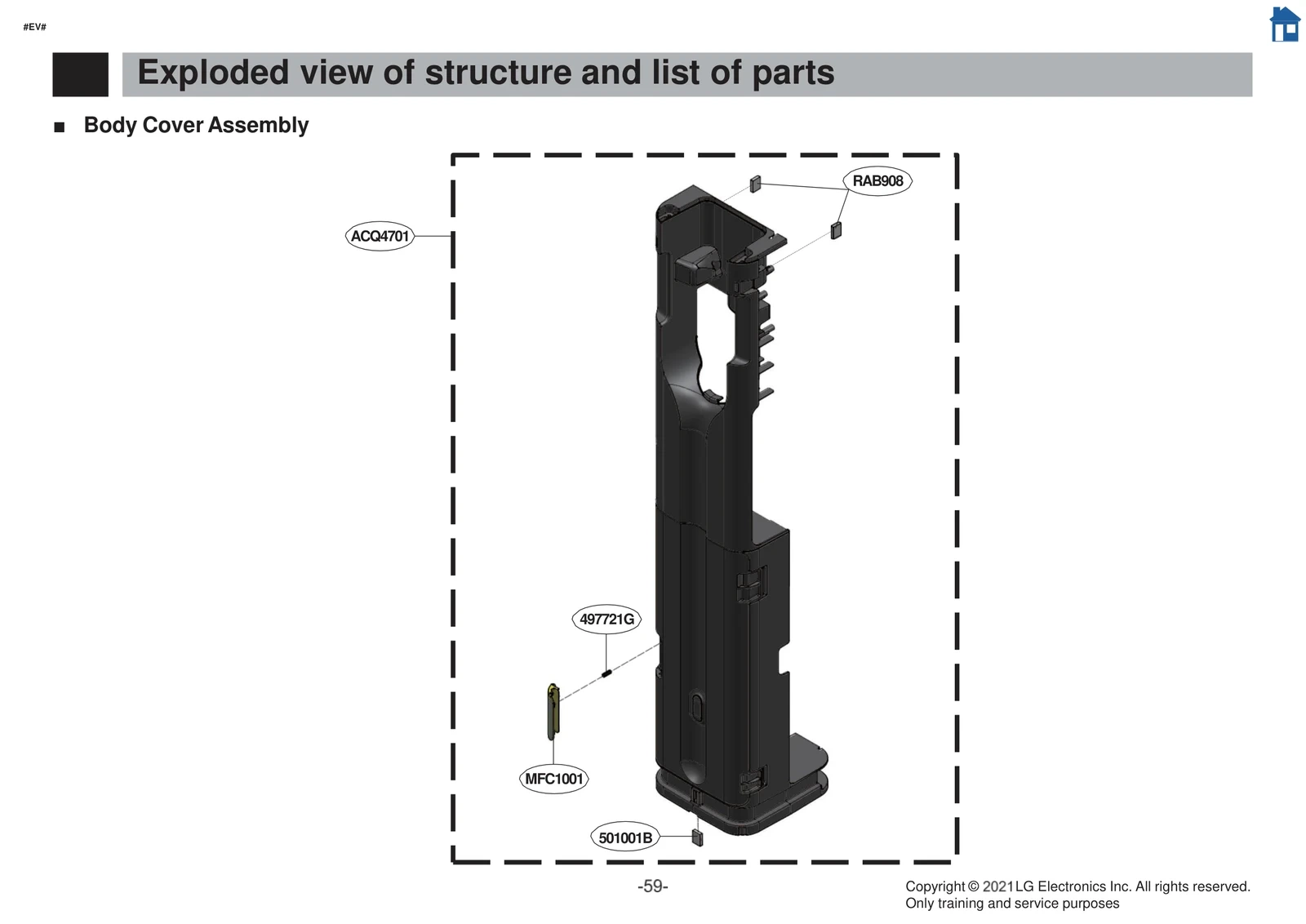

Diagram 2
Diagram 3

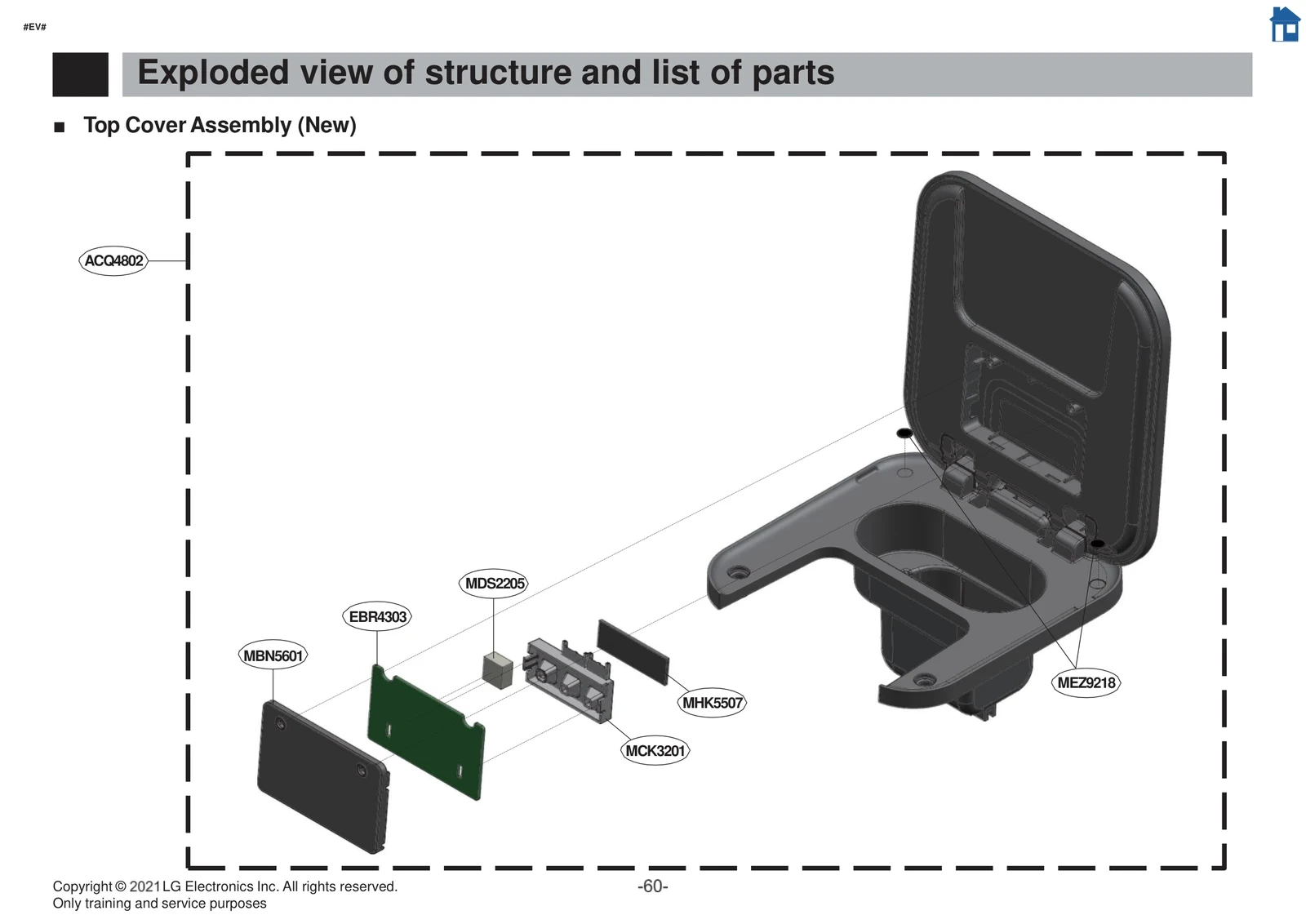

Diagram 4

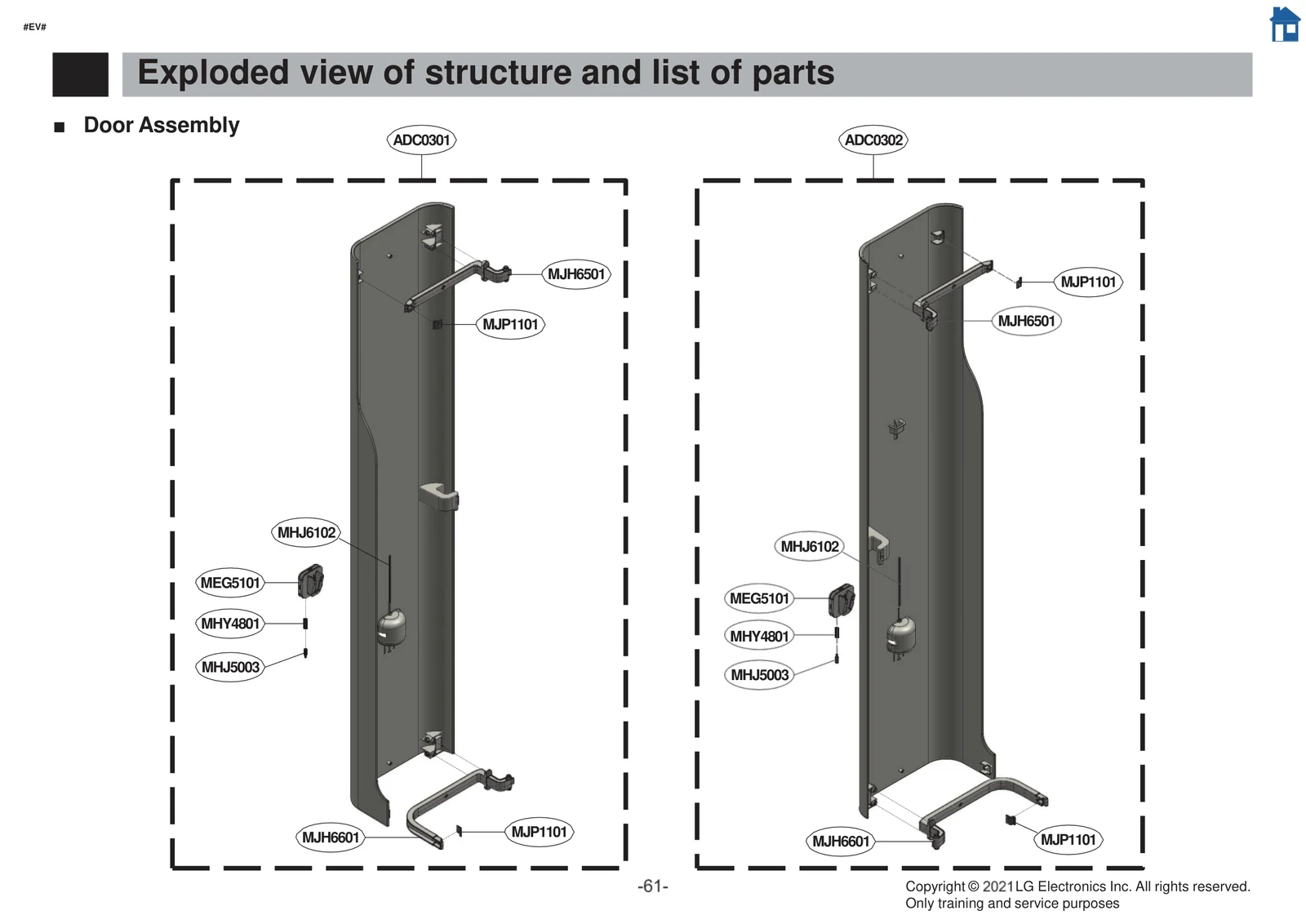

Diagram 5

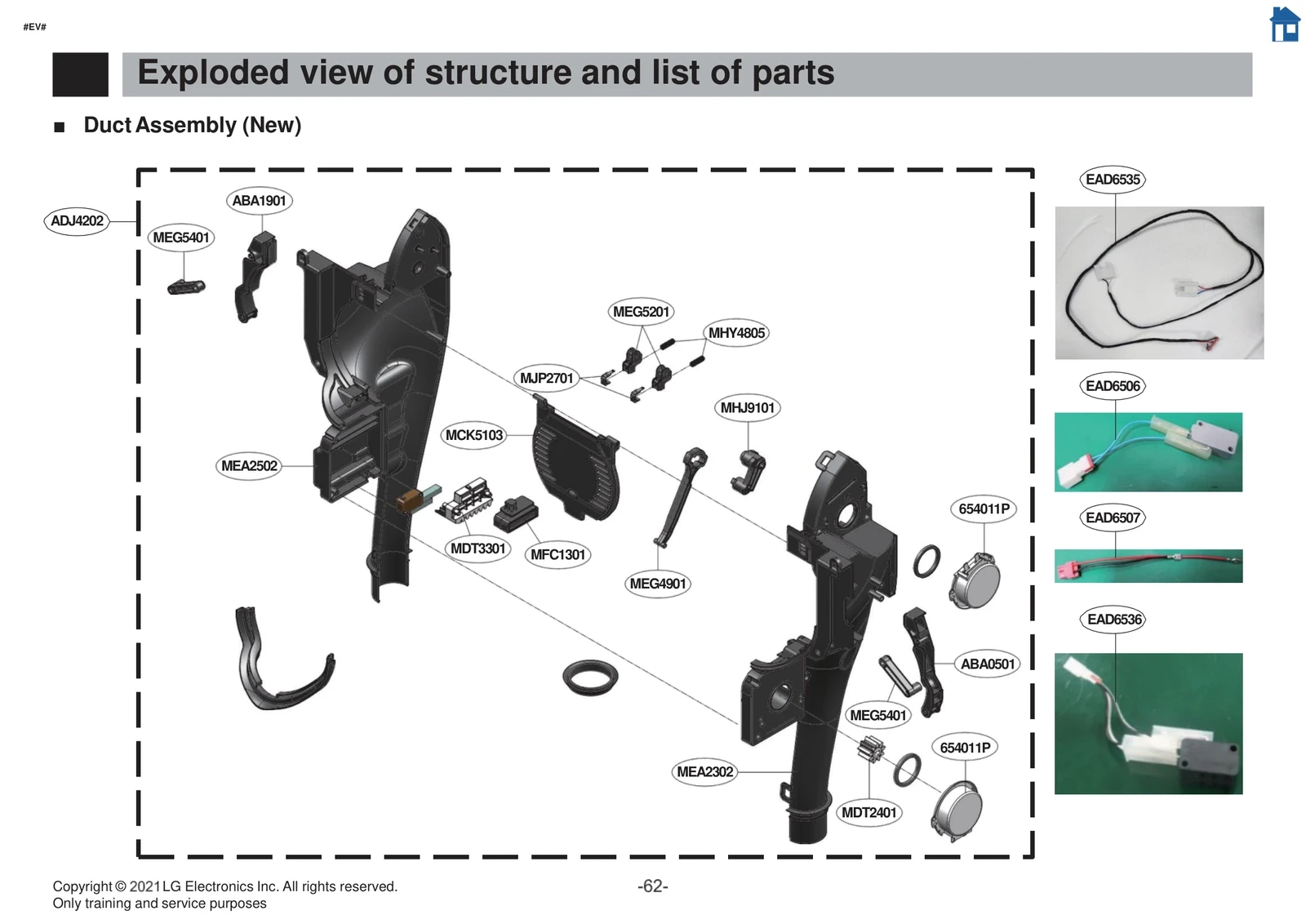

Diagram 6

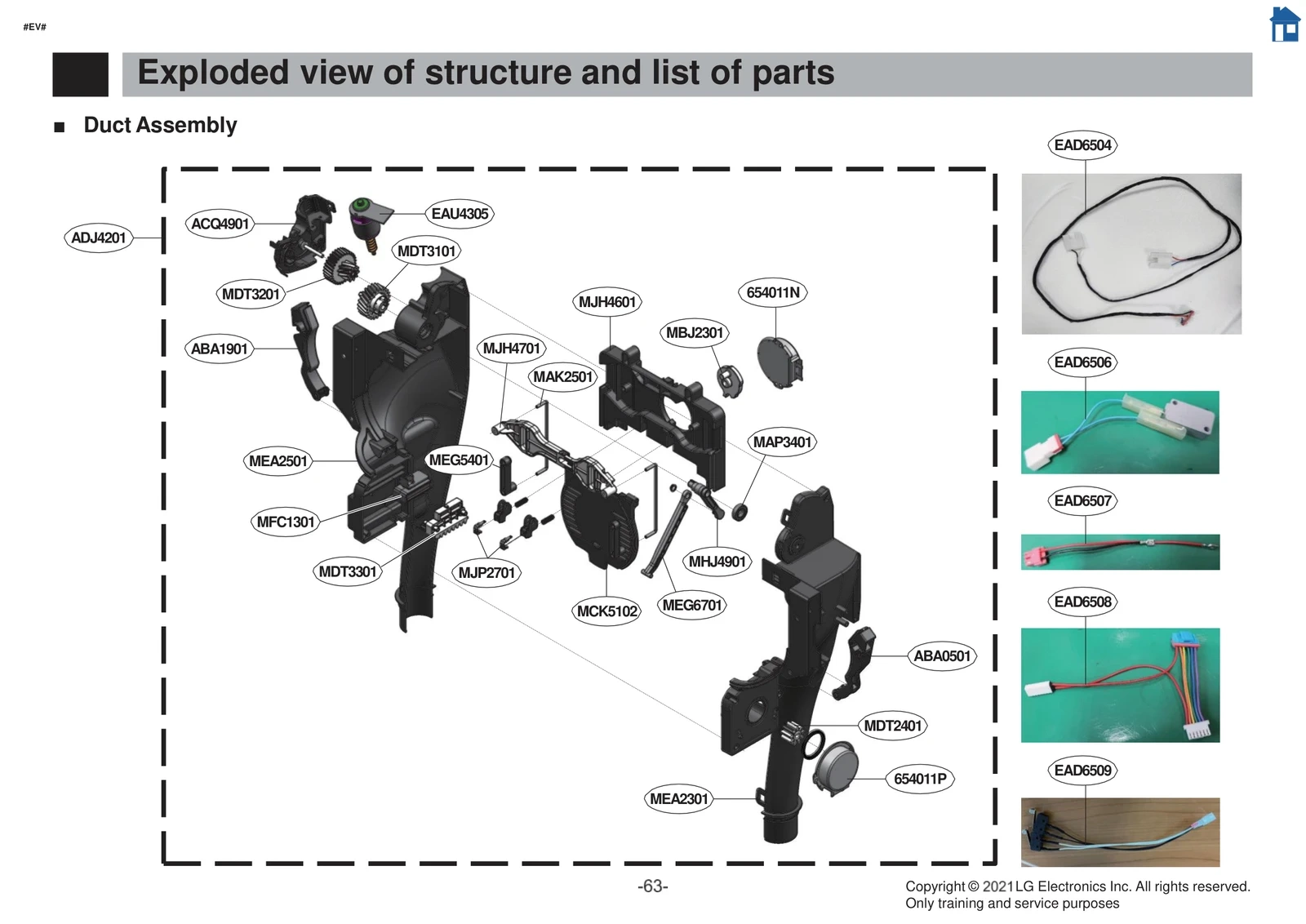

Diagram 7

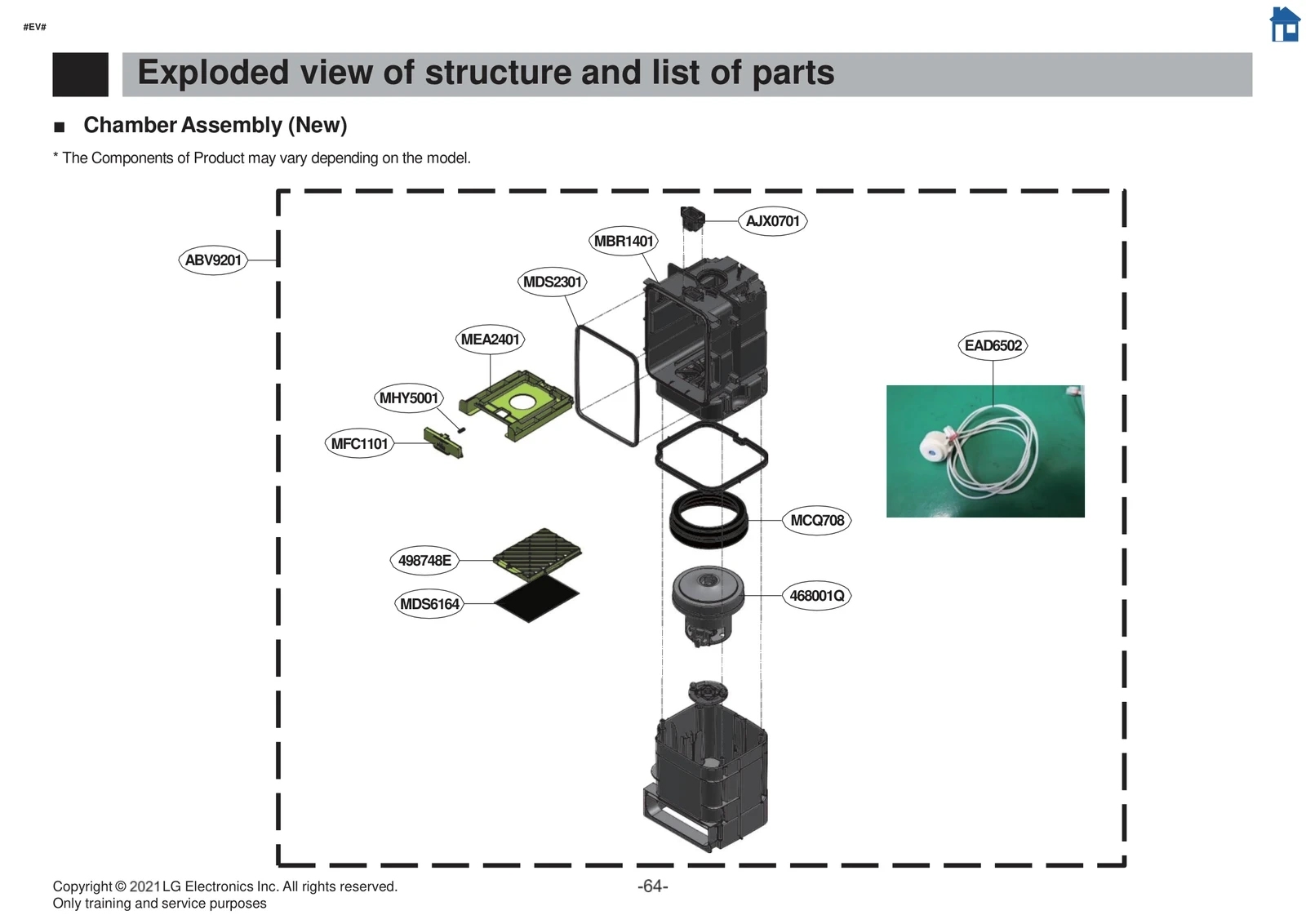

Diagram 8

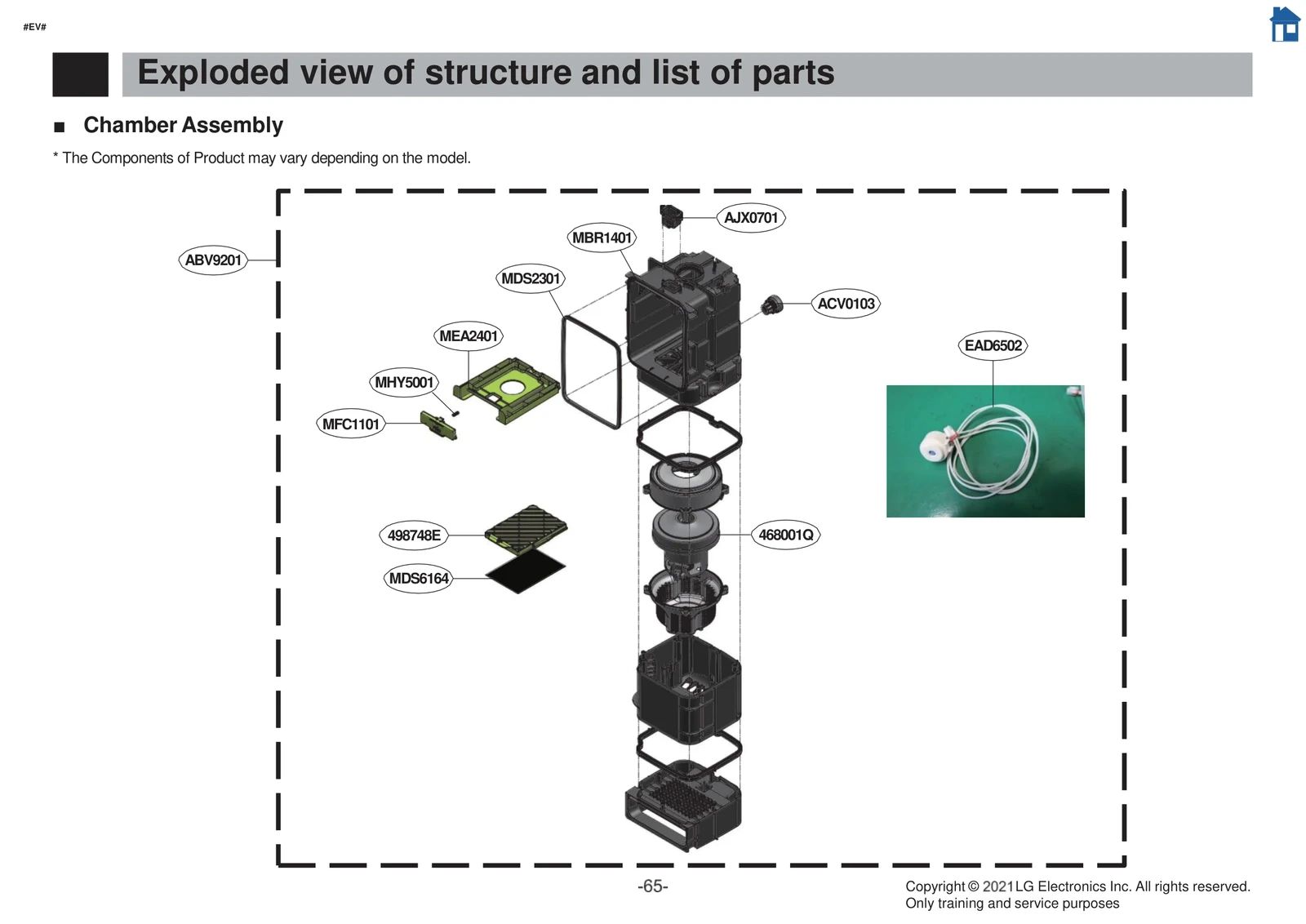

Diagram 9

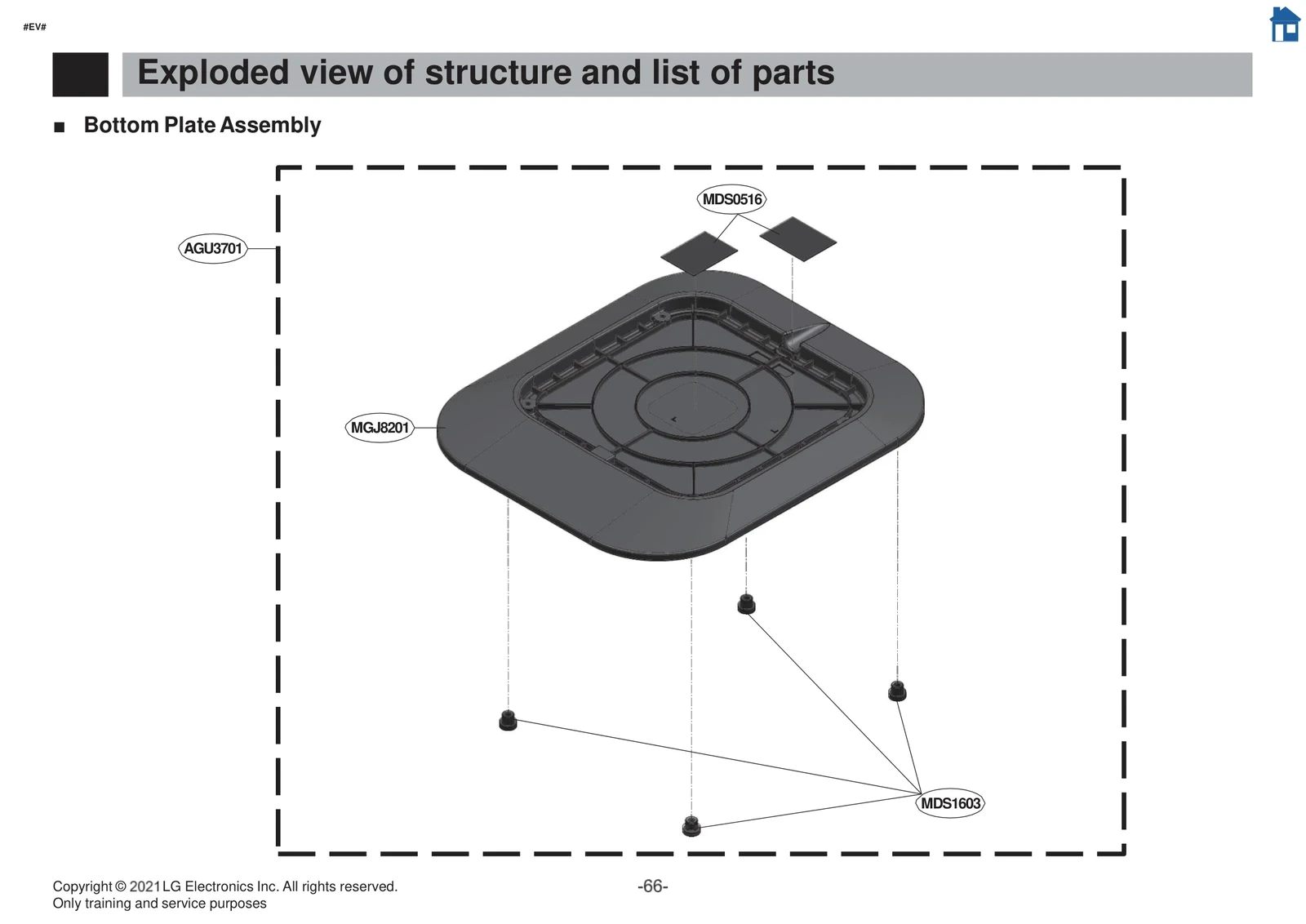

Diagram 10
Diagram 11
Common parts from model LG VDS-ST1WU Dumping Station (Vacuum Cleaner)
497721G
Spring,Coil LGE 4970FI4721G Contact Us For Availability
654011P
Motor, AC Synchronous LGE 6549W1S013U Contact Us For Availability
ABA0501
Bracket Assembly LGE ABA30040503 Contact Us For Availability
ABA1901
Bracket Assembly LGE ABA30031903 Contact Us For Availability
ABV9201
Chamber Assembly LGE ABV73849217 Contact Us For Availability
ACQ4701
Cover Assembly,Body LGE ACQ30314701 Contact Us For Availability
ACQ4801
Cover Assembly,Top LGE ACQ30314804 Contact Us For Availability
ACQ4901
Cover Assembly,Motor LGE ACQ30314901 Contact Us For Availability
ACQ5011
Cover Assembly LGE ACQ30315011 Contact Us For Availability
AGU3701
Plate Assembly,Bottom LGE AGU30013703 Contact Us For Availability
EAD5901
Power Cord Assembly LGE EAD65895903 Contact Us For Availability
EAD6502
Harness,Single LGE EAD65896513 Contact Us For Availability
EAD6504
Harness,Single LGE EAD65896504 Contact Us For Availability
EAD6506
Harness,Single LGE EAD65896506 Contact Us For Availability
EAD6507
Harness,Single LGE EAD65896507 Contact Us For Availability
EAD6508
Harness,Single LGE EAD65896508 Contact Us For Availability
EAD6509
Harness,Single LGE EAD65896509 Contact Us For Availability
EAD6901
Harness,Multi LGE EAD65906902 Contact Us For Availability
EAU3809
Motor Assembly,AC LGE EAU60683809 Contact Us For Availability
EAU4305
Motor Assembly,DC LGE EAU61624305 Contact Us For Availability
EBR1201
PCB Assembly,Main LGE EBR33171201 Contact Us For Availability
EBR5301
PCB Assembly,Sub LGE EBR32115302 Contact Us For Availability
MAK2501
Bar LGE MAK65382501 Contact Us For Availability
MAP3401
Bearing LGE MAP64613401 Contact Us For Availability
MAZ9001
Bracket,Hinge LGE MAZ67499002 Contact Us For Availability
MBN5601
Case LGE MBN66475601 Contact Us For Availability
MBR1401
Chamber LGE MBR62501406 Contact Us For Availability
MCK4701
Cover,Rear LGE MCK71494709 Contact Us For Availability
MCK5201
Cover,LED LGE MCK71495201 Contact Us For Availability
MDS0516
Gasket LGE MDS63630516 Contact Us For Availability
MDS1603
Gasket LGE MDS64791603 Contact Us For Availability
MDS2206
Gasket LGE MDS61982206 Contact Us For Availability
MDS2301
Gasket,Sealing LGE MDS67572301 Contact Us For Availability
MDS6164
Gasket LGE MDS49556164 Contact Us For Availability
MDT3101
Gear LGE MDT64513101 Contact Us For Availability
MDT3201
Gear LGE MDT64513201 Contact Us For Availability
MDT3301
Gear LGE MDT64513301 Contact Us For Availability
MEA2301
Guide,Air LGE MEA66352303 Contact Us For Availability
MEA2501
Guide,Air LGE MEA66352503 Contact Us For Availability
MEG5301
Holder,Accessory LGE MEG66665302 Contact Us For Availability
MEG5401
Holder LGE MEG66665401 Contact Us For Availability
MEG6701
Holder LGE MEG66666702 Contact Us For Availability
MFC1001
Lever,Release LGE MFC64331001 Contact Us For Availability
MFC1101
Lever,Release LGE MFC64331101 Contact Us For Availability
MFC1301
Lever,Release LGE MFC64331301 Contact Us For Availability
MGJ8201
Plate,Bottom LGE MGJ67228202 Contact Us For Availability
MGZ8101
Ring,Connector LGE MGZ64068101 Contact Us For Availability
MHJ4901
Shaft LGE MHJ65844902 Contact Us For Availability
MHJ5003
Shaft LGE MHJ65845003 Contact Us For Availability
MHJ6102
Shaft LGE MHJ65596102 Contact Us For Availability
MHY5001
Spring,Coil LGE MHY38975001 Contact Us For Availability
MJH4601
Supporter LGE MJH66254601 Contact Us For Availability
MJH4701
Supporter,Lever LGE MJH66254701 Contact Us For Availability
MJH6501
Supporter,Cover LGE MJH66256502 Contact Us For Availability
MJH6601
Supporter,Cover LGE MJH66256602 Contact Us For Availability
MJP1101
Terminal LGE MJP62731101 Contact Us For Availability
MJP2701
Terminal,Contact LGE MJP63552701 Contact Us For Availability
× ![]()
