  • U-Line VCCC115-SS81A Parts List

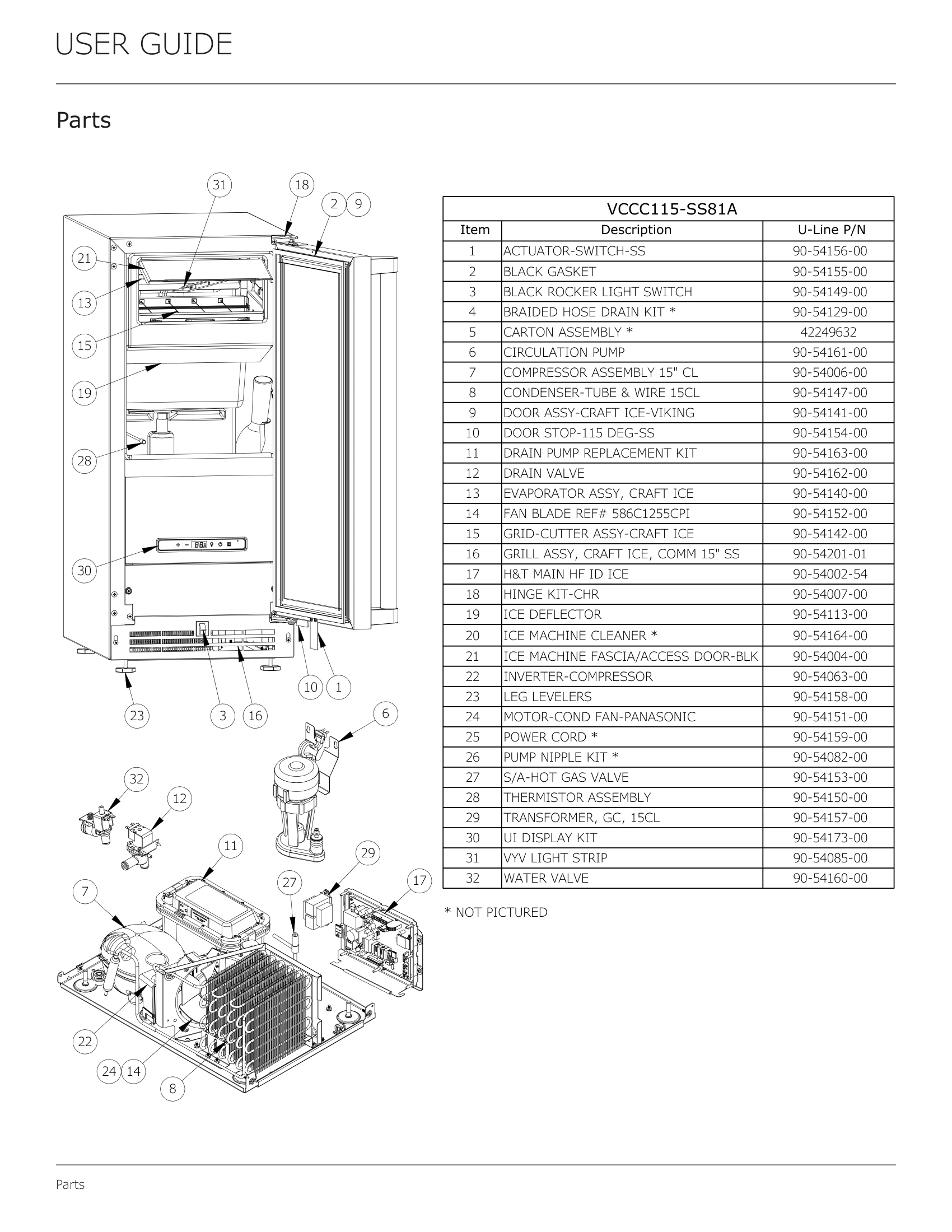

Model U-Line VCCC115-SS81A Uline VCCC115-SS81A – Common Parts & Diagrams

1
ACTUATOR-SWITCH-SS
ACTUATOR-SWITCH-SS ULC 90-54156-00 Contact Us For Availability
View on Model
2
BLACK GASKET
BLACK GASKET ULC 90-54155-00 Contact Us For Availability
View on Model
3
BLACK ROCKER LIGHT SWITCH
BLACK ROCKER LIGHT SWITCH ULC 90-54149-00 Contact Us For Availability
View on Model
4
BRAIDED HOSE DRAIN KIT
BRAIDED HOSE DRAIN KIT ULC 90-54129-00 Contact Us For Availability
View on Model
5
CARTON ASSEMBLY
CARTON ASSEMBLY ULC 42249632 Contact Us For Availability
View on Model
6
CIRCULATION PUMP
CIRCULATION PUMP ULC 90-54161-00 Contact Us For Availability
View on Model
7
COMPRESSOR ASSEMBLY 15" CL
COMPRESSOR ASSEMBLY 15" CL ULC 90-54006-00 Contact Us For Availability
View on Model
8
CONDENSER-TUBE & WIRE 15CL
CONDENSER-TUBE & WIRE 15CL ULC 90-54147-00 Contact Us For Availability
View on Model
9
DOOR ASSY-CRAFT ICE-VIKING
DOOR ASSY-CRAFT ICE-VIKING ULC 90-54141-00 Contact Us For Availability
View on Model
10
DOOR STOP-115 DEG-SS
DOOR STOP-115 DEG-SS ULC 90-54154-00 Contact Us For Availability
View on Model
12
DRAIN VALVE
DRAIN VALVE ULC 90-54162-00 Contact Us For Availability
View on Model
13
EVAPORATOR ASSY, CRAFT ICE
EVAPORATOR ASSY, CRAFT ICE ULC 90-54140-00 Contact Us For Availability
View on Model
14
FAN BLADE REF# 586C1255CPI
FAN BLADE REF# 586C1255CPI ULC 90-54152-00 Contact Us For Availability
View on Model
15
GRID-CUTTER ASSY-CRAFT ICE
GRID-CUTTER ASSY-CRAFT ICE ULC 90-54142-00 Contact Us For Availability
View on Model
16
GRILL ASSY, CRAFT ICE, COMM 15" SS
GRILL ASSY, CRAFT ICE, COMM 15" SS ULC 90-54201-01 Contact Us For Availability
View on Model
17
H&T MAIN HF ID ICE
H&T MAIN HF ID ICE ULC 90-54002-54 Contact Us For Availability
View on Model
18
HINGE KIT-CHR
HINGE KIT-CHR ULC 90-54007-00 Contact Us For Availability
View on Model
19
ICE DEFLECTOR
ICE DEFLECTOR ULC 90-54113-00 Contact Us For Availability
View on Model
20
ICE MACHINE CLEANER
ICE MACHINE CLEANER ULC 90-54164-00 Contact Us For Availability
View on Model
21
ICE MACHINE FASCIA/ACCESS DOOR-BLK
ICE MACHINE FASCIA/ACCESS DOOR-BLK ULC 90-54004-00 Contact Us For Availability
View on Model
22
INVERTER-COMPRESSOR
INVERTER-COMPRESSOR ULC 90-54063-00 Contact Us For Availability
View on Model
23
LEG LEVELERS
LEG LEVELERS ULC 90-54158-00 Contact Us For Availability
View on Model
24
MOTOR-COND FAN-PANASONIC
MOTOR-COND FAN-PANASONIC ULC 90-54151-00 Contact Us For Availability
View on Model
25
POWER CORD
POWER CORD ULC 90-54159-00 Contact Us For Availability
View on Model
27
S/A-HOT GAS VALVE
S/A-HOT GAS VALVE ULC 90-54153-00 Contact Us For Availability
View on Model
28
THERMISTOR ASSEMBLY
THERMISTOR ASSEMBLY ULC 90-54150-00 Contact Us For Availability
View on Model
29
TRANSFORMER, GC, 15CL
TRANSFORMER, GC, 15CL ULC 90-54157-00 Contact Us For Availability
View on Model
30
UI DISPLAY KIT
UI DISPLAY KIT ULC 90-54173-00 Contact Us For Availability
View on Model
31
VYV LIGHT STRIP
VYV LIGHT STRIP ULC 90-54085-00 Contact Us For Availability
View on Model
32
WATER VALVE
WATER VALVE ULC 90-54160-00 Contact Us For Availability
View on Model
