Model LG V5500 Room type VCS(previous : RVS1004)1:3 HD x12 PTZ – Common Parts & Diagrams

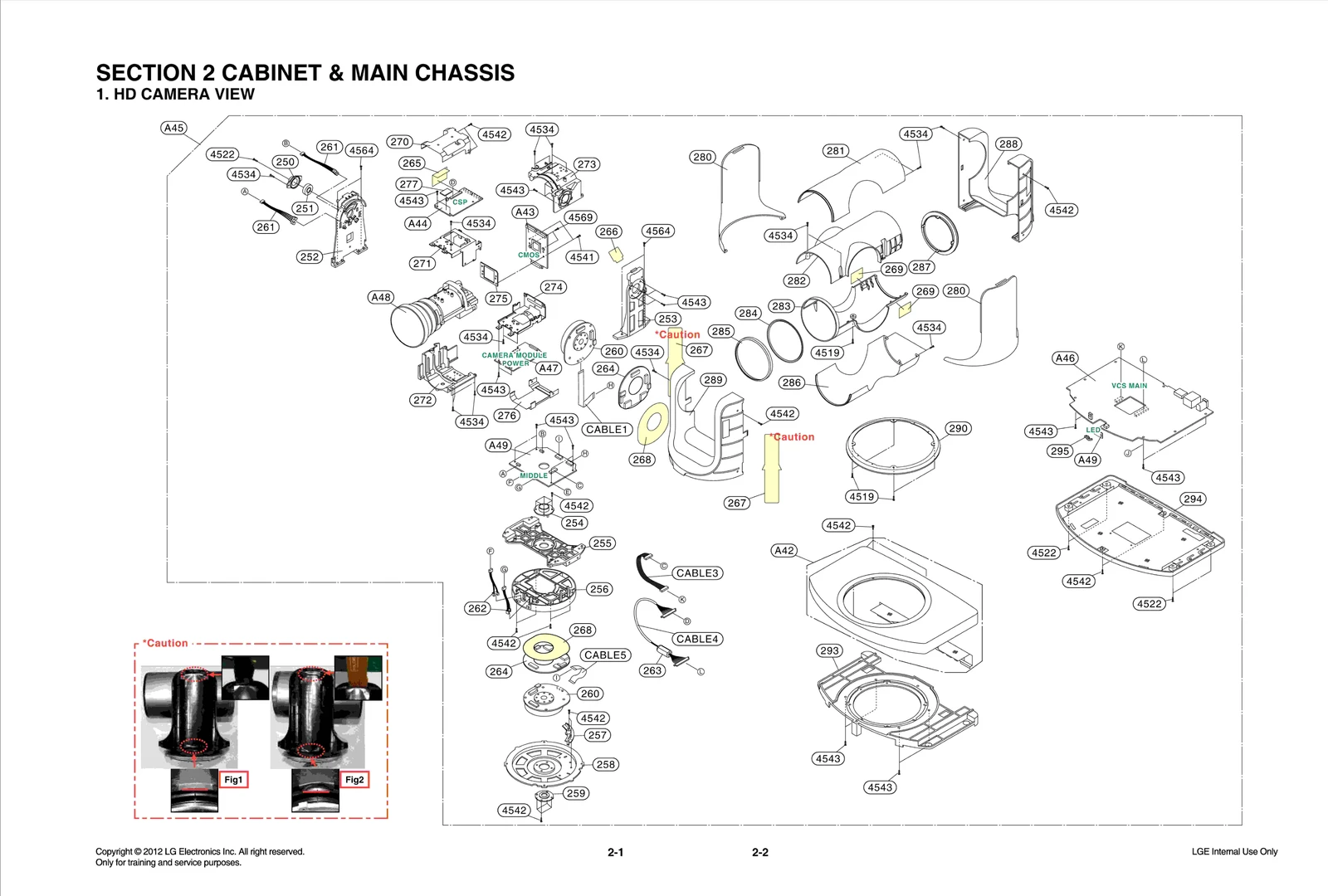

Diagram 0
Diagram 1
Diagram 2
Common parts from model LG V5500 Room type VCS(previous : RVS1004)1:3 HD x12 PTZ
252
Holder LGE MEG62799201 Contact Us For Availability
253
Bracket LGE MAZ63164001 Contact Us For Availability
254
Cover LGE MCK66725201 Contact Us For Availability
255
Bracket LGE MAZ63163701 Contact Us For Availability
256
Holder LGE MEG62799301 Contact Us For Availability
257
Holder LGE MEG62799401 Contact Us For Availability
258
Bracket LGE MAZ63163801 Contact Us For Availability
259
Cover LGE MCK66725301 Contact Us For Availability
260
Base Assembly LGE AAN73928802 Contact Us For Availability
261
Sensor Assembly LGE EBD60745603 Contact Us For Availability
262
Sensor Assembly LGE EBD60745601 Contact Us For Availability
263
Filter,Ferrite Core LGE EAM62351901 Contact Us For Availability
264
Cap LGE MBL65220601 Contact Us For Availability
265
Sheet LGE MHK63610101 Contact Us For Availability
266
Gasket LGE MDS63912901 Contact Us For Availability
267
Gasket LGE MDS63913901 Contact Us For Availability
268
Gasket LGE MDS63913201 Contact Us For Availability
269
Gasket LGE MDS63912601 Contact Us For Availability
270
Bracket Assembly LGE ABA74229701 Contact Us For Availability
271
Bracket LGE MAZ63163401 Contact Us For Availability
272
Holder LGE MEG62799101 Contact Us For Availability
273
Holder LGE MEG62799001 Contact Us For Availability
274
Bracket LGE MAZ63163501 Contact Us For Availability
275
Bracket LGE MAZ63226801 Contact Us For Availability
276
Bracket Assembly LGE ABA74229801 Contact Us For Availability
277
Sheet LGE MHK39282006 Contact Us For Availability
282
Frame LGE MDQ62936601 Contact Us For Availability
283
Frame LGE MDQ62956301 Contact Us For Availability
284
Cover LGE MCK66745301 Contact Us For Availability
285
Cover LGE MCK66745201 Contact Us For Availability
286
Decor LGE MCR64447401 Contact Us For Availability
287
Decor LGE MCR64447601 Contact Us For Availability
289
Case LGE MBN62483201 Contact Us For Availability
290
Case LGE MBN62463201 Contact Us For Availability
293
Bracket LGE MAZ63163901 Contact Us For Availability
294
Case Assembly LGE ABQ73742901 Contact Us For Availability
295
Reflector LGE MGW62308301 Contact Us For Availability
801
S/W Package LGE SAB34419550 Contact Us For Availability
802
Box LGE MAY65793205 Contact Us For Availability
803A
Packing LGE MFZ31130120 Contact Us For Availability
803AA
Packing LGE MFZ31130141 Contact Us For Availability
803AB
Packing LGE MFZ31130142 Contact Us For Availability
803B
Packing LGE MFZ31130122 Contact Us For Availability
804A
BAG LGE 292-053B Contact Us For Availability
804B
Bag LGE MAF61906404 Contact Us For Availability
805
Packing LGE MFZ36693845 Contact Us For Availability
806
Packing LGE MFZ36693846 Contact Us For Availability
808
BATTERY LGE 534-008C Contact Us For Availability
810
Cable,Assembly LGE EAD00926110 Contact Us For Availability
811
Cable,Assembly LGE EAD00926105 Contact Us For Availability
820
Adapters LGE EAY61211901 Contact Us For Availability
832
Microphone,Dynamic LGE EAB62649101 Contact Us For Availability
900
Remote Controller Assembly LGE AKB73635301 Contact Us For Availability
1250
Cover LGE MCK66844701 Contact Us For Availability
1251
Cover Assembly LGE ACQ85951301 Contact Us For Availability
1253
Chassis LGE MBS62305801 Contact Us For Availability
1254
Cover LGE MCK66845001 Contact Us For Availability
1255
Cover LGE MCK66850301 Contact Us For Availability
1256
Panel,Rear LGE MGC62620601 Contact Us For Availability
1257
Cover LGE MCK66844901 Contact Us For Availability
1258
Chassis LGE MBS62305901 Contact Us For Availability
1259
Fan Module LGE EAL60861001 Contact Us For Availability
1261
Cover LGE MCK66844801 Contact Us For Availability
1262
Cover LGE MCK66856301 Contact Us For Availability
1263
Cover LGE MCK66856401 Contact Us For Availability
1264
Cover LGE MCK66856501 Contact Us For Availability
1265
Bracket LGE MAZ63237301 Contact Us For Availability
1266
Damper LGE 5040R-0069G Contact Us For Availability
1270
Foot LGE MDP62387501 Contact Us For Availability
4502
BOLT,HEXAGON SOCKET LGE 1BK-0512391 Contact Us For Availability
4519
SCREW,DRAWING LGE 1SZZR-0097A Contact Us For Availability
4521
SCREW,DRAWING LGE 1SZZR-0097N Contact Us For Availability
4522
SCREW,DRAWING LGE 1SZZR-0098A Contact Us For Availability
4534
Screw,Customized LGE 353-094D Contact Us For Availability
4541
Screw,Customized LGE 353-210D Contact Us For Availability
4542
Screw,Customized LGE 353-210E Contact Us For Availability
4543
Screw,Customized LGE 353-210F Contact Us For Availability
4564
Screw,Machine LGE 1MBC0302018 Contact Us For Availability
4567
SCREW,DRAWING LGE 1SZZR-0098G Contact Us For Availability
4569
Screw,Customized LGE 1SZZR-0043A Contact Us For Availability
4581
Screw,Customized LGE 1SZZR-0129C Contact Us For Availability
4582
Screw,Tapping LGE FAB31140101 Contact Us For Availability
A42
Case Assembly LGE ABQ73742801 Contact Us For Availability
A43
PCB Assembly LGE EBR73190901 Contact Us For Availability
A44
PCB Assembly LGE EBR73191001 Contact Us For Availability
A45
Board Assembly,Sub LGE AAX73647401 Contact Us For Availability
A46
PCB Assembly,Main LGE EBR73670701 Contact Us For Availability
A47
PCB Assembly LGE EBR73191101 Contact Us For Availability
A48
Lens Assembly LGE AFD73210501 Contact Us For Availability
A49
PCB Assembly,Main LGE EBR73670702 Contact Us For Availability
A1040
Bracket Assembly LGE ABA74129801 Contact Us For Availability
A1045
PCB Assembly,Main LGE EBR73670704 Contact Us For Availability
A1046
PCB Assembly,Main LGE EBR73670703 Contact Us For Availability
CABLE01
Harness,Single LGE EAD61951101 Contact Us For Availability
CABLE02
Cable,FFC LGE EAD35201510 Contact Us For Availability
CABLE3
Harness,Single LGE EAD61965501 Contact Us For Availability
CABLE4
Harness,Single LGE EAD61935001 Contact Us For Availability
CABLE5
Cable,FFC LGE EAD34861415 Contact Us For Availability
× ![]()
