Model LG V194H – Common Parts & Diagrams
Diagram 0

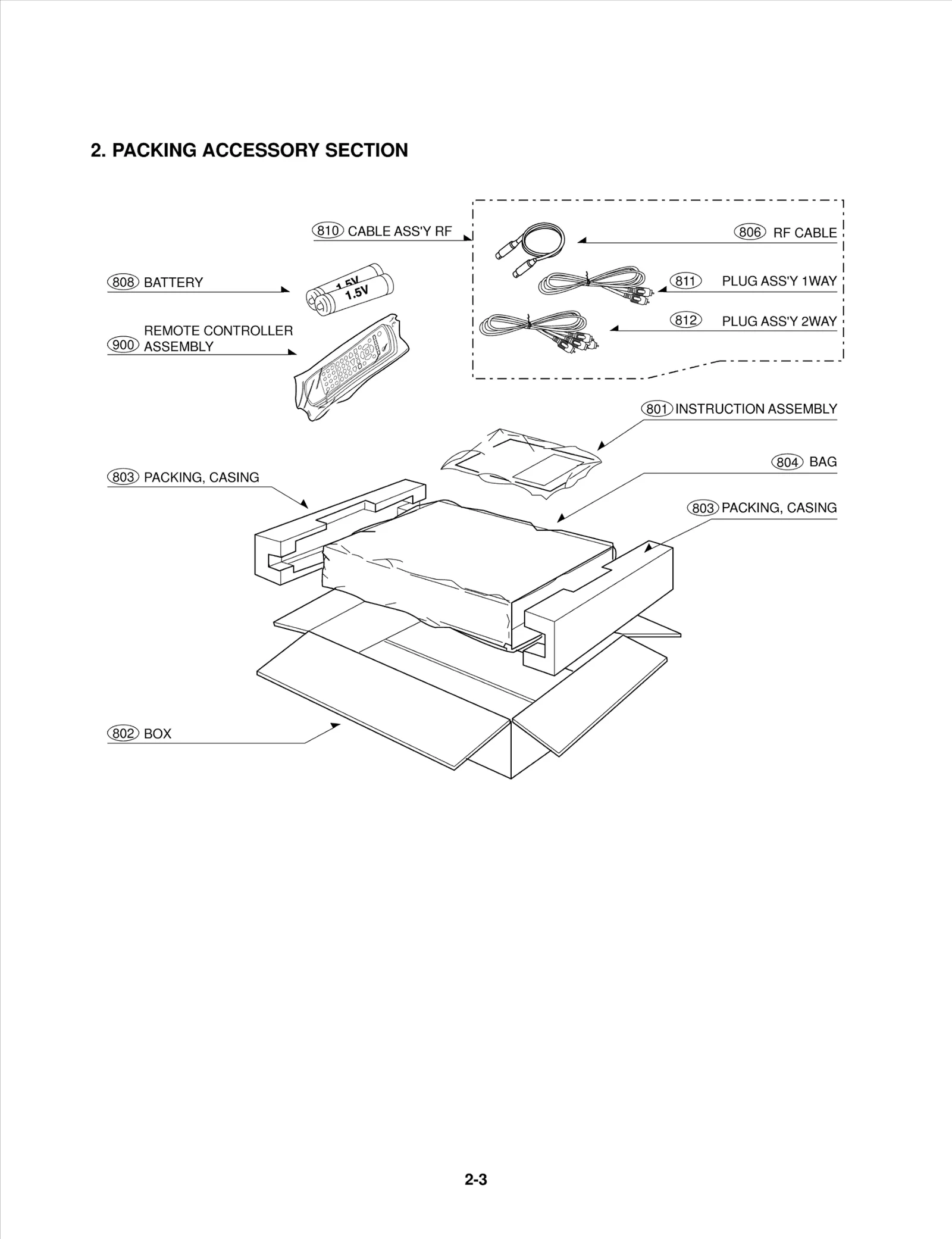

Diagram 1

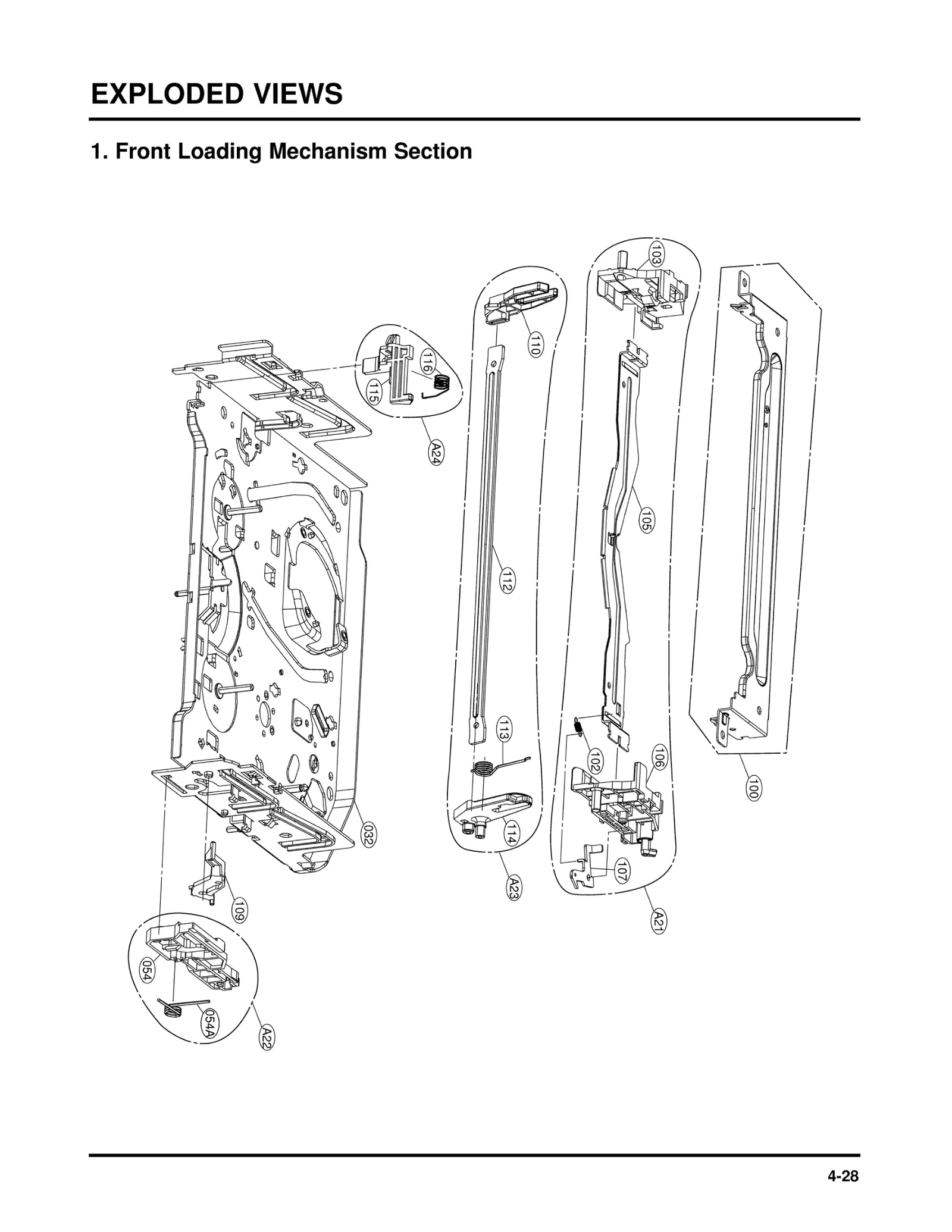

Diagram 2

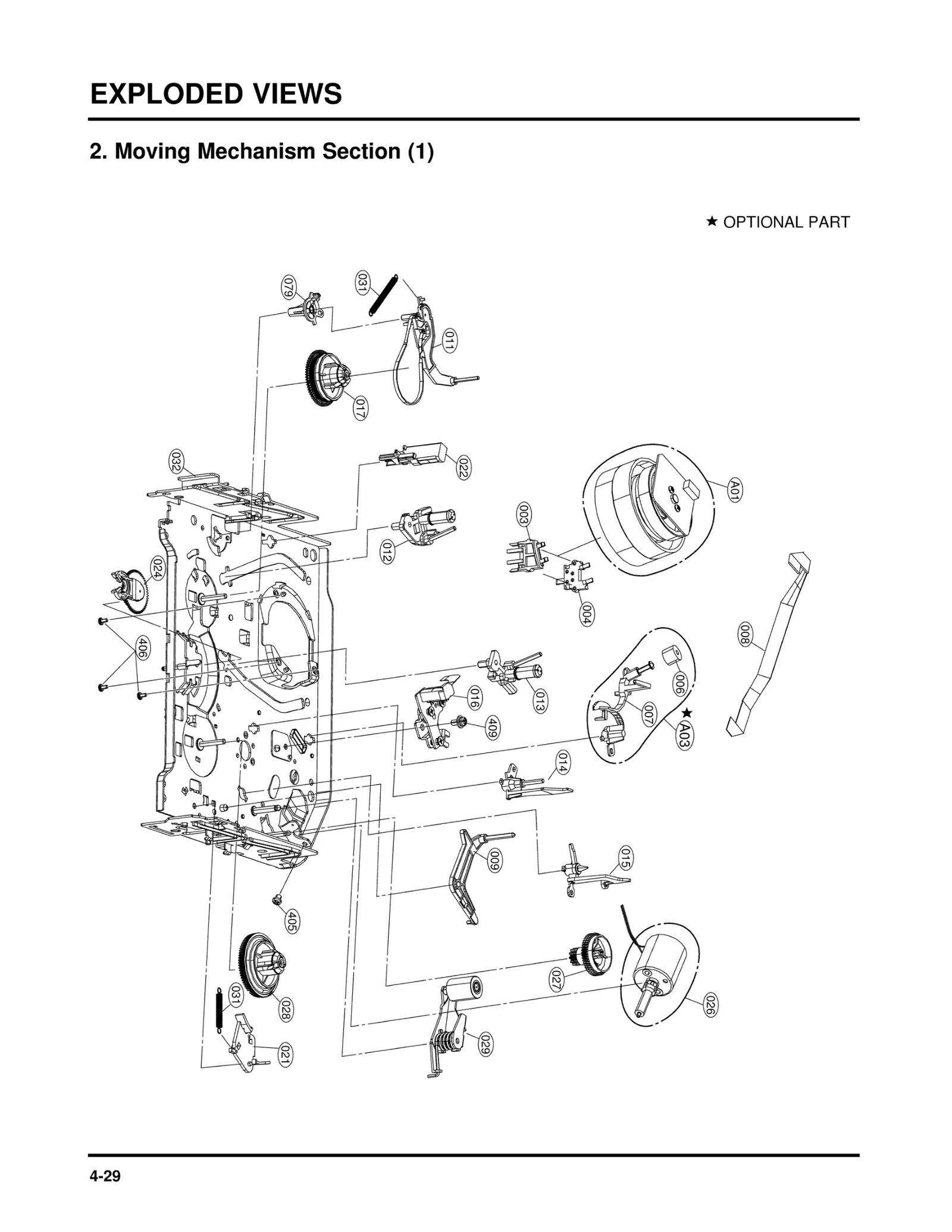

Diagram 3

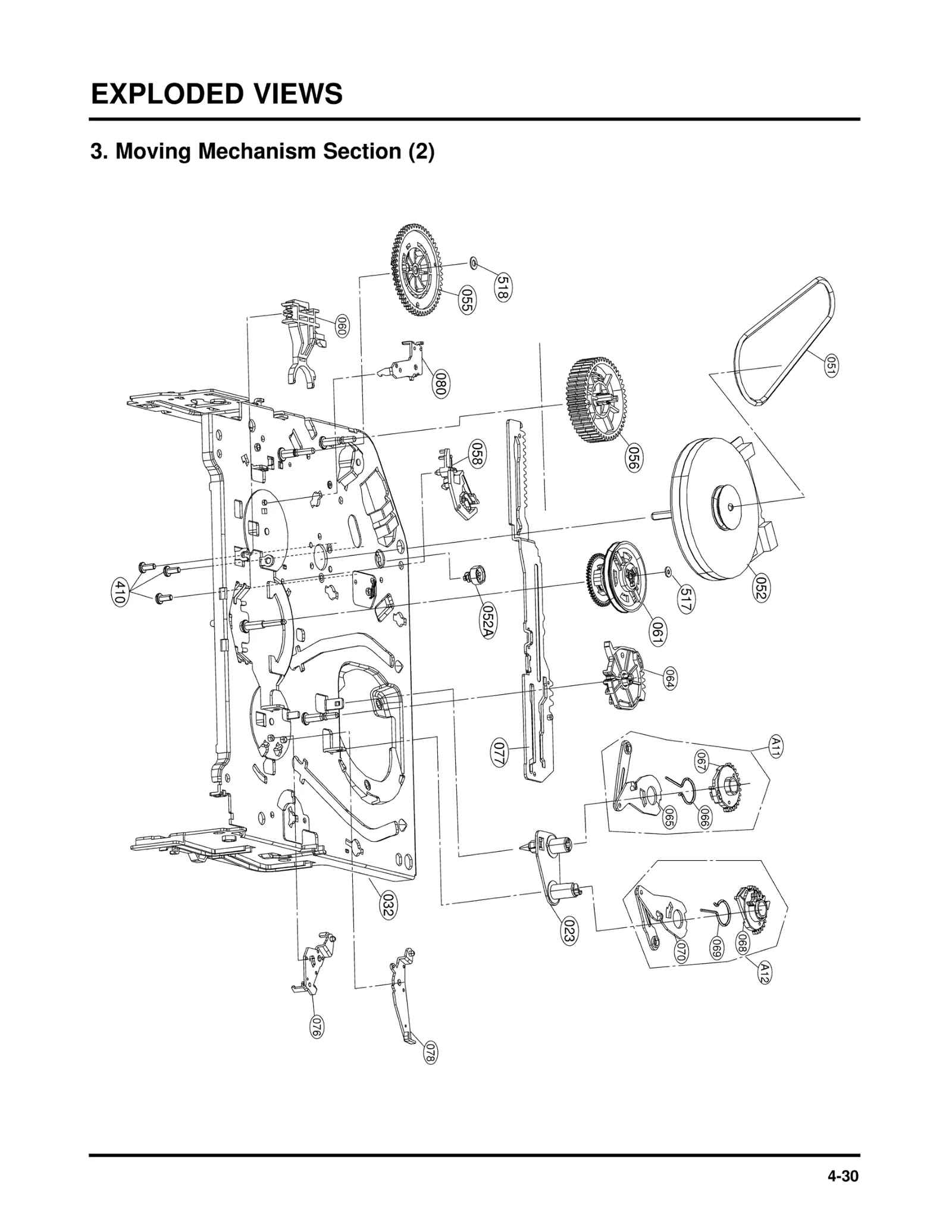

Diagram 4

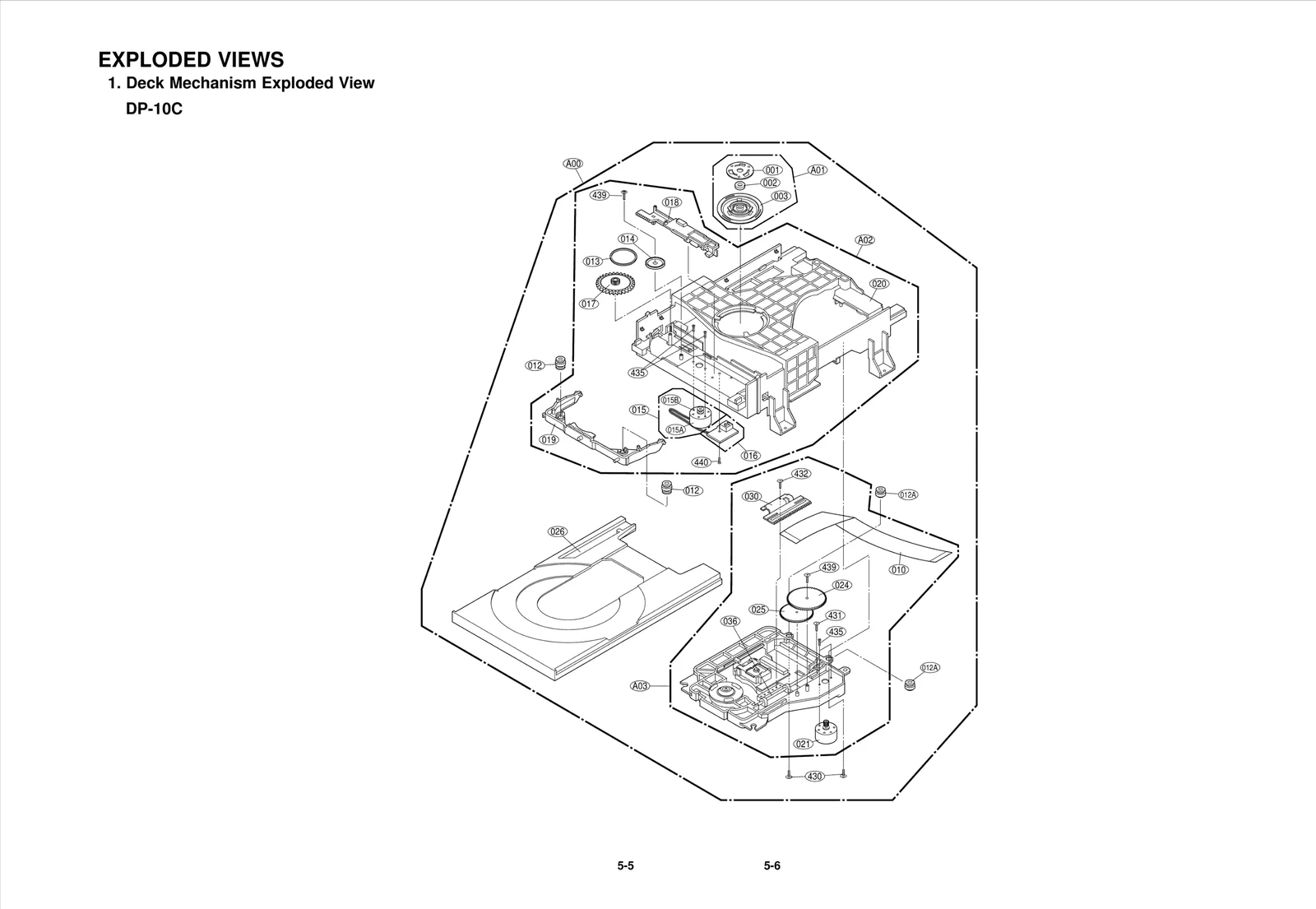

Diagram 5
Diagram 6
Common parts from model LG V194H
001
PLATE LGE 3300R-0547A Contact Us For Availability
002
MAGNET LGE 5016H-1016B Contact Us For Availability
003
HOLDER LGE 4930R-0449A Contact Us For Availability
003
CLAMP LGE 4860R-0021A Contact Us For Availability
004
CAP LGE 5006R-0045A Contact Us For Availability
008
CABLE,FLAT LGE 6850R-HG18Y Contact Us For Availability
009
ARM LGE 4260R-0056A Contact Us For Availability
010
CABLE,FLAT LGE 6850R-JW23Z Contact Us For Availability
011
ARM ASSEMBLY LGE 4261R-0040A Contact Us For Availability
012
BASE ASSEMBLY LGE 3041R-M037B Contact Us For Availability
012
BASE ASSEMBLY LGE 3041R-M037A Contact Us For Availability
012
RUBBER LGE 5040R-0083A Contact Us For Availability
012A
RUBBER LGE 5040R-0110A Contact Us For Availability
013
BASE ASSEMBLY LGE 3041R-M038A Contact Us For Availability
013
BASE ASSEMBLY LGE 3041R-M038B Contact Us For Availability
013
BELT LGE 4400R-0006B Contact Us For Availability
014
GEAR LGE 4470R-0154A Contact Us For Availability
014
BASE ASSEMBLY LGE 3041R-M039A Contact Us For Availability
015
OPENER LGE 5870R-0007A Contact Us For Availability
015
MOTOR ASSEMBLY LGE 4681R-A015A Contact Us For Availability
015A
MOTOR(MECH) LGE 4680R-E008A Contact Us For Availability
015B
Pulley LGE 4560R-0008A Contact Us For Availability
016
PCB Assembly LGE 6871R-9297B Contact Us For Availability
016
BASE ASSEMBLY LGE 3041R-M036D Contact Us For Availability
016
BASE ASSEMBLY LGE 3041R-M036E Contact Us For Availability
017
REEL LGE 4408R-0005B Contact Us For Availability
017
REEL LGE 4408R-0005A Contact Us For Availability
017
GEAR LGE 4470R-0176A Contact Us For Availability
018
GUIDE LGE 4974R-0067A Contact Us For Availability
019
FRAME LGE 3210R-M008A Contact Us For Availability
020
BASE LGE 3040R-M064A Contact Us For Availability
021
BRAKE ASSEMBLY LGE 4421R-M002A Contact Us For Availability
021
MOTOR ASSEMBLY LGE 4681R-B009C Contact Us For Availability
022
HEAD(CIRC) LGE 6520D00004B Contact Us For Availability
022
HEAD(CIRC) LGE 6520D00006A Contact Us For Availability
023
BASE LGE 3040R-M056A Contact Us For Availability
024
GEAR LGE 4470R-0179A Contact Us For Availability
024
ARM ASSEMBLY LGE 4261R-0042A Contact Us For Availability
025
GEAR LGE 4470R-0178A Contact Us For Availability
026
MOTOR ASSEMBLY LGE 4681RF0039A Contact Us For Availability
026
MOTOR ASSEMBLY LGE 4681RF0039C Contact Us For Availability
026
TRAY LGE 3390R-0030A Contact Us For Availability
027
GEAR LGE 4470R-0133A Contact Us For Availability
028
REEL LGE 4408R-0006A Contact Us For Availability
029
ARM ASSEMBLY LGE 4261R-0037B Contact Us For Availability
029
ARM ASSEMBLY LGE 4261R-0037A Contact Us For Availability
029
ARM ASSEMBLY LGE 4261R-0037D Contact Us For Availability
029
ARM ASSEMBLY LGE 4261R-0037C Contact Us For Availability
030
GEAR LGE 4470R-0180A Contact Us For Availability
031
SPRING LGE 4970R-0175A Contact Us For Availability
032
CHASSIS ASSEMBLY LGE 3141R-M002A Contact Us For Availability
036
SHAFT LGE 4370R-0136A Contact Us For Availability
051
BELT LGE 4400R-0005A Contact Us For Availability
052
MOTOR(MECH) LGE 4680R-A015A Contact Us For Availability
052
MOTOR(MECH) LGE 4680R-A016A Contact Us For Availability
052
MOTOR(MECH) LGE 4680R-A016B Contact Us For Availability
052
LGE 4680R-A017A LGE 4680R-A017A Contact Us For Availability
052A
SUPPORTER LGE 4980R-0029A Contact Us For Availability
054
GEAR LGE 4470R-0136A Contact Us For Availability
054A
SPRING LGE 4970R-0171A Contact Us For Availability
055
GEAR LGE 4470R-0140A Contact Us For Availability
056
GEAR LGE 4470R-0139A Contact Us For Availability
058
BRAKE ASSEMBLY LGE 4421R-M001A Contact Us For Availability
060
LEVER LGE 4510R-0065A Contact Us For Availability
061
CLUTCH ASSEMBLY LGE 4265R-0007A Contact Us For Availability
064
GEAR LGE 4470R-0141A Contact Us For Availability
065
ARM ASSEMBLY LGE 4261R-0044A Contact Us For Availability
067
GEAR LGE 4470R-0135A Contact Us For Availability
068
GEAR LGE 4470R-0134A Contact Us For Availability
069
SPRING LGE 4970R-0122A Contact Us For Availability
070
ARM ASSEMBLY LGE 4261R-0043A Contact Us For Availability
076
LEVER LGE 4510R-0063A Contact Us For Availability
077
PLATE LGE 3300R-M203A Contact Us For Availability
078
LEVER LGE 4510R-0062A Contact Us For Availability
079
BASE LGE 3040R-M057A Contact Us For Availability
080
LEVER LGE 4510R-0064A Contact Us For Availability
100
PLATE ASSEMBLY LGE 3301R-M193A Contact Us For Availability
102
SPRING LGE 4970R-0173A Contact Us For Availability
103
HOLDER LGE 4930R-0452A Contact Us For Availability
105
HOLDER LGE 4930R-0450A Contact Us For Availability
106
HOLDER LGE 4930R-0451A Contact Us For Availability
107
LEVER LGE 4510R-0061A Contact Us For Availability
109
OPENER LGE 5870R-0008A Contact Us For Availability
110
ARM LGE 4260R-0051A Contact Us For Availability
112
BODY LGE 3070R-0002A Contact Us For Availability
113
SPRING LGE 4970R-0169A Contact Us For Availability
114
ARM LGE 4260R-0052A Contact Us For Availability
115
LEVER LGE 4510R-0070A Contact Us For Availability
116
SPRING LGE 4970R-0163A Contact Us For Availability
250
CASE LGE 3110R-V024B Contact Us For Availability
260
FRAME LGE 3210R-V011A Contact Us For Availability
271
Plate LGE 3300R-V169A Contact Us For Availability
272
Bracket LGE 4810R-0359A Contact Us For Availability
273
PLATE LGE 3300R-V149A Contact Us For Availability
274
PLATE LGE 3300R-V112A Contact Us For Availability
280
Panel,Front LGE 3720R-F800D Contact Us For Availability
283
Door LGE 3580R-V152B Contact Us For Availability
284
SPRING DOOR P-705M P-710M LGE 442-681A Contact Us For Availability
285
Door LGE 3580R-T216B Contact Us For Availability
286
SPRING LGE 4970R-0146A Contact Us For Availability
288
LGE 4930R-0471A LGE 4930R-0471A Contact Us For Availability
300
POWER CORD LGE 6410RAHP01A Contact Us For Availability
322
CASE LGE 3110R-V013A Contact Us For Availability
323
CASE ASSEMBLY LGE 3111R-0089E Contact Us For Availability
324
HOLDER LGE 4930R-0472A Contact Us For Availability
330
Chassis LGE 3140R-V010R Contact Us For Availability
405
SCREW MACHINE,PAN HE LGE 1MPC0301270 Contact Us For Availability
406
PAN HEAD MACHINE SCREW S/W + LGE 1MEC0302018 Contact Us For Availability
409
SCREW,DRAWING LGE 1SZZR-0032B Contact Us For Availability
410
SCREW TAP TITE(B),PA LGE 1APF0262218 Contact Us For Availability
430
SCREW,DRAWING LGE 1SZZR-0064B Contact Us For Availability
431
SCREW,DRAWING LGE 1SZZR-0062A Contact Us For Availability
432
SCREW,DRAWING LGE 1SZZR-0072A Contact Us For Availability
435
SCREW, LGE 1SZZR-0011A Contact Us For Availability
439
SCREW,DRAWING LGE 1SZZR-0075A Contact Us For Availability
440
SCREW, LGE 1SZZH-1007B Contact Us For Availability
452
SCREW,DRAWING LGE 1SZZR-0098A Contact Us For Availability
457
SCREW,DRAWING LGE 1SZZR-0098E Contact Us For Availability
463
SCREW,DRAWING LGE 1SZZR-0098G Contact Us For Availability
465
SCREW,DRAWING LGE 1SZZR-0097K Contact Us For Availability
469
SCREW,DRAWING LGE 1SZZR-0098J Contact Us For Availability
470
SCREW,DRAWING LGE 1SZZR-0098K Contact Us For Availability
471
SCREW,DRAWING LGE 1SZZR-0098L Contact Us For Availability
517
WASHER LGE 1WZZR-0004D Contact Us For Availability
517
WASHER,DRAWING LGE 1WZZR-0004F Contact Us For Availability
518
WASHER LGE 1WZZR-0004A Contact Us For Availability
801
Manual Assembly LGE 3835RV0051H Contact Us For Availability
802
Box,C/SKD LGE 3890RNC004Z Contact Us For Availability
803
PACKING LGE 3920R-E168A Contact Us For Availability
804
BAG LGE 292-053B Contact Us For Availability
806
CABLE,COAXIAL LGE 6850R-CAA8E Contact Us For Availability
808
BATTERY LGE 534-008C Contact Us For Availability
810
CABLE ASSEMBLY LGE 6851R-0039B Contact Us For Availability
811
CABLE,COAXIAL LGE 6850R-PAA8F Contact Us For Availability
812
CABLE,COAXIAL LGE 6850R-PBA8H Contact Us For Availability
900
Remote Controller As LGE 6711R1N204A Contact Us For Availability
A00
DECK ASSEMBLY,VIDEO LGE 6721RF0943K Contact Us For Availability
A01
DRUM(CIRC) ASSEMBLY LGE 6723R-0603E Contact Us For Availability
A01
CLAMP ASSEMBLY LGE 4861R-0016B Contact Us For Availability
A02
BASE ASSEMBLY LGE 3041R-D040A Contact Us For Availability
A03
Base Assembly LGE 3041R-M075A Contact Us For Availability
A11
GEAR ASSEMBLY LGE 4471R-0017A Contact Us For Availability
A12
GEAR ASSEMBLY LGE 4471R-0015A Contact Us For Availability
A21
HOLDER ASSEMBLY LGE 4931R-0084A Contact Us For Availability
A22
GEAR ASSEMBLY LGE 4471R-0016A Contact Us For Availability
A23
ARM ASSEMBLY LGE 4261R-0038A Contact Us For Availability
A24
LEVER ASSEMBLY LGE 4511R-0005A Contact Us For Availability
A26
Deck Assembly,DVD LGE 6721RFD090D Contact Us For Availability
A43
Panel Assembly,Front LGE 3721R-F981L Contact Us For Availability
A44
Frame Assembly LGE 3141R-V033P Contact Us For Availability
A46
Board Assembly LGE 3501R-9792A Contact Us For Availability
A47
PCB Assembly LGE 6871R-4895B Contact Us For Availability
A50
PCB Assembly LGE 6871R-7907A Contact Us For Availability
A56
Board Assembly LGE 3501R-9371A Contact Us For Availability
BC101
Filter,Bead LGE 636-004C Contact Us For Availability
BD101
DIODE S1WBA60 (1A 600V) LGE 0DD160000DA Contact Us For Availability
C6A5
Capacitor,AL,Radial LGE 0CE1074F638 Contact Us For Availability
C6A6
Capacitor,AL,Radial LGE 0CE4764C638 Contact Us For Availability
C6B2
CAPA,CHIP CERAMIC M/ LGE 0CH4050K172 Contact Us For Availability
C6G1
Capacitor,AL,Chip LGE 0CE4775C638 Contact Us For Availability
C6H7
Capacitor,Ceramic,Chip LGE 0CH4080K112 Contact Us For Availability
C9A1
Capacitor,Ceramic,Chip LGE 0CH1102K512 Contact Us For Availability
C102
CAPACITOR,DRAWING LGE 624-088L Contact Us For Availability
C102
CAPACITOR PCX2 275V 0.1UF M (P LGE 624-088F Contact Us For Availability
C102
Capacitor,Film,Box LGE 624-088N Contact Us For Availability
C103
Capacitor,AL,Radial LGE 0CE1571R6A0 Contact Us For Availability
C105
CAPACITOR,POLYESTER LGE 0CQ1031Y519 Contact Us For Availability
C106
CAPACITOR,FIXED CERAMIC(High d LGE 624-087G Contact Us For Availability
C109
Capacitor,AL,Radial LGE 0CE3366H638 Contact Us For Availability
C110
CAPACITOR,SEMI CERAM LGE 0CG1020U630 Contact Us For Availability
C115
Capacitor,Ceramic,Axial LGE 0CN1040K948 Contact Us For Availability
C123
Capacitor,AL,Radial LGE 0CE477BH630 Contact Us For Availability
C126
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE2276H638 Contact Us For Availability
C127
Capacitor,AL,Radial LGE 0CE228ED610 Contact Us For Availability
C128
Capacitor,AL,Radial LGE 0CE3376D638 Contact Us For Availability
C129
CAPACITOR,FIXED ELEC LGE 0CE2282F611 Contact Us For Availability
C131
Capacitor,AL,Radial LGE 624-082H Contact Us For Availability
C132
Capacitor,AL,Radial LGE 624-085D Contact Us For Availability
C133
Capacitor,Film,DIP LGE 0CQ1042K409 Contact Us For Availability
C135
Capacitor,Ceramic,Axial LGE 0CN2220K518 Contact Us For Availability
C163
CAPACITOR LGE 624-087D Contact Us For Availability
C225
Capacitor,Ceramic,Chip LGE 0CH4101K412 Contact Us For Availability
C307
Capacitor,Ceramic,Chip LGE 0CH1152K512 Contact Us For Availability
C312
Capacitor,Ceramic,Chip LGE 0CH4561K412 Contact Us For Availability
C313
Capacitor,Film,DIP LGE 0CQ2231N409 Contact Us For Availability
C323
CHIP CAPA CERAMIC M/L T.C F/S LGE 0CH4470K412 Contact Us For Availability
C328
Capacitor,AL,Radial LGE 0CE2274C638 Contact Us For Availability
C339
Capacitor,AL,Radial LGE 0CE3354K638 Contact Us For Availability
C340
Capacitor,AL,Radial LGE 0CE1063F638 Contact Us For Availability
C342
Capacitor,Ceramic,Chip LGE 0CH4331K412 Contact Us For Availability
C348
ELECTROLYTIC 1.0M SRA/ (*NSP) LGE 0CE1054K638 Contact Us For Availability
C349
Capacitor,Ceramic,Radial LGE 0CC0500K015 Contact Us For Availability
C354
Capacitor,Ceramic,Chip LGE 0CH1472K562 Contact Us For Availability
C414
Capacitor,AL,Radial LGE 0CE2263F638 Contact Us For Availability
C422
Capacitor,Ceramic,Chip LGE 0CH1105D942 Contact Us For Availability
C425
Capacitor,Ceramic,Chip LGE 0CH4392K412 Contact Us For Availability
C428
Capacitor,Ceramic,Chip LGE 0CH4271K412 Contact Us For Availability
C505
CAPACITOR,CHIP[AL. ELECTROLYTI LGE 0CH8227C621 Contact Us For Availability
C513
CAPACITOR,CHIP[AL. ELECTROLYTI LGE 0CH8476C611 Contact Us For Availability
C515
Capacitor,Ceramic,Chip LGE 0CH4240K412 Contact Us For Availability
C526
Capacitor,AL,Radial LGE 0CE4765K618 Contact Us For Availability
C542
Capacitor,Ceramic,Chip LGE 0CH4681K412 Contact Us For Availability
C544
Capacitor,Ceramic,Chip LGE 0CH1473H942 Contact Us For Availability
C546
CAPACITOR,ELECTROLYTIC LGE 0CE4764H638 Contact Us For Availability
C570
Capacitor,Ceramic,Chip LGE 0CH4180K412 Contact Us For Availability
C571
Capacitor,Ceramic,Chip LGE 0CH4200K412 Contact Us For Availability
C580
Capacitor,Ceramic,Chip LGE 0CH1223K942 Contact Us For Availability
C589
Capacitor,Ceramic,Chip LGE 0CH4221K412 Contact Us For Availability
C593
Capacitor,Ceramic,Chip LGE 0CH4471K412 Contact Us For Availability
C596
Capacitor,Ceramic,Chip LGE 0CH4120K412 Contact Us For Availability
C602
CAPACITOR,FIXED CERA LGE 0CH1273F562 Contact Us For Availability
C614
Capacitor,Ceramic,Axial LGE 0CN1020K518 Contact Us For Availability
C622
Capacitor,Ceramic,Chip LGE 0CH4150K412 Contact Us For Availability
C652
CAPACITOR,FIXED CERA LGE 0CH1101F642 Contact Us For Availability
C663
Capacitor,Ceramic,Chip LGE 0CH4330K412 Contact Us For Availability
C664
CAPACITOR,CHIP[CERAM LGE 0CH1104K942 Contact Us For Availability
C671
Capacitor,Ceramic,Chip LGE 0CH1103K562 Contact Us For Availability
C672
Capacitor,Ceramic,Chip LGE 0CH1102K562 Contact Us For Availability
C675
Capacitor,Ceramic,Chip LGE 0CH1223F512 Contact Us For Availability
C704
CAPACITOR,FIXED CERAMIC(Temp.c LGE 0CH1104K512 Contact Us For Availability
C707
Capacitor,Ceramic,Chip LGE 0CH4300K412 Contact Us For Availability
C822
Capacitor,Ceramic,Chip LGE 0CH1222K562 Contact Us For Availability
C827
Capacitor,Ceramic,Chip LGE 0CH1105F942 Contact Us For Availability
C828
Capacitor,AL,Radial LGE 0CE4764F638 Contact Us For Availability
C833
Capacitor,AL,Radial LGE 0CE2264F638 Contact Us For Availability
C851
C.ELECTROLYTIC 4.7M SRA 50VGVP LGE 0CE4754K638 Contact Us For Availability
C872
Capacitor,Ceramic,Chip LGE 0CH4560K412 Contact Us For Availability
C875
Capacitor,Ceramic,Chip LGE 0CH1333K562 Contact Us For Availability
C879
Capacitor,AL,Radial LGE 0CE2254K638 Contact Us For Availability
C903
Capacitor,AL,Radial LGE 0CE1086C638 Contact Us For Availability
C921
Capacitor,Ceramic,Chip LGE 0CH4151K412 Contact Us For Availability
C923
Capacitor,Ceramic,Chip LGE 0CH4181K412 Contact Us For Availability
C992
Capacitor,Ceramic,Chip LGE 0CH4270K412 Contact Us For Availability
CN1
CONNECTOR (CIRC),BOA LGE 6630B60E908 Contact Us For Availability
CN201
CONNECTOR(CIRC),FFC/FPC LGE 6630R-FB10W Contact Us For Availability
CN202
CONNECTOR (CIRC),FFC LGE 6630R-FB109 Contact Us For Availability
CN504
CONNECTOR (CIRC),FFC LGE 6630HXE440X Contact Us For Availability
CN609
CONNECTOR FH-R20R UG3 LGE 561-711D Contact Us For Availability
CS501
SWITCH,PUSH LGE 6600M000026 Contact Us For Availability
D101
DIODE LGE 0DD221009AA Contact Us For Availability
D102
DIODE EU01W(R-FORM) T R-B413M LGE 0DD010009AC Contact Us For Availability
D110
DIODE,SWITCHING LGE 0DSDI00110A Contact Us For Availability
D110
DIODE,SWITCHING LGE 0DSGF00040A Contact Us For Availability
D111
DIODE,RECTIFIERS LGE 0DRVH00010A Contact Us For Availability
D113
DIODE,RECTIFIER LGE 0DR104009BA Contact Us For Availability
D118
DIODE,SWITCHING LGE 0DSKE00141B Contact Us For Availability
D121
DIODE 1SS133 DETECT, SW TP LGE 0DD133009AA Contact Us For Availability
D201
DIODE,RECTIFIER LGE 0DR104009AB Contact Us For Availability
D401
DIODE,SWITCHING LGE 0DSRM00118A Contact Us For Availability
ES502
HOLDER ASSEMBLY LGE 4931R-0085C Contact Us For Availability
FR101
RESISTOR,FIXED CEMEN LGE 0RM0221K634 Contact Us For Availability
IC101
IC,POWER MANAGEMENT LGE 0IPMG00047A Contact Us For Availability
IC102
SENSOR LTV-817B PHOTO COUPLER LGE 657-063A Contact Us For Availability
IC102
SENSOR LGE 6500RDB011B Contact Us For Availability
IC103
IC,POWER MANAGEMENT LGE 0IPMGUC004B Contact Us For Availability
IC103
IC KEC, KIA431, GVR-C435/R-E4 LGE 0IKE431000A Contact Us For Availability
IC201
IC,LINEAR LGE 0ILNR00091A Contact Us For Availability
IC221
IC,POWER MANAGEMENT LGE 0IPMGKE022B Contact Us For Availability
IC301
IC,LINEAR LGE 0ILNRHI009B Contact Us For Availability
IC301
IC,LINEAR LGE 0ILNRHI009A Contact Us For Availability
IC401
IC,PERIPHERALS LGE 0IPRPCI002B Contact Us For Availability
IC402
IC,JRC LGE 0IJR458000B Contact Us For Availability
IC402
IC,LINEAR LGE 0ILNRUC001A Contact Us For Availability
IC501
IC,MICRO CONTROLLER LGE 0IMCRMI105D Contact Us For Availability
IC502
IC,Unclassified LGE 0ISTL00089A Contact Us For Availability
IC504
IC KEC KIA7031P 3P 3.1V RES LGE 0IKE703100A Contact Us For Availability
IC505
IC KIA7042P SP 4.2V RESET, KE LGE 0IKE704200B Contact Us For Availability
IC601
IC,LINEAR LGE 0ILNRPY001A Contact Us For Availability
IC601
IC,Video Processors LGE 0ILNR00177A Contact Us For Availability
IC601
LGE 0IPRPG5001A LGE 0IPRPG5001A Contact Us For Availability
IC603
IC,MEMORIES LGE 0IMMRHY001M Contact Us For Availability
IC603
IC,MEMORIES LGE 0IMMREB004E Contact Us For Availability
IC604A
S/W,Firmware LGE 6957R-937AA Contact Us For Availability
IC605
IC,MEMORIES LGE 0IMMRSS038A Contact Us For Availability
IC801
IC,LINEAR LGE 0ILNRSA013B Contact Us For Availability
J604
Resistor,Chip LGE 0RH1100C622 Contact Us For Availability
JK502
Conector,I/O LGE 6630C00032B Contact Us For Availability
JK601
JACK,RCA LGE 6612J00055A Contact Us For Availability
JK901
JACK,RCA LGE 6612J00049A Contact Us For Availability
JK903
JACK,FIBER OPTIC LGE 6612K00003D Contact Us For Availability
JK904
JACK,DIN LGE 6612B00011A Contact Us For Availability
JK905
CONNECTOR(CIRC),DRAW LGE 6630R-SY08W Contact Us For Availability
L6G1
INDUCTOR RADIAL LEAD 470M K 6X LGE 0LR4700K035 Contact Us For Availability
L102
FILTER(CIRC) LGE 616-145L Contact Us For Availability
L102
Filter,Unclassified LGE 616-145G Contact Us For Availability
L122
COIL,RF LGE 6140R-C011A Contact Us For Availability
L125
COIL,CHOKE LGE 633-088G Contact Us For Availability
L300
INDUCTOR,RADIAL LEAD LGE 0LR0332K035 Contact Us For Availability
L307
INDUCTOR AXIAL LEAD 12M K 2.3X LGE 0LA0122K018 Contact Us For Availability
L310
INDUCTOR,CHIP LGE 0LCCE00004L Contact Us For Availability
L511
LGE 0LA0221K018 LGE 0LA0221K018 Contact Us For Availability
L602
FILTER(CIRC),EMI LGE 6200HJC102A Contact Us For Availability
L602
INDUCTOR AXIAL LEAD * R-V422M LGE 0LA1000K018 Contact Us For Availability
L610
FILTER(CIRC),EMI LGE 6200S-JC01B Contact Us For Availability
L701
INDUCTOR RADIAL LEAD R-E41M 1U LGE 0LR0102K035 Contact Us For Availability
L822
Inductor,Wire Wound,Radial LGE 0LR1000K035 Contact Us For Availability
L909
LGE 0LA0102K018 LGE 0LA0102K018 Contact Us For Availability
LD501
HOLDER ASSEMBLY LGE 4931R-0089C Contact Us For Availability
LED501
LGE 6301R2U012A LGE 6301R2U012A Contact Us For Availability
LED501
LED ASSEMBLY LGE 6301R3U012A Contact Us For Availability
MS501
SWITCH,MODE LGE 6600JR3002D Contact Us For Availability
MS501
SWITCH,MODE LGE 6600JR3002E Contact Us For Availability
P3D01
CONNECTOR(CIRC),DRAWING LGE 561-234S Contact Us For Availability
P3D02
CONNECTOR(CIRC),DRAW LGE 6630R5S008J Contact Us For Availability
P3D03
Connector,BtoB LGE 561-251B Contact Us For Availability
P6M01
CONNECTOR (CIRC) LGE 561-844L Contact Us For Availability
P6M05
CONNECTOR(CIRC),DRAW LGE 561-844D Contact Us For Availability
P6602
Connector,BtoB LGE 6630S-BC01H Contact Us For Availability
P6603
Connector,BtoB LGE 6630S-BC02H Contact Us For Availability
PM601
CONNECTOR (CIRC) LGE 561-843L Contact Us For Availability
PM603
CONNECTOR (CIRC) LGE 561-843D Contact Us For Availability
PMC01
CONNECTOR (CIRC),BOA LGE 6630BK01612 Contact Us For Availability
PPM01
CONNECTOR (CIRC),BOA LGE 6630R-BF03H Contact Us For Availability
PW101
CONNECTOR (CIRC) LGE 561-292B Contact Us For Availability
Q156
TRANSISTOR LGE 0TR232809AB Contact Us For Availability
Q156
TRANSISTOR KTC3205-TP-Y (KEC2 LGE 0TR320509AB Contact Us For Availability
Q161
TRANSISTOR,BIPOLARS LGE 0TR126809BA Contact Us For Availability
Q164
TRANSISTOR LGE 0TR534409AA Contact Us For Availability
Q164
TRANSISTOR KTC3203-TP-Y(KTC212 LGE 0TR320309AA Contact Us For Availability
Q202
TR,Bipolar LGE 0TR103709BB Contact Us For Availability
Q204
TRANSISTOR,BIPOLARS LGE 0TRKE80068A Contact Us For Availability
Q302
TRANSISTOR LGE 0TR127309AA Contact Us For Availability
Q302
TR,Bipolar LGE 0TR928009AD Contact Us For Availability
Q302
TRANSISTOR,BIPOLARS LGE 0TR127709AB Contact Us For Availability
Q303
TR,Bipolar LGE 0TR103009AA Contact Us For Availability
Q405
TRANSISTOR KRA103S-T1(PC)22-22 LGE 0TR103009AC Contact Us For Availability
Q501
TR,Bipolar LGE 0TRAU80017A Contact Us For Availability
Q501
TR,Bipolar LGE 0TRON80009A Contact Us For Availability
Q507
TR,Bipolar LGE 0TR150409AC Contact Us For Availability
Q603
TR,Bipolar LGE 0TR390409DA Contact Us For Availability
Q902
TR CHIP KTC3875S-GR-T1(ALG) K LGE 0TR387509AC Contact Us For Availability
Q915
TRANSISTOR,FETS LGE 0TFPH80002A Contact Us For Availability
R2M5
Resistor,Chip LGE 0RH2700C622 Contact Us For Availability
R5A3
Resistor,Chip LGE 0RH2001C622 Contact Us For Availability
R6J3
Filter,Bead LGE 0LC11608D01 Contact Us For Availability
R100
RESISTOR,FIXED CARBON FILM LGE 0RD1504H632 Contact Us For Availability
R104
RESISTOR,FIX METAL FILM OXIDE LGE 0RS5602K619 Contact Us For Availability
R105
RESISTOR FIXED CARBON FILM 10 LGE 0RD0102F608 Contact Us For Availability
R112
Resistor,Carbon Film LGE 0RD2200F608 Contact Us For Availability
R115
Resistor,Metal Film LGE 0RN3301F408 Contact Us For Availability
R116
Resistor,Metal Film LGE 0RN2701F408 Contact Us For Availability
R117
Resistor,Carbon Film LGE 0RD2700F608 Contact Us For Availability
R119
RESISTOR FIXED CARBON FILM 100 LGE 0RD1003F608 Contact Us For Availability
R124
RESISTOR,FIXED METAL LGE 0RS0600K619 Contact Us For Availability
R202
Resistor,Chip LGE 0RH1001C422 Contact Us For Availability
R206
Resistor,Chip LGE 0RH1000C422 Contact Us For Availability
R208
Resistor,Chip LGE 0RH1501C622 Contact Us For Availability
R213
Resistor,Chip LGE 0RH2202C622 Contact Us For Availability
R217
Resistor,Chip LGE 0RH0331C622 Contact Us For Availability
R219
Resistor,Chip LGE 0RH0471C622 Contact Us For Availability
R226
Resistor,Chip LGE 0RH2201C622 Contact Us For Availability
R301
Resistor,Chip LGE 0RH1202C622 Contact Us For Availability
R302
Resistor,Chip LGE 0RH3303C622 Contact Us For Availability
R307
Resistor,Chip LGE 0RH7501C622 Contact Us For Availability
R338
Resistor,Chip LGE 0RH5601C622 Contact Us For Availability
R339
Resistor,Chip LGE 0RJ6804C677 Contact Us For Availability
R403
Resistor,Chip LGE 0RH0000C622 Contact Us For Availability
R409
Resistor,Chip LGE 0RH8201C622 Contact Us For Availability
R420
Resistor,Chip LGE 0RH6801C622 Contact Us For Availability
R421
LGE 0RH0561C622 LGE 0RH0561C622 Contact Us For Availability
R437
Resistor,Chip LGE 0RH3300C622 Contact Us For Availability
R509
Resistor,Chip LGE 0RH5600C622 Contact Us For Availability
R521
Resistor,Chip LGE 0RH2701C622 Contact Us For Availability
R532
RESISTOR,CHIP LGE 0RH1002C622 Contact Us For Availability
R537
Resistor,Chip LGE 0RH4701C622 Contact Us For Availability
R544
Resistor,Chip LGE 0RH1003C622 Contact Us For Availability
R550
Resistor,Chip LGE 0RH2200C622 Contact Us For Availability
R554
Resistor,Chip LGE 0RH1004C622 Contact Us For Availability
R564
Resistor,Chip LGE 0RH2702C622 Contact Us For Availability
R573
Resistor,Chip LGE 0RH0752C622 Contact Us For Availability
R587
Resistor,Chip LGE 0RH1801C622 Contact Us For Availability
R598
Resistor,Chip LGE 0RH1201C622 Contact Us For Availability
R601
Resistor,Chip LGE 0RH3902C622 Contact Us For Availability
R604
Resistor,Carbon Film LGE 0RD5602F608 Contact Us For Availability
R604
RESISTOR,METAL GLAZE LGE 0RH4302C622 Contact Us For Availability
R605
Resistor,Carbon Film LGE 0RD3300F608 Contact Us For Availability
R605
Resistor,Chip LGE 0RH2002C422 Contact Us For Availability
R611
Resistor,Carbon Film LGE 0RD6800F608 Contact Us For Availability
R612
Resistor,Chip LGE 0RH0752C422 Contact Us For Availability
R612
Resistor,Carbon Film LGE 0RD8200F608 Contact Us For Availability
R613
Resistor,Carbon Film LGE 0RD1201F608 Contact Us For Availability
R613
RESISTOR,METAL GLAZE LGE 0RJ3920C477 Contact Us For Availability
R615
Resistor,Carbon Film LGE 0RD2201F608 Contact Us For Availability
R619
Resistor,Carbon Film LGE 0RD1501F608 Contact Us For Availability
R631
RESISTOR,METAL GLAZE LGE 0RJ4300C477 Contact Us For Availability
R641
Resistor,Carbon Film LGE 0RD0752F608 Contact Us For Availability
R647
Resistor,Chip LGE 0RH0332C622 Contact Us For Availability
R651
Resistor,Chip LGE 0RH3302C622 Contact Us For Availability
R678
RESISTOR,CHIP LGE 0RH1000C622 Contact Us For Availability
R683
Resistor,Chip LGE 0RH4700C622 Contact Us For Availability
R685
Resistor,Chip LGE 0RH3301C622 Contact Us For Availability
R707
Resistor,Chip LGE 0RH6800C622 Contact Us For Availability
R805
RH 47K-J 1/16W GVC-F475,F477 LGE 0RH4702C622 Contact Us For Availability
R807
Resistor,Chip LGE 0RH5602C622 Contact Us For Availability
R809
Resistor,Chip LGE 0RH1800C622 Contact Us For Availability
R823
Resistor,Chip LGE 0RH3002C622 Contact Us For Availability
R867
Resistor,Chip LGE 0RH1502C622 Contact Us For Availability
R907
Resistor,Chip LGE 0RH8202C622 Contact Us For Availability
R913
Resistor,Chip LGE 0RH0222C622 Contact Us For Availability
R914
RESISTOR,CHIP LGE 0RH1001C622 Contact Us For Availability
R915
Resistor,Chip LGE 0RH0102C622 Contact Us For Availability
R982
Resistor,Chip LGE 0RH0562C622 Contact Us For Availability
RA902
RESISTOR,DRAWING LGE 0RRZVTA0011 Contact Us For Availability
RC601
REMOTE CONTROLLER RE LGE 6712R1638GB Contact Us For Availability
RS502
SENSOR LGE 6500RAB008A Contact Us For Availability
SW609
SWITCH,TACT LGE 556-219B Contact Us For Availability
SW609
SWITCH,TACT LGE 6600R000036 Contact Us For Availability
SW609
Switch,Tact LGE 6600RRT001Q Contact Us For Availability
T101
TRANSFORMER,SMPS[COI LGE 6170RNGW12Q Contact Us For Availability
TU701
TUNER LGE 6700NFNL05A Contact Us For Availability
V101
VARISTOR LGE 656-004C Contact Us For Availability
X301
RESONATOR,CRYSTAL LGE 6212AB2359C Contact Us For Availability
X301
Crystal LGE 6212AB2359E Contact Us For Availability
X501
RESONATOR,CRYSTAL LGE 6202R-DA01B Contact Us For Availability
X502
RESONATOR,CRYSTAL LGE 6212AA2148F Contact Us For Availability
X601
CRYSTAL,STANDARD LGE 6202R-BL06C Contact Us For Availability
ZD101
DIODE,ZENER LGE 0DZ202609AA Contact Us For Availability
ZD103
DIODE,ZENER LGE 0DZ622609BB Contact Us For Availability
ZD103
DIODE,ZENER LGE 0DZ132609BB Contact Us For Availability
ZD152
LGE 0DZ102609BB LGE 0DZ102609BB Contact Us For Availability
ZD503
LGE 0DZ562609BB LGE 0DZ562609BB Contact Us For Availability
× ![]()
Login and Registration Form
