Model LG URFS518S – Common Parts & Diagrams

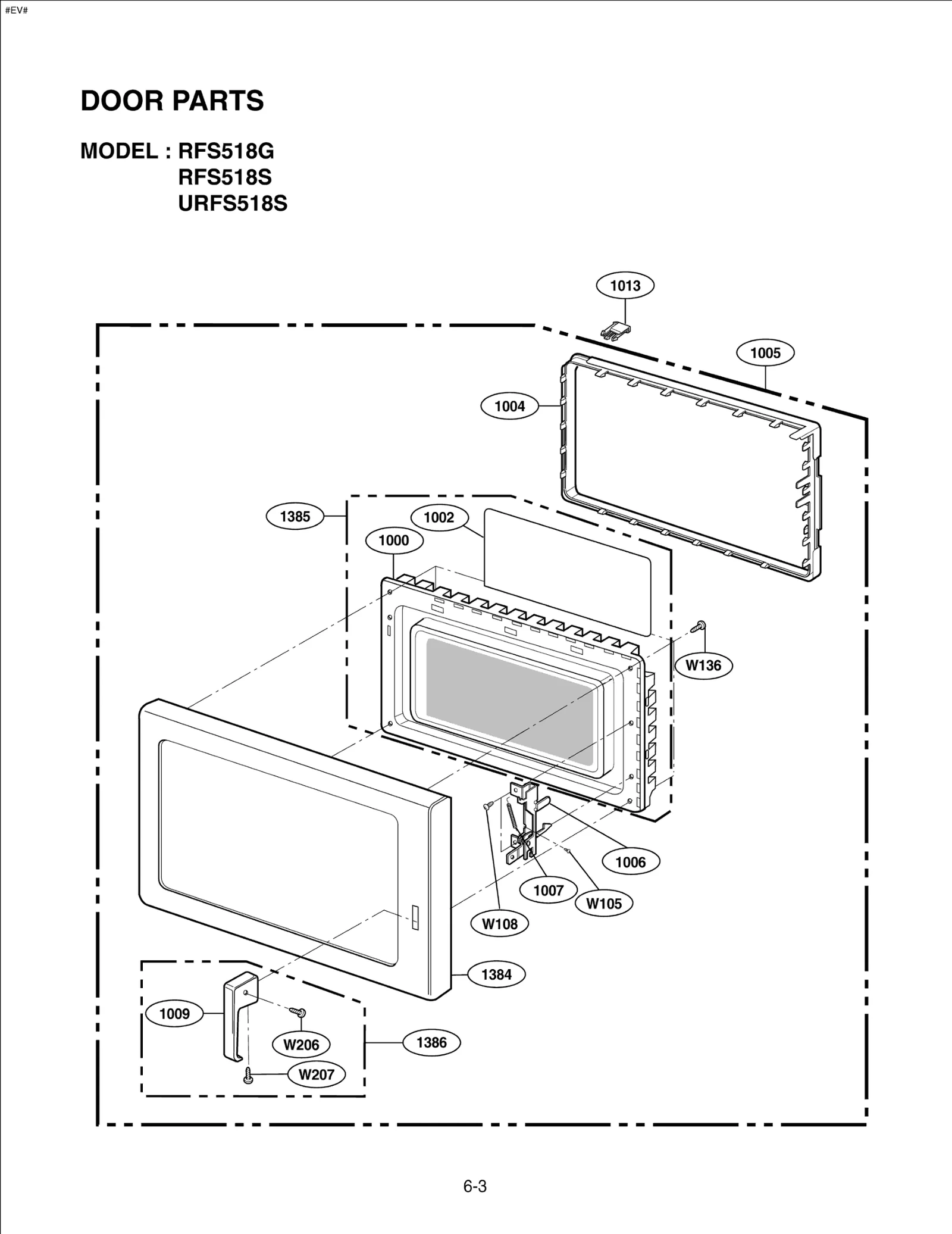

Diagram 0
Diagram 1
Diagram 2
Diagram 3
Diagram 4
Diagram 5
Diagram 6
Common parts from model LG URFS518S
1386
SERVICE PARTS LGE 383EW5A266A Contact Us For Availability
2000
KEY MEMBRANE LGE 3506W1A512A Contact Us For Availability
2004
Controller Assembly,Keypad LGE 4781W1M348L Contact Us For Availability
2006
PWB(PCB) ASSEMBLY,SUB LGE 6871W1S219F Contact Us For Availability
2381
SERVICE PARTS LGE 383EW5A159K Contact Us For Availability
3001
Case,Flat LGE 3112W0F024A Contact Us For Availability
3004
RIVET ASSEMBLY LGE 4051W1A001A Contact Us For Availability
3007
INSULATOR LGE 5012W1A016A Contact Us For Availability
3009
MOTOR(CIRC),SYNCHRONOUS LGE 2B72754Y Contact Us For Availability
3026
FILTER(MECH),GREASE LGE 5230W1A006B Contact Us For Availability
3028
LAMP[OVEN/BASELESS] LGE 3B71186A Contact Us For Availability
3031
COVER,POWER CORD LGE 3550W1A221A Contact Us For Availability
3381
LAMP BRACKET ASSEMBLY LGE 383EW5A159G Contact Us For Availability
3901
Gasket LGE 4986W1A002C Contact Us For Availability
3902
Gasket LGE 4986W1A002D Contact Us For Availability
4000
BOARD,LATCH LGE 3500W1A026A Contact Us For Availability
4001
BOARD ASSEMBLY,LATCH LGE 3501W1A034H Contact Us For Availability
4002
SWITCH,MICRO LGE 6600W1K001G Contact Us For Availability
4004
LEVER LGE 4510W1A008A Contact Us For Availability
4008
Lever LGE 4510W1A021A Contact Us For Availability
5000
CAPACITOR,DRAWING[HIGH VOLTAGE LGE 0CZZW1H009C Contact Us For Availability
5000
Capacitor,AL,Radial LGE 0CZZW1H009F Contact Us For Availability
5001
FUSE,DRAWING LGE 3B70856T Contact Us For Availability
5008
Transformer,high voltage LGE 6170W1D089G Contact Us For Availability
5008
TRANSFORMER,HIGH VOLTAGE LGE 6170W1D089C Contact Us For Availability
5009
MAGNETRON LGE 6324W1A001J Contact Us For Availability
5010
POWER CORD ASSEMBLY LGE 6411W1A024J Contact Us For Availability
5013
CABLE ASSEMBLY LGE 6851W1A001G Contact Us For Availability
5014
HARNESS LGE 6877W1A528A Contact Us For Availability
5016
THERMOSTAT,BIMETAL LGE 6930W1A002D Contact Us For Availability
5016
THERMOSTAT (110/0 PW-2N VERT) LGE 6930WRT003C Contact Us For Availability
5017
FUSE HOLDER LGE 6820W1A001A Contact Us For Availability
5020
Thermostat LGE 6930W1A004G Contact Us For Availability
5020
THERMOSTAT,BIMETAL LGE 6930W1A001F Contact Us For Availability
5024
FAN ASSEMBLY LGE 5901W1A001D Contact Us For Availability
5033
CABLE ASSY,CIRCUIT PROTECTOR LGE 6851W1A001A Contact Us For Availability
5033
CABLE ASSEMBLY LGE 6851W1A001C Contact Us For Availability
5040
SUPPORTER LGE 4980W1A085A Contact Us For Availability
5041
FILTER ASSEMBLY(CIRC) LGE 6201W1A009B Contact Us For Availability
5042
FAN ASSEMBLY LGE 5901W1A001E Contact Us For Availability
5045
COVER,LAMP LGE 3550W1A236A Contact Us For Availability
5102
DUCT LGE 5208W1A019A Contact Us For Availability
5103
Duct LGE 5208W1A023A Contact Us For Availability
5104
DUCT LGE 5208W1A020A Contact Us For Availability
5105
Duct LGE 5208W0A012A Contact Us For Availability
5105
DUCT LGE 383EW5A159E Contact Us For Availability
5106
DUCT ASSEMBLY LGE 5209W1A014A Contact Us For Availability
5201
BRACKET,MISC LGE 4810W1A208A Contact Us For Availability
5203
BRACKET,CAPACITOR LGE 4810WRC002B Contact Us For Availability
5204
BRACKET,CAPACITOR LGE 4810W1A172A Contact Us For Availability
5302
MOTOR ASSEMBLY LGE 4681W1A004B Contact Us For Availability
6000
BASE PLATE LGE 3302W0A042A Contact Us For Availability
6001
Plate Assembly,Base LGE 3303W0A028E Contact Us For Availability
6013
COVER,BASE LGE 3550W1A220A Contact Us For Availability
7037
TRAY,CERAMIC LGE 3390W1A020B Contact Us For Availability
9002
CUSHION (5*8*900) MV-1325S W/P LGE 3B72244Q Contact Us For Availability
MAY1
Box LGE 3890W3Y002E Contact Us For Availability
MFL1
Manual,Owners LGE MFL06414103 Contact Us For Availability
W121
TRUSS HEAD TP SCREW+2 CUT MV- LGE 1TTL0402422 Contact Us For Availability
W158
SCREW TAPPING,COUNTER SUNK HEA LGE 1TCL0402622 Contact Us For Availability
W162
SCREW,DRAWING LGE 4000W3A001D Contact Us For Availability
W207
SCREW,DRAWING LGE 4000W4A001D Contact Us For Availability
× ![]()
